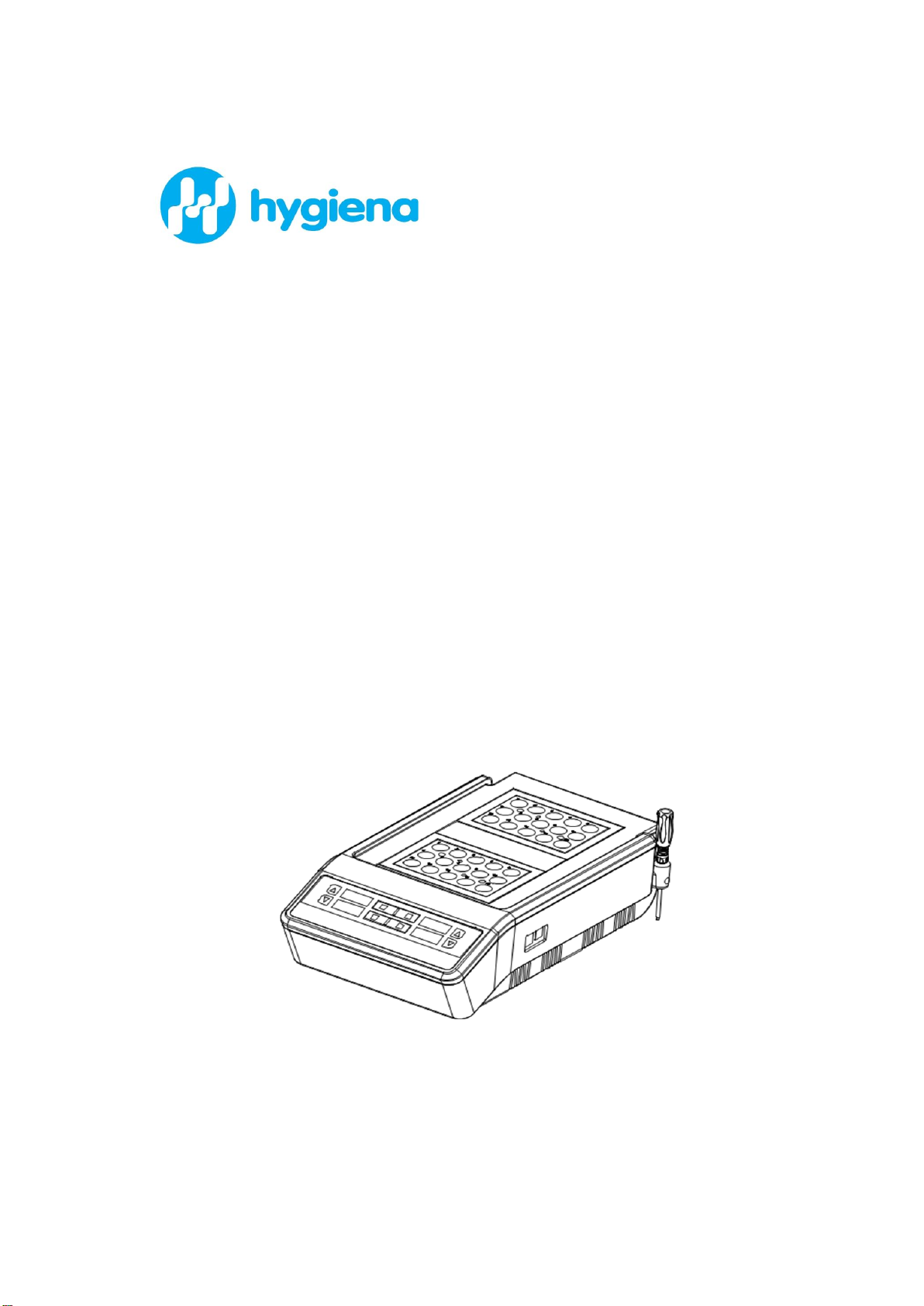

Operation Manual

Dual Temperature Digital

Dry Block Incubator

Catalog No. INCUBATOR2

Rev C. April 2016

- 2 -

Thank you for your purchase. This manual contains operation information for the Dual

Temperature Digital Dry Block Incubator (catalog no. INCUBATOR2).

Opening Check

Please check the instrument and packing list when you first open the instrument

packing case. If you find there is something wrong or missing with the instrument,

contact Hygiena at www.Hygiena.com.

- 3 -

Safety Warnings and Guidelines

1. Important operation information:

In order to use the instrument properly, please read the manual thoroughly before

use.

2. Safety:

The operation, maintenance and repair of the instrument should comply

with the basic guidelines below. Failure to comply may have an effect on

the life of the instrument and the protection provided.

This product is an indoor Instrument which conforms to Standard B

style- I type- GB9706.1.

Before using the device, read the manual carefully. These units are

designed for use in laboratory environments. The device must be used

by skilled personnel with the appropriate training.

The operator should not open or attempt to repair the Instrument by

himself, which will result in loss of repair guarantee or may cause an

accident. If there is something wrong with the Instrument, contact

Hygiena.

A.C. power grounding should be reliable to safeguard against an electric

shock. The 3-pin plug supplied with power cable is a safety device that

should be matched with a suitable grounded socket.

The instrument should be operated in an environment with low

temperature, little dust, no water and away from sunlight or strong lamp.

The location should have good airflow, no corrosive gas or strong

disturbing magnetic field. It should be far away from central heating,

camp stove and other heat resources. The vent on the Instrument is

designed for aeration. In order to prevent overheating, do not cover the

vent. If you use the more than one Instrument the same time, the distance

between them should be more than 100cm.

Before turning the incubator on, verify the voltage matches the

requirements. If the electric chord is damaged, the user should replace it

with the same type. The user should assure there’s nothing on the

electric line and the user should not put the electric line in the

ambulatory place. Hold the plug when removing from the socket, do not

pull the electric chord.

- 4 -

3. Maintenance & Cleaning

To ensure optimal functionality and thermal conductivity, the wells on

the block should be cleaned regularly. Clean the wells with a soft, clean

cloth, dampened with a little alcohol.

Power the instrument off when not in use. For extended non-use, unplug

the electric chord and cover the incubator with a cloth to shield from dust.

Turn the power off when cleaning the Instrument.

When cleaning the wells, do not drop cleaning liquid into the well.

Do not use corrosive cleaning liquid.

In the case of the following scenarios, pull the connector plug from the

jack at once and contact the vendor:

There is some liquid flowing into the instrument.

Fire damage.

Abnormal operation: such as abnormal sound or smell.

Dropped instrument or outer shell damaged.

Any other major functionality change.


- 5 -


Contents

SECTION 1 INTRODUCTION---------------------------------------------------------------------------------- 6
SECTION 2 SPECIFICATIONS-------------------------------------------------------------------------------- 7
1. NORMAL OPERATING CONDITION:----------------------------------------------------------------- 7
2. BASIC PARAMETERS AND CHARACTERISTICS------------------------------------------------ 7
3. OPTIONAL BLOCK -----------------------------------------------------------------------------------------8
SECTION 3 BASIC INSTRUCTIONS------------------------------------------------------------------------ 9
1. STRUCTURE OVERVIEW-------------------------------------------------------------------------------- 9
2. KEYPADS ----------------------------------------------------------------------------------------------------10
3. DISPLAY------------------------------------------------------------------------------------------------------10
SECTION 4 OPERATION GUIDE----------------------------------------------------------------------------11
1. TEMPERATURE AND TIME SETTING---------------------------------------------------------------11
2. RUNNING AND STOPPING A PROGRAM ---------------------------------------------------------12
3. TEMPERATURE CALIBRATION ----------------------------------------------------------------------13
4. TEMPERATURE CONTROL BY EXTERNAL SENSOR-----------------------------------------18
5. HOW TO EXCHANGE A METAL BLOCK--------------------------------------------------------------18
SECTION 5 FAILURE ANALYSIS AND TROUBLESHOOTING ------------------------------------- 0
APPENDIX：WIRING DIAGRAM----------------------------------------------------------------------------- 1

Operation manual for INCUBATOR2 Section 2 Specifications

Section 1 Introduction

The Dual Temperature Digital Dry Block Incubator Features:

Digital temperature and time displayed in LED

Interchangeable metal dry blocks

Easy replacement, cleaning and disinfection of blocks

Built-in overheating protection

Calibrating temperature discrepancy

Buzzer alarm at the end of temperature control duration.

Operation manual for INCUBATOR2 Section 2 Specifications

Section 2 Specifications

1. Normal operating conditions:

Ambient temperature：5C 35C

Relative humidity：≤70%

Power supply：AC100-120V～50-60Hz

2. Basic parameters and characteristics

Basic parameters：

Type

Parameter

INCUBATOR2

Temperature range

RT+5C 105C

Timing time

Max. 99h59min.

Temperature control

accuracy

≤ 0.5 C

Display accuracy

0.1 C

Temperature uniformity

≤ 0.5 C

Heating time（20-105C）

≤20min

Block

2pcs (sold separately)

Power

240W

Fuse

250V 4A Ф5×20

Meas.(mm)(L×W×H)

365x210x150

Weight（kg）

4.5

Operation manual for INCUBATOR2 Section 2 Specifications

3. Optional products

Item No.

Type

Capacity + Diameter

Meas.(mm)

AS90925000050

IB001

35*9.1mm

108X72X49 mm

AS90925000060

IB002

15*17mm

108X72X49 mm

AS-01181-27

External

sensor

PT1000

AS-01181-28

Lifter

Operation manual for INCUBATOR2 Section 3 Basic Instructions

Section 3 Basic Instructions

This section focuses on the introductions of the structure, keypads and key-functions of

the instrument, as well as preparatory work before starting.

1. Incubator structure overview

Zone A block

Power supply

plug

Fuse

On/Off button

Zone B block

Zone A Display

Zone B Display

Operation manual for INCUBATOR2 Section 3 Basic Instructions

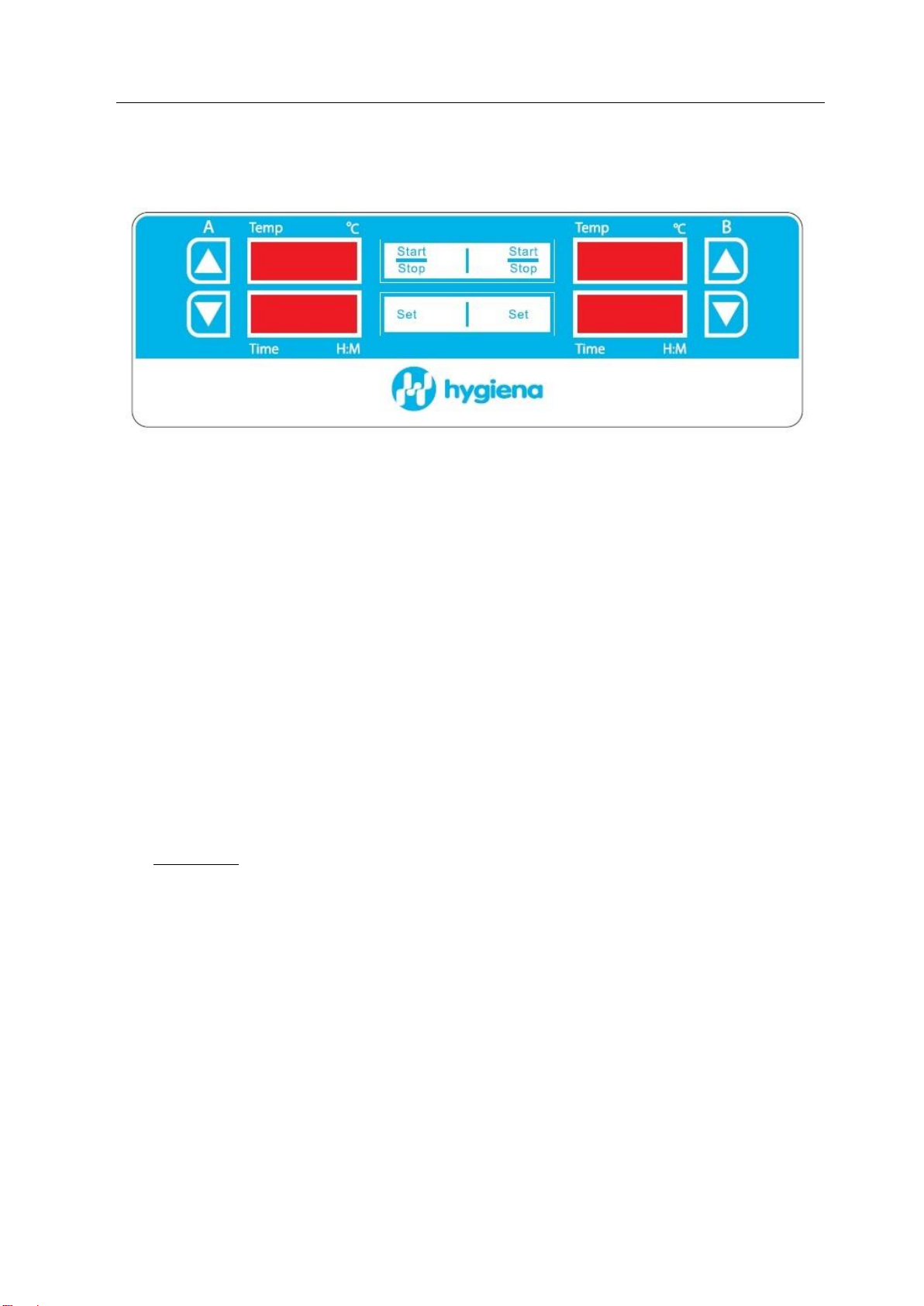

2. Keypads

3. Display

Set





Start

Tip: The keys in Zone A and Zone B will respectively control their own zones.

Down key: decreases number.

Up key: increases number.

Set key: Used in conjunction with the Down or Up keys to

set the temperature and time.

Start/Stop key. After temperature and time is set, press this key to

start. Also, press this key to stop when running.

Stop
