Hyperion 959IPS Manuale utente
Hyperion 971IPS
Long-Range DC Bar
Operating Manual
Hyperion 959IPS
Mid-Range DC Air Curtain
v1.17
Products shown in this document may be covered by one or more patents, patents applied for
and/or registered designs and/or trade marks. For further information please refer to our Head
Oce or visit www.meech.com.
© Meech Static Eliminators Ltd., 26.10.2017
Contents
Introduction 3
Unpacking and Inspection 4
Contents 4
Options 4
Features of Hyperion 959IPS 5
Installation 8
Operation 12
Maintenance 13
Troubleshooting 14
Technical Characteristics 15
UL Approval 15
CE Approval 16
Health and Safety 16
Repairs and Warranty 16
Technical Drawing 17
3
Introduction
The Hyperion 959IPS is a compact, pulsed DC ionising air curtain. It provides high
speed ionised airow that can be used to clean objects or provide extra long range
static control.
The assembly combines a highly ecient air curtain with a Hyperion 924IPS pulsed
DC ionising bar.
The air curtain uses a compressed air input to drive a high speed blade of ambient air
; moving over 15 litres of ambient air for every litre of compressed air consumed.
The Hyperion 924IPS is a very compact pulsed dc bar. Its integrated +/-7kV power
supply requires only a 24V DC input, removing the traditional need to route high
voltage cabling.
4
Unpacking And Inspection
Your Hyperion 959IPS bar was carefully packed at the factory in a container
designed to protect it from accidental damage. Nevertheless, we recommend careful
examination of the carton and contents for any damage.
If damage is evident, do not destroy the carton or packing material and immediately
notify the carrier of a possible damage claim. Shipping claims must be made by the
consignee to the delivering carrier.
Contents:
Standard
959IPS Bar
Options
Power Cable - 4 Pin M8
(straight or 90º elbow)
Available in 2,3,5 and
10M lengths.
24V DC Supply & IEC
cable
BarMaster remote
programmer.
Allows optimisation
of the output of the
959IPS
5
Features and Benets of Hyperion 959IPS
Low voltage wiring and Integrated Power Supply

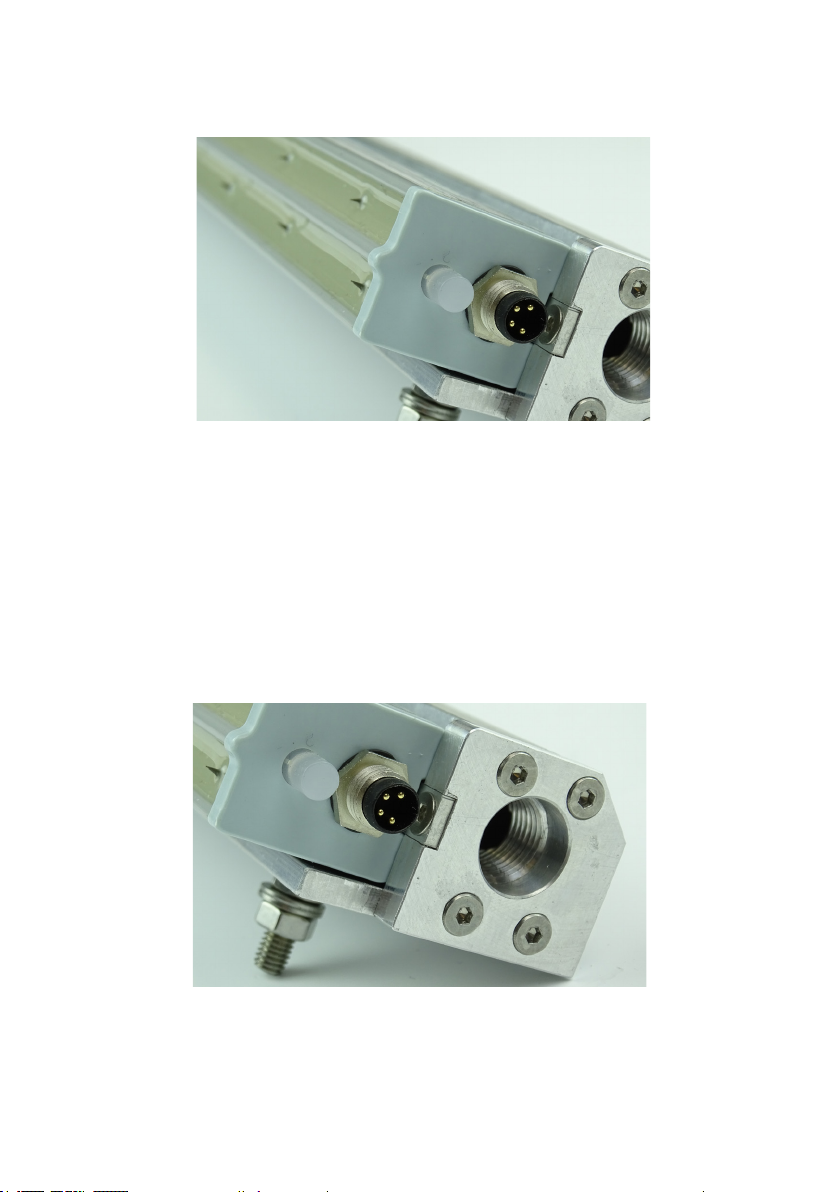

The 959IPS is powered by 24V DC via a 4-pin M8 Connector.
Shockless Emitters
The Titanium emitter pins on the 959IPS are resistively coupled to the high voltage
supply. This avoids sparking and operator shocks.
Sealed Construction
IP66 construction allows the bar to be mounted in areas subject to occasional wash-
down or spillage. If the bar does become wet it must be thoroughly dried before being
powered-up.
6

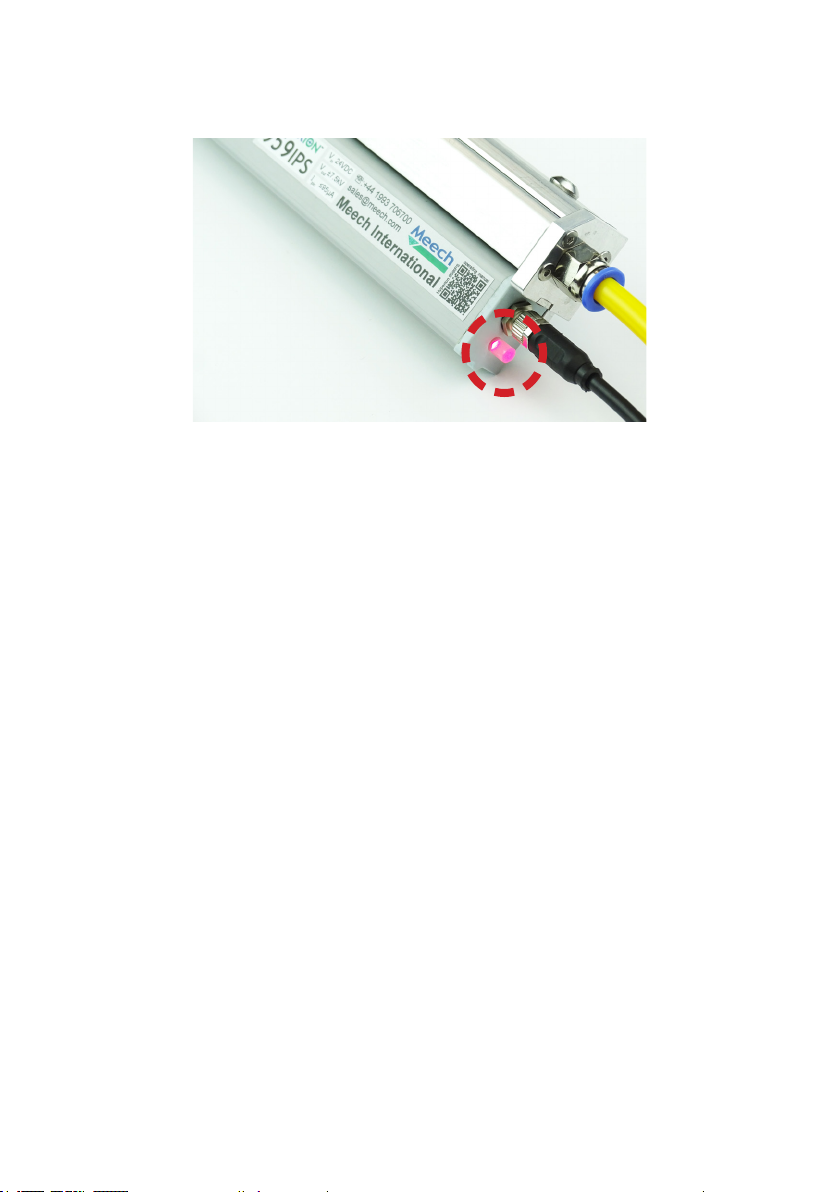

Clean Pin Alert LED
The local LED illuminates constant green to indicate that the bar is on and working
correctly. Red ashing LED shows that bar is dirty and needs cleaning. Solid red
illumination indicates a fault with the high voltage output.
Green constant – OK
Green ashing – BarMaster remote programmer connected
Red ashing - Cleaning required
Red constant - Fault
Clean Pin Alert and Fault Output
An output signal indicates when the bar needs cleaning or when a fault has been
detected. The signal is 0V/24V output on pin 2. By default: Bar OK = 24V, Bar needs
cleaning (or fault detected) = 0V. If required the signal can be inverted to give OK =
0V, Cleaning Required = 24V using a Barmaster Remote Programmer
7
Divider
The 959IPS is designed to operate in dirty, factory environments. To maximise the
interval between cleaning the bar features a divider to increase the surface tracking
distance between the two rows of high voltage pins. It is important to clean this area
during cleaning operations.
Air Inlet
The ¼” BSPT inlet is a global standard for air ttings. This allows the 959IPS to be
integrated into any line with ease.
8
Installation
Mechanical Installation
The 959 IPS can be used in many dierent applications. Your Meech distributor
will be able to give you advice on the correct distance and position for your 959IPS,
depending on the application .
As a rough guide, for cleaning applications, try to get the 959IPS within 100mm of the
target surface. Although it is still eective at greater distances, the eciency will not
be as great.
Taking note of the direction of the ionised airow, The 959IPS should be mounted
securely, using all the M5 studs provided.
Air Supply
a. The air supply must be clean and dry. A 5 micron coalescing lter is recommended.
The Meech guarantee does not cover damage due to water or oil in the air supply.
b. Reduce the air supply to the lowest pressure which achieves the required results.
Excessive air is wasteful and also dilutes the ionisation unnecessarily.
c. The female thread for the air tting is 1/4 BSP (G1/4).
