P/N : FAMA-C01

Voice Recorder

& Music Encoder

Multi Format Digital Audio Player

1 - Welcome to the Digital Audio World with Ultrasm

2 - What is a Digital Audio Player (MP3 Player)

3 - PC System Requirements and Accessory

4 - Product Specification

5 - Installing Software(M -Any Loader Express)

7 - How to connect Ultrasm to your PC

8 - Device Selection as Ultrasm

9 - How to use M-Any Loader Express

11 - How to format the memories of built-in and MMC

13 - How to download files from your PC

15 - How to upload files from Ultrasm

16 - How to Upgrade OS

17 - How to convert ADP(ADPCM) to WAV & MP3 to WMA

18 - Troubleshooting Problems

20 - Getting started with Ultrasm

21 - Ultrasm LCD Display

22 - How to set Language, Repeat & Play Mode

23 - How to set User EQ Mode

24 - How to set EQ MODE and use Fast Searching

25 - How to record Voice and Music

27 - How to erase files without software

28 - How to use Removable battery compartment

29 - Handling and Storing Instructions

30 - LIABILITY FOR DAMAGES TO THE CUSTOMERS

31 - WARRANTY FORM

32 - MANUFACTURER INFORMATION

33 -

FCC Compliance Statement

Congratulations on your purchase of the Ultrasm.

Ultrasm is a Digital Audio Player(more than MP3 player) with special

additional functions of Voice Recorder & Direct Encoder(directly record

a music from normal audio players through a encoding cable without

computer).

The Ultrasm contains 32/64/128/256MB of on-board memory. The

Ultrasm also is designed with a programmable and upgradeable

Digital Signal Processor(DSP) to support MP3 files as well as new

audio formats and digital rights management systems. Please check

the Hyun Won website at www.m-any.com for the latest software

upgrade.

You are now ready to enjoy the world of digital audio with the most

versatile digital audio player on the market today.

Contents Welcome to the Digital Audio World with Ultrasm 1

What is a Digital Audio Player (MP3 Player) ? PC System Requirements and Accessory

A. Software CD

The following PC specifications are required for Ultrasm compatibility

MicrosoftWindows98,ME,2000orXPOperatingSystem

CD-ROMDrivewithdigitalaudioextractionsupport

Pentium(orcompatible)200MHzorhigherprocessor

32MBRAM(64MBforWindowsMEor2000)orgreater

128MBfreeHardDiskSpace(morefordigitalaudiofilestorage)

USBportcapability

MP3 is a well known, high quality digital audio format. MP3 files can be

compressed up to 12 times the original wave file size.

MP3 is one of Audio Formats and 'MPEG Audio Layer-3'.

MPEG(an expert group who researches for audio/video compression) is the

acronym for Moving Picture Experts Group.

This group has developed compression systems used for video data. The MPEG

compression system includes a subsystem to compress sound, called MPEG

audio Layer-3. We know it by its abbreviation, MP3.

WMA(Windows Media Audio code) is the highest quality in terms of a sound and

music. WMA provides all type of the best sounds from 8kHz to 48 kHz. WMA files

can be compressed up to 50% the original MP3 file size and can sound as good

as an MP3 file.

What is a Digital Audio Player (MP3 Player) ?

MP3 Player is a portable digital audio Player that plays MP3 files without requiring

the use of tapes or CDs.

MP3 Player is a palm sized audio device that uses no

moving parts for playback and lets you enjoy high quality

sound that uses MPEG1 Layer 3 compression method

for quality internet audio.

MP3 Player uses one or two flash memory cards, which

are expandable to up to 256MB.

You can make your own CD quality MP3 files from CD

or WAV making use of the MP3 encoder software or

direct encoding system built in the device of Ultrasm.

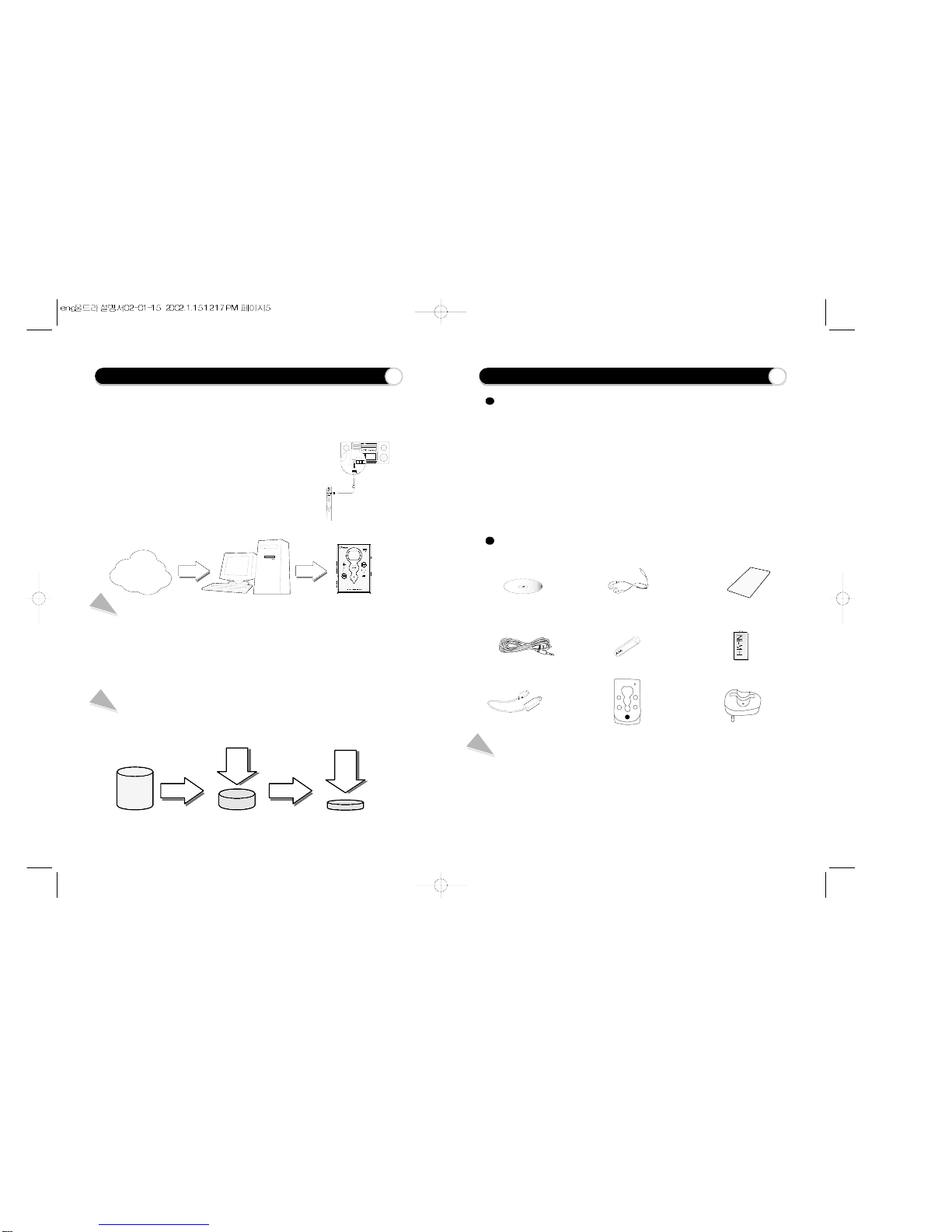

Ultrasm Accessory B. Earphone C. Owner's Manual

D. Line-in Cable

(Direct Encoding Cable)

H. Carrying Case I. A/C Charger

G. USB Cable

Note

Accessories and optional items are subject to change. Please check

www.m-any.com for the latest in Ultrasm accessories and software

upgrades.

E. AAA 1.5v battery 1EA F. 1.2v Rechargeable Ni-

MH battery EA

CD Data MP3 Data

1/12

Compression

Internet PC

Digital audio file Digital audio file

Digital Audio Player

1/2

Compression

WMA Data

2 3

Digital Audio Player

Normal Audio Player

Model Name : Ultrasm

Basic Function : Digital Audio File Playback, Voice Recording, Direct MP3

Encoding

Memory(On-board) : 32/64/128/256MB,

Dimension (WxHxD) : 54x77x9.8mm

Weight (except battery) : 55g

Power Supply : 1.2V Rechargeable Ni-MH or Normal AAA 1EA

Earphone Output : 7mW max

s/n Ratio : 90dB

Frequency Response: 20Hz ~ 20Khz

PC Interface : USB Connection

Other features

- Voice recording : 8hours & 40 minutes (128MB)

- Direct encoding : 2hours (128MB)

- Multi CODEC Support : MP3, WMA, ADPCM and other format by O/S

upgrade

- High speed file transfer(USB Port) : Max. 2.5Mbps

- Play time : 8~10hours(Ni-MH 1EA + AAA 1EA)

- Firmware Upgrade Solution using TI chip

- EL LCD Solution

- Dual Power Supply : Rechargeable battery inside of the body and Removable

AAA battery compartment

Product Specification 4Installing Software(M -Any Loader Express)

In order for the Ultrasm and your PC to communicate and transfer digital

files, you must first install the M-Any Loader Express by completing the

following steps:

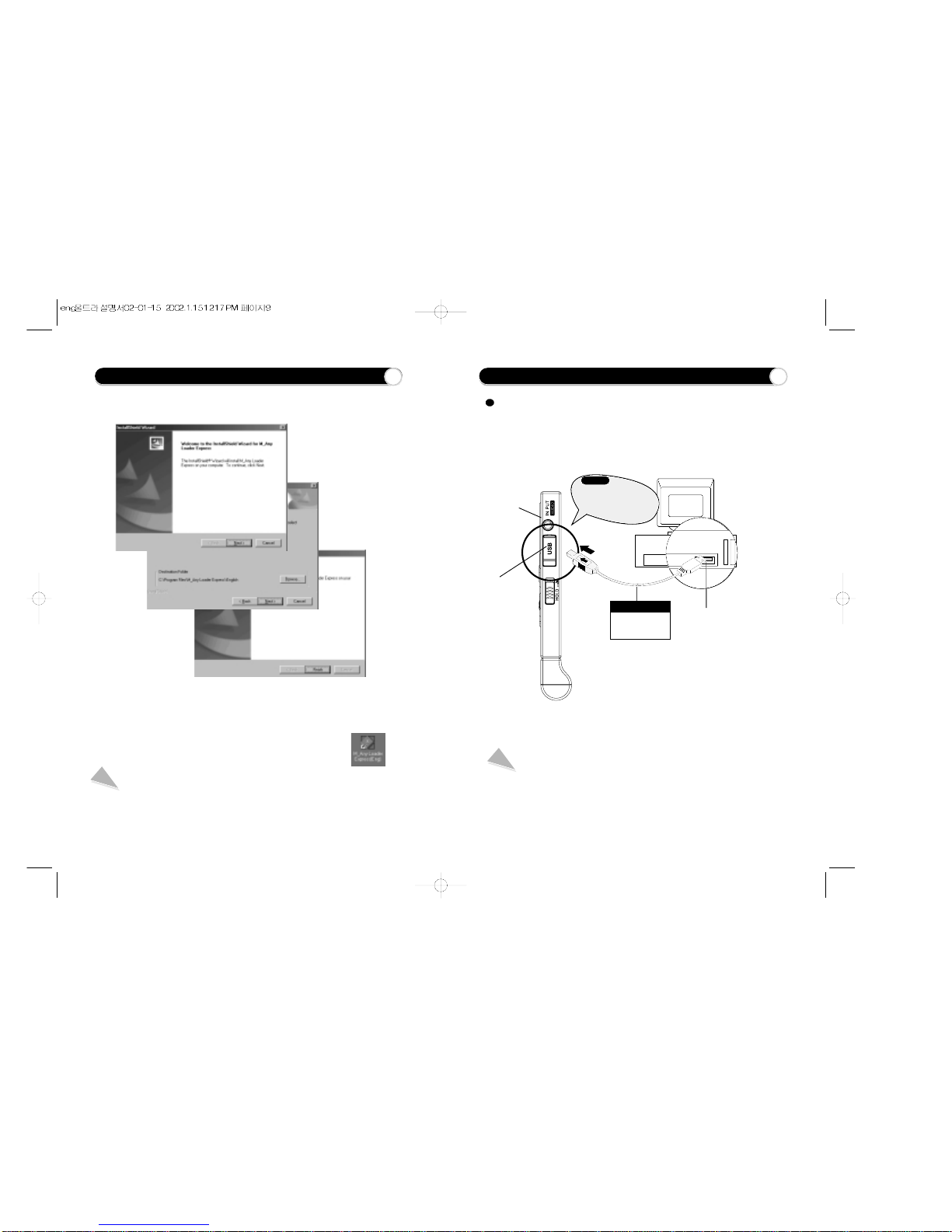

1. Insert the M-Any Loader Express CD into the CD-ROM drive.

The following screen should display:

2. Follow the directions when the setup program is being automatically installed.

If the program is not installed automatically, search for the install.exe file in the

CD ROM drive and double click on it.

Installing Software(M -Any Loader Express)

3. Please click the icon indicated by arrow on each screen then you complete

the installation process.

4. When the installation is completed, the icon, 'M-Any Loader

Express' will show up on the background screen.

Note

If a rebooting message displays during setup, install again after rebooting

the computer.

➡➡➡

Finish

How to connect Ultrasm to your PC

Please make sure that you finished installation process and device selection

before connecting the USB cable.

To make the Ultrasm and your PC share Audio Files(Up & Down Load),

connect Ultrasm with the USB cable which is supplied in the accessories, as

following picture

Ultrasm

DATA

(USB Port)

USB Port

Computer

Note

USB means Universal Serial Bus connecting a device(hardware) to a PC.

Caution !

The power of the device

automatically turns off

when the device is

connected to PC.

USB Cable

Be careful of the

insertion direction

How to use M-Any Loader Express

A.File filter

B. File list window

C. Memory window

D. Button to

transmit files

F. Memory status

E. Folder window

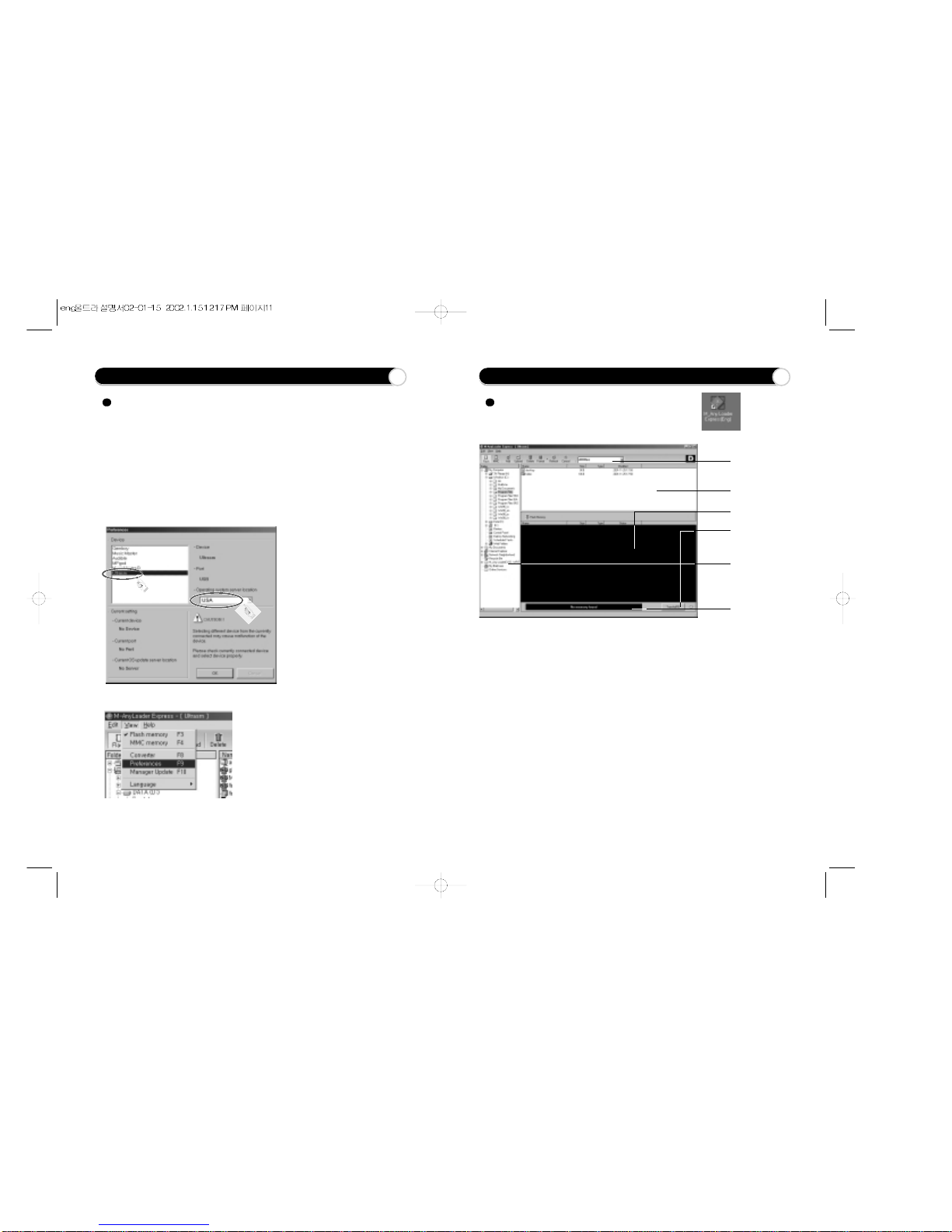

Start the manager of 'M-Any Loader Express' by double

clicking on shortcut icon on the background screen

A. File filter

Makes it possible to select files by type.

B. File list window

This window enables the selective downloading of files included in the given

folder to the flash memory or MMC memory.

C. Memory window

This window shows the title, size, type of file and the downloading status of

MMC memory card.

D. Button to Transmit Files

This button is for transmitting selected music files to the player.

E. Folder window

This window is for browsing the files in a certain folder to easily select music

files. If files are selected, they will show up in the file list window.

F. Memory status

This shows the remaining memory, the entire memory and the connection status

of memory. In the following cases, a message 'No Memory Found' will appear.

When having selected MMC memory when the memory card is not put into the

player.

Device Selection as Ultrasm

Device Selection

M-Any Loader Express is our integrated manager supporting all of the

models of Hyun Won Inc.

Once the installation of M-Any Loader Express, run the program by clicking

the shortcut icon on the desktop or click on the Windows Start menu. Then,

the following screen(Preferences) will show up.

Select Ultrasm among the devices and choose the server location closest

to you to access operation system updates via the Internet.

If you want to change the above

preference, just go the "View" and

"Preferences", as left

Click 1

Click 2

8 9

How to format the memories of built-in and MMC

When wishing to format the memory card or to erase all files in the

memory card, clicking on 'Format' button will initialize the memory

card. However, if formatting the memory card, all settings including

'play back position' will be also initialized.

Run M-Any Loader Express and

connect the communication cable to

the digital audio player and then select

the memory card to format.

Select the type of formatting and

click the mouse and then the

confirmation dialog box for

formatting will appear.

Press 'Yes' button and the

formatting will be executed. When

the formatting is completed, the

dialog box for confirming the

formatting will show up.

Pressing 'OK' button will complete

the format.

Selects the basic(flash) memory.

Selects the detachable MMC.

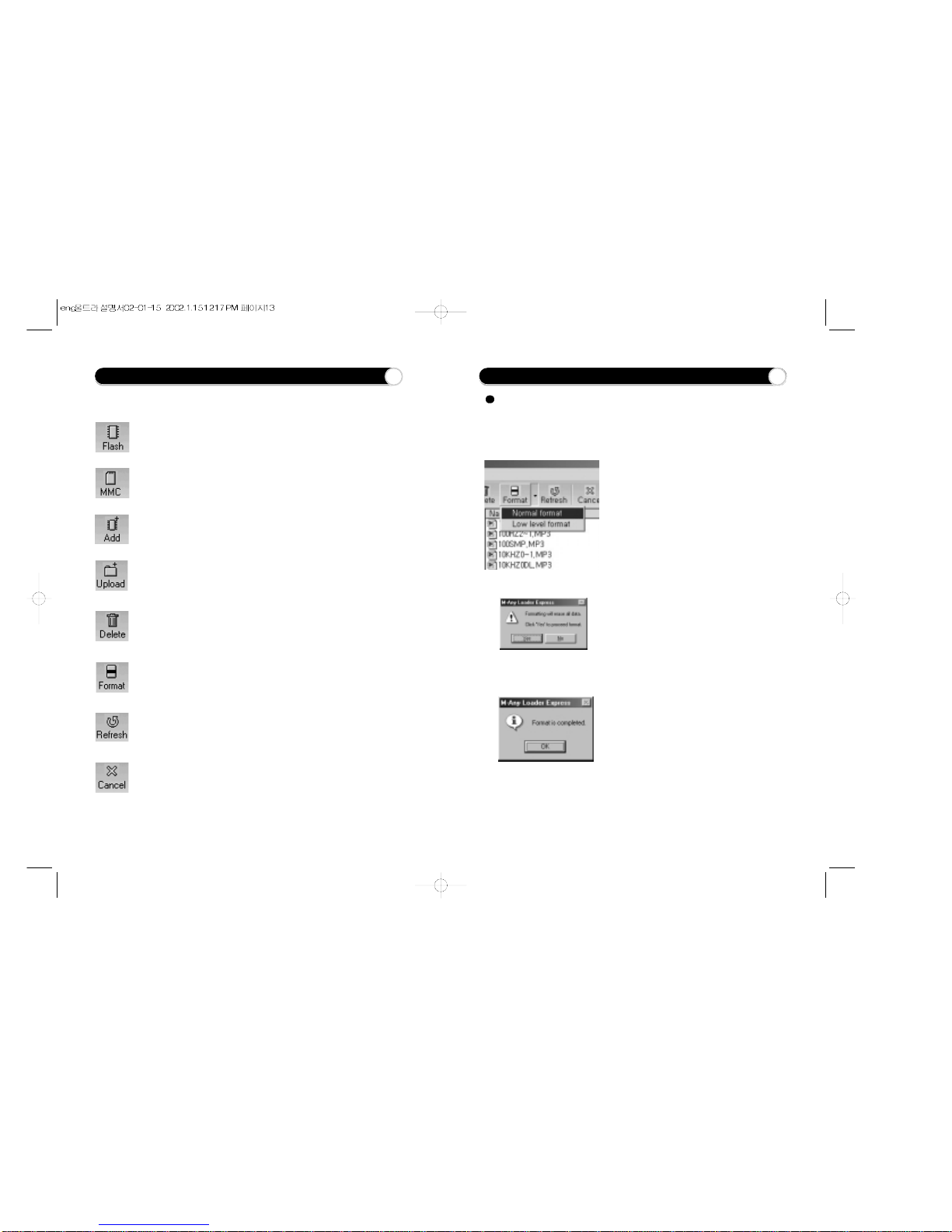

Adds selected files to the selected memory card.

The selected files will appear "ADD" in the memory window.

UploadingselectedfilestotheselectedPCfolder.

Deletes the selected files from the memory.

Formats the memory card. In this card, all selected files in the memory

cardaredeleted.

The selected memory is refreshed.

The transmission of file between the product and PC

G. Functional Icon

How to use M-Any Loader Express 10 11

How to download files from your PC

1Buy the MP3 files or any available audio files that you want from DC

communications or internet sites and save them on your PC.

3Connect Ultrasm to your PC using USB cable.

2Run the "M-Any Loader Express" by clicking shortcut icon on the background.

4Select a memory on the menu bar which the desired files are to be

downloaded to.

When downloading the desired files from PC to Ultrasm, follow

next steps ;

Click!

Normal format : Deletes only the information saved in the memory card of

the audio player and the deletion is quickly done.

Low level format : Like formatting the entire floppy disk, the entire memory

card is initialized and so it takes some time.

Note

Once formatting begins, do not stop the process. Removing the

communication cable to stop the process by force can give some error to the

operation of the digital audio player.

Normal format / Low level format

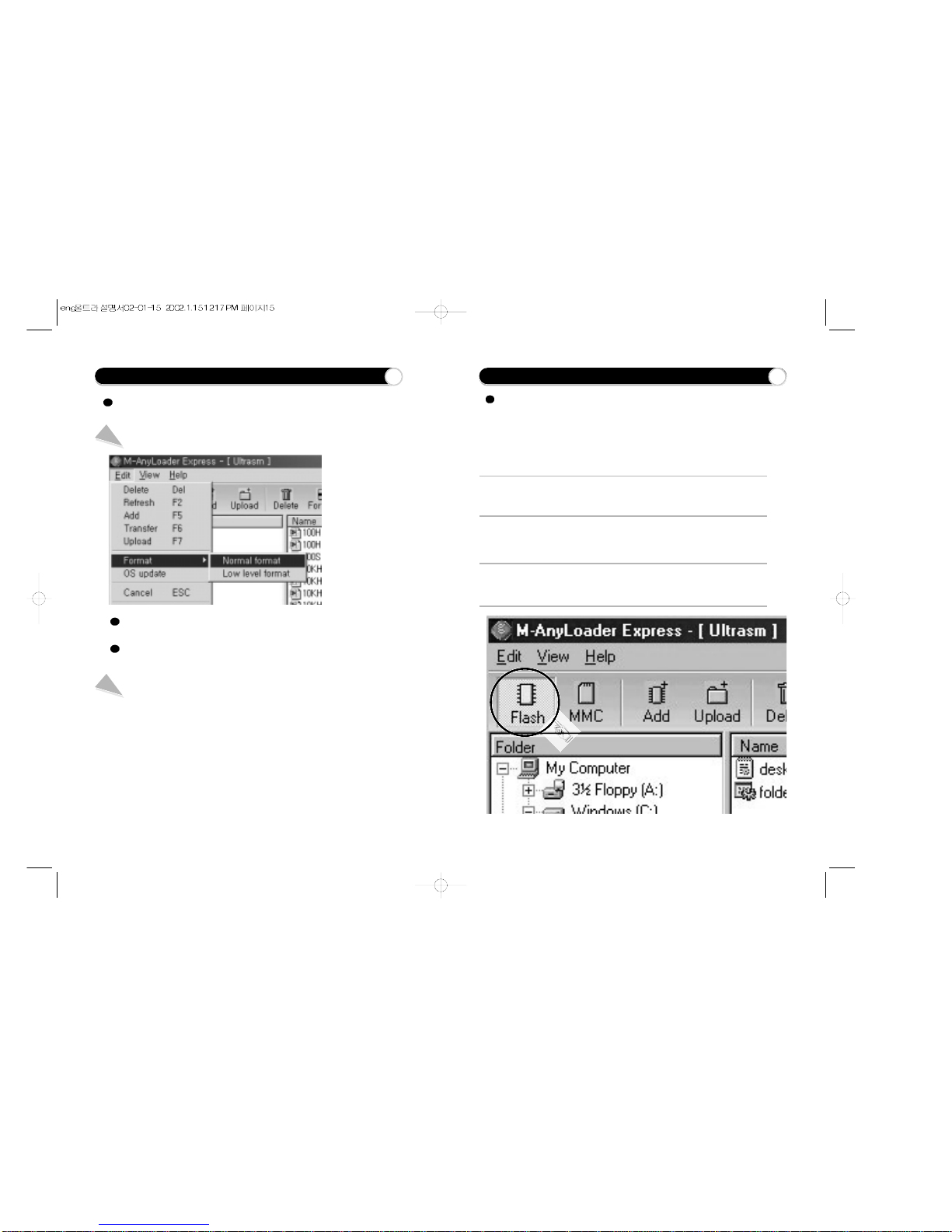

You can also format the memories using edit menu button,

as under

How to format the memories of built-in and MMC 12 13

How to upload files from Ultrasm

To upload files

To upload the Audio files or data files from Ultrasm to your PC, carry

out the following descriptions.

Note : M-Any Loader Express does NOT upload music files (MP3 and WMA) to

your PC because it could infringe a copyright.

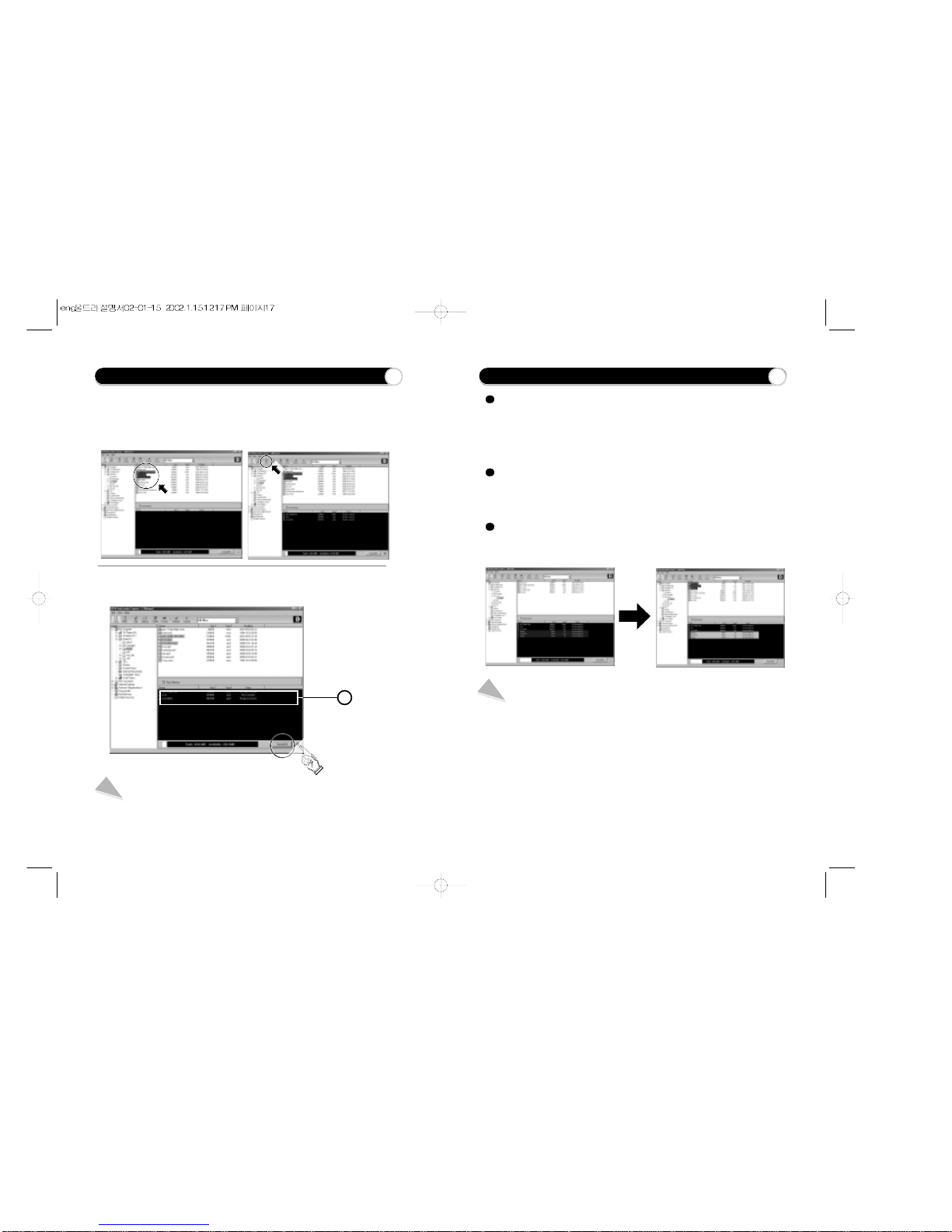

Select a directory or folder on the PC Directory display panel.

(The files of the selected directory or folder will be displayed on

the PC Files display panel)

Select files in the file list of Memory Window and click upload

button. Then, the selected file(s) will be up-loaded into the

selected directory or folder of your PC.

Note

You can upload files by Drag & Drop as well.

When up/downloading files to or from the digital audio player,

Files other than digital audio files can be uploaded or downloaded.

Uploading/downloading is possible when batteries are not in the digital audio player,

Files cannot be played on the digital audio player during communication.

Noise can be heard through an earphone during communication.

Other USB communication cables than the provided USB cable should not be used.

5Select a folder where the files to be downloaded are saved so that the files

are displayed on the file list window. Then select the desired files.Click "ADD"

icon on the menu bar to display the files on the memory contents window as

"ready to transfer".

6Press 'Transfer'(F6) in the bottom and the selected files will be

downloaded.

Note

Files can be downloaded by using Drag & Drop.

Click!

How to download files from your PC 14 15

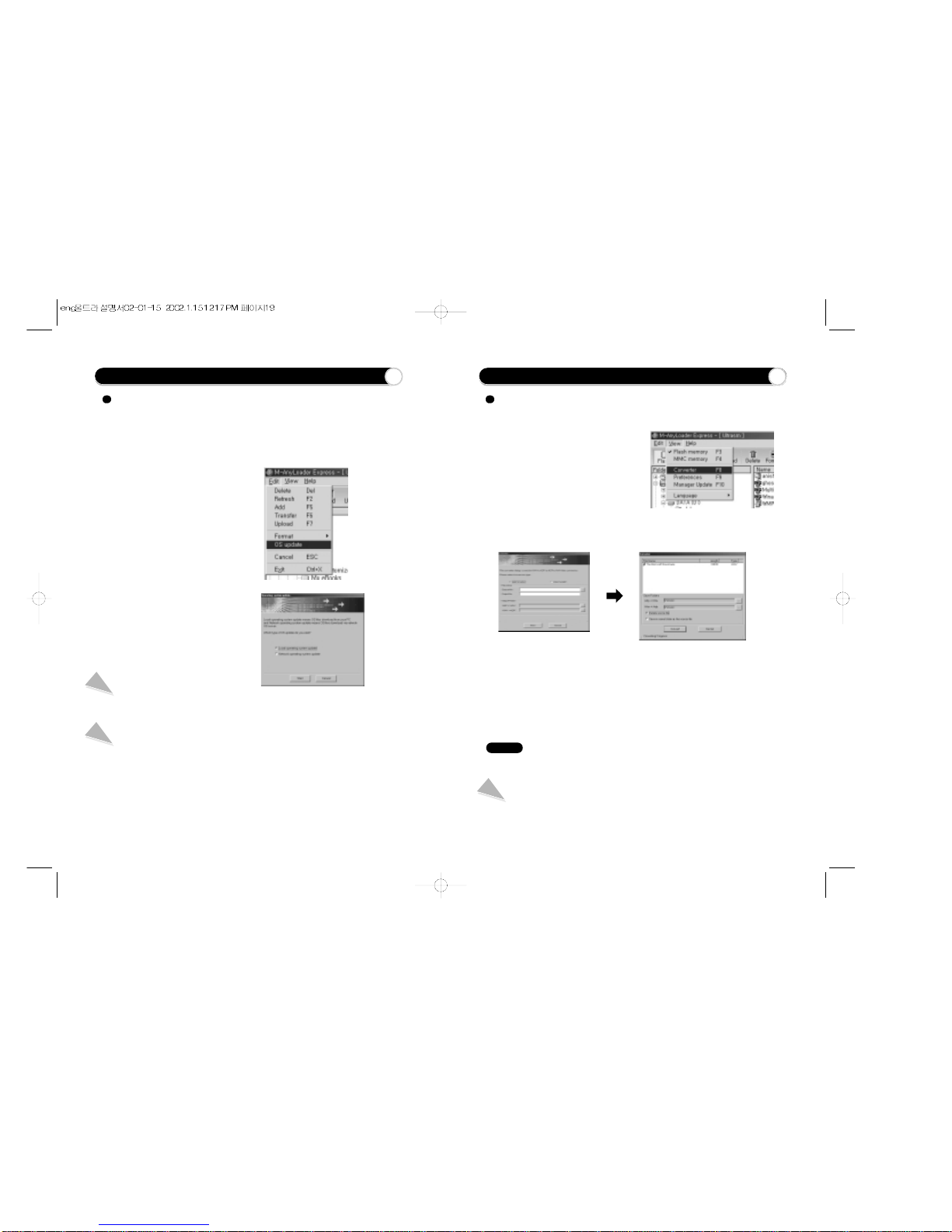

1Connect the USB cable and double click on 'MP3 Explorer' on the background

screen.

2After selecting 'Edit' on the menu bar,

press OS Update. The OS update dialog

box will show up.

To upgrade the OS of running the digital audio player, follow the following

procedure. To convert ADP to WAV or WAV to ADP, follow the under procedure.

3Select the OS update method and then

press 'start' button. Then Ultrasm will be

updated.

OS Update with PC

When formatting is going on while OS is downloaded to Ultrasm basically installed in

the PC, the process will be automatically done.

OS Update with Network

Connect the latest OS to the server and update the OS basically installed in PC with

the latest OS and then the latest OS is downloaded to Ultrasm.

However, updating network OS should be done when PC is connected to the Internet.

How to Upgrade OS How to convert ADP(ADPCM) to WAV & MP3 to WMA

Voice files(ADP) recorded by

Ultrasm can be converted from

ADP to WAV format or reverse

by selecting "Converter" from the

View menu. If the voice recorded

files have been up-loaded to the

computer using the M-Any

Loader Express, then the dialog

window below can be used when the device is not connected.

You can also convert ADP to WAV files directly when uploading

ADP files from the on-board memory to the PC using the dialog

window above. Select the ADP file on Ultrasm to be uploaded

and the folder the file to be uploaded into. Begin uploading the

ADP file and the dialog window above will open automatically.

After selecting your file conversion options and converting the

file, you may choose to rename the file.

To convert MP3 to WMA

You can also convert MP3 format to WMA(Window Media Audio) format to

make the file size smaller by half size with same sound quality. You can find

lots of convert programs in the website by using words "audio + converter".

16 17

Caution

There is a possibility to be lower quality in converting a normal WAV files to ADP file.

Indice

Altri manuali Hyun Won Registratore vocale

Hyun Won

Hyun Won FTM1280 Manuale utente

Manuali Registratore vocale popolari di altre marche

Sony

Sony ICD-UX533F Manuale utente

RCA

RCA VR5230 Manuale utente

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Guida utente

Sony

Sony TCM-400DV Manuale utente

LogTag

LogTag TREL30-16 Manuale utente

SVAT

SVAT CVP800 Manuale utente

Marantz

Marantz PMD620 Manuale utente

Zoom

Zoom H4next Manuale utente

Roland

Roland BR-900CD Manuale utente

JVC

JVC ProHD GY-HMZ1U Manuale operativo e di manutenzione

Panasonic

Panasonic PQT8531-P Manuale utente

Sanyo

Sanyo TRC-6400 Manuale utente

Tascam

Tascam DR-07 Manuale utente

Olympus

Olympus DW-90 Manuale utente

Sanyo

Sanyo ICR-B150 Manuale utente

Korg

Korg D4 Manuale utente

Sony

Sony ICD-SX46 - Ic Recorder Manuale utente

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Istruzioni per il montaggio
