Hyundai HASBT35 Manuale utente
PETROL BLOWER VACCUM SHREDDER
HASBT35
WARNING: Read thoroughly the instruction manual before using.
CONTENTS
1. SAFETY INSTRUCTIONS.....................................................................................................................3
2. YOUR PRODUCT................................................................................................................................... 7
3. ASSEMBLY............................................................................................................................................. 8
4. FILLING THE FUEL TANK................................................................................................................. 10
5. OPERATION..........................................................................................................................................11
6. MAINTENANCE....................................................................................................................................12
7. DECLARATION OF CONFORMITY..................................................................................................14
8. WARRANTY.......................................................................................................................................... 15
9. PRODUCT FAILURE........................................................................................................................... 16
10. WARRANTY EXCLUSIONS.............................................................................................................17
02
1. SAFETY INSTRUCTIONS
WARNING! Before using this tool, please read these instructions of safety and use. It
will help you to use safely the machine and reduce the risk of electrical shocks and
accidents. If you give this tool to another person, also give this manual.
Use this tool as described in this manual. Any mishandling and any use contrary to
instructions will not in any way engage the liability of the manufacturer.
Non-compliance with safety instructions and use can cause a risk of electric shock, fire
and / or injury to persons.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Never allow children, persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge or people unfamiliar with these instructions to use the machine,
local regulations may restrict the age of the operator.
Never use the machine when people, especially children, or pets are nearby.
Remember that the operator or user is responsible for accidents or hazards occurring to
persons or their belongings.
Do not disassemble the tool yourself. Disassembly, repair or verification must be made
exclusively by qualified personnel.
Use the tool fully assembled and secure. Before use, check if the protections and safety
devices are in place.
During the operation of the machine, always wear protective equipment, including protective
masks, visors or goggles, ear protection, helmet, gloves, non-slip footwear and protective
clothing.
Always carry the machine by its handle; never use the cord or any other part of the machine.
Do not use the machine when you are tired, under the influence of alcohol or drugs or sick.
Use the tool to suck and blow leaves and similar materials. Do not blow flammable materials,
cigarette butts and materials that can damage the device.
Do not use the appliance to suck water or wet debris.
Always use the machine with the collection bag.
Avoid using the machine in bad weather, especially when there is a risk of thunderstorms and
lightning.
In case of accident, immediately stop using the machine. Turn off and unplug it and check the
problem. Do not use the machine while the machine is damaged.
Operate the machine only at reasonable hours – not early in the morning or late at night when
people might be disturbed;
Organize your work time. Do not operate this tool for a long time, you could be tired. Make
some pauses and take rest between 2 work sessions.
use rakes and brooms to loosen debris before blowing/vacuuming;
slightly dampen surfaces in dusty conditions or use mister attachment;
Always use the full blower nozzle extension so the air stream can work close to the ground.
Do not use the tool in an area where ventilation is poor. Gas emissions can cause injury.
Do not use the tool in the presence of flammable liquids or gases.
Caution: The machine releases gases when it is used. Avoid coming into contact with these
gases.
03
SAFE OPERATING PRACTICES FOR THE TOOL
Training
Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
Never allow children or people unfamiliar with these instructions to use the machine.
Local regulations can restrict the age of the operator.
Keep in mind, that the operator or user is responsible for accidents or hazards occurring to
other people or their property.
Preparation
Obtain ear protection and safety glasses. Wear them at all times while operating the machine.
While operating the machine always wear substantial footwear and long trousers. Do not
operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is
loose fitting or that has hanging cords or ties.
Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away
from the air inlets.
Operate the machine in a recommended position and only on a firm, level surface.
Do not operate the machine on a paved or gravel surface where ejected material could cause
injury.
Before using, always visually inspect to see, that the shredding means, shredding means bolts
and other fasteners are secure, the housing is undamaged and that guards and screens are in
place. Replace worn or damaged components in sets to preserve balance. Replace damaged
or unreadable labels.
Never operate the machine while people, especially children, or pets are nearby.
Operation
Before starting the machine, make certain that the feeding chamber is empty.
Keep your face and body away from the feed intake opening.
Do not allow hands or any other part of the body or clothing inside the feeding chamber,
discharge chute, or near any moving part.
Keep proper balance and footing at all times. Do not overreach. Never stand at a higher
level than the base of the machine when feeding material into it.
Always stand clear of the discharge zone when operating this machine.
When feeding material into the machine be extremely careful that pieces of metal, rocks,
bottles, cans or other foreign objects are not included.
If the cutting mechanism strikes any foreign objects or if the machine should start
making any unusual noise or vibration, immediately shut off the power source and allow
the machine to stop. Disconnect the machine from the supply and take the following
steps before restarting and operating the machine:
a) inspect for damage;
b) replace or repair any damaged parts;
c) Check for and tighten any loose parts.
Do not allow processed material to build up in the discharge zone; this may prevent
proper discharge and can result in kickback of material through the intake opening.
If the machine becomes clogged, shut-off the power source and disconnect the machine from
supply before cleaning debris.
Never operate the machine with defective guards or shields, or without safety devices, for
example debris collector in place.
Keep the power source clean of debris and other accumulations to prevent damage to the
power source or possible fire.
Do not transport this machine while the power source is running.
Stop the machine, and remove plug from the socket. Make sure that all moving parts have
04
come to a complete stop
a) whenever you leave the machine,
b) Before clearing blockages or unclogging chute,
c) Before checking, cleaning or working on the machine.
Do not tilt the machine while the power source is running.
Fuel Handling
Be very careful when handling fuels. They are flammable and the vapors are explosive.
Use only an approved container.
Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the
engine and exhaust components to cool before refueling.
Do not smoke.
Never refuel inside a room.
Never store the tool and the fuel tray indoors where there is a naked flame, such as near a
water heater.
If fuel has spilled, do not attempt to start the machine, but rather move it away from the spill
before starting to use it. Clean any spills.
Replace and tighten the fuel tank cap after refueling.
Follow the instructions in this manual for filling the tool with fuel.
Maintenance and storage
When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut
off the power source, disconnect the machine from the supply and make sure that all moving parts
are come to a complete stop. Allow the machine to cool before making any inspections,
adjustments, etc. Maintain the machine with care and keep it clean.
Store the machine in a dry place out of the reach of children.
Always allow the machine to cool before storing.
Replace worn or damaged parts for safety. Use only genuine replacement parts and
accessories.
Never attempt to override the interlocked feature of the guard.
Store the tool where fuel vapor will not reach a flame or spark.
Additional safety instructions for units with bagging attachments
Switch-off the machine before attaching or removing the bag.
Residuals risks
Even if you use this product in compliance with all safety requirements, the potential risks of injury
and damage remain. The following hazards may arise in the structure and design of this product.
Always be vigilant when using this product, so you can recognize and manage the risks rather.
Rapid intervention can prevent serious injury and property damage.
Turn off the tool if there are any malfunctions. Have it checked by a qualified professional and
have repairs carried out, if necessary, before using it again.
There are harmful health consequences resulting from the emission of vibrations if the product is
used for long periods of time or not properly managed and properly maintained.
There is risk of injury and property damage due to attachments or broken the sudden impact of
hidden objects.
Risk of injury to persons and property caused by flying objects.
Prolonged use of this product exposes the operator to vibration and can produce so-called "white
finger" disease. To reduce the risk, wear gloves and keep your hands warm.
If any of the symptoms of "white finger syndrome" occur, seek immediate medical attention.
Symptoms of the "white finger" include numbness, loss of sensitivity, tingling, tingling, and pain,
05
loss of strength, color changes or skin condition. These symptoms usually appear on the fingers,
hands or wrists. Risk increases at low temperatures
Inhalation of particles of material blown/vacuumed
Unattended projections
Contact with foreign objects
Contact with the tool in operation
Hearing loss in the absence of correct hearing protection
Symbols
Read the instructions.
Risk of projections! Keep bystanders away.
Warning: the fan is still rotating when open or close the cover, be careful,
especially the inlets cover.
Warning: Wear eye and ear protection.
Guarantee noise emission.
Warning: Wear gloves and foot protection.
Do not use the tool when the tubes are not fully assembled on it.
Risk of hot surface.
Warning: Wear head protection
Intended use
This vacuum blower is intended to be used for the vacuuming and the blowing of leaves, dust,
and similar little materials. It must not to be used for vacuuming and blowing water, chemical
products, flammable material, metal or wood and others dangerous objects.
This product is intended for private domestic use only. It must be use outdoor.
This product is not intended to be used in a closed room and places where exhausted gas and
flames can be present.
The use of this product in case of rain or humid environment is prohibited.
Any other use might lead to damage of the appliance, property or personal injury.
06

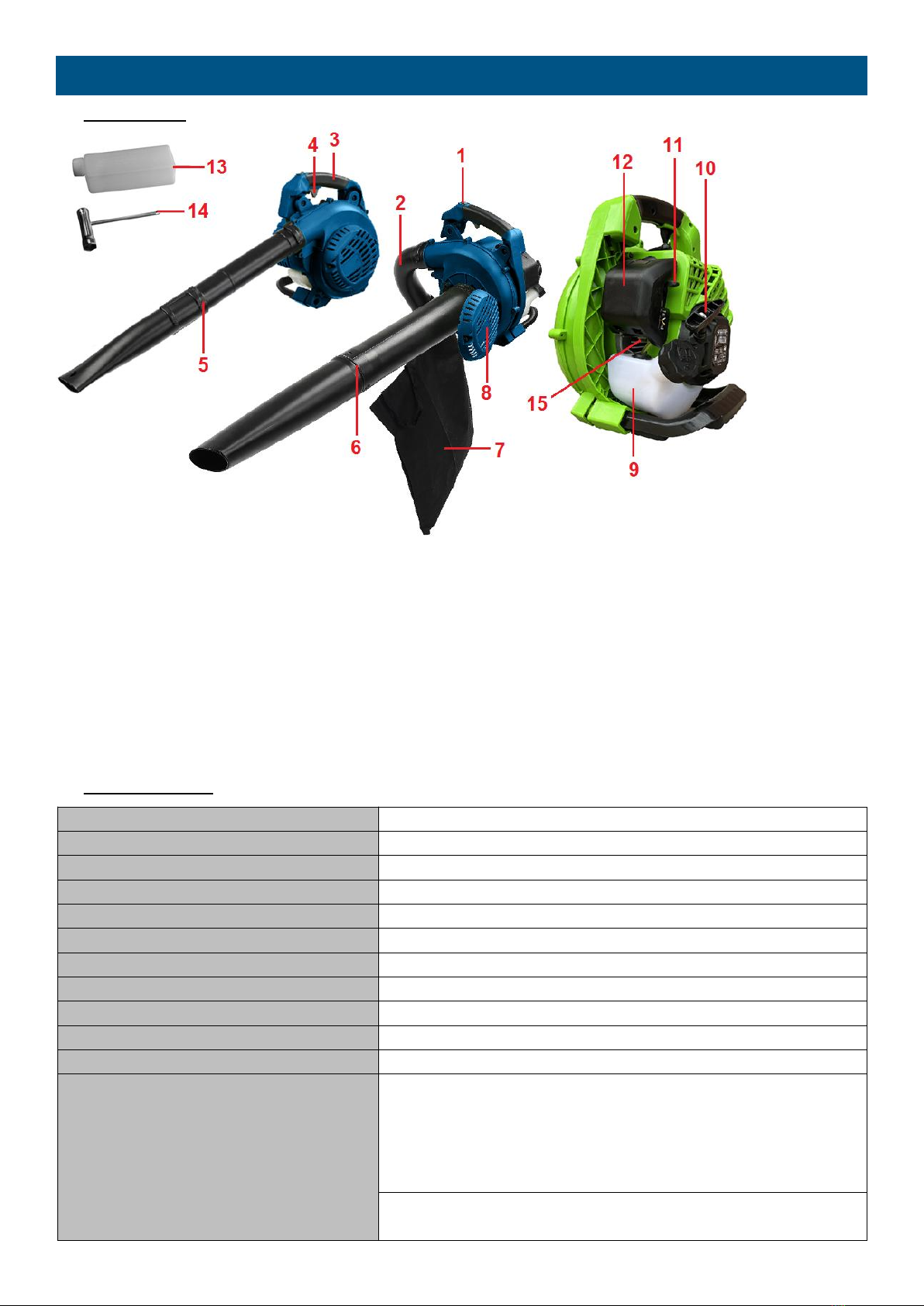

2. YOUR TOOL
a. Description
1. ON/OFF switch
2. Collector bag adaptor
3. Handle
4. Trigger
5. Blower tube
6. Vacuum tube
7. Collector bag
8. Housing of vacuum tube
9. Fuel tank
10. Starter
11. Choke
12. Air filter
13. Bottle for fuel mixture
14. Screwdriver
15. Primer bulb
b. Technical data
Model
HASBT35
Engine displacement
33 cm3
Rated engine power
1.0 kW/7500 min¹
Max engine speed
9000 min¹
Idling speed
3000 ±300 min-1
Air velocity
240km/h
Air volume
600 m3/h
Fuel tank capacity
600ml
Fuel mixture
40:1
Collecting bag
40L
Grinding coefficient
10:1
Measured sound power level
Blower noise, sound power level:
-Idling: 86.5 dB(A)
-Racing: 102.74 dB(A)
-Average: 102.74 dB(A)
-Uncertainly K=3 dB(A)
Vacuum noise, sound power level:
-Idling: 86.51 dB(A)
07
-Racing: 101.64 dB(A)
-Average: 101.64 dB(A)
-Uncertainly K=3 dB(A)
Measured sound pressure level
Blower noise, sound pressure level:
-Idling: 73.6 dB(A)
-Racing: 93.4 dB(A)
-Average: 92.7 dB(A)
-Uncertainly K=3 dB(A)
Vacuum noise, sound pressure level:
-Idling: 73.5 dB(A)
-Racing: 93.2 dB(A)
-Average: 92.54 dB(A)
-Uncertainly K=3 dB(A)
Measured and guarantee sound
power level
Sound power level (according to 2000/14/EC):
-Measured: 103.34 dB(A)
-Guaranteed: 110 dB(A)
Vibration
Blower vibration:
-Idling: 4.821 m/s2
-Racing: 5.373 m/s2
-Average: 5.237 m/s2
-Uncertainly K=1.5 m/s2
Vacuum vibration:
-Idling: 5.067 m/s2
-Racing: 5.508 m/s2
-Average: 5.446 m/s2
-Uncertainly K=1.5 m/s2
Dry weight
5.6 Kg
Year of construction
BJ2023
3. ASSEMBLY
For safety reasons, the product is equipped with safety contactors. It will start only when
accessories are installed.
It is strictly forbidden to modify safety system installed by the manufacturer.
WARNING! You cannot use both functions simultaneously.
A. BLOWER MODE
Assembly of the blower tube
1. Connect the blower tubes together. Push the tubes together and turn them so that they lock
together.
08

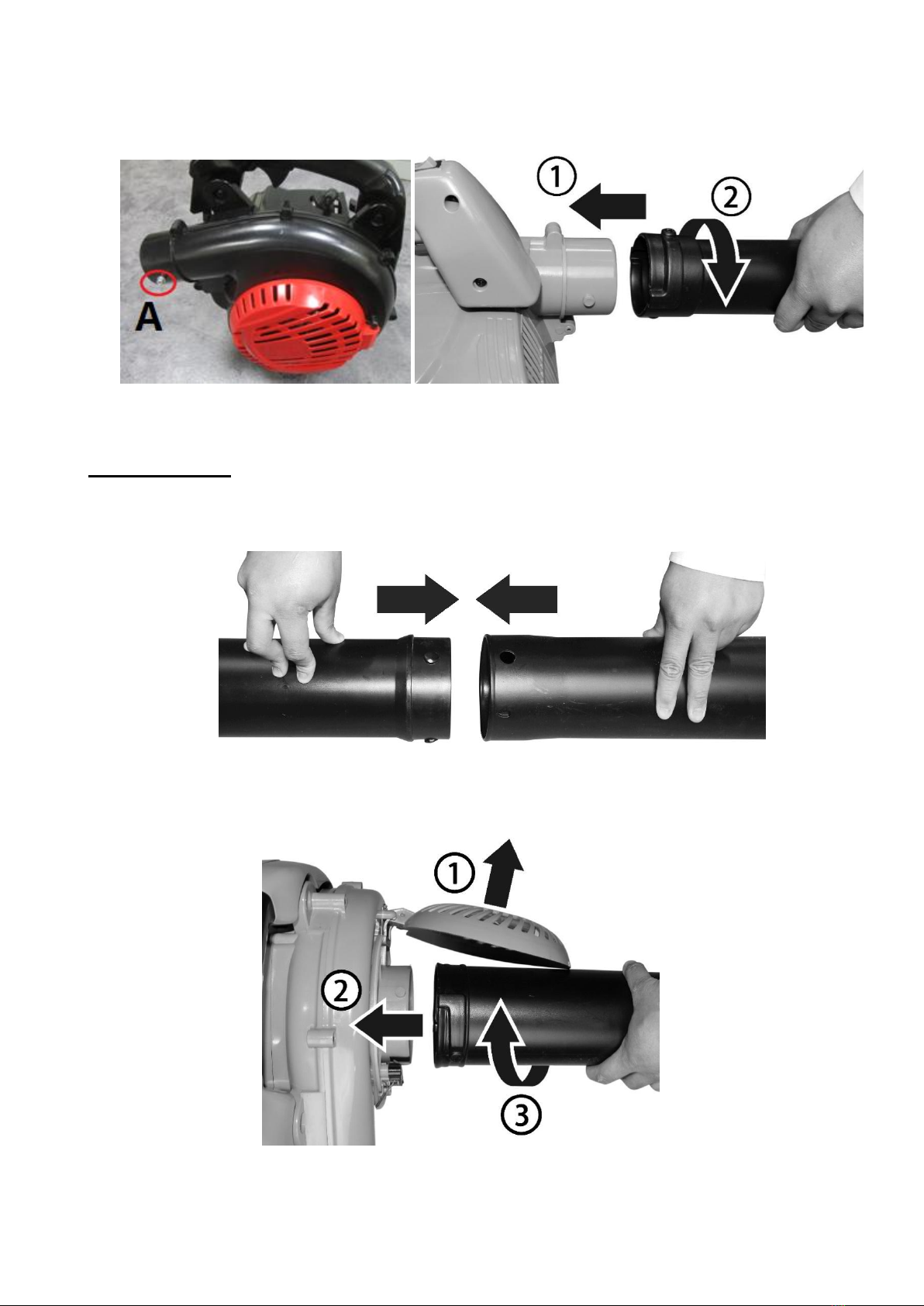

2.1 Remove screw A from the housing,
2.2 Push the tube onto the housing. Turn to lock onto place.
2.3 install screw A on the corresponding position, and fix the tube on the housing.
To remove the tubes, rotate the tubes to unlock them remove from the blower housing outlet.
B. VACUUM MODE
Assembly of the suction tubes
Connect the vacuum tubes together
Loosen the screw on the inlet cover and open. Push the tube onto the housing. Turn to lock onto
place.
To remove the vacuum tubes:
Remove the vacuum tubes from the blower housing.
Close the inlet cover door and tighten the screw securely.
09
C. Assembly of the collect bag
Remove the Upper blower tube and Lower blower tube from the blower.
Unzip the vacuum bag and place the adaptor inside as shown.
Push the bag adaptor onto the housing. Turn to lock onto place.
Install screw A on the corresponding position
Make sure the vacuum bag is zipped and closed before starting the unit.
4. FILLING THE FUEL TANK
MOTOR FUEL: mix the petrol and oil at 40:1 only
Use fresh unleaded petrol. You must use 100% synthetic oil specifically made for heavily
stressed two stroke engines.
Mix the petrol and oil in an approved container. Never mix fuel directly in the vacuum blower
fuel tank.
Place the vacuum blower on the ground or on a sturdy bench and wipe any debris from around
the fuel cap.
Unscrew the fuel tank cap and pour the mixture into the tank with the aid of a funnel.
Be careful not to spill any mixture. If this happens, wipe the spill with a clean rag.
Start the engine at least three metres away from the area where the fuel tank has been filled
up in order to avoid any risk of fire.
10
Indice
Altri manuali Hyundai Soffiatore
Hyundai
Hyundai HYBV3000E Manuale utente
Hyundai
Hyundai HYSW1000 Manuale utente
Hyundai
Hyundai HYBV200 Manuale utente
Hyundai
Hyundai HAS3000 Manuale utente
Hyundai
Hyundai HYBV26-2 Manuale utente
Hyundai
Hyundai WR6022-1800Q Manuale utente
Hyundai
Hyundai HYB5200 Manuale utente
Hyundai
Hyundai HYB60 Manuale utente
Hyundai
Hyundai HSEC40V-4A Manuale utente
Hyundai
Hyundai HSEN40V-A Manuale utente
