Dear customer!
Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully
before connecting, operating and/or adjusting the product and keep the manual for reference in the future.
Table of contents
Table of contents..................................................................................................................................................... 2
Important safeguards .............................................................................................................................................. 3
Installation/ connection........................................................................................................................................... 4
Panel controls.......................................................................................................................................................... 7
General operations ................................................................................................................................................ 10
Digital tuner operations ........................................................................................................................................ 13
CD operations ....................................................................................................................................................... 16
MP3 overview....................................................................................................................................................... 18
Anti-theft system .................................................................................................................................................. 20
Handling discs ...................................................................................................................................................... 21
Cleaning ................................................................................................................................................................ 21
Troubleshooting guide .......................................................................................................................................... 22
Specification ......................................................................................................................................................... 23
3
Important safeguards
• Using the device at temperature below -10ºСmay cause the breakage of the device. BEFORE USING
PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED
TEMPERATURE!
• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher
amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create
safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car
becomes normal before operating the unit.
• DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period
or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an
unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a
qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please
confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may
overload or burn out the power amplifier.
• Do not install the detachable panel before connecting the wire.
• Don't remove the detachable panel when encoding.
4
Installation/ connection
First complete the electrical connections, and then check them for correctness.

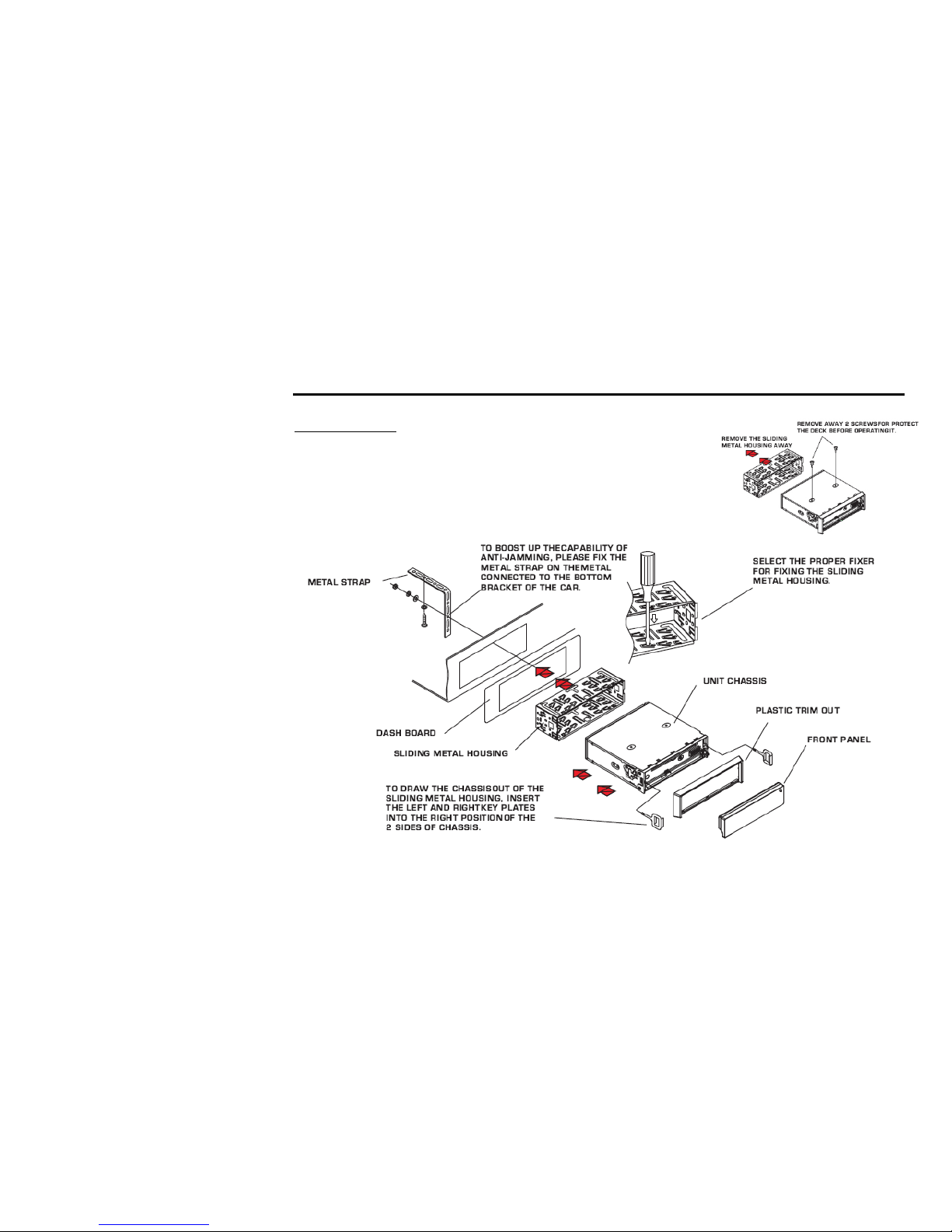

Installation way
It is an anti-theft installation way. The chassis wear a metal sliding housing.
Please have the wiring connection of the power supply, speakers and antenna
as for the requirement of the manual.
Before installation remove the 2 screws that protect the deck away, and then
install the metal sliding housing into the car according to the diagram.
5

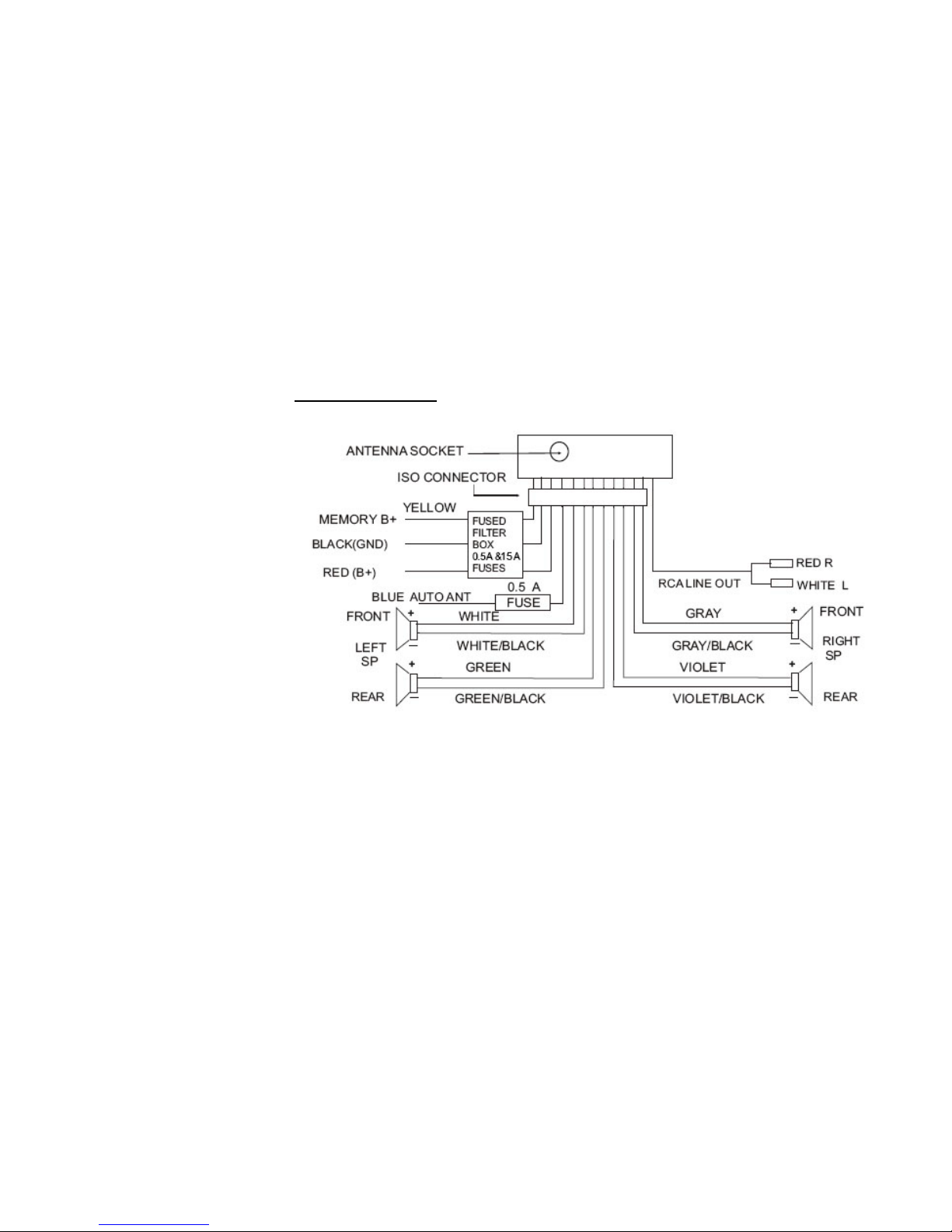

Electrical connection
Notes:
• In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the
distortion during high volume level.
• Prohibited t to make the conductors of auto antenna and ground touch with each other.
6

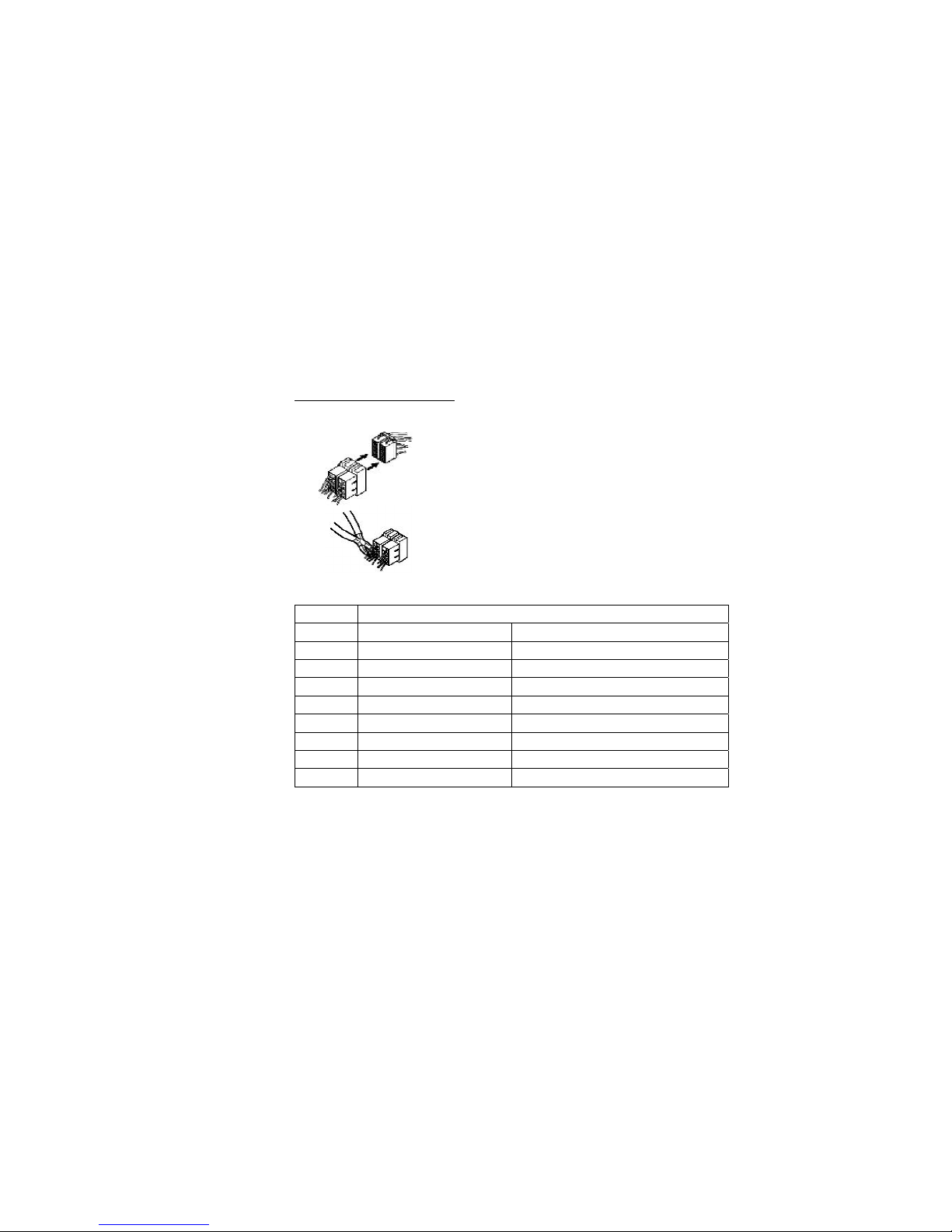

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the
vehicle carefully before connecting, incorrect connection may cause serious
damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car
battery as shown in the color code table below for speaker and power cable
connections.
Location Function
Connector A Connector B
1 Rear Right(+)---Violet
2 Rear Right(-)---Violet/Black stripe
3 Front Right(+)---Grey
4 Battery 12V (+)/yellow Front Right(-)---Grey/Black Stripe
5 Auto Antenna/blue Front Left(+)---White
6 Front Left((-)---White/Black Stripe
7 ACC+/red Rear Left(+)---Green
8 Ground/black Rear Left(-)---Green/Black Stripe
7
Panel controls

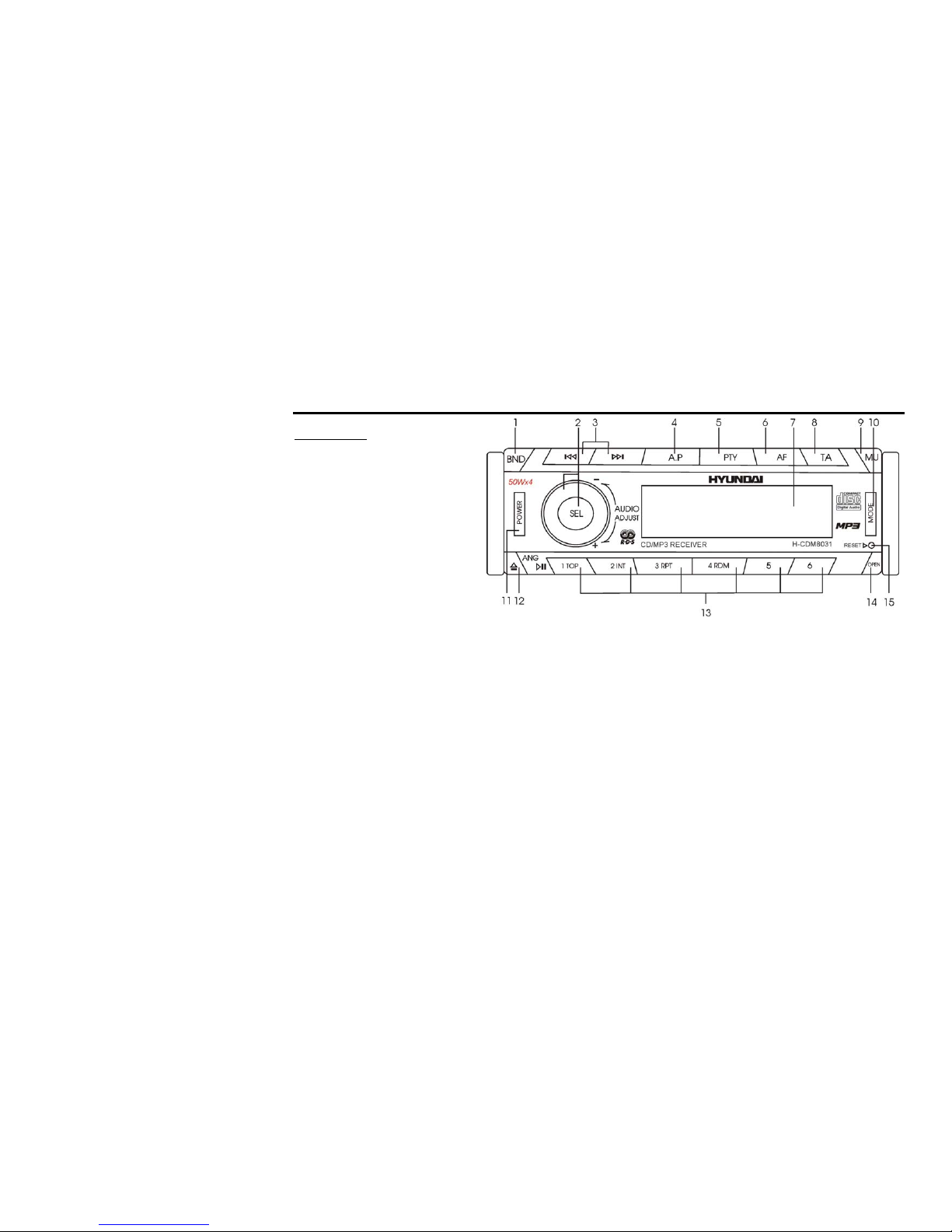

Front panel
1 BAND button
In Radio mode press it repeatedly to select your desired radio band.
2 VOL+/- knob / SEL button
Rotate VOL clockwise to adjust the volume level.
Press the SEL button shortly and repeatedly to select the audio modes: VOLUME => BASS => TREBLE =>
BALANCE => FADER
Press and hold SEL to enter the settings menu: EQ (FLAT => CLAS => ROCK => POP) => CLK (12 / 24)
=> CT =>STEREO / MONO => LO / DX (DX=>LOC) => AREA (OIRT => LATIN => EUROPE=>USA
=> ASIA => AUST) => V-PGM (0-46) => BEEP ON / OFF => CLK ON / OFF => SEEK ALL / RDS =>TA
SEEK=> TA VOL=> MASK DPI / ALL => REG ON / OFF.
Rotate VOL knob to adjust each mode.
For each mode the waiting time is about 5 seconds.
Rotate VOL to adjust the volume level.
8
3 /buttons
In Disc mode press the buttons shortly to go to previous/next track. Press and hold them to start fast
backward/ forward rewind. In Radio mode press the buttons shortly to search the stations manually. Press
and hold for 2 seconds to start searching the stations automatically.
4 A.P button
Use the button for searching, scanning and storing radio stations.
5 PTY button
In Radio mode press it to activate the PTY function.
6 AF button
In Radio mode press it to activate the AF/EON function.
7 LCD (LIQUID CRYSTAL DISPLAY)
8 TA button
Press it to activate/ deactivate the TA function.
Press and hold for 2 seconds to turn the LOUD function on/off.
9 MUTE button
Press it to cut down the volume output, press it again to resume volume.
10 MODE button
Press to select the mode: RADIO => DISC.
11 POWER button
Press POWER button to turn the power on, press again to turn the power off. Press and hold for 2 seconds to
turn the power off and reset the clock.
12 ANGLE button (ANG)
Use this button to adjust the monitor tilt.
Keep on pressing it to open the inner panel with disk slot
13 Preset buttons:
PLAY / PAUSE / TOP button (1) – use to start or pause the playback.
9
INT button (2) - Press it to start playback of first 10 second of each track.
RPT button (3)- Use this button to play current track repeatedly.
RDM (4) - button - Press to start random playback.
14 OPEN button
Press it to flip down the front panel.
15 RESET button
Use the button to restore the unit to the original factory settings.

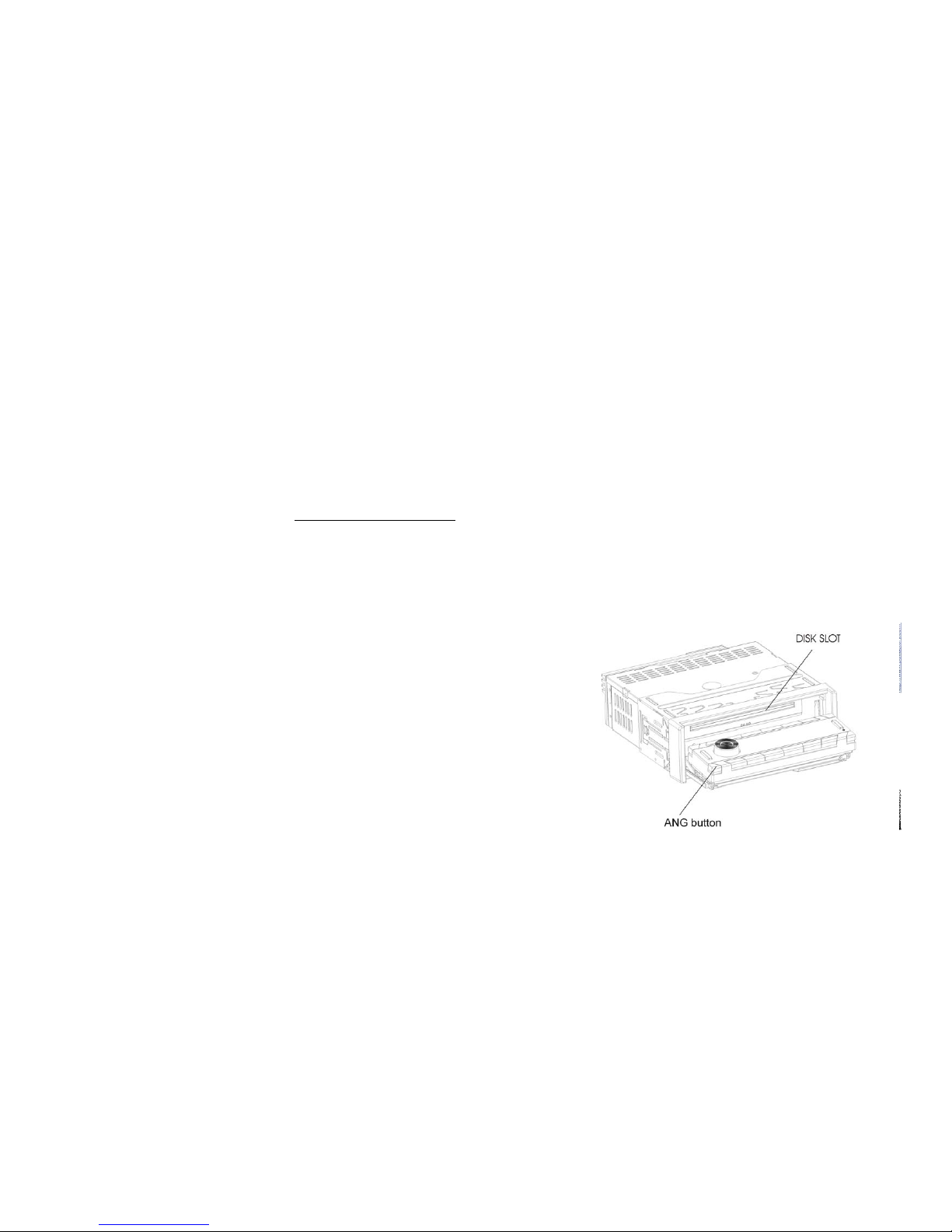

Inner panel with disk slot
The panel of this unit can be put aflet to show the inner pannel with disk slot. Keep on pressing ANGLE button
(ANG) and then insert a disk. It will start playing and the panel will get the initial position. To unload the disk
use ANG again.
To change the angle of the panel press ANG shortly.
10
General operations
Reset the unit
Press the RESET button on the front panel with thin hard object to restore the unit to the original factory settings.
Power button
Press any button to turn the unit on. Press the POWER button shortly to turn off the unit but the electronic clock.
Press and hold POWER button to switch the unit and the clock settings off.
Note: After the unit is off, the volume level and radio current settings will be memorized, and when you turn the
unit on it will resume the stored status which you set.
Volume control
Rotate the VOL+/- knob to adjust the volume level.
Setting the sound characteristics
Press SEL button shortly and repeatedly to select the audio menu items: EQ (FLAT => CLAS => ROCK => POP)
=> CLK (12 / 24) => CT =>STEREO / MONO => LO / DX (DX=>LOC) => AREA (OIRT => LATIN =>
EUROPE=>USA => ASIA => AUST) => V-PGM (0-46) => BEEP ON / OFF => CLK ON / OFF => SEEK ALL
/ RDS =>TA SEEK=> TA VOL=> MASK DPI / ALL => REG ON / OFF.
in the sequence and circulation. After selecting the desired audio menu item, rotate VOL knob to adjust it.
Note: After selecting the BAL/FAD item, press /buttons to adjust BALANCE and rotate VOL knob to
adjust FADER.
