Hyundai ImageQuest L72S Manuale utente

Type No. L17A0D080

For recycling please look into our web site

www.hyundaiq.com

User’s Guide

Hyundai ImageQuest L72S

TFT LCD Color Monitor

Click

www.hyundaiQ.com

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet of a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Connecting of peripherals requires the use of grounded shielded signal cables.

WE ImageQuest CO., LTD.

Ami-ri Bubal-Eub Ichon-Si Kyungki-Do

467-860 KOREA

declare under our sole responsibility that the product:

to which this declaration relates is in conformity with the

following standard(s) or other normative document(s)

following the provisions of the Low Voltage Directive 73/23/EEC,

93/68/EEC and the EMC Directive 89/336/EEC.

KOREA / March. 15, 2004 HONG KI, KIM

(Place and date of issue) (Name and signature of

authorized person)

DECLARATION OF CONFORMITY

Kind of equipment : COLOR MONITOR

Type-Designation : L17A0D080

Safety : EN60950:2000

EMC : EN 55013/1990+A12 :1994+A13:1996+A14:1999

EN 55022 :1998+A1:2000 Class B

EN 55024 :1998+A1:2001

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

Accredited testlaboratory:

TÜV Rheinland

Am Grauen Stein

51105 Köln

L72S

17" TFT LCD Color Monitor

Contents 1. Introduction ...................................1/22

2. Safety Information ........................1/22

3. Installing the monitor ...................4/22

3-1. Packing List .........................................4/22

3-2. Instructions to Install the Stand ........5/22

3-3. Selecting a suitable location ..............6/22

3-4. Connecting the monitor .....................6/22

3-5. Setting the refresh rate ......................9/22

Preset Timing Table ..........................10/22

3-6. User’s Environment ...........................11/22

4. Adjusting the picture ..................13/22

4-1. Using the On Screen Display ...........14/22

4-2. Direct access buttons .......................14/22

4-3. OSD Adjustments .............................15/22

5. Display power management ......18/22

Reducing power consumption ..............18/22

6. Troubleshooting ..........................19/22

7. Specifications ..............................22/22

L72S

17" TFT LCD Color Monitor

1. Introduction

2. Safety Information

1/22

This manual contains instructions for installing and operating

Hyundai ImageQuest L72S.

Hyundai ImageQuest L72S is a highly ergonomic color display unit.

• 17" viewable SXGA LCD

• High quality screen re-scaling capability

• 100-240V AC input voltage

• VESA DPMS (Display Power Management Signaling)

• VESA DDC1/2B compatibility

• Advanced digital On-Screen-Display controls

• Fast and accurate auto adjustment

• Most advanced image scaling

• Supporting VESA Flat Panel Monitor Physical Mounting Interface

This Monitor has been engineered and manufactured to assure your safety.

You can prevent serious electrical shock and other hazards by keeping in mind

the following:

Do not place anything wet on the monitor or the power

cord. Never cover the ventilation openings with any

material and never touch them with metallic or

inflammable materials.

L72S

17" TFT LCD Color Monitor

2/22

Avoid operating the monitor in extreme heat,

humidity or areas affected by dust.

Temperature : 5~35°C

Humidity : 30~80RH

Be sure to turn the monitor off before plugging the

power cord into the socket. Make sure that the power

cord and the other cords are securely and rightly

connected.

Overloaded AC outlets and extension cords are

dangerous, as are frayed power cords and broken

plugs, which may cause electric shock or fire. Call

your service technician for replacement.

Do not use sharp tools such as a pin or a pencil near

the monitor, as they may scratch the LCD surface.

Do not use a solvent, such as benzene, to clean the

monitor, as it will damage the LCD surface.

L72S

17" TFT LCD Color Monitor

Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The

unit is not user-serviceable. Remember to unplug the display unit from the

power outlet before cleaning.

• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not

use thinner or benzene, abrasive cleaners or compressed air.

• Do not wipe the screen with a cloth or sponge that could scratch the surface.

• To clean your antistatic screen, use water and a special microfiber screen

cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean

cloth with water or a mild detergent.

• If the instructions above do not help in removing stains, contact an authorized

service agent.

3/22

L72S

17" TFT LCD Color Monitor

4/22

The following items should be found in the packaging.

Above power cord can be changed upon different voltage areas. Please

contact your dealer if anything is missing or damaged.

Other power cord except the cord packed in the product or longer than 3m

may affect EMC of the product in operating condition.

3. Installing the

monitor

3-1. Packing List

America/Canada

Japan

Australia

Korea

Europe

South Africa

Power Cord

Signal Cable

Audio Cable

(Option)

Compact DiscStand Base

Main Unit Body

L72S

17" TFT LCD Color Monitor

3-2. Instructions to Install

the Stand Install the stand according to the following instructions on a flat surface.

1. Place the main unit body with screen face down and flip open the folded

Stand Post at 90 degree angle.

2. Engage the Base to the Stand Post by pressing down gently in right position

(If installed correctly you will hear a click sound).

3. Pull the installed base open to bring the main body unit to stand.

5/20

BACK

L72S

17" TFT LCD Color Monitor

6/22

3-3. Selecting a suitable

location

3-4. Connecting the

monitor

• Place the monitor at least 30cm from other electrical or heat-emitting

equipment and allow at least 10cm on each side for ventilation.

• Place the monitor in a position where no light shines directly onto or is

reflected on the screen.

• To reduce eye strain, avoid installing the display unit against a bright

background such as a window.

• Position the monitor so that the top of the screen is no higher than eye level.

• Position the monitor directly in front of you at a comfortable reading distance

(around 45 to 90cm)

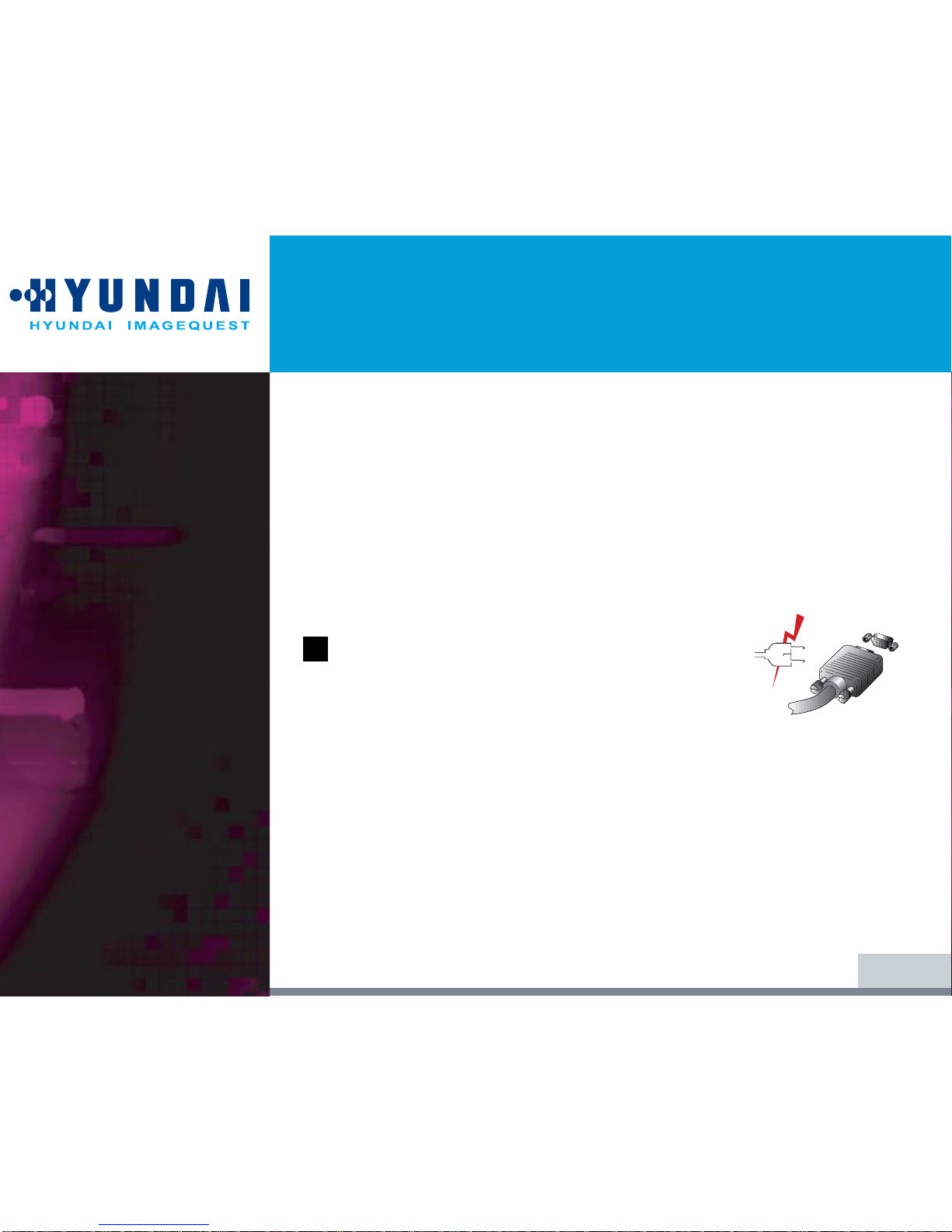

Before you start cabling your monitor, check that the

power is off on all units. To avoid any possibility of

electric shock, always connect your equipment to

properly earthed outlets.

1. Insert the other 15-pin signal cable connector into the 15-pin VGA connection

on your computer and screw it down.

2. Plug the power cord connection to connection on the monitor.

3. Plug the other end of the power cord to your computer's main supply or to a

100V-240V earthed electrical outlet.

4. Turn on the monitor using the power switch and check that the power LED is

on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of

this guide.
