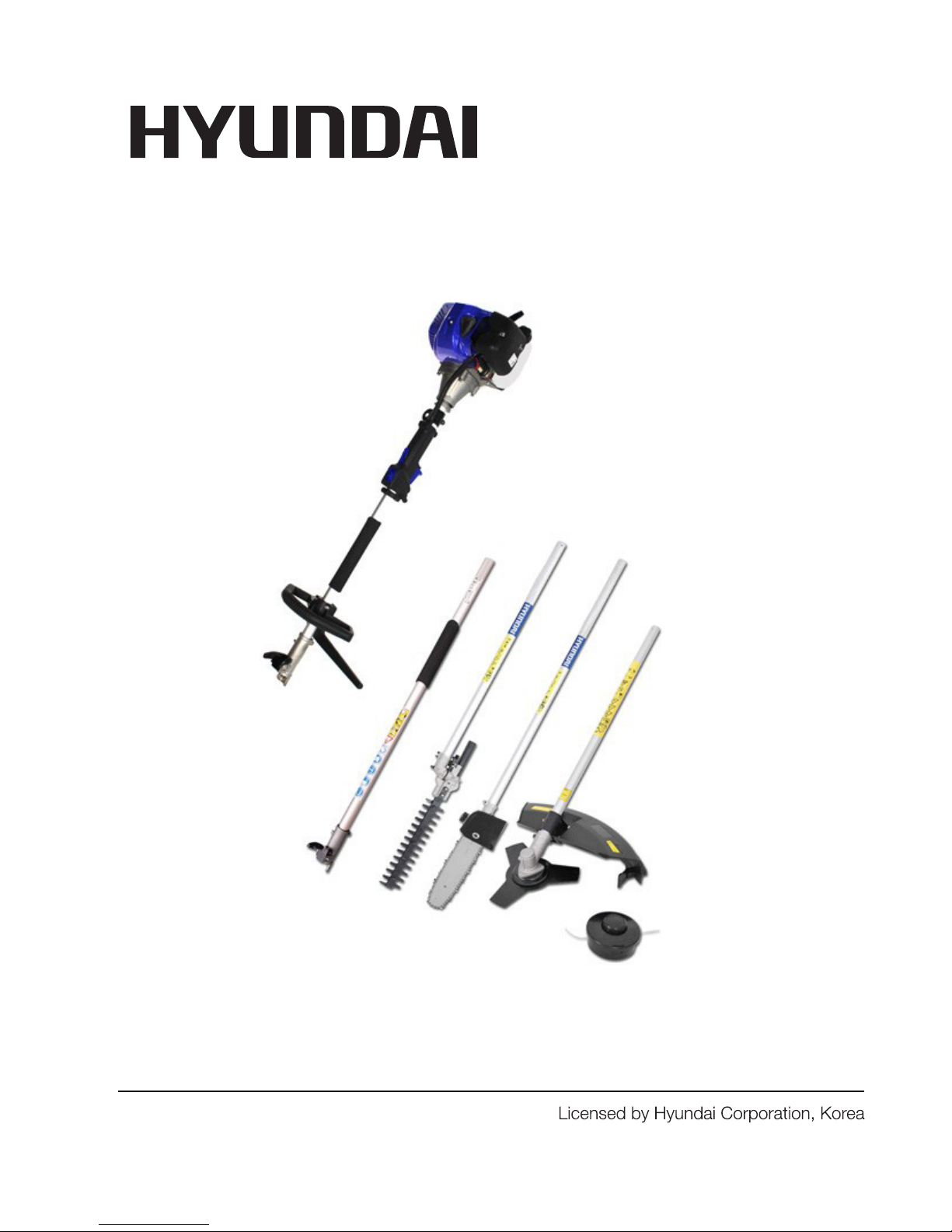

Hyundai HYMT33 Manuale utente

MULTI-TOOL

Model HYMT33

User Manual

CONTENTS

1. SAFETY 3 - 5

2. THE UNIT 5 - 7

3. ASSEMBLY AND INITIAL OPERATION 8 - 10

4. OPERATION 11 - 14

5. INSPECTION & MAINTENANCE 14 - 15

6. TRANSPORTATION & STORAGE 16

7. TECHNICAL DATA 17 - 18

8. TROUBLESHOOTING 19

9. DECLARATION OF CONFORMITY 20

Page 2

Ver 2

1. SAFETY

1.1 The operator of the machine is responsible for and has a duty of care in making sure that

the machine is operated safely and in accordance with the instructions in this user manual.

Please note the following safety points

1.1.2 The machine should never be left it in a condition which would allow

an untrained or unauthorised person/s to operate this machine.

1.1.3 All due care and diligence should be taken by the operator for the safety of and

with regard to those around whilst using the machine

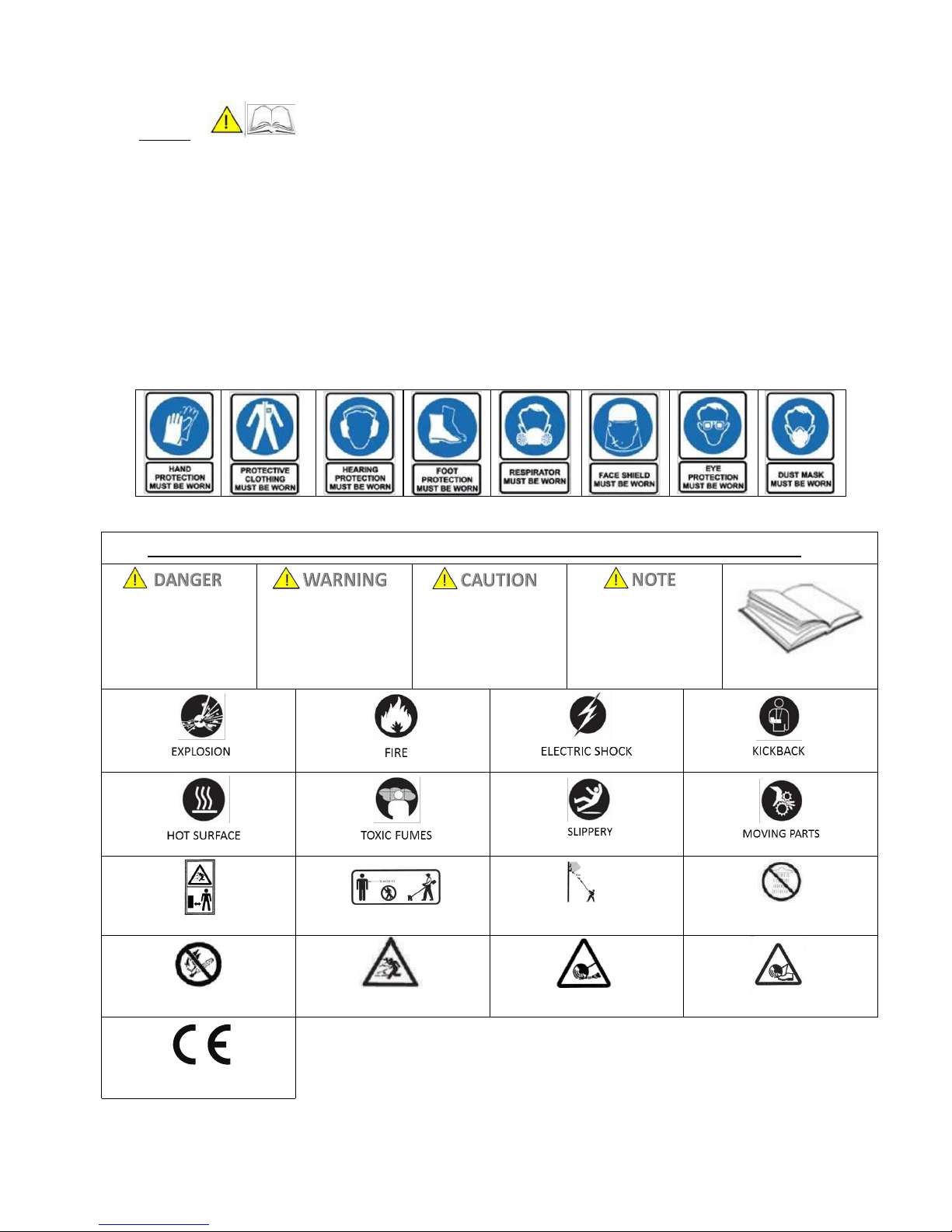

1.2 Some or all of the following PPE, Warning Signs and symbols may appear throughout this

manual and you must adhere to their warning/s. Failure to do so may result in personal

injury.

Warning Signs and Symbols –FOLLOW safety messages to avoid or reduce risk of injury or death.

DANGER - indicates a

hazard which if not

avoided could result in

serious injury or death.

WARNING - indicates a

hazard which if not

avoided could result in

serious injury or death.

CAUTION - indicates a

hazard which if not

avoided might result

in minor or moderate

injury.

NOTE - indicates a

situation that could

easily result in

equipment damage.

READ MANUAL

KEEP BYSTANDERS AWAY

KEEP BYSTANDERS 15 m AWAY

TAKE CARE OF OVERHEAD

POWER LINES

PROTECT FROM DRAIN & DAMP

KEEP NAKED FLAMES AWAY

FROM FUEL

BE AWARE OF THROWN

OBJECTS

TAKE CARE OF THROWN

OBJECTS

ROTATING CUTTING

BLADES

EC STANDARDS

COMPLIANT

Page 3

Ver 2

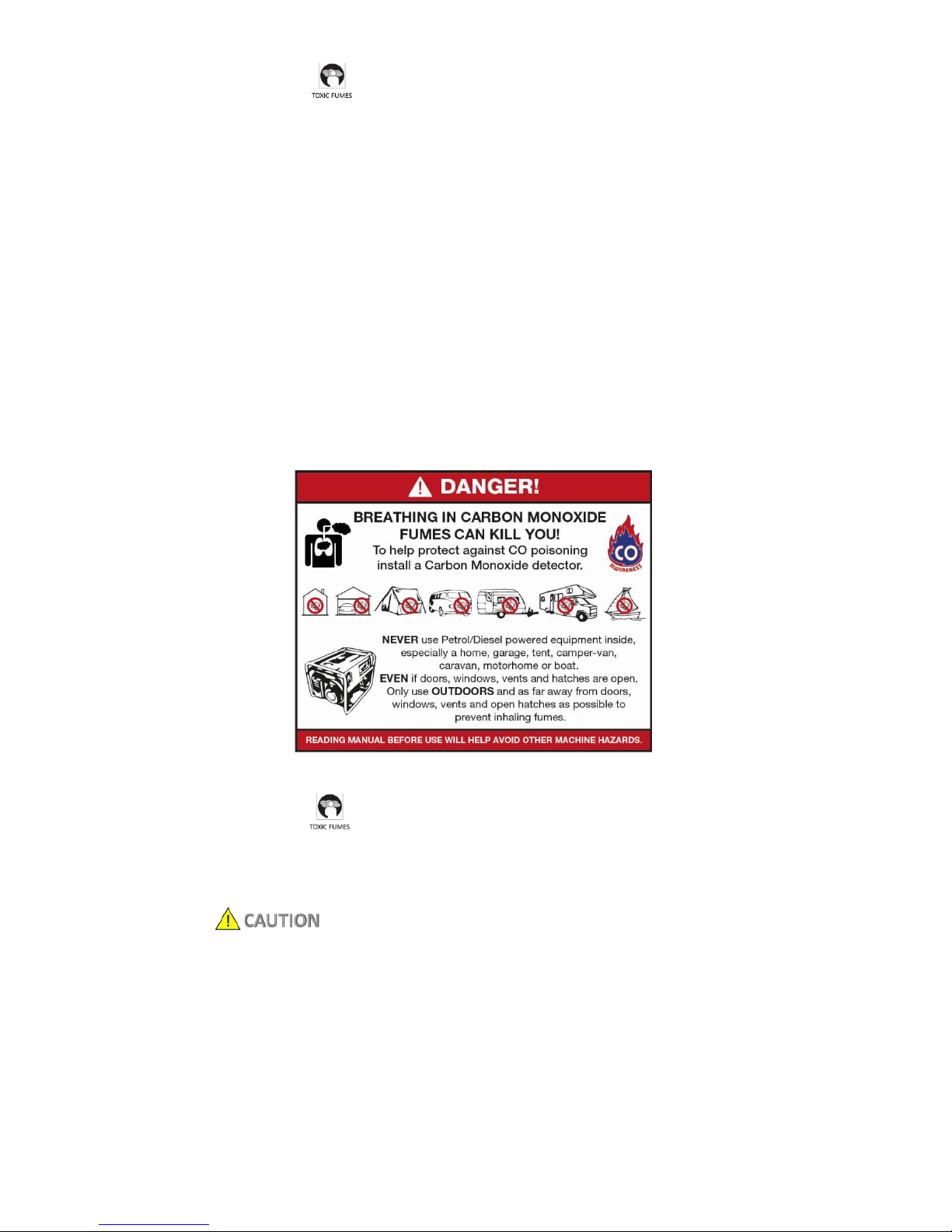

1.3 Carbon monoxide.

1.3.1 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can

cause death as well as serious long term health problems such as brain damage.

1.3.2 The symptoms of Carbon monoxide poisoning can include but not limited to the following;

1.3.2.1 Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.

1.3.2.2 Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and

simply tiredness. It is quite common for people to mistake this very dangerous poisoning

for something else.

1.3.3 To avoid Carbon monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside

a home, garage, tent, camper van, mobile home, caravan or boat. The list is not exhaustive if

you are in any doubt contact your dealer.

1.3.4 If you think you or someone around you has been affected by carbon monoxide poisoning;

1.3.4.1 Get fresh air immediately, by opening doors and windows, turning off the machine

and leaving the affected area.

1.3.4.2 See your doctor immediately or go to hospital - let them know that you suspect

carbon monoxide poisoning.

1.3.5 DO NOT use in an enclosed area or a moving vehicle.

1.4 General fuel safety.

1.4.1 Fuel Safety additional information can be obtained from the Health and Safety Executive.

1.4.2 All fuels are flammable.

1.4.3 Keep away from all ignition sources i.e. heaters, lamps, sparks from grinding or welding.

1.4.4 Hot work on tanks that have contained fuel is extremely dangerous and should not be

carried out.

1.4.5 Keep work area clean and tidy.

1.4.6 Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.

1.4.7 Dispose of waste fuels correctly.

Page 4

Ver 2

1.4.7 Dispose of waste fuels correctly.

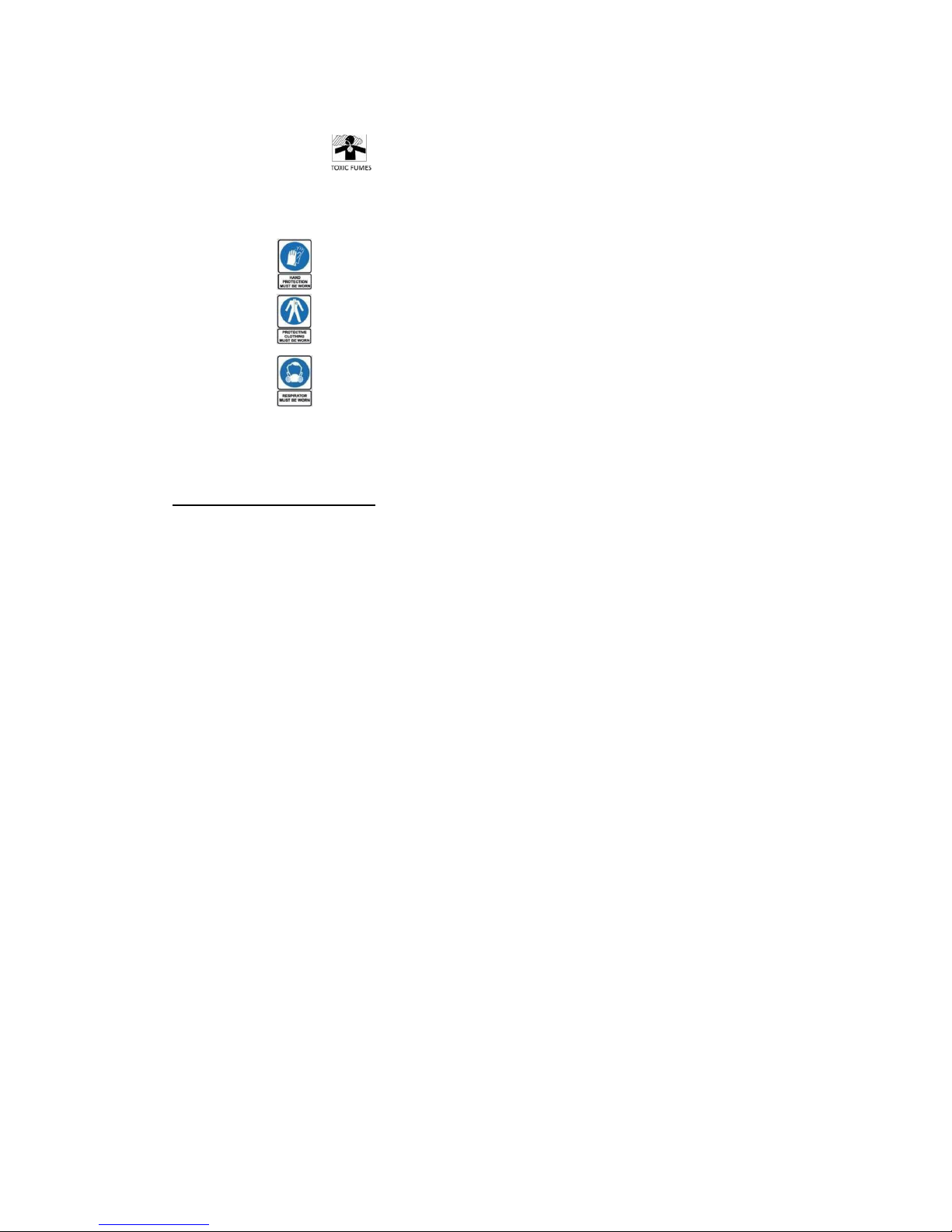

1.4.8 Petrol safety.

1.4.8.1 Always fuel and defuel in well-ventilated area.

1.4.8.2 Always wear correct, suitable and fit for purpose Personal Protective

Equipment (PPE), suggested items are as follows, but are not limited too.

1.4.8.3

1.4.8.4

1.4.8.5

Respiratory protective equipment should be used when in an

unventilated area.

1.4.8.6 When defueling always use a propriety fuel retriever.

1.4.8.7 Always carry fuel in the correct and clearly marked container.

1.5 Additional Safety guide-lines

1.5.1 To prevent fire.

1.5.1.1 Never add fuel to the fuel tank whilst the engine is running. Wipe away any

spilt fuel or oil with a clean cloth before operating. Keep explosives and any other

flammable products away from the machine at all times.

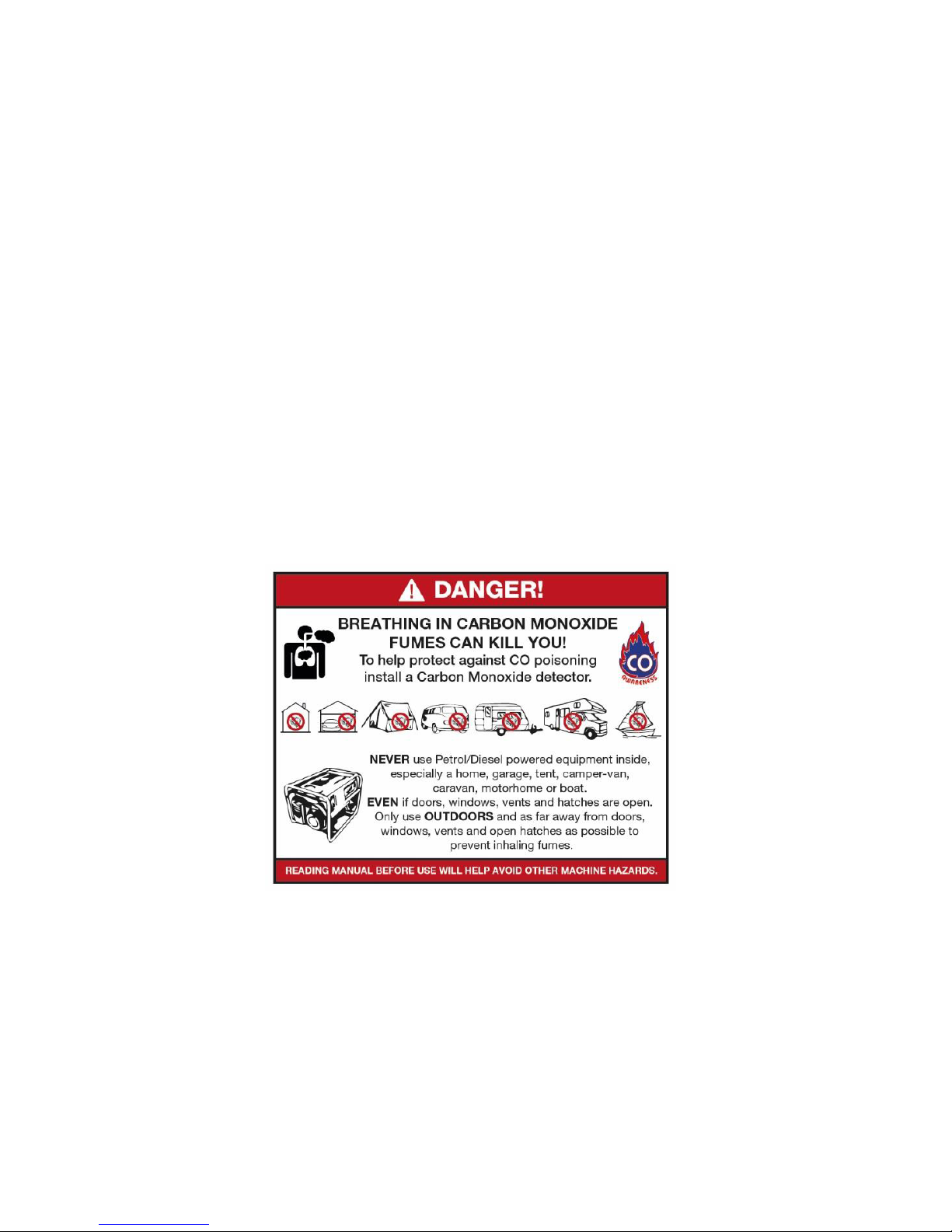

1.5.2 To prevent inhaling exhaust fumes.

1.5.2.1 Exhaust gas contains poisonous carbon monoxide which is harmful to health

and can kill.

1.5.2.2 For this reason, never use the machine in anenclosed area or areas with

poor ventilation

1.5.3 To prevent burns.

1.5.3.1 The muffler and the engine body becomes very hot whilst the engine is

running or just after running.

1.5.3.2 To prevent any burns, DO NOT touch these parts during these times.

Page 5

Ver 2

2. THE UNIT

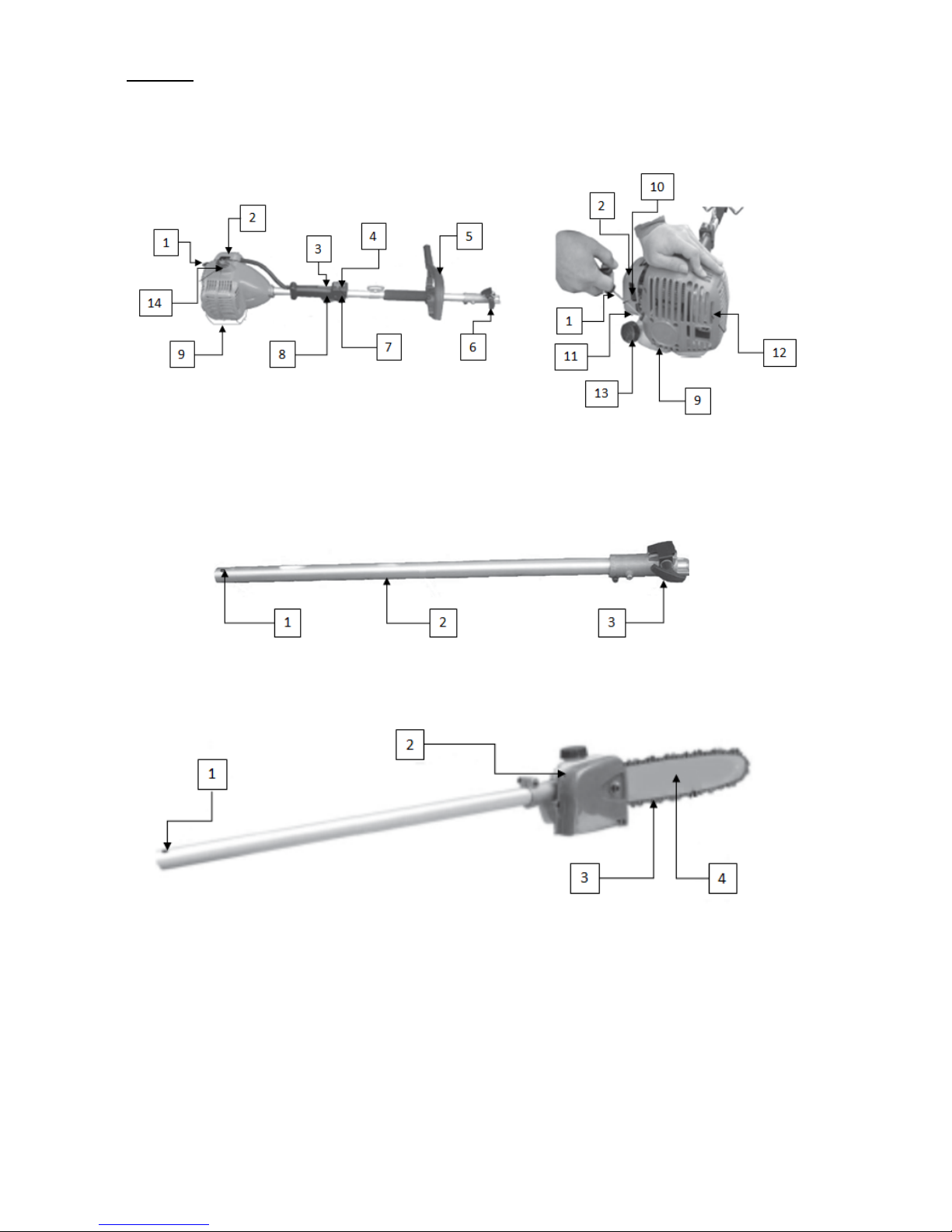

2.1 PPower unit.

2.1.1 The unit is a universal combination set enabling perfect care of the garden and

hedges and lop trees.

1. SStarting handle 2. Air filter 33. Throttle lockkout 4. Stop switch 5. Front handle

6. Unit locking screw 7. Throttle lockk 8. Throttle trigger 9. Fuel tankk 10. Choke lever

11.PPrimer bulbb 12. Exhaust 13. Fuel tank cap 14. Sparkk plug

2.2 Extension

1. Extension locking hole 2. Extension 3. Incorporated tool connection

2.3 Pole saw

1. Locking hole 2. Automatic oil pump 3.PPole saw chain

4. Pole saw chain bar

Page 6

Ver 2

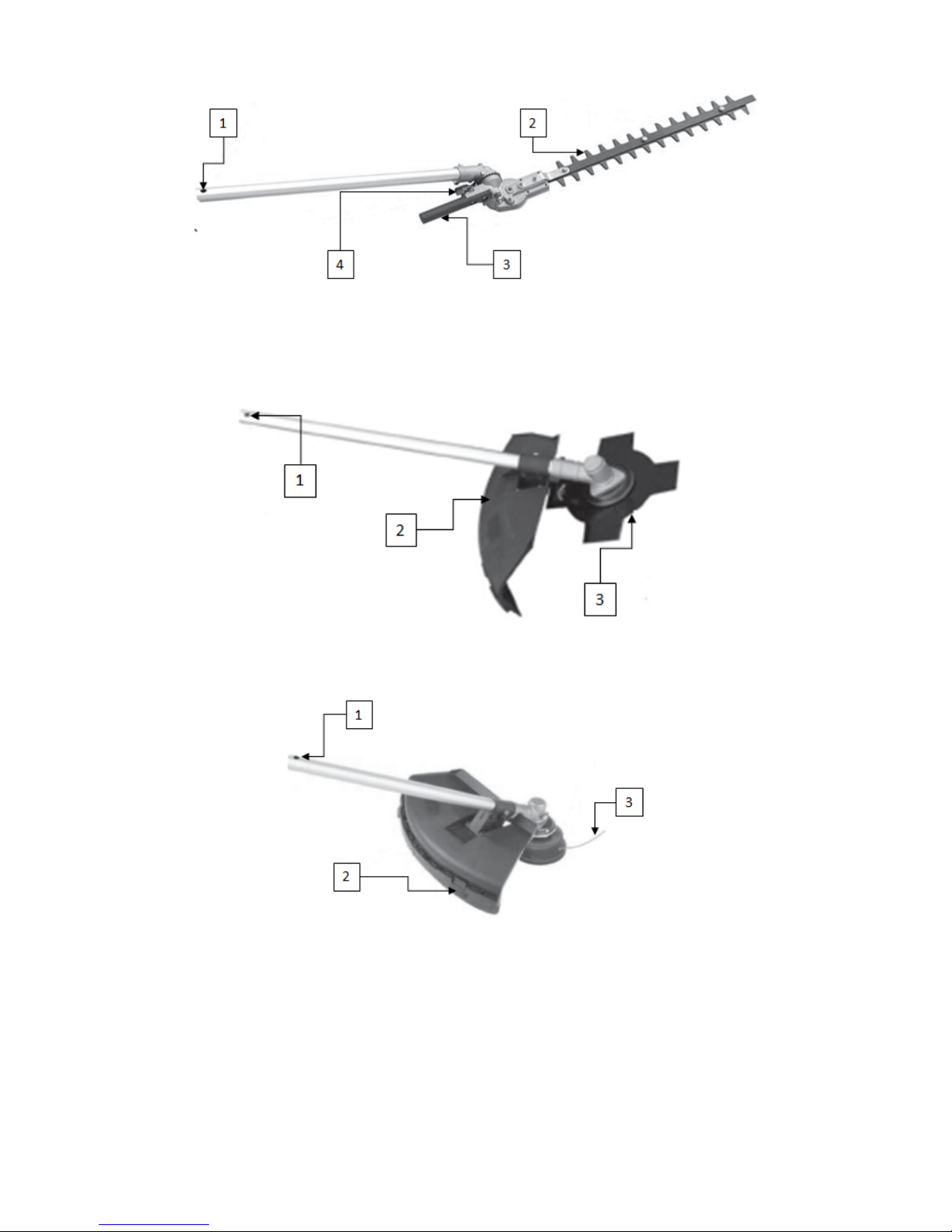

2.4 Articulating hedge trimmer

1. Pole saw locking hole 2. Automatic oil pump 3. Adjusting lever lockk

4. Cutting unit adjusting lever 135 degrees35°

2.5 Brush cutter

1. Locking hole 2. Guard 33.Cutting blade

2.6 Grass trimmer

1. Locking hole 2. Guard 3. Cutting cord

Page 7

Ver 2

33.ASSEMBLY AND INITIAL OPERATION

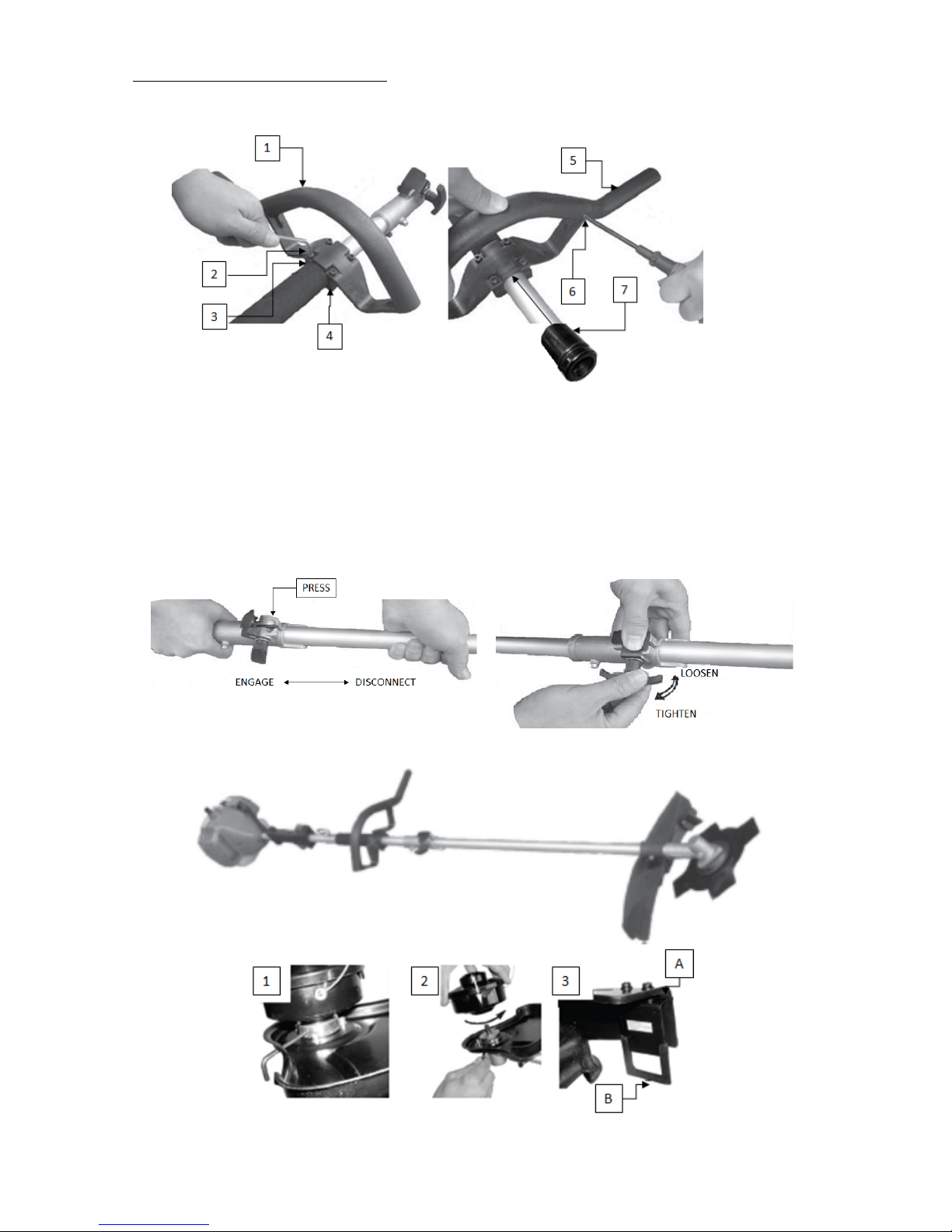

3.1 Ppower unit.

1. Front handle 2. SScrew 5mm x 35mm 3. Nut M55 4. Cover

5. Front handle bar 6. SScrew 4.2mm x 9.5mm

3.1.1 Install the front handle as shown in the diagrams. DO NOT tighten the

screws until you have set the perfect working position with the carrying strap.

The front handle should be aligned as show in 'Power unit' diagram.

Make sure to use the rubber sleeve (7) between the two halves of the

handle/cover. NOTE DO NOT fit handle over the foam grip.

33.2 Brush cutter and grass trimmer.

7.Rubber sleeve

Page 8

Ver 2

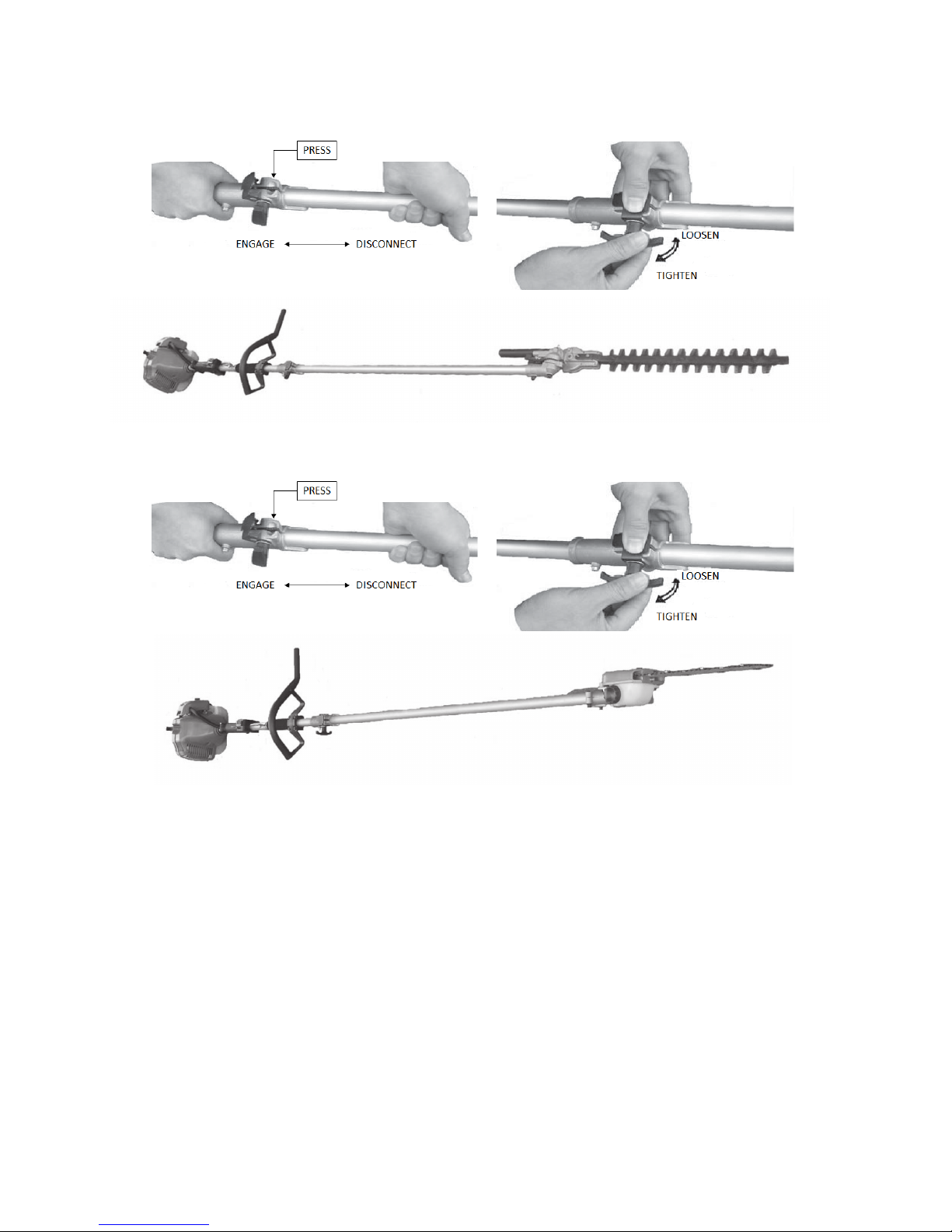

3.3 Hedge trimmer.

3.4 Pole saw.

Page 9

Ver 2

3.5 Fuel information.

33.5.1 Refuelling:

3.5.1.1 For air-cooled 2-stroke engines,mix unleaded petrol thoroughly with

synthetic 2-stroke oil at 40:1 ratio or mineral 2-stroke oil at 20:1 ratio.

Tip: Always prepare 1 litre of the mix at a time because the mix turns unusable

after prolonged storage. Take care of fire.

Warning: PPetrol is highly flammable.

33.5.2 Take the following precautions:

3.5.2.1 Store fuel in containers specifically designed for this purpose.

3.5.2.2 Refuel outdoors only and DO NOT smoke while refuelling.

3.5.2.3 Add fuel before starting the engine. Never remove the cap of the

fuel tank or add petrol while the engine is running or when the engine is hot.

3.5.2.4 Avoid spillages: if petrol is spilled, DO NOT attempt to start the

engine but move the machine away from the area of spillage and avoid

creating any source of ignition until petrol vapours have dissipated.

3.5.2.5 On completion of fuelling tighten all fuel tank and fuel container caps

securely.

DO NOT this machine in an enclosed are or moving vehicle

Page 10

Ver 2
