P240

Smart Watch

User Manual

FCC ID; RQQHLT-P240KW

Please refer to this manual before using the product

V1.0

Notes:

1. The company reserves the right to modify the contents of this manual without any further

notification. It is normal that some functions may vary in certain versions of software.

2. Please charge this product with the configured charger for no less than 2 hours before using it.

3. Please connect with the APP and set personal information to sync time before use. Please refer

to the instructions of the subsequent synchronization software for details.

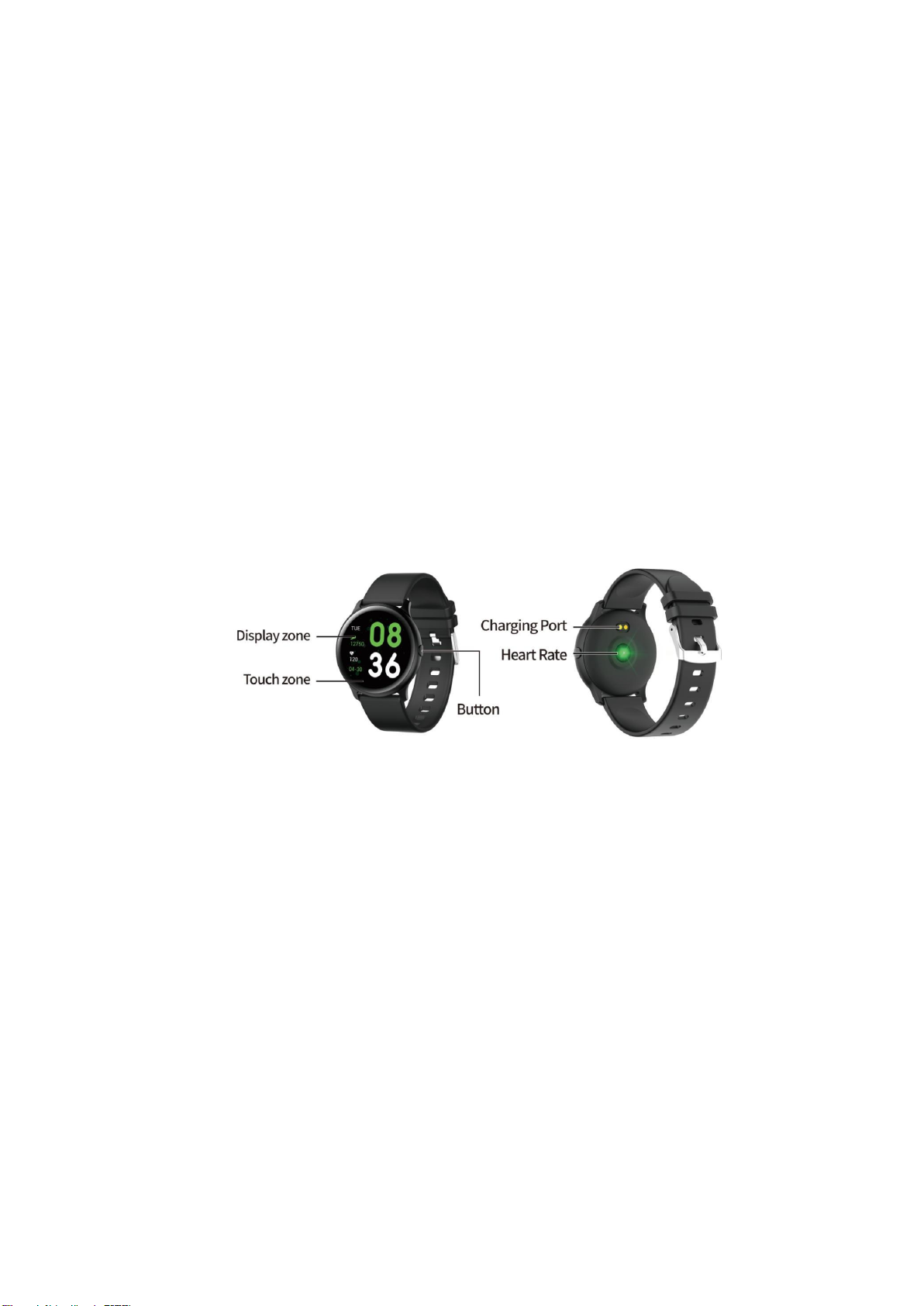

1. Product Overview

Models can be paired with:

Android phones: support OS 5.0 and above

Iphones:Support OS 9.0 and above

2. APP download and connection

1. Please scan the QR code below to download APP

It is recommended to use a browser to scan and download. Currently, WeChat scan

download is not supported. Please give the corresponding permissions of this software in

the download and installation process for BT connection.

The QR code can be found from watch as well. It can be also downloaded from watch QR

code. The APP name is “Da Fit”.

( Da Fit QR code)

Notes:

1. For Apple phone users: If it is in standby or hibernation state for a long time (for example,

2 hours or more) on Apple phone, (the phone has not been using, and it is in a black screen

state), Da Fit will be cleaned up by IOS system, then the APP application and watch

disconnect in between, the functions on APP are not available to use. Please re-open the

watch and it will be automatically reconnected.

2. For Android phone users: After installing the APP software on the Android phone, you

need to enable the background application launch permission in the settings of your phone.

Each smart phone has a difference. Take Huawei phone as an example. The steps are as

follows:

Settings--Application--Application Launch Management--Da Fit, find the APP application,

change the automatic management to manual management, open all permissions (allow

self-start, allow association start, allow background activities). This is only for the APP

application to maintain the Bluetooth connection with the watch while the phone is in

standby (the phone does not have a bright screen), and will not be cleaned up by the

Android system. Will not use network traffic in the background, nor does it affect the power

consumption of the phone.

2. Connections for APP and Watch

1. Open the app and set your personal information, such as “Height”, “Weight”, “Birth Year”,

etc..

2. For Android mobile phone: Switch to the home page after information setting on Android

phone, click “ADD Device” (Figure 2) to reach the “Add Device” page, click to choose the

right model icon you purchased (Figure 3)

3. It's automatically back to the home page after successful connection between app and

watch. Click the device icon to switch to the device page to check connection status, it will

be shown the device model and picture, power, address and other informations after

connected successfully. (Figure 4).

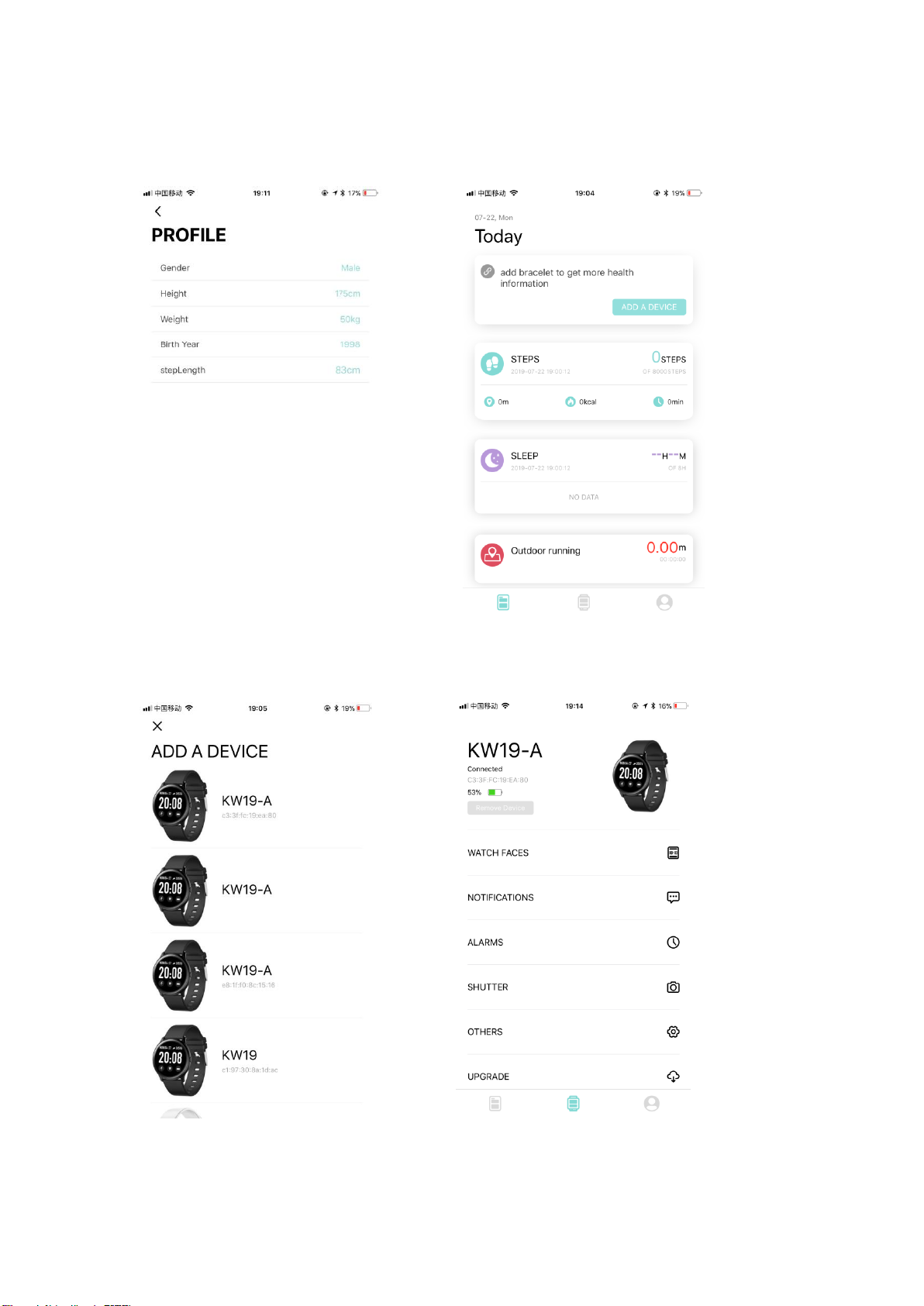

(Figure 1) (Figure 2)

(Figure 3) (Figure 4)

4. For iphone: Bluetooth connection of IOS phone refers to Android phone (same with

point 2, 3)

5. When pairing is failed by scanning QR code, you can click to see if the watch and phone

has been connected with others,If yes, please ignore the device on phone before new

connection.

3. APP settings ( Functions are available after connected successfully )

3.1 WATCH FACES

Click the WATCH FACES to select a dial you prefer and click on the top left corner to

return to save it.

3.2 NOTIFICATIONS

Click to open the notification reminder, you can select the program you want to push,

you can choose the social application you want or select push all information.

3.3 ALARMS

Click the “ALARMS”to enter into the setting page. Three alarms period for default.

Click on an alarm to enter the clock time.

3.4 SHUTTER

Android phone: Click the shutter function from APP,and the watch will show a

camera icon,click it to take a photo directly,photos will be automatically saved to

your album.

Apple Phone: Click the “Shutter”from the iphone and your phone needs to open

the camera manually(due to the IOS system) then click to take pictures on watch.

3.5 OTHERS

3.5.1 Find Device: Click”Find Device”, it will vibrates to remind on watch.

3.5.2 Time Formats: Click to set the 12-hour Time or the 24-hour Time. It's done after

click, The watch time is synchronized with your setting time format.

3.5.3 “Do not disturb”: “Closed”is the default mode. Click to enter the setting page, you

can set the “do not disturb”mode according to your personal needs. Information

will not be accepted again after setting.

3.5.4 “Reminders to Move”: Default mode is “off”. Sedentary reminder only takes effect

from 10:00- 22:00.

3.5.5 Lift wrist to brighten screen: Default mode “ON”. An effective duration can be

set. you can set one duration according to individual required duration.

3.5.6 Weather: switch to open and close weather function, and you can manually set up

the city or automatic positioning. The positioning needs to give authority,

otherwise it is not available to use. Weather information update once every 2

hours, if it is in closed state, it takes to wait for 2 hours before disappearing on

watch.

3.6 UPGRADE

When a new version of the server is detected, a new version of the watch firmware

can be upgraded

3.7 Unbind

Pairing of your watch with phone app can be unbinded.

Note: For Apple phone IOS, go to “Settings”- “Bluetooth”, to ignore current

Bluetooth pairing, in order to completely unbinding.

3. Main functions

3.1 Basics

3.1.1 Power ON: When watch is power off, long press the side button for 5 seconds to power

on. In the standby state, short press the side button to wake up it.

3.1.2 Power OFF: When watch is power on, long press the side button for 5 seconds to

power off directly.

3.1.3 Message: Long press the touch key to enter the Message interface. You can see the

Bluetooth name, device type, device address, etc.

3.1.4 Pulling down status menu: Pull down from the dial to enter the status menu, it displays

the do not disturb mode, Brightness, Find Device, Screen Lock, settings, connection

icons, power display and other functions.

3.2 Steps

You can view pedometer data on watch and APP. When watch is successfully paired with APP,

your sport data will automatically synchronize (or manually refresh) from watch to the APP,

including steps count, distance, calories and other parameters.

3.3 Sleep monitor

The default sleep monitor time for the watch is from 20:00 pm to 10:00am. If you wear a

watch to sleep, you can check last night’s sleep time on the watch after getting up the next

morning. When watch is successfully paired with APP, the sleep data will be automatically

synchronized (or manually synchronized) to the APP. The watch will automatically recognize

and judge what the sleep state it comes to be . If you just get up shortly from bed, the sleep

data displayed on the watch is different from the actual data because the watch is still

detecting sleep. It is only when the watch completes detection that will show results of the

whole night, and is consistent with the actual data. It will be acceptable to have some errors

with the actual data due to different sleep states.

3.4 Heart rate monitor

When heart rate data is empty, it displays“000Bpm”. Go to the heart rate icon, long press the

touch key for more than 2s to start testing. The data displays directly after testing. It is

continuously measured for 30 seconds and it just keeps the last data. if it exits from the current

page during measuring, the testing value is not recorded.

3.5 Training

3.5.1 Excecise includes: Walking,Running, Cycling, Skipping, Badminton, Basketball, Football.

3.5.2 Switch the corresponding training icon: Long press to enter the corresponding excecise

mode, data such as steps, distance, calories, heart rate, exercise duration will be visiable.

Long press on the current sport page to pause, and exit from the application.

3.5.3 Activity data can only be uploaded to APP for view. While the data after exercise can not

be viewed on the watch.

Note: Sport data save rules: 1.Exercise time more than 2 min or; 2. with testing heart rate

data;

It needs to meet any one of the two conditions that can save data, if not, it will not keep any

excecise data.

3.6 Blood Pressure

Go to the blood pressure icon and long press the touch key to measurement. You can stop it

after the measured value is obtained.

3.7 Blood Oxygen

Go to the blood oxygen icon and long press the touch key to measurement. You can stop it

after the measured value is obtained.

3.8 Weather

After the weather function is enabled on phone APP, it will be displayed on the watch. It

won’t display if it’s started on APP. The weather information will be updated once

every 2 hours.

3.9 Message

Go to Message icon, and long press to check the message you won’t miss. You first need to

give allowance to synchronization function on APP. The information received from the

phone will be synchronized to the watch. (5 messages will be kept by default. If it comes

over 5 messages, it will automatically cover the earliest message. Long press the current

message to clear automatically after view.)

Messages can be synchronized from smart phone to the watch via Bluetooth. They can be

easily viewed. It does not support to reply. For Voice message, it can only display incoming

messages, but can not be heard on the watch.

4.0 Shutter

You can take a photo with your phone camera by remotely control.

For Android phone users: Click the “Shutter”, your Android phone will enter the current

camera page , the camera icon will pop up on the watch, and then you can click to take

photos.

For Apple Phone: Click the “Shutter”, an introduction page comes to your Apple phone,

your phone needs to manually enter the camera interface, and then click to take pictures

on watch. You need to manually open the camera because of the Apple phone system.

4.1 Player

Long press to enter the music control interface, you can long press the middle “player”to

pause or play the previous song or the next song. Short press to switch the current

operation. (It is recommended that the mobile phone player is in the foreground operation,

some smart phones probably will have compatibility problem if in the background )

4.2 Others

Long press to enter into “Others” functions

1.2.1 Back: Long press to return to the previous interface

1.2.2 Stopwatch: Long press to start timing, short press to pause timing, long press to clear

and exit timing.

1.2.3 Mute: Long press to switch on and off

1.2.4 Brightness: Long press to enter the brightness interface, short press to set the

brightness effect, long press to confirm setting.

1.2.5 Factory reset: Long press to restore factory settings, the watch will return to the

factory state

1.2.6 Power off: Long press to shut down the watch, it will enter the power off state.

4. Precautions

4.1 Only one connected app can be installed on the mobile phone to ensure that the connection

is normal before the data can be synchronized. If there are multiple such connected APP

applications, they may affect the connection between the watch and the mobile phone.

Note: Some Android phones will prompt you that you cannot install them. Please go to

‘setting’of the phone and authorize the ‘Unknown source’

4.2 When the mobile phone prompts permission to apply, please click “Allow” to avoid the

application permission of the APP application is not open, which may result in you not

receiving notifications, scanning QR codes, remote cameras and other functions. This

permission is a normal application and does not affect the flow of the phone or other

information on the phone. It’s limited for Bluetooth connection between the APP and the

watch.

4.3 Some Android smartphones may accidentally close the mobile app when cleaning the

application. Please keep the mobile app running in the backstage.

Android phone settings backstage running method: open the phone settings - application

management - Da Fit - Rights management - Backstage management - select backstage

running. (The setting method may be different due to different mobile phone versions and

models)

4.4 Heart rate monitoring requires the watch and arm to be tight, too tight or too loose, the test

may be inaccurate, because too tight will affect the flow of blood, too loose will affect heart

rate sensor monitoring.

4.5 Please avoids colliding with hard objects to break the glass.

4.6 Please use 5V, 1A for the charger. This product does not support fast charging. Do not charge

with water (sweat) to prevent short circuit and damage the product.

4.7 This product is an electronic monitoring product, not for medical reference, data for daily

reference.

5. Troubleshooting

In case there’s a problem during the using of the smartband, please solve it accordingly by

the following ways. If the problem still exists, please contact the seller or designated

maintenance personnel.

5.1 The watch cannot be turned on

5.1.1 Press the display touch area for over 3 seconds

5.1.2 Make sure there is enough battery. Battery power may be too low, please charge it.

5.1.3 If leave the watch too long and the normal charger does not respond, please try

charging with an output power of 5V/1A.

5.2 Shut down automatically

5.2 Battery power may be too low, please charge it.

5.3 Short battery life

5.3.1 It may occur when the battery hasn’t been fully charged, please ensure sufficient time

for the charging ( at least 2 hours is required)

5.3.2 Charger or data cable may not work properly, please change a new one.

5.3.3 Please check the port of the data cable and try again to ensure a proper connection.

5.4 BT disconnect or unable to connect

5.4.1 Please restart it

5.4.2 Please turn off BT of mobile phone and open it to reconnect.

5.5 Inaccurate sleep data

Sleep monitor is designed to imitate the natural pattern of falling asleep and waking up,

please wear the watch normally, otherwise deviation may occur if going to bed late or only

wear while sleeping. There may not sleeping data generate if go to bed at day time as the

defaulted sleeping time is preset to between 9:00 pm to 9:00 am.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception,

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement

The device has been evaluated to meet general RF exposure requirement. The device ca

n be used in portable exposure condition without restriction

Indice

Altri manuali Hyundai Orologio

Hyundai

Hyundai HLT-D24KWM Manuale utente

Manuali Orologio popolari di altre marche

Pandora

Pandora WATCH2 Manuale utente

Casio

Casio QW-4343 Manuale utente

Suunto

Suunto X6 Manuale utente

Seiko

Seiko N830 Manuale utente

MotionX

MotionX 365 Manuale utente

Garmin

Garmin VENU SQ 2 Manuale utente

QCY

QCY Watch GTC Manuale utente

Canyon

Canyon Cindy CNE-KW41WP Manuale utente

Esq

Esq Watches Guida all'installazione

Crane

Crane AA5-CDSM-3A Manuale utente

Timex

Timex W-214 Manuale utente

DETOMASO

DETOMASO MATERA Manuale utente

Geemarc

Geemarc Watch N Shake Manuale utente

LORUS

LORUS W590 Manuale utente

STENLILLE

STENLILLE Actío Manuale utente

Casio

Casio 5594 Manuale utente

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuale utente

Slazenger

Slazenger SLZ800 Manuale utente
