I-PRO WV-X86531-Z2 Manuale utente

(

)

Web Guide

WV-X86531-Z2

Ver 1.0

Contents

1. 　 Unique features …………………………………………………………… 1

2. 　 Set up ……………………………………………………………………… 2

2.1 　 Install on the ceiling ………………………………………………………… 2

2.1.1 　 Ceiling surface mount installation ………………………………………… 2

2.2 　 Wall pendant mount installation ……………………………………………… 2

2.3 　 Ceiling embedded mount installation ………………………………………… 2

2.4 　 Use the TILT adjusting lever to determine the shooting range …………… 3

2.4.1 　 Change the TILT adjustment angle ………………………………………… 3

2.4.2 　 Scope of shooting ………………………………………………………… 4

3. 　 Connect to the camera …………………………………………………… 5

3.1 　 IP Setting Software ………………………………………………………… 5

3.2 　 Access the camera …………………………………………………………… 5

3.3 　 About live image pages ……………………………………………………… 8

3.3.1 　 Live image page in the multi part …………………………………………… 8

3.3.2 　 Live image page in the PTZ part …………………………………………… 9

4. 　 Set the camera …………………………………………………………… 11

4.1 　 Check whether the object is of the appropriate size ……………………… 11

4.2 　 Hide some of the images …………………………………………………… 11

4.3 　 Adjust the image quality ……………………………………………………… 12

4.3.1 　 Set the light intensity control mode depending on the installation location and

installation area ……………………………………………………………… 12

4.3.2 　 Set white balance depending on the lighting environment you install …… 12

4.3.3 　 Sets night time black-and-white switching mode ………………………… 13

4.4 　 Recording setting (SD Memory Card) ……………………………………… 14

4.4.1 　 Install the SD Memory Card ………………………………………………… 14

4.4.2 　 Record using SD Memory Card …………………………………………… 14

4.4.3 　 Play back images stored on the SD Memory Card ………………………… 15

Contents

4.5 　 Set up events ………………………………………………………………… 15

4.5.1 　 Detect the movement of the object ………………………………………… 15

4.6 　 Set the integrateion between the PTZ and multi part ……………………… 16

4.6.1 　 AI-VMD and PTZ integration ……………………………………………… 16

4.6.2 　 Manual integration …………………………………………………………… 17

4.7 　 Enhance communication security …………………………………………… 17

4.8 　 Detect data falsification ……………………………………………………… 18

4.9 　 Set the resolution and frame rate …………………………………………… 18

4.10 　 Set the overlay image function …………………………………………… 18

4.11 　 Set the image stream ……………………………………………………… 19

4.11.1 　 About the Setting of Stream ……………………………………………… 19

4.11.2 　 About delivery volume control (bit rate) ………………………………… 19

4.11.3 　 Reducing Data Capacity with Smart Coding ……………………………… 20

4.12 　 i-PRO Configuration Tool (iCT) …………………………………………… 20

5. 　 Set the camera (PTZ part) ……………………………………………… 21

5.1 　 Adjust the zoom/focus ……………………………………………………… 21

5.2 　 Hide some of the images …………………………………………………… 21

5.3 　 Display the angle, direction, magnification, etc. in the image ……………… 22

5.4 　 Set the camera operation …………………………………………………… 22

5.4.1 　 Limit the camera's operating range ………………………………………… 22

5.4.2 　 Move the camera automatically …………………………………………… 22

5.5 　 Identify sounds with AI ……………………………………………………… 24

5.6 　 Record sound ………………………………………………………………… 25

6. 　 Setting Camera (Multi part) ……………………………………………… 26

6.1 　 Hide some of the images …………………………………………………… 26

7. 　 Clean up …………………………………………………………………… 27

7.1 　 Cleaning of lenses …………………………………………………………… 27

7.2 　 Cleaning of Dome covers …………………………………………………… 27

8. 　 Specifications ……………………………………………………………… 28

8.1 　 PC environment required …………………………………………………… 28

8.2 　 Image capture mode and Image capture size ……………………………… 28

Contents

8.2.1 　 Resolution (PTZ part) ……………………………………………………… 29

8.2.2 　 Resolution (Multi part) ……………………………………………………… 30

8.2.3 　 Restrictions ………………………………………………………………… 30

8.3 　 DORI ………………………………………………………………………… 31

8.4 　 Delivery Performance (PTZ part) …………………………………………… 31

8.5 　 Delivery Performance (Multi part) …………………………………………… 32

8.6 　 About the Function Extension Software Available ………………………… 32

8.7 　 TILT adjusting lever ………………………………………………………… 33

8.8 　 Lamp ………………………………………………………………………… 34

8.9 　 Lighting of the lamp …………………………………………………………… 34

8.10 　 Button ……………………………………………………………………… 35

8.11 　 Cable ………………………………………………………………………… 36

8.12 　 MicroSD memory card slot ………………………………………………… 36

9. 　 Other ……………………………………………………………………… 38

9.1 　 Initialize ……………………………………………………………………… 38

9.2 　 About 802.1X of this unit …………………………………………………… 38

9.3 　 Check the software version ………………………………………………… 38

9.4 　 Upgrade software …………………………………………………………… 39

9.5 　 Order of setting when adjusting image quality ……………………………… 39

9.6 　 Adjust brightness of the object (bright scene) ……………………………… 40

9.6.1 　 Adjust brightness …………………………………………………………… 40

9.7 　 Adjust the brightness of the object (dark scene) …………………………… 41

9.7.1 　 Adjust the maximum gain …………………………………………………… 41

9.7.2 　 Adjust the maximum exposure time ………………………………………… 41

9.8 　 Reduce white flickering and blacking on the screen ………………………… 42

9.8.1 　 Set Super Dynamic ………………………………………………………… 42

9.8.2 　 Set the back light compensation …………………………………………… 43

9.8.3 　 Set the high light compensation …………………………………………… 43

9.8.4 　 Adjust the adaptive black stretch ………………………………………… 44

9.8.5 　 Adjust the [Pedestal level] ………………………………………………… 44

9.9 　 Adjust the contrast of the object …………………………………………… 45

9.9.1 　 Adjust the contrast ………………………………………………………… 45

9.10 　 Reduce flicker ……………………………………………………………… 46

Contents

iii

9.11 　 Reduce the blur of an object (bright scene) ………………………………… 46

9.11.1 　 Set intelligent auto (motion priority level) ………………………………… 46

9.11.2 　 Adjust the maximum exposure time ……………………………………… 47

9.12 　 Redue the blur of an object (dark scene) ………………………………… 48

9.12.1 　 Adjust digital noise reduction ……………………………………………… 48

9.13 　 Sharpen the contour of the object ………………………………………… 48

9.13.1 　 Adjust the sharpness level ………………………………………………… 48

9.14 　 Adjust the color …………………………………………………………… 49

9.14.1 　 Adjust color density ……………………………………………………… 49

9.14.2 　 Adjust the white balance ………………………………………………… 49

9.15 　 Reduce object noise (bright scene) ………………………………………… 50

9.15.1 　 Adjust the sharpness level ………………………………………………… 50

9.16 　 Reduce object noise (dark scene) ………………………………………… 50

9.16.1 　 Adjust digital noise reduction ……………………………………………… 50

9.17 　 Troubleshooting …………………………………………………………… 51

9.18 　 Precautions pertaining to usage …………………………………………… 64

9.19 　 Disclaimer …………………………………………………………………… 66

9.20 　 Network security …………………………………………………………… 68

Contents

・Only one LAN cable is needed for this camera.

・Some settings, such as IP addresses and administrator registrations, are required

for both the multi part and PTZ part.

1. 　 Unique features

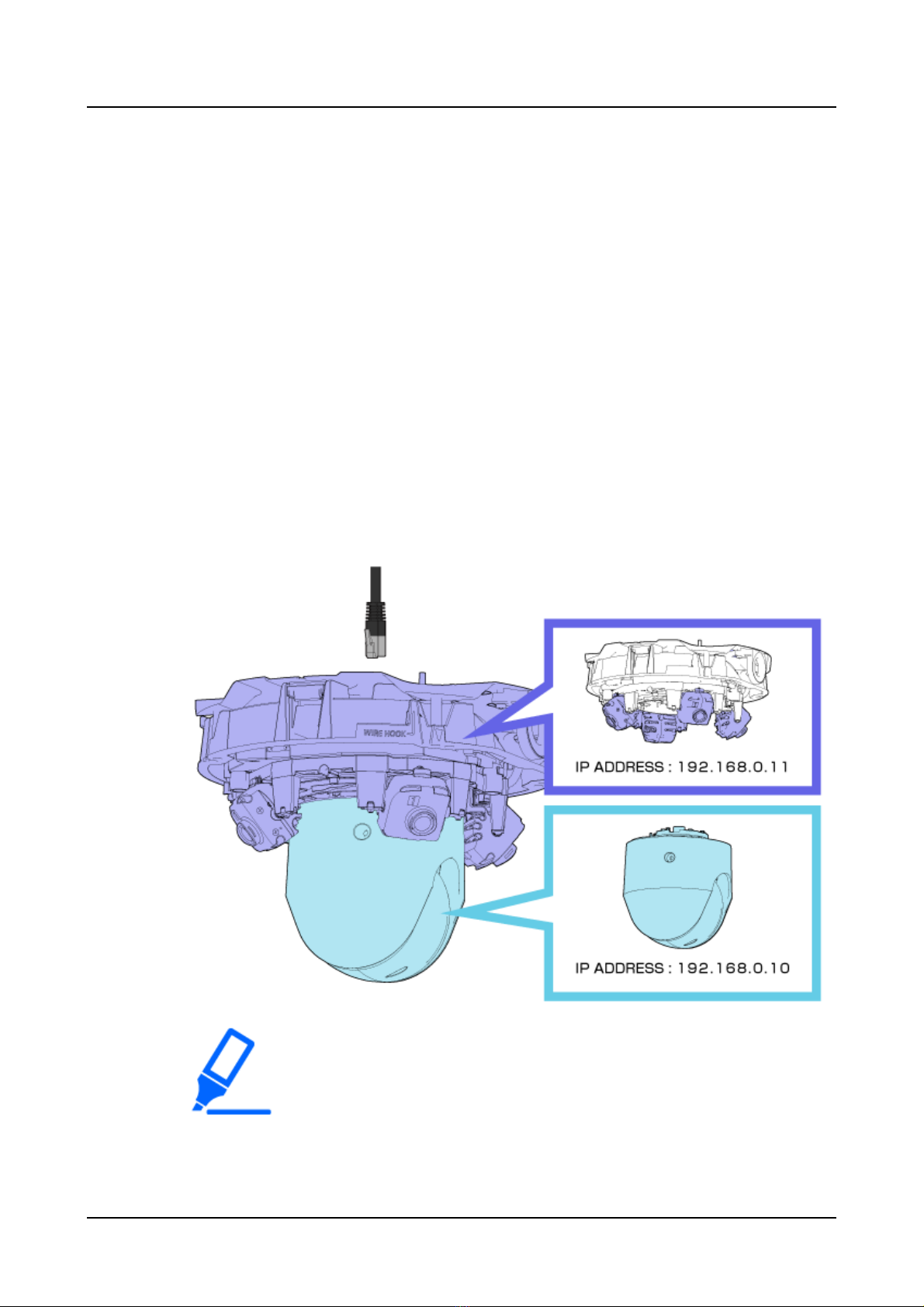

This unit is a Dome surveillance cameras used outdoors.

・

The PTZ camera (hereinafter referred to as the "PTZ" part) is mounted in the center, and

several Multi-directional cameras are mounted in the vicinity of the camera to adjust the tilt.

・

By configuring and coordinating the IP addresses of the multi part and PTZ part, the IP

addresses of the multi part and PTZ part can be linked and controlled.

・

The AI function reduces the load on the entire system by identifying objects (people/vehicles)

and analyzing images.

・

You can install up to six AI apps (four in the multi part and two in the PTZ part) freely.

The default IP address for each camera without a DHCP server.

1. 　 Unique features

Please refer to the following manual for details of installation.

Installation Guide

2. 　 Set up

2.1 Install on the ceiling

2.1.1 Ceiling surface mount installation

The URL of the movie is as follows.

https://youtu.be/9ZTSky907Mk

2.2 Wall pendant mount installation

The URL of the movie is as follows.

https://youtu.be/gA7UGfgKpEY

2.3 Ceiling embedded mount installation

The URL of the movie is as follows.

https://youtu.be/mlydWrxWycA

2. 　 Set up

2.3 　 Ceiling embedded mount installation

・The factory shipping position is [M].

・Depending on the improvement of the product, the appearance may differ from the

actual product to the extent that it does not affect the product operation.

After adjusting the angle with the TILT adjusting lever, change the [Tilt adjustment

lever position] on the camera-side screen to apply the adjusted angle to the PTZ.

Positioning accuracy may be affected by clicking or centering movement.

2.4 Use the TILT adjusting lever to determine the shooting

range

The TILT adjusting lever allows you to change the TILT angle of all multi part cameras

simultaneously.

When operating the TILT adjustment lever, slide it to the right and left with the lever pinched and

raised slightly. The multi part cameras move in the TILT direction. For the TILT adjustment

lever, refer to the following.

→8.7 TILT adjusting lever

2.4.1 Change the TILT adjustment angle

The TILT adjustment lever can change the angle of the multi part cameras to the following three

levels. The angle of tilt of the camera relative to ceiling and horizontal conditions is shown.

Refer to the installation video for the TILT adjustment lever operation.

→2. Set up

・

[N](Near):47°

・

[M](Middle):40°

・

[F](Far):33°

(1) Slide the TILT adjustment lever to the right and left by lifting the lever with your finger.

・ Slide to the right to adjust to the angle of [N]. Use to shoot near areas.

・ Slide to the left to adjust to the angle of [F]. Use to shoot far areas.

2. 　 Set up

2.4 　 Use the TILT adjusting lever to determine the shooting range

[F] [M] [N]

Shooting range Infinite (whole area)

Radius 53.4 m（175.2 ft）

Radius 20.6 m （67.6 ft）

Dead angle Radius of 2.4 m（7.9 ft） Radius of 1.6 m（5.2 ft） Radius of 0.8 m（2.6 ft）

[F] [M] [N]

Shooting range Infinite (whole area) Radius 15.3 m（50.2 ft） Radius 5.9 m（19.4 ft）

Dead angle

Radius of 1.2 m（3.9 ft）

Radius of 0.8 m（2.6 ft） Radius of 0.4 m（1.3 ft）

2.4.2 Scope of shooting

This section describes the range of shooting with each TILT angle.

2.4.2.1 Installation height: 6 m

2.4.2.2 Installation height: 3 m

2. 　 Set up

2.4 　 Use the TILT adjusting lever to determine the shooting range

Refer to the following for details on the IP Setting Software.

→Click here for more information on the IP Setting Software

3. 　 Connect to the camera

3.1 IP Setting Software

Cameras or recorders on the same network can be automatically detected and set up in the

network.

3.2 Access the camera

(1) Launch an IP Setting Software

・ The model number and MAC address of the detected camera are displayed.

・ The default setting for the [Network Settings] of the PTZ and multi parts is [DHCP].

(2) Double-click the camera's IP address

・ The browser starts and the administrator registration screen is displayed.

・ Double-click the IP address of the PTZ part and the IP address of the multi part.

Administrator registration is required for each camera.

3. 　 Connect to the camera

3.2 　 Access the camera

Altri manuali per WV-X86531-Z2

Indice

Altri manuali i-PRO Telecamera di sicurezza

i-PRO

i-PRO WV-S1536LNS Manuale utente

i-PRO

i-PRO WV-X86530-Z2 Manuale utente

i-PRO

i-PRO U Series Manuale utente

i-PRO

i-PRO WV-SUD638 Manuale utente

i-PRO

i-PRO WV-S65501-Z1 Guida all'installazione

i-PRO

i-PRO WV-U2540LA Guida all'installazione

i-PRO

i-PRO WV-CS5S Manuale utente

i-PRO

i-PRO WV-S71300-F3 Guida all'installazione

i-PRO

i-PRO WV-S1572L Guida all'installazione

i-PRO

i-PRO WV-S65302-Z2 Guida all'installazione

i-PRO

i-PRO WV-X2571LN Guida all'installazione

i-PRO

i-PRO WV-S1136 Guida all'installazione

i-PRO

i-PRO WV-U1542LA Guida all'installazione

i-PRO

i-PRO WV-S1536LNSA Guida all'installazione

i-PRO

i-PRO WV-S2536LTN Guida all'installazione

i-PRO

i-PRO WV-S1136 Manuale utente

i-PRO

i-PRO WV-U65300-ZY Manuale utente

i-PRO

i-PRO WV-S25700-V2L Guida all'installazione

i-PRO

i-PRO WV-S22700-V2L Guida all'installazione

i-PRO

i-PRO WV-CW304L Manuale utente

i-PRO

i-PRO WV-S2536LTA Guida all'installazione

i-PRO

i-PRO WV-S15700-V2L Manuale utente

i-PRO

i-PRO WV-S25700-V2L Manuale utente

i-PRO

i-PRO WV-S71300A-F3 Guida all'installazione

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

i-PRO WV-X86531-Z2 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche
