I-Tech YPM2000PHB Manuale utente

FEATURES:

• 20.1” UXGA TFT LCD with resolution up to 1600 x 1200.

• Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.

IP65/NEMA4 Wide Temp Panel Mount (Aluminum-6mm), 20.1" LCD monitor,

1600 x 1200 , 1000 nits LED VGA + DVI Input, Rear OSD, including rear Clamp

mount/VESA Mount

Model: YPM2000PHB

Clam

Mount

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

System Specifications

Display Type 20.1” TFT-LCD

Panel

Display Color 16.7M colors

Brightness (cd/m²) 1000nits

Display Resolution (pixel) UXGA(1600 x 1200)

Viewing Angles (CR≥10) 85/85/85/85

Contrast Ratio 700 : 1

Backli

ht Unit CCFL

Response Time (msec) 25ms

Environmental

Temperature

Operation 0°C~+50°C

Storage -20°C~+60°C

Optional Touch, Glass

Touch Screen (Optional)

N: No touch screen or glass.

G: Glass (AR Coating).

R: Resistive, RS232.

U: Resistive, USB

Signal Input

C: VGA only. Color

B: Black Other

N: N/A

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

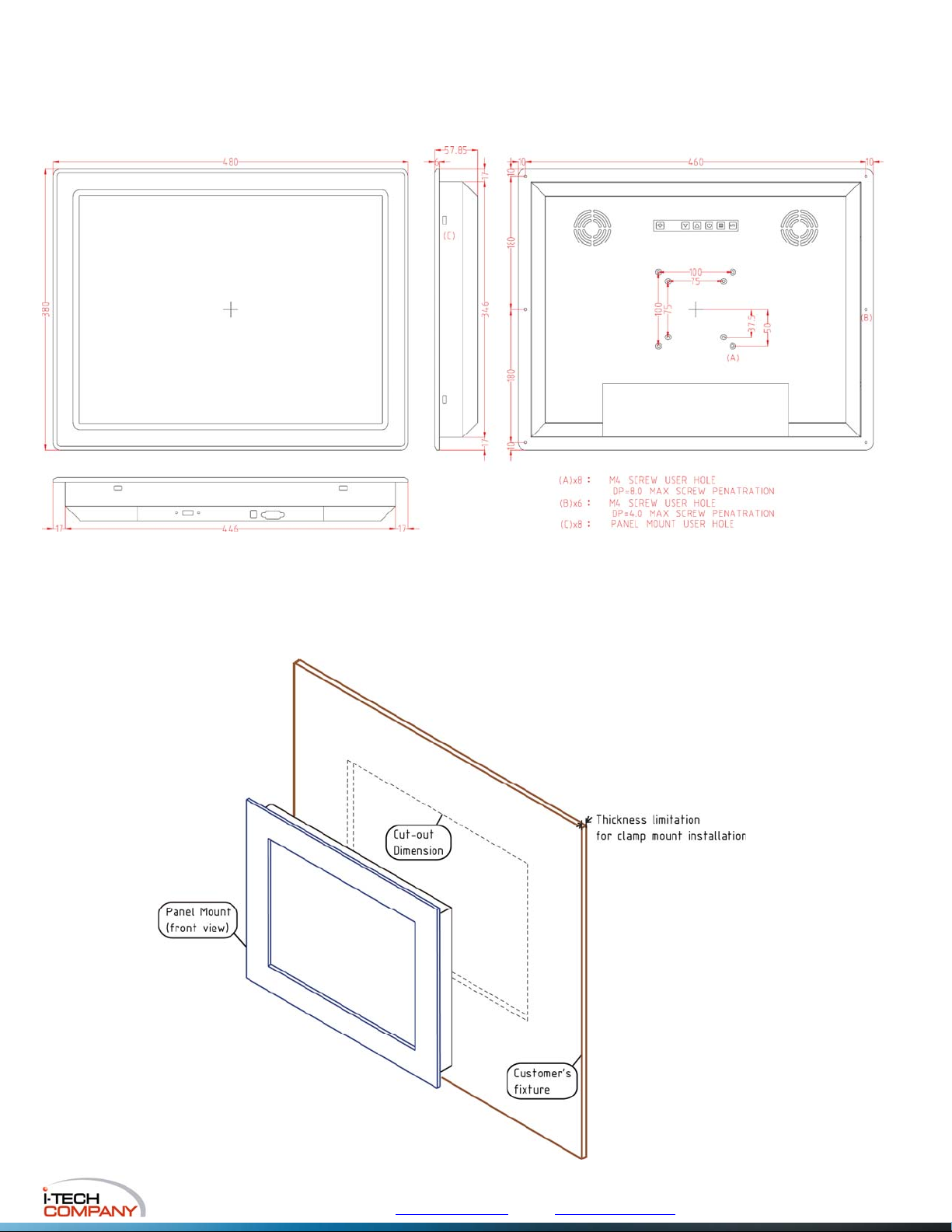

Mechanical Drawing:

Unit:mm

Installation Guide for Panel Mount Product:

You better have at least 2 people to do the installation. One is at the front side of the mounting wall, another is at the back

side of the mounting wall.

1. Get the Mechanical Drawing :

You can get the mechanical drawing of your product model from our web site : www.itechlcd.com . If you can’t find the

correct mechanical drawing, contact your local dealer.

2. Make the cut out :

There is the cut out dimension in the Mechanical Drawing. Make sure your cut out meet the cut out dimension requirement.

If the cut out is too small, there will be some interference. If the cut out is too big, you can’t have the panel

mounting securely. Please note that there is thickness limitation of the mounting wall for panel mount installation.

3. Prepare the accessory :

For panel mounting kit installation, you will receive mounting kits and screws together with your unit and you have to

prepare the screw driver by yourself. There are at least 2 mounting kits for each side of the panel. The mounting kit and the

screw is paired.

4. Installation :

4-1. Put the monitor in the cut out from the front side of the mounting wall. The best way to mount the panel is to align the

bottom of the panel housing with the bottom edge of the cut out. This way can help hold the panel steadily.

4-2. At the back side of the mounting wall, insert the mounting kits into the slide hole at the side bracket on the panel.

4-3. Put the screw on the mounting kits and screw it tightly.

4-4. Finish all the mounting kits one by one then you can have a secure installation for your Panel Mount product.

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com

Photos: (Model: YPM1700)

i-Tech Company LLC

TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com
