I-Tech FCOPW1010 Manuale utente
SPECIFICATION APPROVAL SHEET
Open frame 10.1" (1280x800) Digital TFT LCD, Aspect Ratio: 16:10
Input Signal VGA / HDMI 1.3a, Maximum Support Resolution
1920x1080, Headphone Driver, 46mW@32O, 5 Key Buttons Controls,
9 Language OSD Menu, LED Backlight, Single Operation Voltage +12V,
No accessory is included.
MODEL: FCOPW1010
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: [email protected] • WEB: www.iTechLCD.com
FCOPW1010 2018 08 30 V1.0
P.1
1. General Description
1.1 Features
■10.1” (1280x800) Digital TFT LCD
■Aspect Ratio: 16:10
■Input Signal VGA / HDMI 1.3a
■Maximum Support Resolution 1920x1080
■Headphone Driver, 46mW@32Ω
■4W Resistive Touch Panel / 10 Points Projected Capacitive Touch
■5 Key Buttons Controls
■9 Language OSD Menu
■LED Backlight
■Single Operation Voltage +12V
1.2 Applications
■Industrial
■Medical Environment
■Instrument Display
■Kiosk
■Security
■Signage
■Office Electronics
■Home Application
■Educate Application
Resistive Touch Panel Projected Capacitive Touch
FCOPW1010 2018 08 30 V1.0
P.2
2. Contents
Contents Page
1. General Description…………………………………………………………………………………….……………. 1
1.1 Features 1
1.2 Applications 1
2. Contents……………………………………………………………………………...…………………………….…. 2-3
3. Specifications………..………………………………………….………………..…………………………………… 4
4. Black Diagram………………………………………………………………….………………………………….…. 4
5. Order Information…..………………...……………………………………………………………………………… 5
5.1 Unit 5
6. Accessories (Option)………………………………………………………………………………………………….. 6
7. Operation manual / Connection……………………………………………………………………………………… 7
7.1 Driver Board Manual 7
8. Pin Description……………………………………………………………………………………………………….. 8-10
8.1 J101A : Pin Assignment of Power Input (DC-Jack Inside Diameter:2.1ψ Outside Diameter:5.5ψ Side Entry Type) 8
8.2 J702 : Pin Assignment of UART (Pitch 1.25mm 4Pin, Top Entry Type) 8
8.3 J801 : Pin Assignment of Analog RGB Input ( D-Sub 15Pin) 8
8.4 J401：Pin Assignment of HDMI-A Type Input (HDMI 1.3a -19Pin Female) 9
8.5 J601C：Pin Assignment of Key Board (Pitch 1.25mm 12Pin , Side Entry Type)(Option) 9
8.6 J701A：Pin Assignment of Touch USB (USB A Type - Female 2.0mm, Side Entry Type )(Option) 10
8.7 J706B：Pin Assignment of Touch RS232 (Pitch 1.25mm 5Pin , Side Entry Type)(Option) 10
8.8 J301：Pin Assignment of Line-Out/Ear Phone (Option) (Outside Diameter:3.5ψSide Entry Type) 10
8.9 J302：Pin Assignment of Line-In/Ear Phone (Option) (Outside Diameter:3.5ψSide Entry Type) 10
9. Absolute Maximum Ratings………………………………………………………………………………...………... 11
9.1 Absolute Maximum Ratings 11
10. Recommended Operating Conditions……………………………………………………………………...……….. 11-12
10.1 Electrical Characteristics 11
10.2 VGA Mode Characteristics 12
11. Touch Panel Characteristics………….……………………………………………………………… 12-16
11.1 4W Resistance Touch Panel Characteristics 12-14
11.1.1 Electrical Performance 12
11.1.2 Optical Performance 12
11.1.3 Mechanical Performance 12
11.1.4 Durability Performance 12
11.1.5 Resistive Touch Panel Integration Design Guide 13
11.1.6 Mechanical Design Notice For Resistive Touch Panel 14
11.1.7 Resistance Touch Panel Operation System Support 15
11.2 Projected Capacitive Touch Panel Characteristics 16
FCOPW1010 2018 08 30 V1.0
P.3
11.2.1 Electrical Performance 16
11.2.2 Optical Performance 16
11.2.3 Mechanical Performance 16
11.2.4 Projected Capacitive Touch Panel Operation System Support 16
12. Key Function by OSD……………………………………………………………………………………………….. 17-20
12.1 Menu Operation 17-20
13. Dimension Information…………………………………………………………………………………………….. 21-23
13.1 Unit (FCOPW1010) 21
14. Installation Recommendations………………………………………………….…………………………………
22
15. Appendix………………………………………………………………………….………………………………… 23
14.1 TFT-LCD Mechanical Specifications 23
14.2 TFT-LCD Optical Characteristics 23
16. Revision History.………………………………………………………………….………………………………… 24
16.1 Record of Revision 24
FCOPW1010 2018 08 30 V1.0
P.4
3. Specifications
4. Block Diagram
LCD Input Signal
Panel Size 10.1” VGA D-Sub15
Resolution (Pixels) 1280x800 HDMI 1.3a
Luminance without RTP 300 cd/㎡ Audio
Luminance (RTP) 234cd/㎡ Headphone Driver
(Line In & out)
46mW@32Ω
Luminance (PCAP) 255 cd/㎡ Phone Jackψ3.5
Contrast Ratio 800 Controls
View Angle 85 / 85 / 85 / 85 Key 5 Buttons
LED Life Time 20K (Min) Serial Remote Control UART / RS232 (Option)
Power Requirement Environment
Power Input (DC Jack 2.1ψ)+12 VDC Without RTP 4W RTP PCAP
Power Consumption 6.16W (@Without Headphone Driver) Temperature Range Operating 0 ~ +50℃ 0 ~ +50℃0 ~ +50℃
Touch Screen Storage -20 ~ +60℃ -20 ~ +60℃-20 ~ +60℃
Resistive / PCAP Type USB Interface High Temperature &
High Humidity
(Non-condensing)
Operating +40℃ / 90% +40℃ / 90% +40℃ / 90%
Resistive Type Support OS Windows / Linux / DOS / Mac / QNX
Projected Capacitive
Touch Support OS Windows / Linux
FCOPW1010
FCOPW1010 2018 08 30 V1.0
P.5
5. Order Information
5.1 Unit
Note: 1.The assembling of panel and bracket is aimed for delivery, packaging and experiment. If the demand of shockproof and long-term fix, pls.
have it into consideration of mechanism design.
Note: Special order condition will apply to non-standard items and pls. contact salespersons in iTech.
Item FCOPW1010 Unit Remark
VGA ◎
HDMI ◎
Touch Panel Type -
Touch Screen Interface -
Headphone Driver
(Line In & out) ◎
5 Keys ◎
UART Remote Control ◎
Dimensions 244.5 x 150.9 x 22.83 mm
Weight 485.5 g ±10%
Condition Standard
Item Condition
RS232 Remote Control
External Key
Customized
FCOPW1010 2018 08 30 V1.0
P.6
6. Accessories (Option)
Before you begin installing the KIT, please make sure that the following materials have been shipped:
A. AC to DC Adapter (L:1500mm,100-240VAC 50-60Hz to +12VDC @ 3.3A,ψ2.1)
B. Power Cord (L:1800mm, Plug Type B for USA)
C. HDMI Cable (L:1800mm)
D. VGA Cable (L:1800mm)
E. USB Cable (L:1800mm)
F. AUDIO Cable (L:1800mm)
G. Touch Screen Driver CD Disk / User Manual
FCOPW1010 2018 08 30 V1.0
P.7
7. Operation manual / Connection
7.1 Driver Board Manual
FCOPW1010 2018 08 30 V1.0
P.8
8. Pin Description
8.1 J101A : Pin Assignment of Power Input (DC-Jack Inside Diameter:2.1
ψ
Outside Diameter:5.5
ψ
Side Entry Type)
Pin No. Symbol I/O Description Remark
1 DC-In I +12Vdc Input Voltage
2 GND - Power Ground
8.2 J702 : Pin Assignment of UART (Pitch 1.25mm 4Pin, Top Entry Type)
※Connector Part No.: MS24014 (STM) [Same as 53398-0471 (MOLEX)] ;
※Matching Connector Part No.: P24014 (STM) [Same as 51021-0400 (MOLEX)].
Pin No. Symbol I/O Description Remark
1 TX / RS232 TX (Option) O UART / RS232 (Option) Transmission Data
2 RX / RS232 RX (Option) I UART / RS232 (Option) Receive Data
3 GND - Ground
4 +3.3Vdc O +3.3Vdc Output Voltage
Note: All Functions can be controlled by UART, About UART command list please contact sales.
8.3 J801 : Pin Assignment of Analog RGB Input ( D-Sub 15Pin)
Pin No. Symbol I/O Description Remark
1 RI+ I Analog Red Signal
2 GI+ I Analog Green Signal
3 BI+ I Analog Blue Signal
4 GND - Ground
5 VGA-Det I VGA Detect
6 AGND - Analog Ground
7 AGND - Analog Ground
8 AGND - Analog Ground
9 VGA5V - VGA +5Vdc Input
10 GND - Ground
11 GND - Ground
12 VGA_SDA - DDC2 Data
13 HS_IN I TTL Horizontal sync.
14 VS_IN I TTL Vertical sync.
15 VGA_SCL - DDC2 Clock
FCOPW1010 2018 08 30 V1.0
P.9

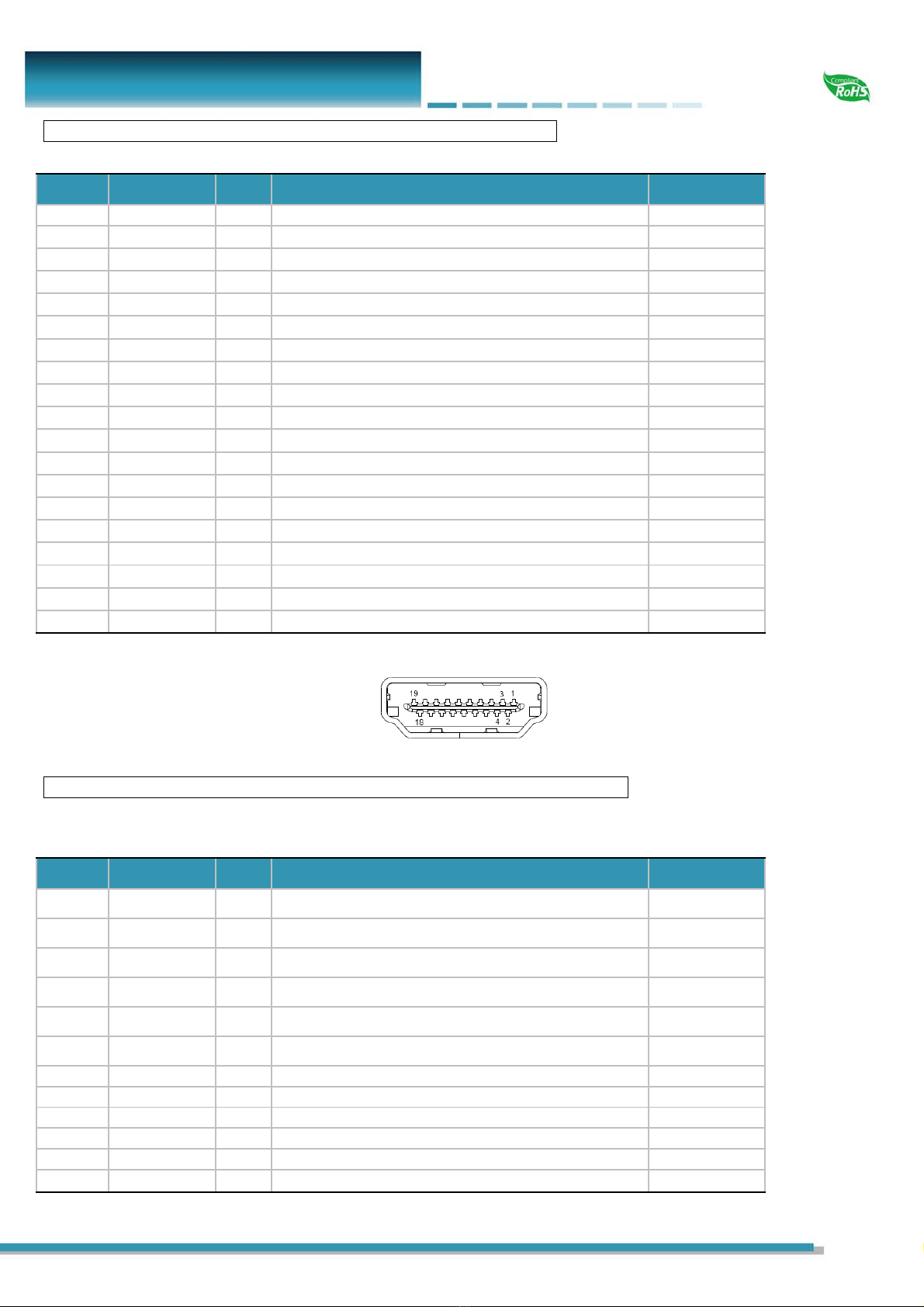

8.4 J401
：
Pin Assignment of HDMI-A Type Input (HDMI 1.3a -19Pin Female)
8.5 J601C
：
Pin Assignment of Key Board (Pitch 1.25mm 12Pin , Side Entry Type)(Option)
※Connector Part No.: MS240112R (STM) [Same as 53261-1219 (MOLEX)] ;
※Matching Connector Part No.: P240112 (STM) [Same as 51021-1200 (MOLEX)].
Pin No. Symbol I/O Description Remark
1 - - Don’t Connect
2 SW5 I EXIT
3 SW4 I DOWN
4 SW3 I UP
5 SW2 I MENU / S
6 SW1 I POWER / SOURCE
7 GND - Ground
8 VDDP - +3.3Vdc Output Voltage
9 - - Don’t Connect
10 RED O Indicator red LED for power off control
11 GREEN O Indicator green LED for power on control
12 GND - Ground
Pin No. Symbol I/O Description Remark
1 DATA2+ I Positive HDMI Input for B Link Data Channel 2
2 DET_HDMI - HDMI Detect
3 DATA2- I Negative HDMI Input for B Link Data Channel 2
4 DATA1+ I Positive HDMI Input for B Link Data Channel 1
5 GND - Ground
6 DATA1- I Negative HDMI Input for B Link Data Channel 1
7 DATA0+ I Positive HDMI Input for B Link Data Channel 0
8 GND - Ground
9 DATA0- I Negative HDMI Input for B Link Data Channel 0
10 DCLK+ I Positive HDMI Input for B Link Clock Channel
11 GND - Ground
12 DCLK- I Negative HDMI Input for B Link Clock Channel
13 NC - No Connection
14 NC - No Connection
15 HDMI_SCL I DDC2 Clock
16 HDMI_SDA I DDC2 Data
17 GND I DDC/CEC Ground
18 HDMI5V I HDMI +5Vdc Input
19 HDMI_HPD I Hot Plug Detect
