MBR-1100
Hardware User Manual
i
Contents
1. Introduction 1
1.1. Package contents 1
1.2. Installation 1
1.3. Physical view 3
2. Technical Data 4
2.1. Specifications 4
1
1. Introduction
This document describes the hardware of the MBR-1100.
1.1. Package contents
NOT INCLUDED: A USB mouse is required for system setup
1.2. Installation
Attach wireless antenna
Attach the wireless antenna as shown below, and then screw antenna clockwise onto the post.
Mounting Option 1: [VESA Mount] The media bar can be attached to mounting posts on the back of screens
by the supplied VESA MIS-D100 (100mmx100mm) compatible mounting plate(screw thread on the plate: M4)
Attach media bar to the VESA mount plate
1. Put the VESA mount plate on the bottom of the player, with the screw holes aligned.
2. Make sure the countersunk holes are facing up, so when the screw goes in, the screw head is level
with the surface.
Media Bar Unit
HDMI Extension Cord
Wireless Antenna
AC Adapter
(with select power plug)
VESA Mount Plate
and screws
Velcro
2

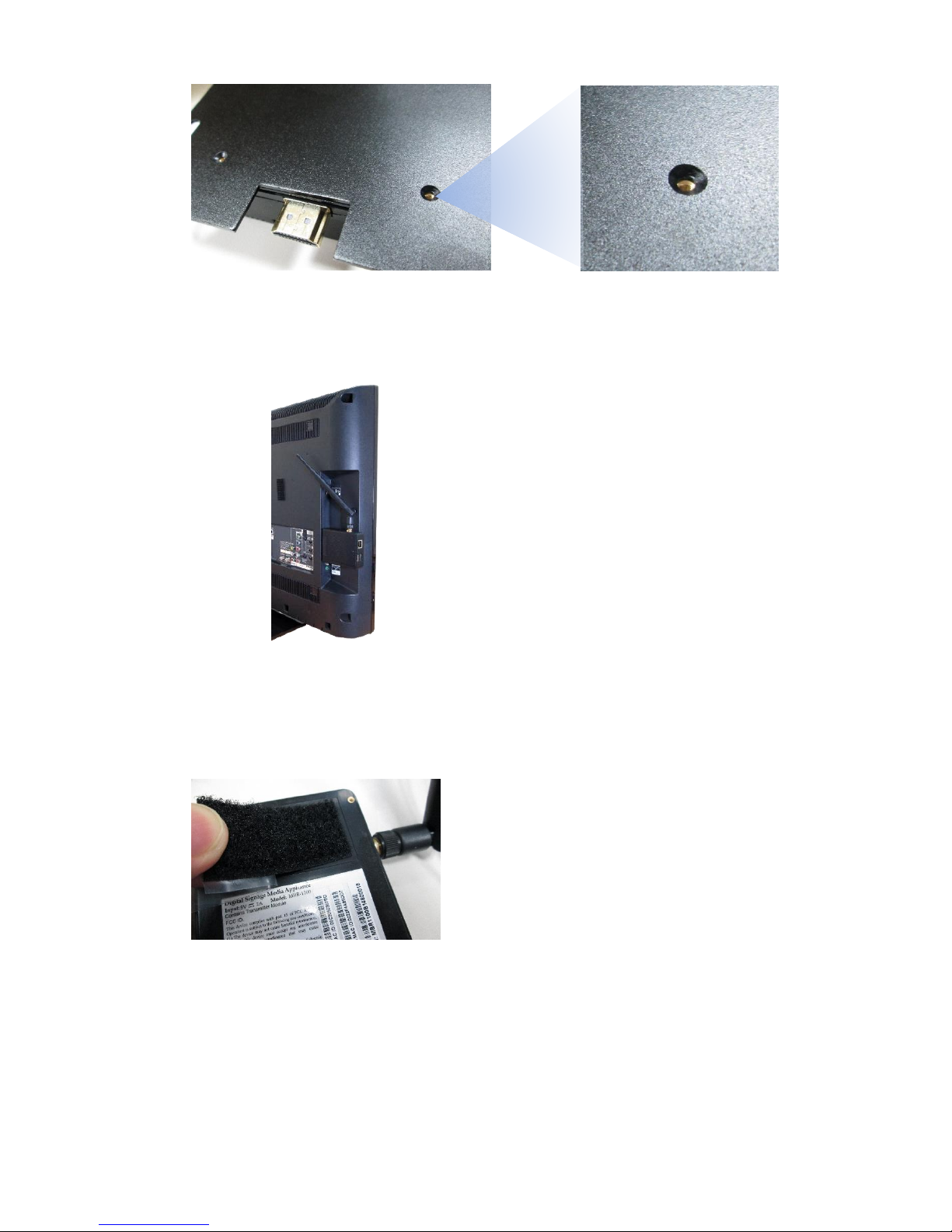

Mounting Option 2: [Attach to HDMI port] Simply plug the player into the HDMI port of the monitor as
shown below.
Mounting Option 3: [Attach the player on the back of the monitor using Velcro]
1. Separate the Velcro pads and stick one of them to the bottom of player.
2. Stick the other Velcro pad onto the back of monitor, and then attach the player to it. Use HDMI extension
cord to connect player and the monitor.
3

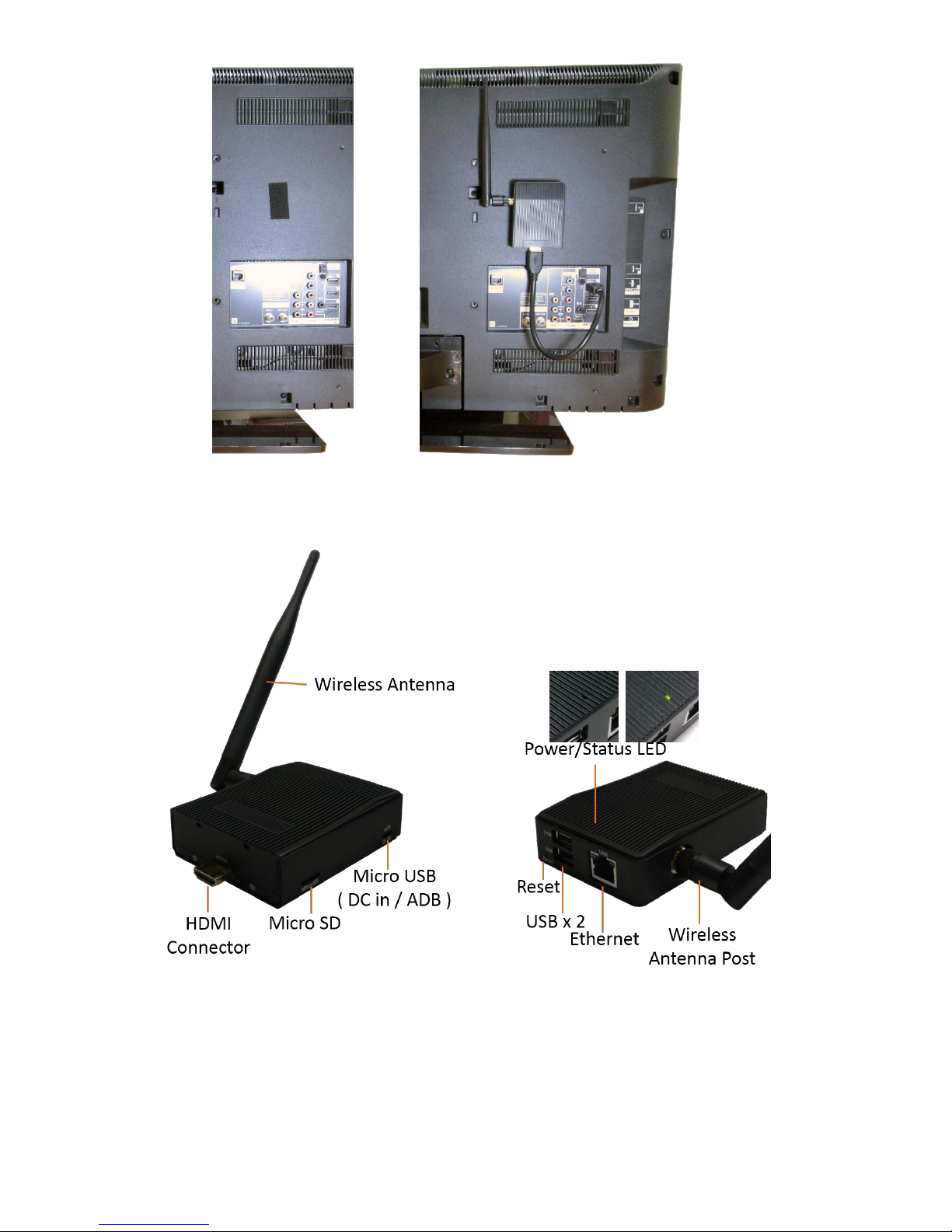

1.3. Physical view
4
Physical features (left to right in above illustration)
HDMI connector for digital video and audio combined output
Micro SD card slot
Micro USB for power adapter and ADB , Android debug console port
Reset button to perform factory reset
USB ports for USB content update and configuration
Power(green) and Status(orange) LED indicator
Ethernet port for network content update
Wireless antenna post
2. Technical Data
2.1. Specifications
MBR-1100
Video format support
H.264 (up to 1080p,10Mbps)
VC-1 (up to 1080p,10Mbps)
MPEG-4 ASP (up to 1080p,10Mbps)
MPEG-2 (up to 1080p,10Mbps)
POPAI Screen Media Standards : S6 to S12, E4,E7,E8
Image format support
JPEG,PNG up to 1920x1080
POPAI Screen Media Standards : S1 to S3, E1 to E3
Audio codec support
MP3 up to 320Kbps
POPAI Screen Media Standards : S4, S5
Dynamic content
W3C HTML5 (HTML, CSS, JavaScript)
W3C SMIL 3.0 instructions (sub-set)
Physical I/O connectors
HDMI
USB 2.0 x 2
RJ45 Ethernet port
Wireless antenna port
Micro USB for DC in/ADB
Micro SD card slot
LED: Power(green)/Status(orange)
Local storage
8 GB on-board flash memory or 8GB eMMC memory (only on Rev1.1)
(up to 6 hrs of typical 720p video @ 3 Mbps)
Micro SD card expansion slot
Accessories
AC adapter(UL/FCC/CE/CCC/C-Tick certified power supplies)
HDMI extension cord
Wireless antenna
VESA mount plate (screw thread : M4 )
Velcro
Power requirement
5V 2A DC
Power consumption
Average 6 W
Environmental
Operating temperature: 0 –40°C / 32 –104°F
Humidity: 10 –85% @ 40°C / 32 –104°F non-condensing
Dimensions
107 x 68 x 25.3 mm (4.21 x 2.68 x 1 inches)
Weight
108.1 g
0.24 lbs
Certifications
CE/FCC/IC
Warranty
One-year limited parts & labor
