The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
Le symbole de l’éclair fléché dans un triangle équilatéral, a pour but
d’avertir l’utilisateur de la présence non isolées d’une «tension
dangereuse» dans le boîtier du produit que mai d’une magnitude
suffisante pour constituer un risque d’électrocution pour les
personnes.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Le point d’exclamation dans un triangle équilatéral sert à alerter
l’utilisateur de la présence d’importantes exploitation et de
maintenance (entretien) dans la documentation accompagnant
l’appareil.
Caution marking is located at the side of the apparatus.
Attention marquage est situé sur le côté de l’appareil.
CAUTION: Risk of Electrical Shock - Use in Dry Locations Only
ATTENTION: Risque de Choc Électrique - Utiliser Seulement Dans des Endroits
Secs
CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No
user servicable parts – refer servicing to qualified service personnel only.
ATTENTION: Pour réduire le risque de choc électrique, ne pas retirer le
couvercle (ou l’arrière). Non utilisateur servicable parts - confier l’entretien de
service qualifie seul le personnel.
WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne
pas exposer cet appareil sous la pluie et l’humidité.
3
Tech Support: (877) 591-2491
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions. Keep these instructions. Heed all Warnings. Follow
all instructions.
2. Do not use this apparatus near water. The apparatus shall not be exposed
to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on apparatus.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
6. The lamp holder is used as disconnect device. The lamp holder of apparatus
should not be obstructed OR should be easily accessed during intended use.
To completely disconnect the power input, the lamp holder of the apparatus
shall be disconnected from the mains.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
9. Added weight of the device may cause instability of a free-standing portable
lamp. Use only with portable table lamps in which the distance from the
bottom of the base to the top of the lampholder does not exceed three (3)
times minimum base width. Use only with portable table lamps which are
provided with lamp shades” or the equivalent.
10. This device is not intended for use with emergency exit fixtures or
emergency exit lights
11. NOT FOR USE WHERE EXPOSED TO THE WEATHER
NE PAS EXPOSER AUX INTEMPÉRIES
12. NOT FOR USE IN TOTALLY ENCLOSED RECESSED LUMINAIRES
NE PAS INSTALLER DANS DES LUMINAIRES ENCASTRÉS COMPLÈTEMENT
FERMÉS
4
Tech Support: (877) 591-2491
Congratulations
Thank you for choosing a LightSpeaker®from IAV®. You
have chosen one of the most unique, patented, audio
systems in the world. With proper installation and
operation, you will enjoy years of trouble-free use. IAV®
sells numerous loudspeakers for use inside or outside your
home. To see the complete IAV®product assortment, visit
us on the Internet at: www.iavlightspeaker.com.
5
Tech Support: (877) 591-2491
Table of Contents
System Overview....................................................................................6
What is in this box................................................................................8
Step 1 - Where will you install.........................................................9
Step 2 - Check your connector type...........................................9
Step 3 - Test fit your LightSpeaker®...........................................10
Step 4 - Removing the trim ring....................................................11
Step 5 - Installing the trim ring....................................................14
Step 6 - Adjusting the Simple TabsTM.......................................15
Step 7 - Setting the zone and stereo switches...................16
Step 8 - Installing your LightSpeakers®...................................20
Step 9 - Pairing....................................................................................21
Step 10 - Plug in your sources......................................................23
Step 11 - Enjoy your LightSpeakers®.........................................24
Operating the transmitter & remote control.......................25
Helpful hints...........................................................................................27
More about removing trim rings................................................30
Where to put the transmitter.....................................................33
Attaching the remote wall bracket.............................................33
Selecting LightSpeaker®locations..............................................34
Specifications.......................................................................................37
Possible causes of interference.................................................40
Troubleshooting the remote.........................................................41
Warranty...............................................................................................42
Registration Information.................................................................43
FCC Declaration...................................................................................44
Technical Support Information...................................Back Cover
6
Tech Support: (877) 591-2491
System Overview
This wireless LightSpeaker®
System is intended to install
into any home easily and
without any expensive and
complicated wiring. You can
install a typical system in
your home in a few minutes
and not have to worry about
repairing walls or ceilings.
Plus there is no climbing
into attics or wriggling into
crawl spaces! LightSpeakers®
deliver great sound into any
room in your house, using
your existing wiring and your
recessed lighting fixtures. The
LightSpeaker®installs in a
standard 5“ or 6“ recessed ceiling light fixture common
in most homes. It will replace a standard light bulb
(R-30 or R-40). This unique patented LightSpeaker®
has full bandwidth audio and “green” lighting together in
one small package. Part of what makes this possible is
the use of a 10W LED to provide the equivalent light of
a 60W incandescent bulb while using 80% less power
than the light bulb it replaced. Consider also that you may
never have to replace this light; an operating life of 25,000
to 40,000 hours means that with average use this light
should easily last 15 to 25 years.
7
Tech Support: (877) 591-2491
Your system can use up to 8 LightSpeakers®to provide
audio and lighting to your entire home. You can even
divide your home into two unique areas where different
music sources, sound and lighting control allow you to add
music with integrated “green” lighting to places you only
dreamed of having it before.
There’s no wiring and no big (or small) speaker boxes.
The wireless transmitter can be centrally located which
will provide audio and, together with the remote, allow you
to control your LightSpeakers®from anywhere in your
home. The RF remote and the transmitter base station
will control which source you listen to in a room as well as
the level of the sound and the brightness of the light; this
can be done from anywhere in the house, you don’t need
to be near the transmitter.
Plug two separate audio sources into your transmitter
and deliver the music from your AM/FM Radio, TV or
MP3, or any audio source, to any room in your house.
To expand your system, additional LightSpeakers®are
available from your retailer or at www.iavlightspeaker.
com.
This incredible patented system provides even greater
flexibility to you as the owner; since you can take this
system with you if you move; and when you do, it leaves no
trace that the system was ever installed and used.
Please take a few moments to copy down the serial
number and part number found on the side of your
product box onto page 43 of this manual. You will
need them to register your product.
8
Tech Support: (877) 591-2491
Take just a minute to be sure you have everything you
need to install your first wireless distributed audio system
from IAV.
Transmitter Power Cord Large & Small
Trim Rings
LightSpeakers®, & Lens Remote
Lenses Remote Wall Bracket
Attachment Cords
9
Tech Support: (877) 591-2491
Instruction Manual
Step 1:
Decide which lights will be replaced with
LightSpeakers®.
Your IAV
®
LightSpeakers®have been specifically designed
to cover large areas, however if the location of your fixtures
allow you to do so, you should think about how you use your
room and where you are likely to spend most of your time.
Then choose the fixtures that are most evenly spaced to
your preferred listening position.
A) Turn off the circuit breaker and light switch, to the
bulbs you intend to replace with LightSpeakers®.
B) Remove the existing light bulb.
Step 2: Check your connector
type. Your IAV® LightSpeaker®
is designed to fit into a standard
Edison connector. It will not fit any
other type connector.
WARNING!
Turn off circuit breakers to all lighting
fixtures you are working on!
STOP!
Check your connector!
10
Tech Support: (877) 591-2491
Step 3: Test fit your LightSpeaker®.
Your LightSpeaker®is designed to fit directly into most 5“
(R30) and 6“ (R40) down light cans by simply removing
the existing light and, in the same manner as a light bulb,
re-installing your LightSpeaker®in its place. You may
simply test fit your LightSpeaker®, or you may measure
according to the diagram below, to be certain your IAV®
LightSpeaker®will fit directly into your recessed light
fixture.

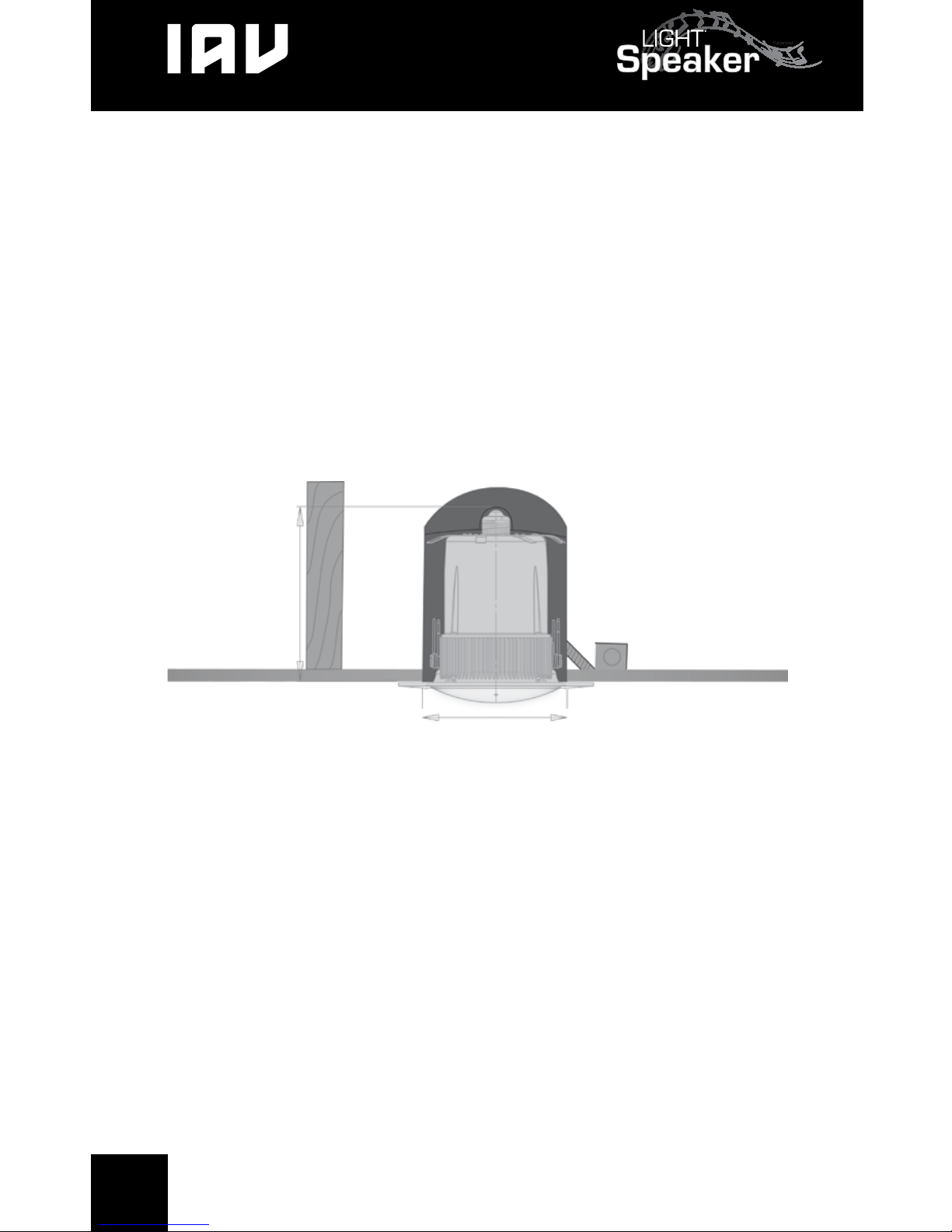

This diagram shows the minimum width and depth
necessary to house your LightSpeaker®completely within
the recessed lighting enclosure. The depth can be less if
you do not mind your LightSpeaker®standing out slightly
from the ceiling.
If your LightSpeaker®fits directly into your recessed
lighting fixture without any modifications you can skip
forward to Step 7.
6.6”
4.75”
