IBM Intel PRO/100 SP Manuale utente

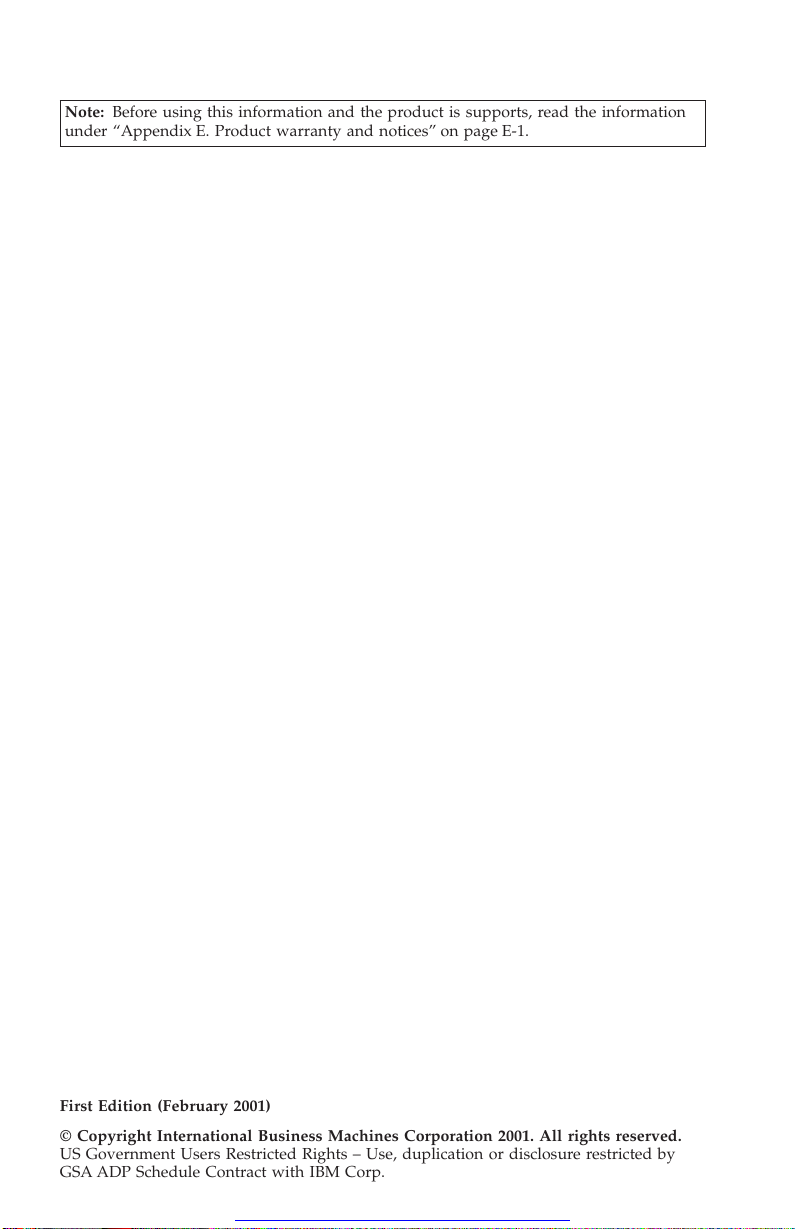

Note: Before using this information and the product is supports, read the information
under “Appendix E. Product warranty and notices” on page E-1.
First Edition (February 2001)
© Copyright International Business Machines Corporation 2001. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by
GSA ADP Schedule Contract with IBM Corp.
Get other manuals https://www.bkmanuals.com

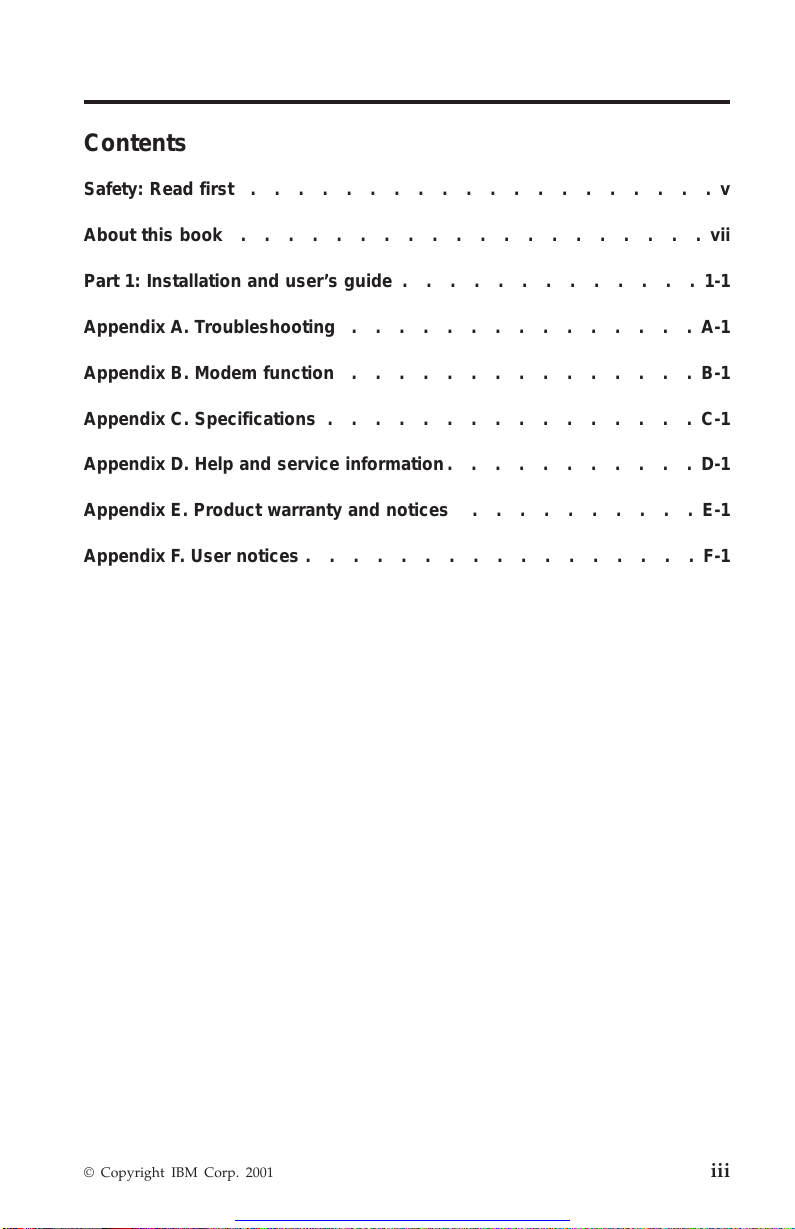

Contents
Safety: Read first ....................v
About this book ....................vii
Part 1: Installation and user’s guide .............1-1
Appendix A. Troubleshooting ...............A-1
Appendix B. Modem function ...............B-1
Appendix C. Specifications ................C-1
Appendix D. Help and service information...........D-1
Appendix E. Product warranty and notices ..........E-1
Appendix F. User notices .................F-1
© Copyright IBM Corp. 2001 iii
Get other manuals https://www.bkmanuals.com

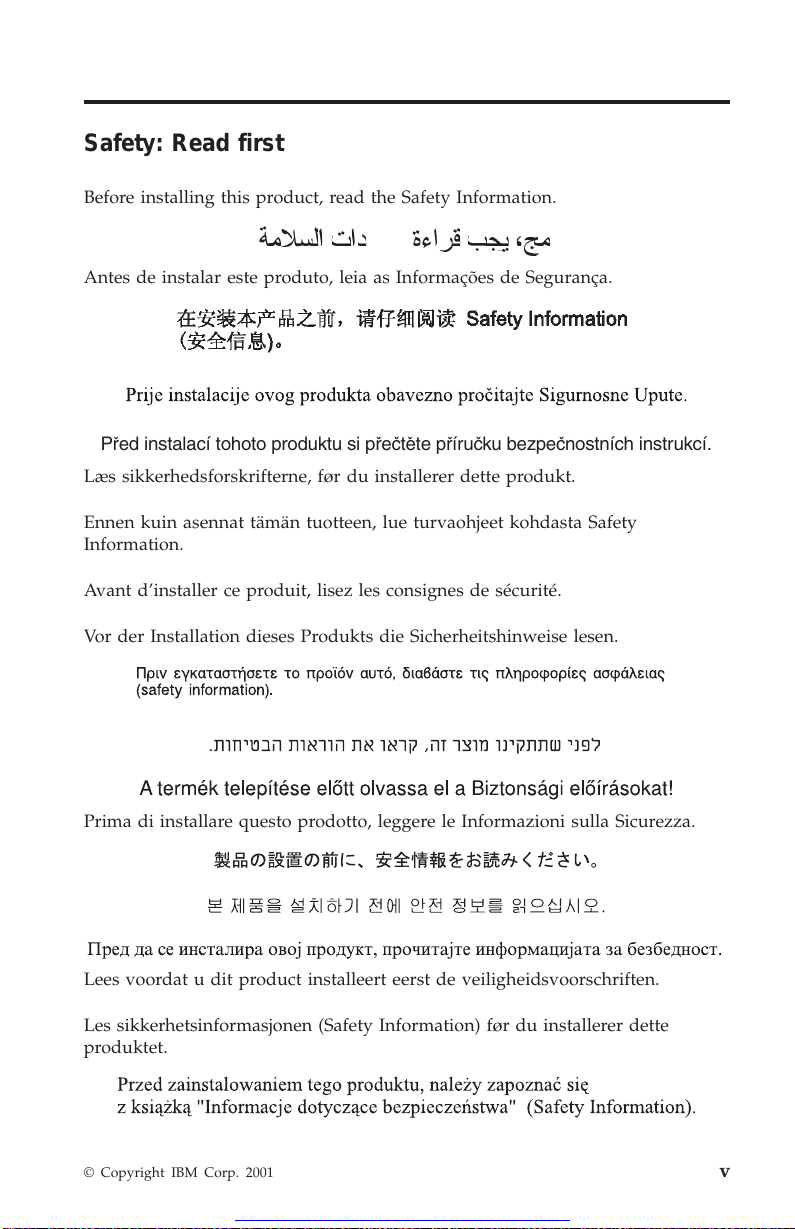

Safety: Read first
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety
Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette
produktet.
© Copyright IBM Corp. 2001 v
Get other manuals https://www.bkmanuals.com

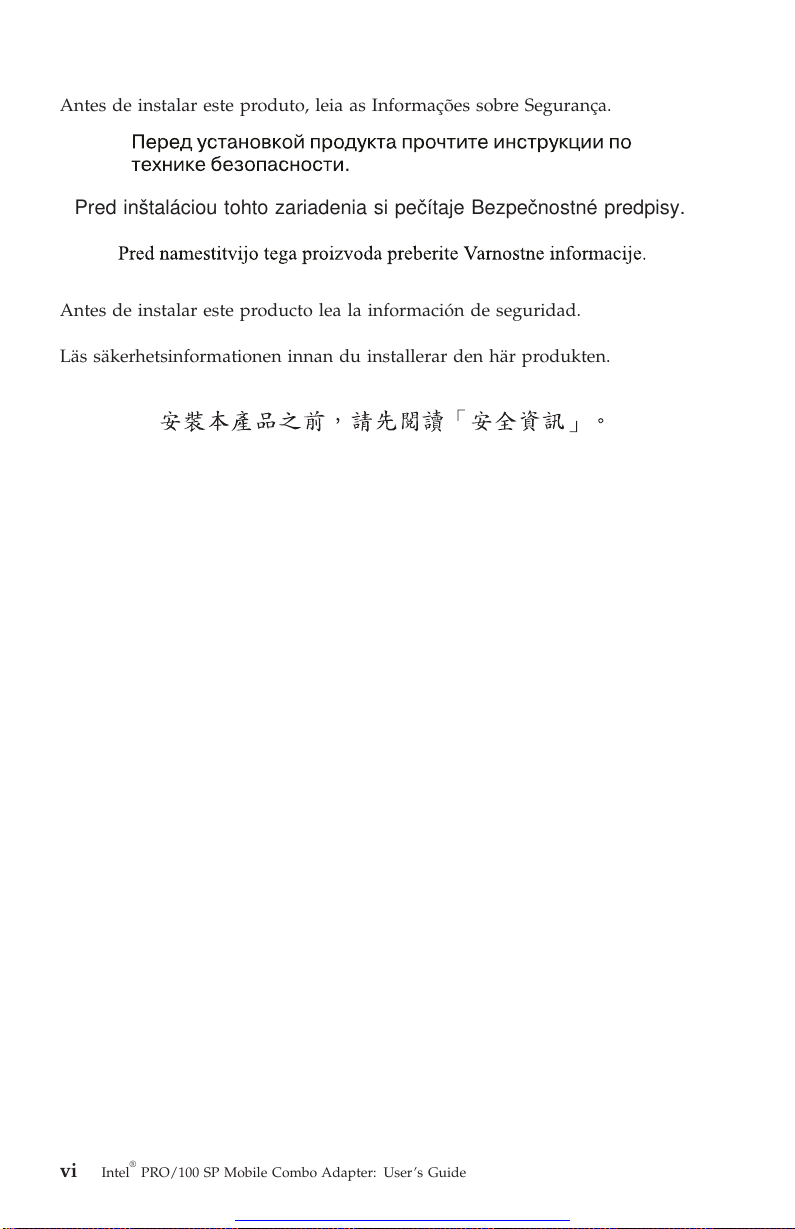

Antes de instalar este produto, leia as Informações sobre Segurança.
P
red inštaláciou tohto zariadenia si pečítaje Bezpečnostné predpisy.
Antes de instalar este producto lea la información de seguridad.
Lässäkerhetsinformationen innan du installerar den här produkten.
vi Intel®PRO/100 SP Mobile Combo Adapter: User’s Guide
Get other manuals https://www.bkmanuals.com

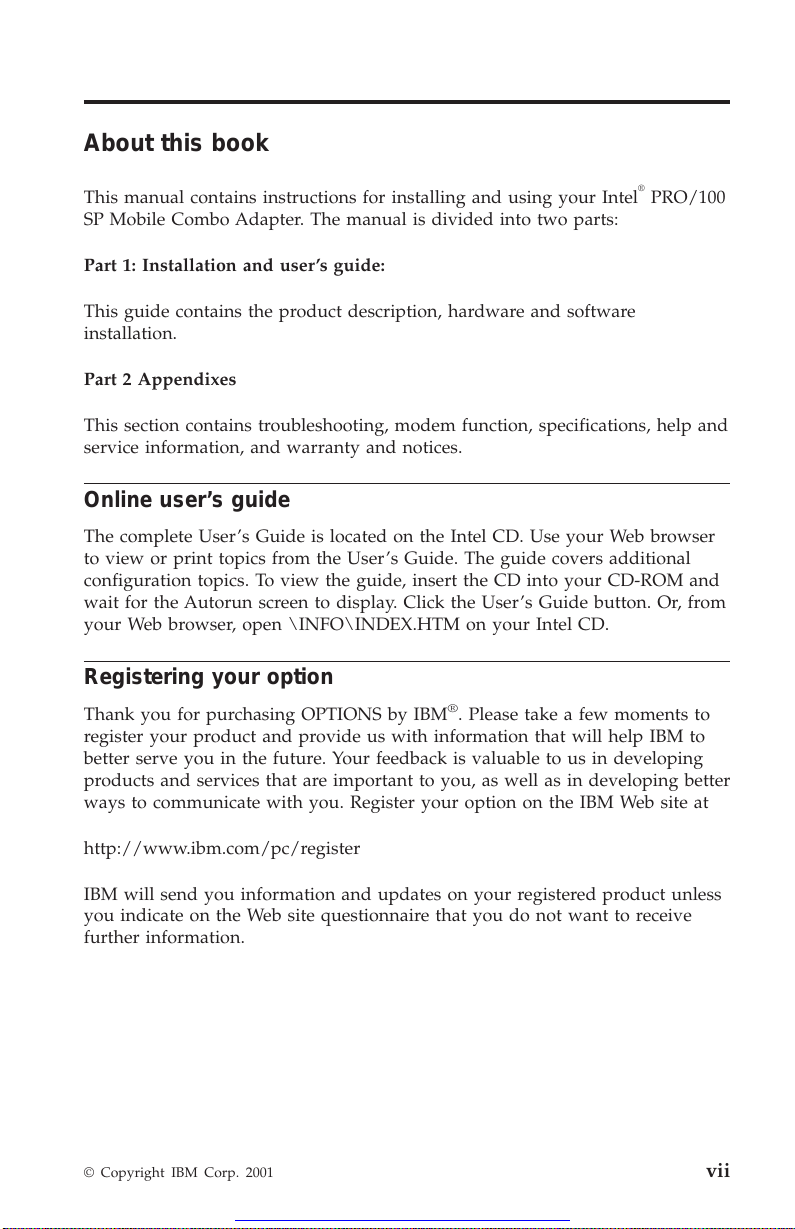

About this book
This manual contains instructions for installing and using your Intel®PRO/100
SP Mobile Combo Adapter. The manual is divided into two parts:
Part 1: Installation and user’s guide:
This guide contains the product description, hardware and software
installation.
Part 2 Appendixes
This section contains troubleshooting, modem function, specifications, help and
service information, and warranty and notices.
Online user’s guide
The complete User’s Guide is located on the Intel CD. Use your Web browser
to view or print topics from the User’s Guide. The guide covers additional
configuration topics. To view the guide, insert the CD into your CD-ROM and
wait for the Autorun screen to display. Click the User’s Guide button. Or, from
your Web browser, open \INFO\INDEX.HTM on your Intel CD.
Registering your option
Thank you for purchasing OPTIONS by IBM
®
. Please take a few moments to
register your product and provide us with information that will help IBM to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the IBM Web site at
http://www.ibm.com/pc/register
IBM will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive
further information.
© Copyright IBM Corp. 2001 vii
Get other manuals https://www.bkmanuals.com

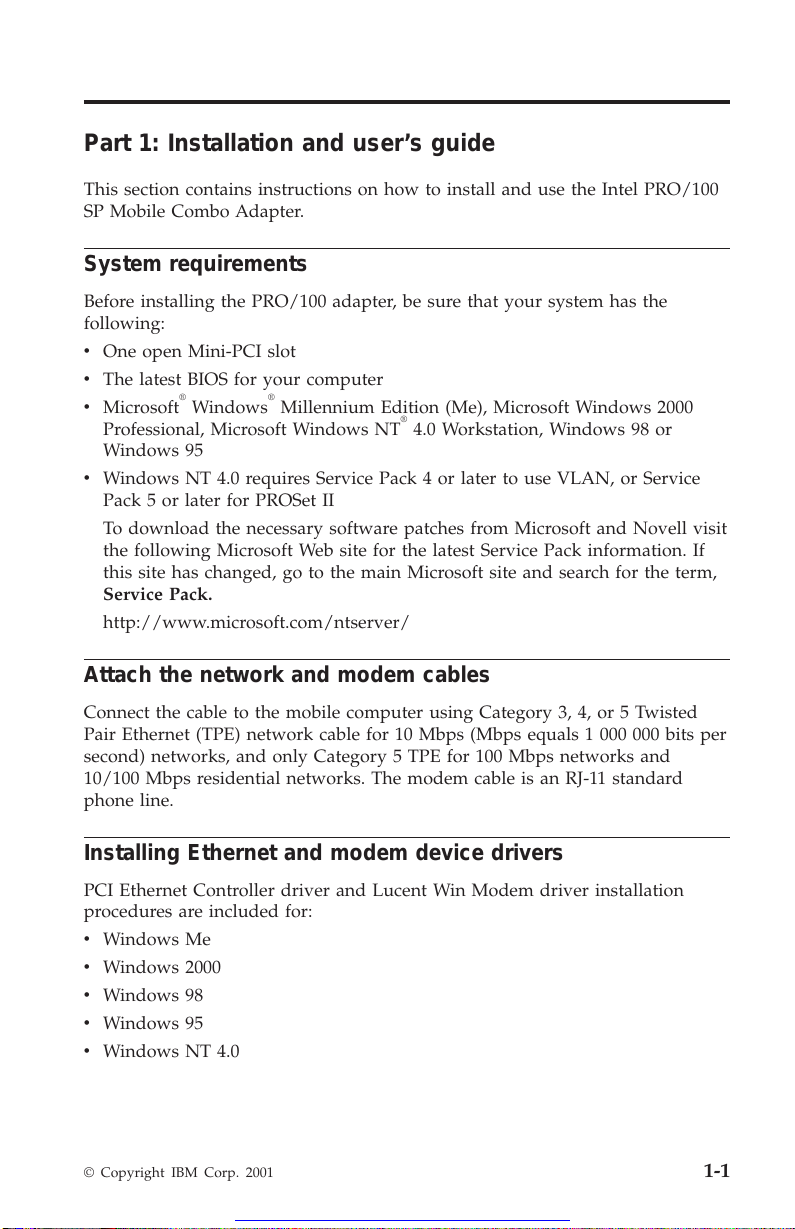

Part 1: Installation and user’s guide
This section contains instructions on how to install and use the Intel PRO/100
SP Mobile Combo Adapter.
System requirements
Before installing the PRO/100 adapter, be sure that your system has the
following:
vOne open Mini-PCI slot
vThe latest BIOS for your computer
vMicrosoft®Windows®Millennium Edition (Me), Microsoft Windows 2000
Professional, Microsoft Windows NT®4.0 Workstation, Windows 98 or
Windows 95
vWindows NT 4.0 requires Service Pack 4 or later to use VLAN, or Service
Pack 5 or later for PROSet II
To download the necessary software patches from Microsoft and Novell visit
the following Microsoft Web site for the latest Service Pack information. If
this site has changed, go to the main Microsoft site and search for the term,
Service Pack.
http://www.microsoft.com/ntserver/
Attach the network and modem cables
Connect the cable to the mobile computer using Category 3, 4, or 5 Twisted
Pair Ethernet (TPE) network cable for 10 Mbps (Mbps equals 1 000 000 bits per
second) networks, and only Category 5 TPE for 100 Mbps networks and
10/100 Mbps residential networks. The modem cable is an RJ-11 standard
phone line.
Installing Ethernet and modem device drivers
PCI Ethernet Controller driver and Lucent Win Modem driver installation
procedures are included for:
vWindows Me
vWindows 2000
vWindows 98
vWindows 95
vWindows NT 4.0
© Copyright IBM Corp. 2001 1-1
Get other manuals https://www.bkmanuals.com

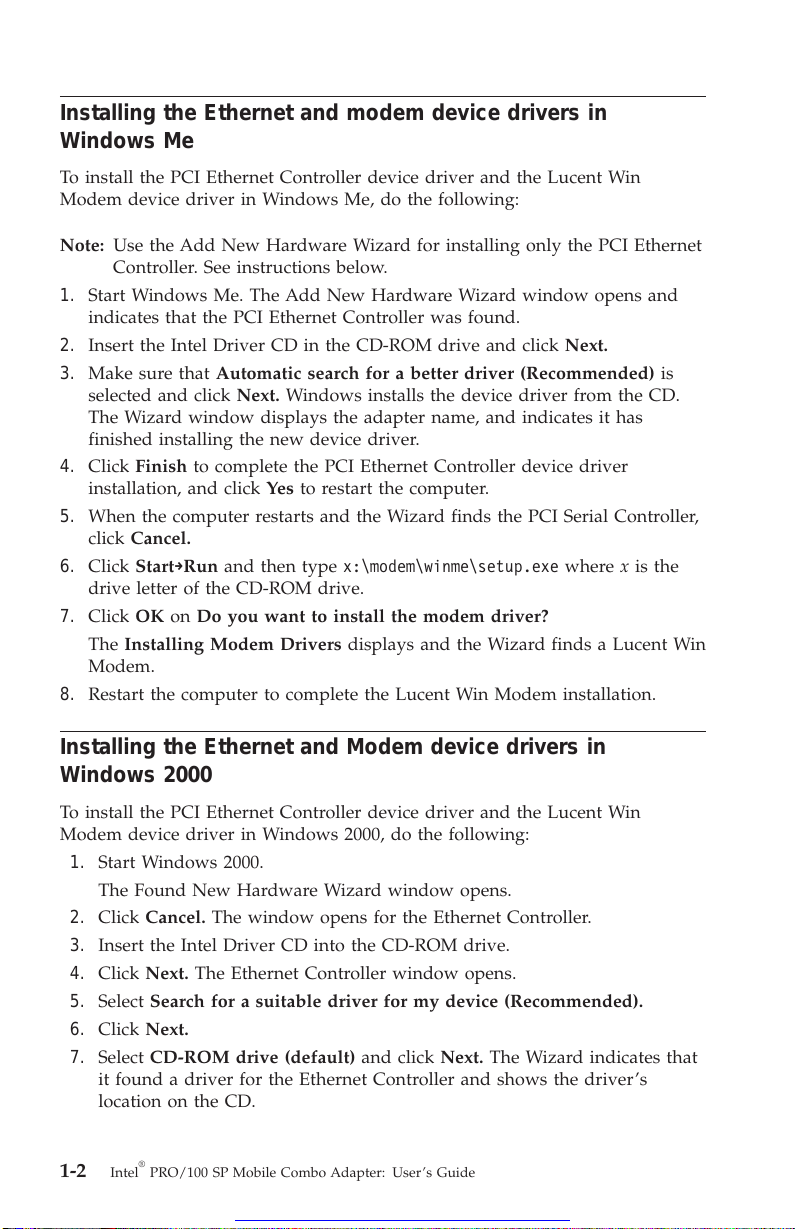

Installing the Ethernet and modem device drivers in
Windows Me
To install the PCI Ethernet Controller device driver and the Lucent Win
Modem device driver in Windows Me, do the following:
Note: Use the Add New Hardware Wizard for installing only the PCI Ethernet
Controller. See instructions below.
1. Start Windows Me. The Add New Hardware Wizard window opens and
indicates that the PCI Ethernet Controller was found.
2. Insert the Intel Driver CD in the CD-ROM drive and click Next.
3. Make sure that Automatic search for a better driver (Recommended) is
selected and click Next. Windows installs the device driver from the CD.
The Wizard window displays the adapter name, and indicates it has
finished installing the new device driver.
4. Click Finish to complete the PCI Ethernet Controller device driver
installation, and click Yes to restart the computer.
5. When the computer restarts and the Wizard finds the PCI Serial Controller,
click Cancel.
6. Click Start→Run and then type x:\modem\winme\setup.exe where xis the
drive letter of the CD-ROM drive.
7. Click OK on Do you want to install the modem driver?
The Installing Modem Drivers displays and the Wizard finds a Lucent Win
Modem.
8. Restart the computer to complete the Lucent Win Modem installation.
Installing the Ethernet and Modem device drivers in
Windows 2000
To install the PCI Ethernet Controller device driver and the Lucent Win
Modem device driver in Windows 2000, do the following:
1. Start Windows 2000.
The Found New Hardware Wizard window opens.
2. Click Cancel. The window opens for the Ethernet Controller.
3. Insert the Intel Driver CD into the CD-ROM drive.
4. Click Next. The Ethernet Controller window opens.
5. Select Search for a suitable driver for my device (Recommended).
6. Click Next.
7. Select CD-ROM drive (default) and click Next. The Wizard indicates that
it found a driver for the Ethernet Controller and shows the driver’s
location on the CD.
1-2 Intel®PRO/100 SP Mobile Combo Adapter: User’s Guide
