IBM 22P7713 Manuale utente
IBM High Rate
Wireless LAN
Mini-PCI Adapter
User’s Guide
ATTENTION
Refer to the documentation that comes with your computer before installing the
product.
Note
Be sure to keep your proof of purchase, because it might be required for warranty
services. (For more information, refer to the Product warranty and notices for IBM
High Rate Wireless LAN Mini-PCI Adapter.)
First Edition (July 2002)
The following paragraph does not apply to the United Kingdom or any country where
such provisions are inconsistent with local law:
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION ″AS IS″WITHOUT ANY WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Some states do not allow disclaimers or express or implied warranties in certain
transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes
are periodically made to the information herein; these changes will be incorporated in
new editions of the publication. IBM may make improvements or changes in the
products or the programs described in this publication at any time.
It is possible that this publication may contain reference to, or information about, IBM
products (machines and programs), programming, or services that are not announced in
your country. Such references or information must not be construed to mean that IBM
intends to announce such IBM products, programming, or services in your country.
Requests for technical information about IBM products should be made to your IBM
authorized dealer or your IBM marketing representative.
© Copyright International Business Machines Corporation 2002. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by
GSA ADP Schedule Contract with IBM Corp.

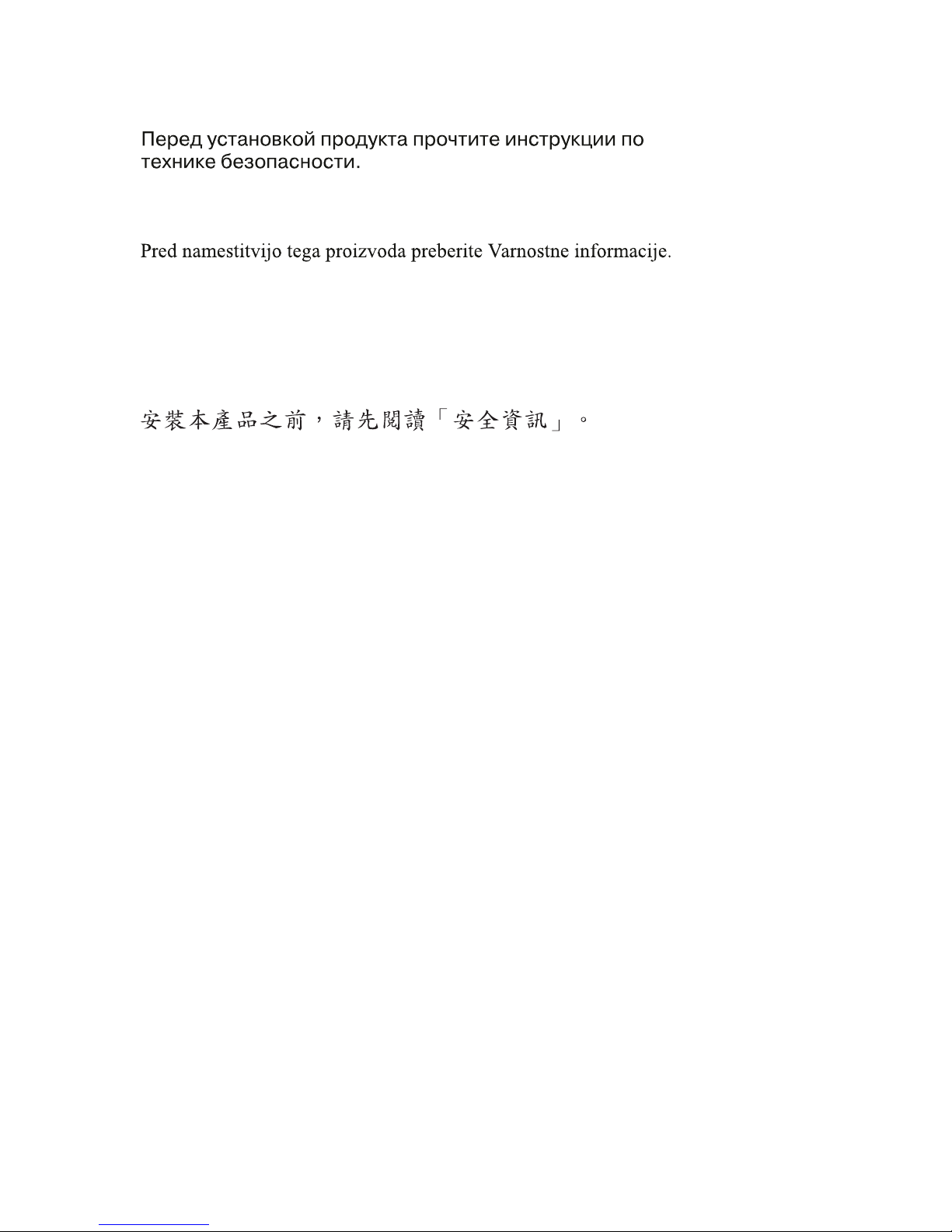

Safety: Read first
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety
Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette
produktet.
© Copyright IBM Corp. 2002 iii
Antes de instalar este produto, leia as Informações sobre Segurança.
Pred inštaláciou tohto zariadenia si pečítaje Bezpečnostné predpisy.
Antes de instalar este producto lea la información de seguridad.
Lässäkerhetsinformationen innan du installerar den här produkten.
iv IBM High Rate Wireless LAN Mini-PCI Adapter: User’s Guide
Contents
Safety: Read first ....................iii
About the IBM
®
High Rate Wireless LAN Mini-PCI Adapter .....1-1
Product registration ...................1-1
Product description ...................1-1
Installing the Mini-PCI Card ................1-2
Installing the device driver ................1-10
© Copyright IBM Corp. 2002 v
vi IBM High Rate Wireless LAN Mini-PCI Adapter: User’s Guide
About the IBM
®
High Rate Wireless LAN Mini-PCI
Adapter
This section provides information on registering, installing, and using the IBM
High Rate Wireless LAN Mini-PCI Adapter.
Product registration
Thank you for purchasing this IBM product. Please take a few moments to
register your product and provide us with information that will help IBM to
serve you better in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the IBM Web site at:
www.ibm.com/pc/register
IBM will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive
further information.
Product description
If you are using a wireless upgradable model of an IBM ThinkPad
®
R32 Series
computer, X30 Series computer, or T30 Series computer, you can install the IBM
High Rate Wireless LAN Mini-PCI Adapter (hereafter called the Mini-PCI
Card) in a Mini-PCI Card slot on your computer.
The option kit includes:
vMini-PCI Card
vMini-PCI guide
vCD-ROM (device drivers and User’s Guide)
vProduct warranty and notices for IBM High Rate Wireless LAN Mini-PCI
Adapter
© Copyright IBM Corp. 2002 1-1
Installing the Mini-PCI Card
Note: Use only the Mini-PCI Card provided by IBM.
If your computer is a wireless upgradable model, and you are installing the
Mini-PCI Card for the first time, follow the procedure below.
For ThinkPad R32 Series computer
If you are using ThinkPad R32 Series computer, do as follows:
1. Turn off the computer; then disconnect the ac adapter and all cables from
the computer.
2. Close the computer display, and turn the computer over.
3. Remove the battery. (For information on removing the battery, refer to the
ThinkPad R32 Series Service and Troubleshooting Guide.)

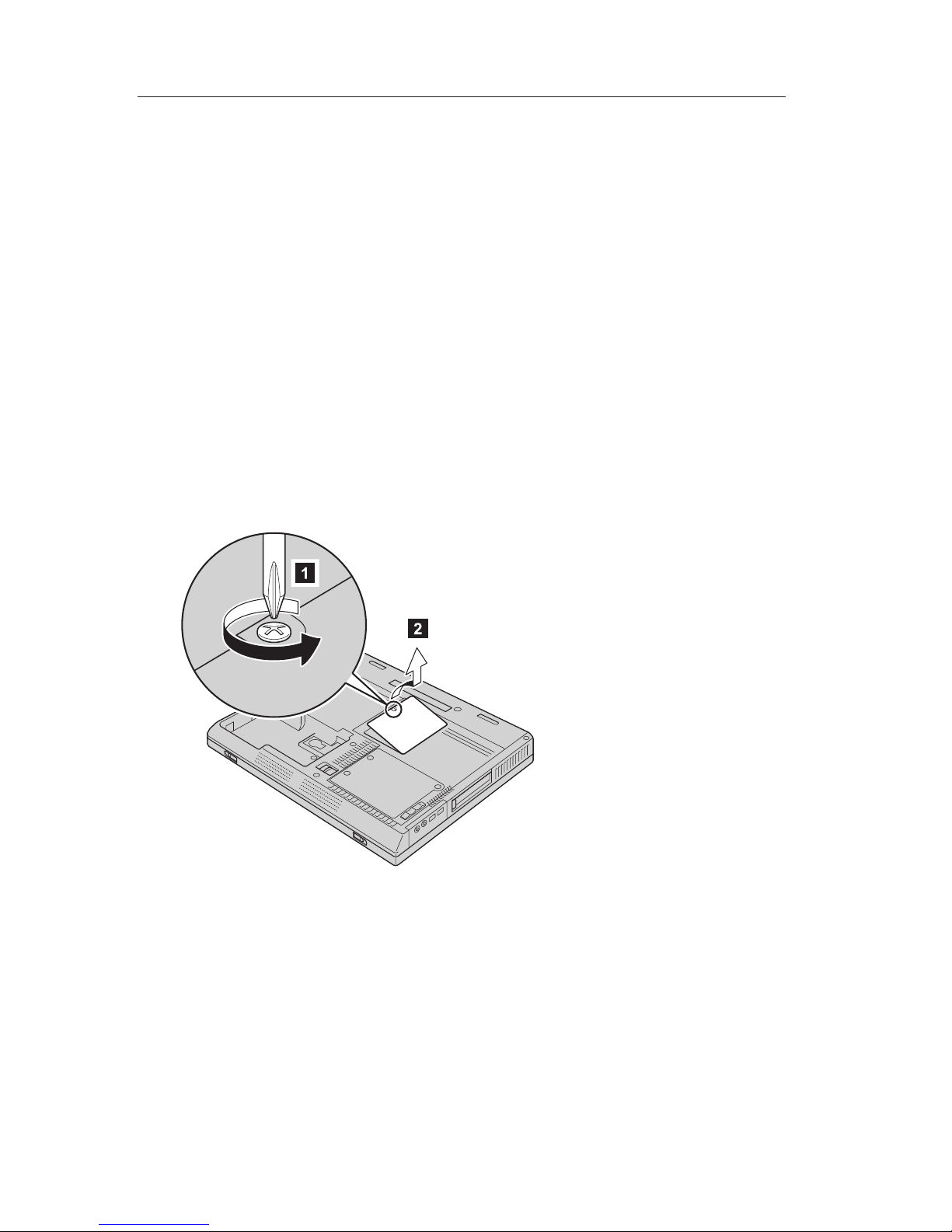

4. Loosen the screw on the cover of the Mini-PCI Card slot 1; then remove
the cover 2.
1-2 IBM High Rate Wireless LAN Mini-PCI Adapter: User’s Guide

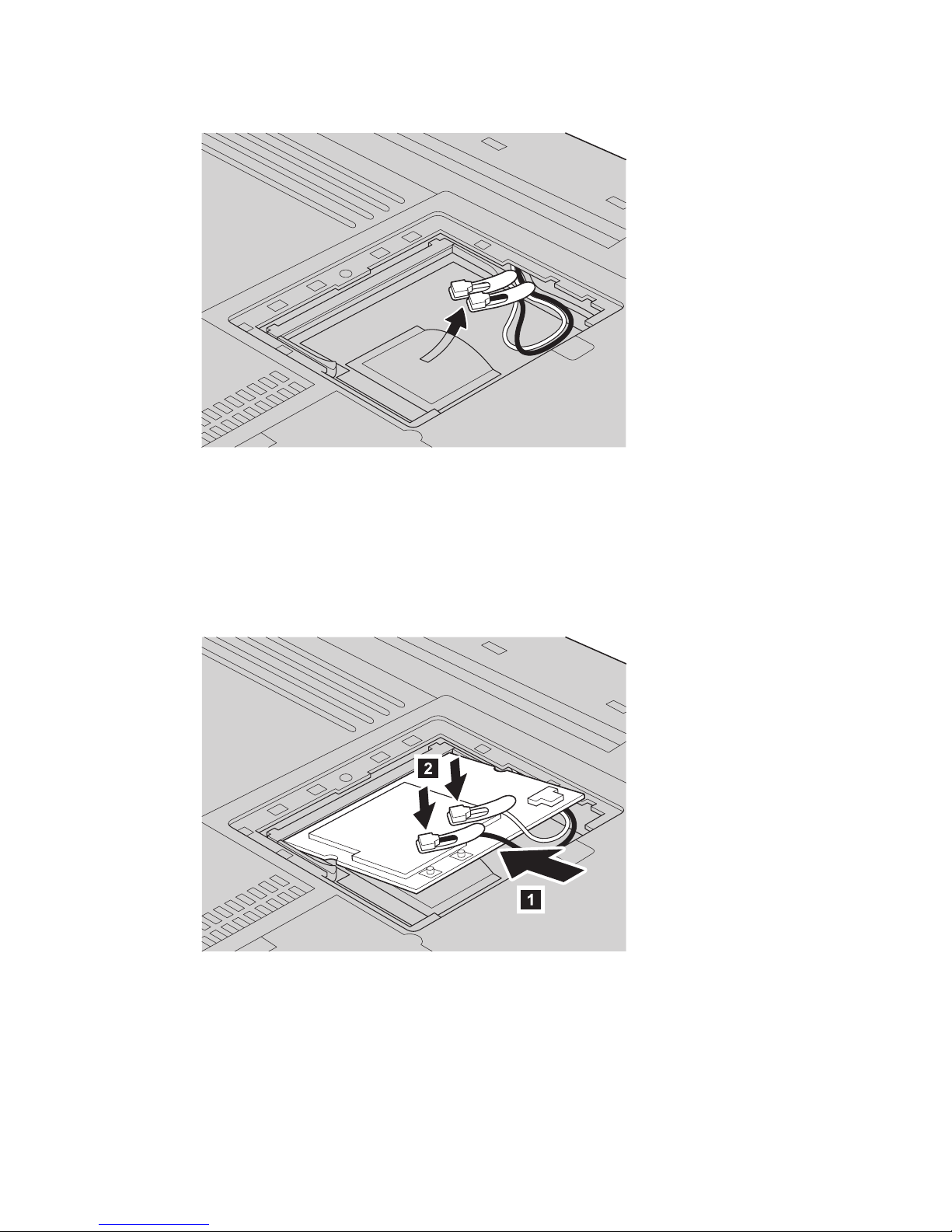

5. Take the cables out of the cable holder as shown.
Note: If a Mini-PCI Card has been installed in your computer, and you
remove the Card and do not install a new one, put the cables in the
cable holder after disconnecting them from the Card.
6. Align the contact edge of the Mini-PCI Card with the corresponding
socket contact of the computer 1. Connect the cables to the new
Mini-PCI Card 2.
About the IBM
®
High Rate Wireless LAN Mini-PCI Adapter 1-3

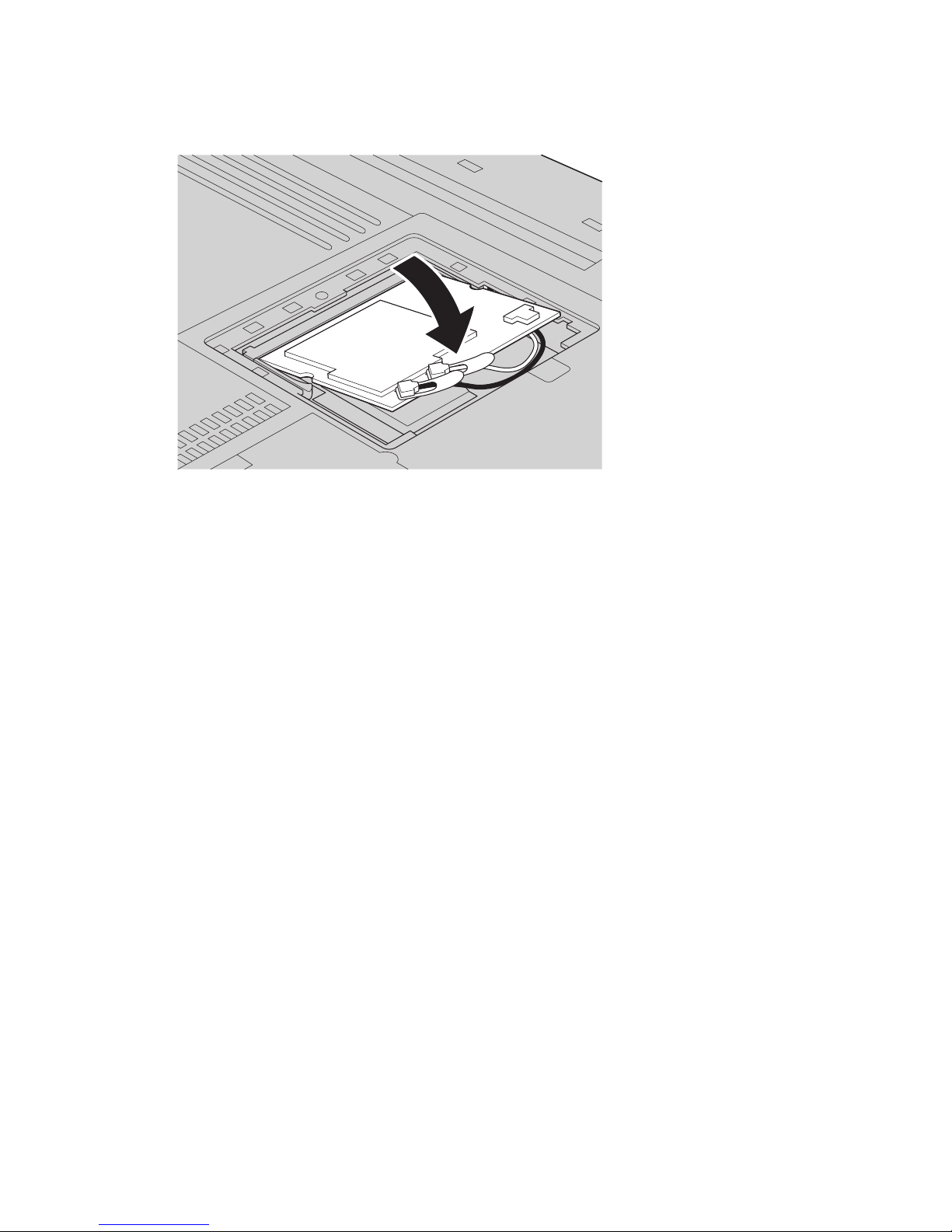

7. Pivot the card until you can snap it into place by pressing the upper side
of the connectors as shown.
Make sure that the card is firmly fixed in the slot and does not move
easily.
8. Align the tabs of the Mini-PCI Card slot cover with the corresponding
slots; then press the cover flat.
9. Tighten the screw of the cover.
Attention: After you install a Mini-PCI Card, do not use your computer
until you have closed the cover. Never use the computer with the cover
open.
10. Reinstall the battery. (For information on reinstalling the battery, refer to
the ThinkPad R32 Series Service and Troubleshooting Guide.)
11. Turn the computer over again. Connect the ac adapter and cables to the
computer; then turn it on.
For ThinkPad X30 Series computer
If you are using ThinkPad X30 Series computer, do as follows:
1. Turn off the computer. Then disconnect the ac adapter and all cables from
the computer.
2. Remove the battery and the keyboard. (For information on removing the
battery and the keyboard, refer to the ThinkPad X30 Series Service and
Troubleshooting Guide.)
1-4 IBM High Rate Wireless LAN Mini-PCI Adapter: User’s Guide
