Ice-O-Matic Upright Ice Storage Bins with Ice Shield

Installation Instructions and Parts List

Ice-O-Matic ice storage bins enjoy a well-deserved reputation for excellent performance, long-term reliability and

outstanding after-the-sale support. To ensure that this bin delivers that same degree of service, we ask that you

take a moment to review this instruction before beginning the installation of the bin. Should you have any

questions or require technical help at any point, please call our technical service group at (800)423-3367

(US & Canada)

Before You Begin.

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If

damage is found, notify the shipper immediately and contact Ice-O-Matic so that we can help in the filing of a

claim, if necessary.

!Important Cautions

• Avoid excessive tightening force when connecting to the bin drain fitting

• Do not apply excessive heat if any sweating of fittings is necessary. Heat conduction through metal may melt

threads in plastic drain fitting.

• When leveling, do not extend any leg more than 1 in. (26mm) for total leg height no greater than

2.125 in. (54mm).

Installation

1. Remove all packing material from bin.

2. Remove all tape and temporary fastenings from door assemblies and outside of bin.

3. Remove set of four legs and any other accessories packed inside bin.

4. Lay bin on back, being careful to protect finish, and remove bolts holding skid to bin.

5. Screw legs into tapped holes in bin bottom and tighten to seat legs well against bottom.

6. Set bin upright.

7. Remove protective paper from stainless steel exterior.

8. Move bin to permanent location.

9. Adjust “foot” at bottom of each leg to level bin in both directions.

10. Mount icemaker(s) on bin in accordance with icemaker manufacturer's instructions.

11. Connect drain line to 1" FPT female fitting located in bottom of bin.

12. Make final connections to icemaker. (Reference the Ice-O-Matic Installation Manual)

11100 East 45th Ave.

Denver CO 80239

800 423-3367

EP 2138774

Bin Model Numbers www.iceomatic.com 9081461-01

B700-30, B1000-48, B1300-48, B1325-60, B1600-60 01078856R00

12/14

Removing L ower

Door Assemb

(Only if required for access through narrow doors)

1. With door in closed position, remove Phillips head screw and washer from hinge area on each side of lower

access door.

2. Insert screwdriver between door and hinge bracket on one side of door and gently push against bracket to

provide room for door stud to clear bracket.

Remove

access door.

Pull

up on

Ice Shied

emo

Remove screws along

door

assemb

Pull forward

assemb

and lift

emo



Reinstalling Door Assembly

1. Reinstall lower door assembly in bin opening.

2. Reinstall screws in hood at top of door assembly.

3. Reinstall Ice Shield in side panel tracks and push down to

seat.

4. With door in closed position, insert one door stud through

hinge bracket, install washer, screw and tighten.



Note: For proper operation the access door must be reinstalled in the closed position.

5. On other side, insert screwdriver between door and hinge bracket and gently push against bracket to provide

room for door stud to clear bracket.

6. Reinstall washer and screw in lift door and tighten.

7. Check door to ensure proper operation.

Operation

Ice Shield Operation

Ice-O-Matic’s unique Ice Shield positively controls the flow of ice into lower door assembly area for removal with

either a scoop or shovel.

Ice Shield can also be adjusted and locked at one of several levels to accommodate flow characteristics of

different types of ice.

Bin is shipped with Ice Shield in full down position. The Ice Shield can be raised and locked in higher position

for better flow or when more access is needed.



If More Ice Is Needed In Lower Door Area:

1. Use full-length handle at top of Ice Shield to gently lift and jiggle the Ice Shield to encourage ice to flow into

access area of the bin (Fig. 1). (Loose ice will cascade into lower door area.)

2. When adequate ice has flowed, push the Ice Shield back down.

When More Access Is Needed Or To Encourage Flow Of Less Ice:

1. Lock gate at higher level by pulling up and holding the

Ice Shield at correct level, and pushing tapered end of catch into nearest hole in gate

(catch will automatically release when you pull up).

2. To release catch, pull up on the Ice Shield.

Fig.

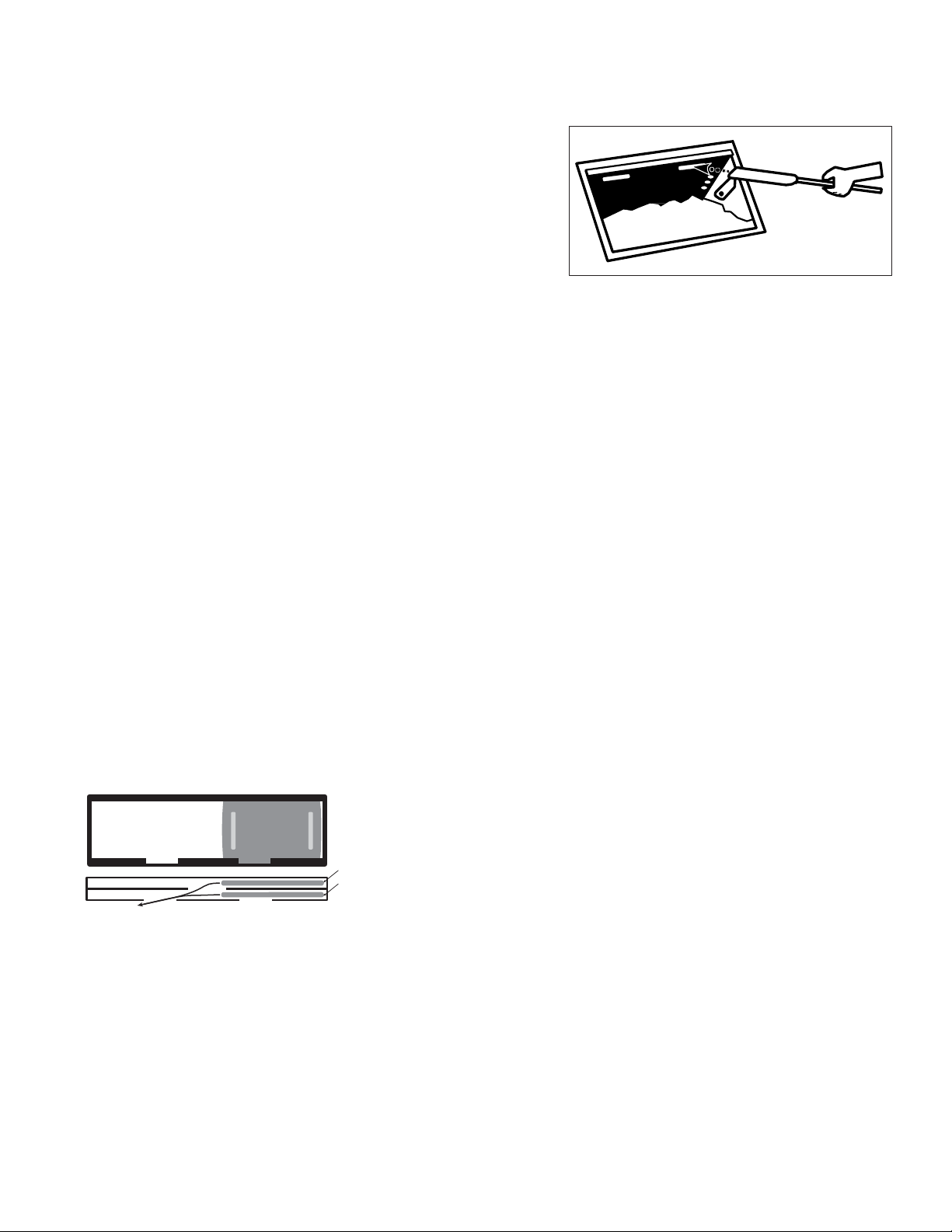

Using Ice Paddle Accessory

The Ice Paddle is an optional accessory that can be ordered

directly from Ice-O-Matic. Mount the Ice Paddle for easy access on

either side of the bin in the bracket provided.

Using the Paddle

If there is adequate ice in bin but lower door area is not filled with

ice, it may be that ice has congealed in bin and cannot flow. This

can often be remedied by quickly jiggling the Ice Shield several

times (Fig. 1). If problem continues, the Ice Paddle can be inserted

through rectangular openings in the Ice Shield and agitated back

and forth to break up congealed ice mass (Fig. 2).

Note: Use Ice Paddle only as described above. To avoid possible

injury, keep head and face clear of lower door area and Ice Paddle

at all times. Do not use the Ice Paddle for other purposes.

Fig. 2

Technical assistance available toll free

Should you have any questions concerning installation or maintenance of Ice-O-Matic ice storage bins, please

call our technical service department at 800 423-3367 (US & Canada) between 7:30 a.m. and 4:00 p.m.

Mountain time

Cleaning

Interior of bin must be cleaned and sanitized prior to use and should be cleaned on routine basis during use.

Interior Bin Care

Ice-O-Matic single door upright ice storage bins are equipped with polyethylene liner walls and stainless steel

bottoms which should be cleaned and sanitized periodically with any product suitable for use in a food zone.



Important: Ice-O-Matic recommends installing our IFQ Water Filter on water supply to icemaker to

remove chlorine.

1. Remove upper inspection windows by sliding windows to one side. Grasp the end of the front window and pull

toward you as the window is slid to the opposite side. Repeat for rear window.

Rear Window

Front Window

2. Wash bin walls, hopper, access door plate and partition (if any), rinse and sanitize.

Exterior Bin

Care

Exterior stainless steel surfaces can be cleaned with a stainless steel cleaner such as 3M Stainless Steel

Cleaner & Polish or equivalent.

Replacement

Parts

Item Ice-O-Matic DESCRIPTION B700 B1000 B1300 B1325 B1600

Part Number 30 48 48 60 60

1N/A No Item Number 1 NA NA NA NA NA

21011518-10 Inspection Window 21.125 x 8.625 2 Required X X X X

21011517-10 Inspection Window 21.125 x 8.625 2 Required X

31011518-11 Frame Assembly, Lower Door X X X X

31011517-11 Frame Assembly, Lower Door X

41011518-12 Door, Outer lift 45 inch X X X X

41011517-12 Door, Outer lift 28 inch X

51011517-13 Hinge, Right Hand Door Mount (Includes Hardware) X X X X X

61011517-14 Hinge, Left Hand Door Mount (Includes Hardware) X X X X X

71011518-13 Ice Gate 40 inch With Paddle Access X X X X

71011518-14 Ice Gate 40 inch With Out Paddle Access X X X X

71011517-15 Ice Gate 24 inch With Paddle Access X

71011517-16 Ice Gate 24 inch With Out Paddle Access X

81011517-17 Catch, Ice Gate X X X X X

9N/A No Item Number 9 NA NA NA NA NA

10 1011517-18 Hinge, Bracket, Bin Mount (Includes Hardware) X X X X X

11 1011517-19 Drain Assembly, Plastic X X X X X

12 1011517-20 Legs, 6 inch Stainless Steel (Set of 4) X X X X X

12 1011517-21 Legs, 6 inch Stainless Steel Flanged Foot (Set of 4) X X X X X

NS 1011517-22 Shovel, Ice (Plastic) X X X X X

NS 1011517-23 Bracket, Ice Shovel X X X X X

NS 1011517-24 Paddle Ice, 46.5 Inch Total Length X X X X X

NS 1011517-25 Kit, Top, Replacement B700 Flextop X

NS 1011518-15 Kit, Top Replacement B1000, B1300 Flextop X X

NS 1011520-10 Kit, Top Replacement B1325, B1600 Flextop X X

NS 1011520-11* Kit, Top Replacement B1325, B1600 Flextop (2 30" Wide)*X X

NS 1011520-12 Kit, Top Replacement B1325, B1600 Flextop (2 ICE1506) X X

NS 1011517-26 Bintop Filler Panel, Small, ("S" Lasered into Panel) X X X

NS 1011518-16 Bintop Filler Panel, Large, ("L" Lasered into Panel) X X X X

NS 1011517-27 Gasket, Foam Rubber, 25 Ft. X X X X X

NS 1011517-28 Sealant, RTV 4.7 Oz. Tube (1 ea.) X X X X X

NS 1011517-29 Bracket, Paddle X X X X X

*Note: For Top Air Discharge, Water Cooled and Remotes Only ICE0250, 400, 500, 606, 806 and 1006

NS = Not Shown

ICE 0926 GEM 0956

9 7/16

3/16

3/4

24 3/16

21 3/4

SEAL INSIDE EDGE

WITH SEALANT

front

GASKET

8 13/16

INSIDE EDGE

WITH SEALANT

front

GASKET

22 5/16 5/8

24 7/8

ICE 1006 ICE 1506

SEAL INSIDE EDGE

WITH SEALANT

front

GASKET

SEAL INSIDE EDGE

WITH SEALANT

front GASKET

NO FILLER PANEL REQ'D NO FILLER PANEL REQ'D

FILLER 'S'

30" WIDE BIN

GASKET PATTERN FOR ICE-O-MATIC FLEXITOP

1/8 7/16

23 11/16 25 5/8

FILLER 'S'

SEAL

FILLER 'S'

FILLER 'L'

w/2nd flange

18 1/2

8 7/8

FILLER 'S'

5/16

7/16

23 11/16

6 3/8

ICE 1406, ICE 1806, ICE 2106 MFI 2406

front

NO FILLER PANEL REQ'D

(1) GEM 0956 (2) GEM 0956

48" WIDE BIN

GASKET PATTERN FOR ICE-O-MATIC FLEXITOP

SEAL INSIDE EDGE

WITH SEALANT

GASKET

3/16

24 3/16

FILLER 'S'

front

SEAL INSIDE EDGE

WITH SEALANT

GASKET

INSTALL FILLER PANELS, IF REQUIRED,

SEAL INSIDE EDGE OF GASKET AROUND ICE DROP OPENING WITH SEALANT SUPPLIED.

APPLY 3/8" GASKET TO BIN TOP PER DIMENSIONS SHOWN AND AROUND ICE DROP OPENING.

USING THE ILLUSTRATION FOR THE SPECIFIC ICEMAKER YOU ARE INSTALLING,

POSITION ICEMAKER ONTO BIN.

BY PEELING PAPER BACKING AND ADHERING TO TOP PER DIMENSION SHOWN.

FILLER 'L'

w/2nd flange

front

INSIDE EDGE

WITH SEALANT

GASKET

SEAL

front

GASKET

14 11/16 12 11/16

24 3/16

15 11/16 13 11/16

3/16

INSIDE EDGE

WITH

SEAL

24 3/16

3/16

2121

11 11/16 16 7/8

OPENING OPENING

SEALANT

FILLER 'L'

ICE 1006

ICE 1506

9 3/8 9

25 5/8

front

SEAL INSIDE EDGE

WITH SEALANT

GASKET

front GASKET

SEAL INSIDE EDGE

WITH SEALANT

612 3/8

23 11/16

7/16

FILLER 'L'

w/2nd flange

FILLER 'L'

front

13 3/8 12 5/8

24 7/8

14 3/8 13 1/2

5/8

GASKET

INSIDE

EDGE

SEAL

WITH

SEALANT

INSIDE

EDGE

SEAL

WITH

SEALANT

12 19 9/16

OPENING OPENING

24 7/8

5/8

22 5/16

5/8

GASKET

27 1/8

9 7/8 9 3/4 13 3/8 13 1/2

FILLER 'S' FILLER 'S' FILLER 'L'FILLER 'L'

w/2nd flange

FILLER 'L'

w/2nd flange

7 1/8 8

OPENING OPENING

FILLER 'L'

w/2nd flange

(1) ICE 0926 (2) ICE 0926

FILLER 'L'

FILLER 'S'

FILLER 'L'

FILLER 'L' FILLER 'L'

FILLER 'L'

6 11/16 5 7/16

7/16

23 11/16

13 1/8 5

ICE 1406, ICE 1806, ICE 2106 MFI 2406

front

NO FILLER PANEL REQ'D

(1) GEM 0956 (2) GEM 0956

60" WIDE BIN

GASKET PATTERN FOR ICE-O-MATIC FLEXITOP

SEAL INSIDE EDGE

WITH SEALANT

GASKET

14 3/16

FILLER 'L'

3/16

24 3/16

FILLER 'L'

front

SEAL INSIDE EDGE

WITH SEALANT

GASKET

INSTALL FILLER PANELS, IF REQUIRED,

SEAL INSIDE EDGE OF GASKET AROUND ICE DROP OPENING WITH SEALANT SUPPLIED.

APPLY 3/8" GASKET TO BIN TOP PER DIMENSIONS SHOWN AND AROUND ICE DROP OPENING.

USING THE ILLUSTRATION FOR THE SPECIFIC ICEMAKER YOU ARE INSTALLING,

POSITION ICEMAKER ONTO BIN.

BY PEELING PAPER BACKING AND ADHERING TO TOP PER DIMENSION SHOWN.

FILLER 'L'

w/2nd flange

front

INSIDE EDGE

WITH SEALANT

GASKET

SEAL

FILLER 'L'

w/2nd flange

front GASKET

INSIDE EDGE

WITH SEALANT

SEAL

20 9/16 18 9/16

24 3/16

21 9/16 19 9/16

3/16 4 7/16

24 3/16

3/16

25 7/16

6 7/16

27 7/16

13 5/8 17 3/4

OPENING OPENING

35 11/16

ICE 1006ICE 1506

(1) ICE 0926 (2) ICE 0926

w/2nd flange

FILLER 'L'

15 1/16 15 1/16

25 5/8

16 1/16 16 1/16

front

SEAL INSIDE EDGE

WITH SEALANT

GASKET

w/2nd flange

FILLER 'L' FILLER 'L'

16 1/16 16 1/16

front

GASKET

SEAL INSIDE EDGE

WITH SEALANT

FILLER 'L' FILLER 'L'

15 1/16 15 1/16

23 11/16

7/16

FILLER 'L'

FILLER 'L' FILLER 'L'

FILLER 'L'

w/2nd flange

FILLER 'L'

w/2nd flange

FILLER 'L'

front front

18 7/8 18 7/8

24 7/8

19 7/8 19 7/8

5/8

GASKET

INSIDE

EDGE

SEAL

WITH

SEALANT

INSIDE

EDGE

SEAL

WITH

SEALANT

16 3/16 15 1/16

OPENING OPENING

1/2

24 7/8

5/8

22 13/16

7 5/8

29 15/16

GASKET

38 5/16

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ice-O-Matic Macchina per il ghiaccio

Ice-O-Matic

Ice-O-Matic ICEU060 Manuale utente

Ice-O-Matic

Ice-O-Matic ICE2107R Manuale di installazione

Ice-O-Matic

Ice-O-Matic ICE0520 Series Manuale utente

Ice-O-Matic

Ice-O-Matic Flaker Dispenser FD550 Guida rapida

Ice-O-Matic

Ice-O-Matic B Series Manuale utente

Ice-O-Matic

Ice-O-Matic EMF2306AS Manuale utente

Ice-O-Matic

Ice-O-Matic ICEU150**2 Guida

Ice-O-Matic

Ice-O-Matic GEM1856 Manuale utente

Ice-O-Matic

Ice-O-Matic HISU050 Manuale utente

Ice-O-Matic

Ice-O-Matic GEMU090 Series Manuale utente

Ice-O-Matic

Ice-O-Matic Hotel Dispenser CD 40030 Series Manuale utente

Ice-O-Matic

Ice-O-Matic IOD 150 Series Manuale utente

Ice-O-Matic

Ice-O-Matic ICE0250 Series Manuale utente

Ice-O-Matic

Ice-O-Matic ICEU200 Series Guida

Ice-O-Matic

Ice-O-Matic ICE0250 Series Manuale utente

Ice-O-Matic

Ice-O-Matic HISU055 Manuale utente

Ice-O-Matic

Ice-O-Matic MFI0800 Manuale utente

Ice-O-Matic

Ice-O-Matic Hotel Dispenser CD 40030 Series Manuale utente

Ice-O-Matic

Ice-O-Matic Pearl Ice Nugget GEM 1256 Manuale utente

Ice-O-Matic

Ice-O-Matic ICE0500 Series Manuale utente

Ice-O-Matic

Ice-O-Matic Enodis Manuale utente

Ice-O-Matic

Ice-O-Matic MFI Manuale utente

Ice-O-Matic

Ice-O-Matic MFI Series Manuale di servizio

Ice-O-Matic

Ice-O-Matic CD20030 CD20530 Manuale utente

Manuali Macchina per il ghiaccio popolari di altre marche

Hoshizaki

Hoshizaki KMD-460MWJ Manuale utente

Sub-Zero

Sub-Zero 315I Istruzioni per l’uso

Unold

Unold 48945 Manuale utente

Kenmore

Kenmore 2217402A Manuale utente

Cornelius

Cornelius WM600 Istruzioni operative

GE XPIO43SCSS Manuale utente

Hoshizaki

Hoshizaki KMD-901MAH Manuale utente

Whynter

Whynter FIM-450HA Manuale utente

U-Line

U-Line UMCR014-SC01A Manuale di installazione

Andrew James

Andrew James AJ000522 Manuale utente

Scotsman

Scotsman CME1356 Manuale utente

Scotsman

Scotsman ACM 25 Manuale utente

Kärcher

Kärcher IP 120 Manuale utente

U-Line

U-Line SS1095 Manuale utente

Maytag

Maytag MIM1554WRS - Ice Maker Manuale utente

Hoshizaki

Hoshizaki KM-630MAH Manuale utente

Princess

Princess Yonanas Manuale utente

Unold

Unold 48946 Manuale utente
