Ice-O-Matic EF250A32S Manuale utente

EF 250 Series

Flake ICE Maker

EF 250

Problem

ICE-O-Matic®Tough

Constructed with a brass evaporator and rugged stainless

steel transport system enclosed in polyurethane insulation

Multiple Solutions

Storage of 143 pounds or 213 pounds of flaked ICE

ICE-O-Matic ®is the Best ICE Making Solution for:

Hard Water, Food Safety and Tight Spaces

Solution

Operating Environments

Built to last?

Optimal Bin Storage

Bin not large enough?

Tight-Fitting Spaces

Kitchen space utilization

✓

Produces up to 400 lbs. (182 Kgs.)* of ICE per day

✓Self-contained insulated storage available in

143 lbs. (65 Kgs.) or 213 lbs. (97 Kgs.)

✓Constructed from sturdy, corrosion-resistant

300 series stainless steel

✓ Ultra-low profile - 41 inches (1041 mm) tall

✓Available with an air-cooled condenser

*Rated at 70 ° (21°) Air / 50° (10°) Water

Maximum ICE

Maximum ICE production in a minimum amount

of space with an ultra-low profile:

• 41 inches tall

• Air intake only on one side

• Choice of 32 or 38 inches wide

Dirty Air Filter

Forget to change the air filter?

Filter-Free Air

No air filter to change

EF250A32S 32 (813) 143 (65) Air 400 (182) 319 (145) 12.0 (45) n/a 5.6 4233 115/60/1 3 12.4 15 240 (109)

EF250A38S 38 (965) 213 (97) Air 400 (182) 319 (145) 12.0 (45) n/a 5.6 4233 115/60/1 3 12.4 15 250 (114)

Please note: air-cooled units require 6” (152 mm) clearance for air intake and exhaust.

Water Used-Gals. (Lits.) Kilowatts

ICE Production ICE Production per 100 lbs. of Ice Used per

per 24 hrs. at per 24 hrs. at 90° Air/70° Water 100 lbs. of ICE Min. Max. Shipping

Model Cab Size Bin Storage Cond. 70° Air/50° Water 90° Air/70° Water 90° Air Voltage No. of Circuit Fuse Weight

No. Width ”(mm) Lbs. (Kgs.) Unit lbs. (Kgs.) lbs. (Kgs.) 70° Water Btuh Characteristics Wires Amp. Size lbs. (Kgs.)

ICE Prod. Cond.

Use Use

60 Hz

ORDERING AND SPECIFICATION INFORMATION

OPERATING LIMITS

Ambient Temp. Range

Air & Water 50° - 110°F (10° - 43°C)

Water Temp. Range 40° - 100°F (4.5° - 38°C)

Water Pressure Ice Maker Min. 20 psi (1.4 bar)

Water in Max. 60 psi (6.9 bar)

➤

27"

(686mm)

32.25"

(819mm)

➤

24"

(610mm)

➤

1.75"

(45mm)

➤

(76mm)

6.75"

(172mm)

(203mm)

3/4"

(19mm)

Bin Drain

3/4" (19mm)-

FPT

➤

38"

(965mm)

➤

35"

(889mm)

41"

(1041mm)

6" (152mm)

to 7" (178mm)

Adj. Legs

➤

27"

(686mm)

➤

Bin Drain

3/4" (19mm)-

FPT

(76mm)

27"

(686mm)

32.25"

(819mm)

3/4"

(19mm)

1.75"

(45mm)

35"

(889mm)

41"

(1041mm)

➤

32"

(813mm)

➤

6" (152mm)

to 7" (178mm)

Adj. Legs

EF 250

Conds. Air Temp. Water Temp. °F (°C)

Unit °F (°C) 80°(27°) 70°(21°) 50°(10°)

90° (32°) 297 (135) 319 (145) 351 (160)

80° (27°) 318 (144) 342 (155) 376 (171)

70° (21°) 338 (154) 364 (165) 400 (182)

All specifications and performance data are

subject to normal manufacturing variances.

Air

Cooled

32”

front view

38”

front view

38”

back view

32”

back view

Air in-

Left side of ICE Maker

28"

(711 mm)

Air in-

Left side of ICE Maker

28"

(711 mm)

➤

32"

(813 mm)

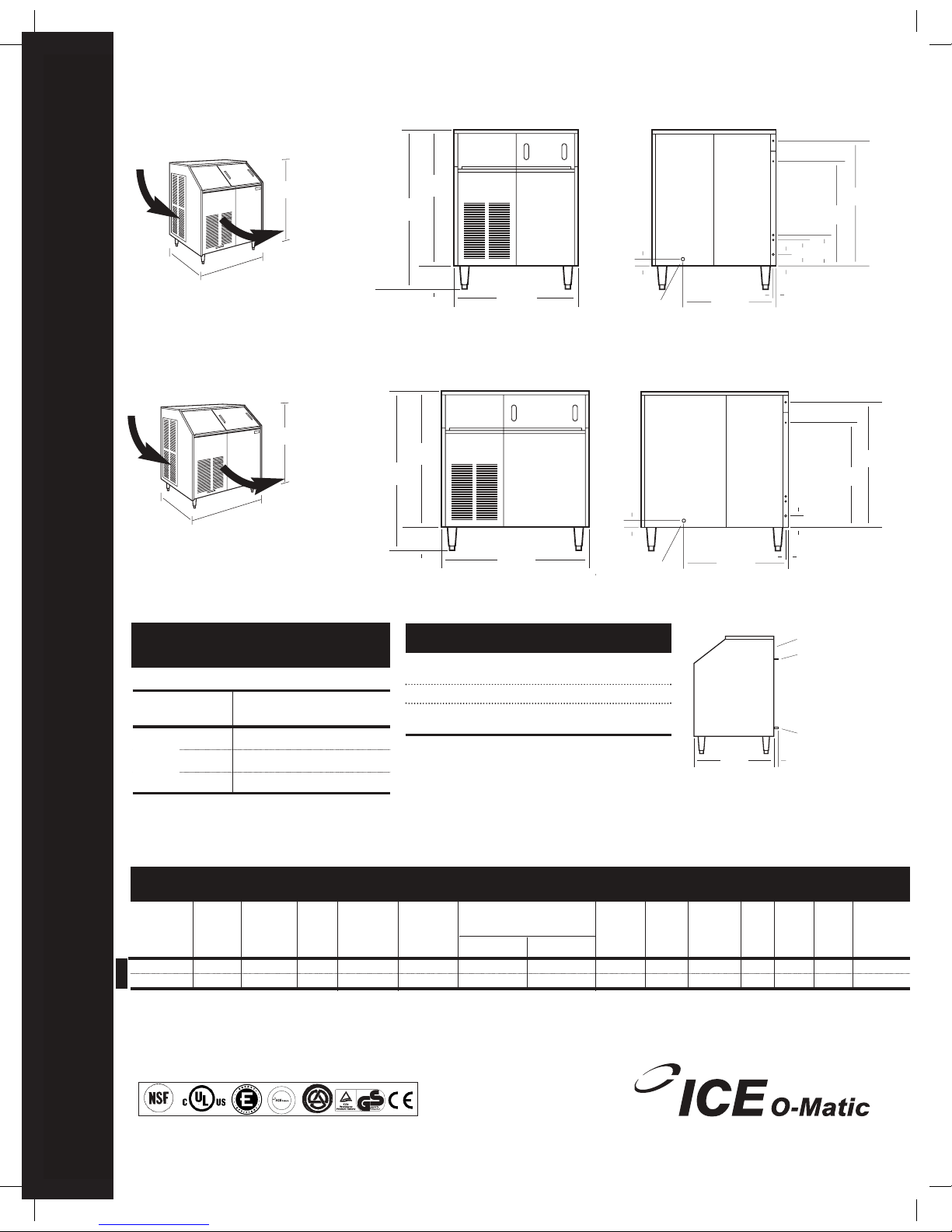

Dimensions and Air Flow

38” Width

32” Width

41"

(1041 mm)

➤

38"

(965 mm)

41"

(1041 mm)

Air out -

front of ICE Maker

Air out-

front of ICE Maker

ICE PRODUCTION CHART POUNDS

(KILOGRAMS) PER 24 HOURS

EF 250 Series Flake ICE Maker Self-Contained

➤

28"

(711mm)

➤➤

1.50"

(38mm)

Electrical Inlet

Icemaker Water Inlet

3/8" (10mm) FPT

Drain

1/2" (13mm) I.D. Plastic Tubing

➤

32”, 38”

side view

We reserve the right to make changes in design and construction at any time

without obligation.

2003© ICE-O-Matic Rev Code: 2000A-06/03-SS

ICE-O-Matic 11100 E. 45th Avenue, Denver, CO 80239

Tel. 303 371-3737 Fax. 303 371-6296 www.iceomatic.com
