FR5000 / FR6000
Configuration Guide
©2009 Icom America Inc. • IDAS and the IDAS logo are trademarks of Icom Inc. All other
trademarks remain the property of their respective owners. All information subject to change
without written notice or obligation. 20209
FR5000 / FR6000 Configuration Guide / 2
FR5000 / F6000 Table of Contents
Welcome To IAS Page 3
Choose Your Specs Page 4
Additional UR Modules Page 5
Power Supply Page 6
Duplexer Page 8
Antenna Switch Page 9
Pilot Tone Generator Page 10
RX Pre-Selector Options Page 10
Trunking Card Page 11
Accessories Page 12
2380 116th Avenue NE
Bellevue, Washington 98004
425.454.8155 / Front Desk
FR5000 / FR6000 Configuration Guide / 3
Welcome to the Icom America Systems FR5000 Configuration
Guide. This versatile Analog and 6.25 NXDN™ Digital base station-
repeater is modular designed, and is available in many configurations and
three frequency ranges.
Included are part numbers-descriptions, specifications and pricing of our
most popular internally mounted and external accessories for the FR5000
series. Some customized assembled systems may require unique cables,
RF jumpers or interfaces designed to work specifically with your config-
uration. IAS takes great care towards ensuring your system is made to
your specifications and performs to your expectations. We recommend
discussing your requirements and configurations with your Regional
Systems Sales Specialist.

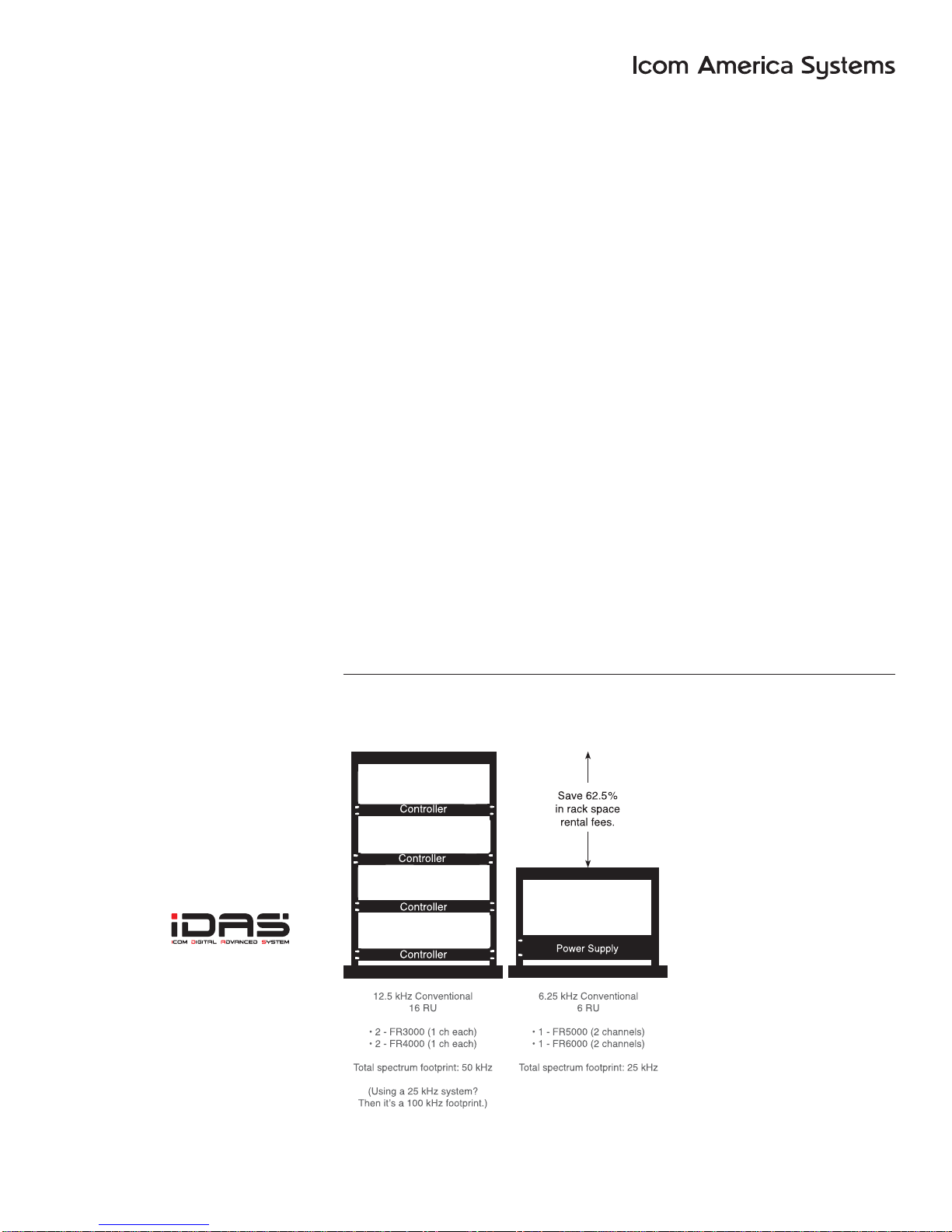

Which 4 channel system fits your needs?
Save rack space.
Save air space.
Go digital.
FR5000 / FR6000 Configuration Guide / 4
Choose Your Specications
FR5000 or FR6000
FR5000-01 136-174MHz
FR6000-01 400-470MHz
FR6000-11 450-520MHz
Retail: $2060.00
SPECIFICATIONS
Frequencycoverage: 136-174MHz,400-470MHz,450-520MHz
Numberofchannels: Max32channels
Channelspacing: 6.25/12.5/25kHz/7.5/15/30kHz
PLLchannelstep: 2.5,3.125kHz
Frequencystability: +0.5ppm
Operatingtemperature: -30˚Cto+60˚C/-22˚Fto+140˚F
Powersupplyvoltage: 13.6VDC
Currentdrain(at13.6VDC): TX50W15ARXMax.audio1.9A
Stand-by500mA400m(Fanoff)
Antennaimpedance: 50Ω(Type-Nx2)
Dimensions(WxHxD): 483x88x260mm/191/32x315/32x101/4in
Weight: 5.6kg/12.3lb(approx.)
Outputpower: 50W(adjustableto5W)25Wat100%dutycycle
Maxfrequencydeviation: +5.0/2.5kHz(wide/narrow)
Spuriousemissions: 80dBtyp.
Adjacentchannelpower: 76/69dBtyp.(wide/narrow)
FMhumandnoise: 50/45dBtyp.(wide/narrow)
Microphoneimpedance: 600Ω(8-pinmodular)
SensitivityFM(WIN): 0.30µVtyp.(at12dBSINAD)
Digital0.25µVtyp.(at5%BER)
AdjacentChselectivity: 80/56dBtyp.(wide/narrow)–TIA603B
85/77dBtyp.(wide/narrow)–TIA603
Spuriousresponse: 90dB(typ.)
Intermodulationrejection: 78dB(typ.)
Humandnoiseratio: 50/45dBtyp.(wide/narrow)
Audiooutputpower: 4.0Wtyp.at5%distortionwith4Ωload
Externalspeakerconnector: 2conductor3.5(d)mm
FR5000 / FR6000 Configuration Guide / 5
ADDITIONAL UR MODULES
The FR5000 Series Chassis can house up to two UR modules. This allows
for two individual repeaters or base station operation in one chassis. The
second module can be either UHF or VHF.
UR FR5000 41
UR FR6000 41
UR FR6000 51
Retail: $ 1310.00
FR5000 with two modules installed
FR5000 / FR6000 Configuration Guide / 6
POWER SUPPLY
The FR5000 series requires 13.6 VDC and 15 amps (One Module). IAS pro-
vides two external rack mountable power supplies for you to choose from.
The ICT N+1 Redundant Series
The N+1 system offers true redundancy. Its built-in active current shar-
ing capability ensures that load current is distributed to approximately
5% among the modules and the ORing diode prevents any interruption
to the DC bus. The outcome is a highly reliable and efficient power supply
system. Standalone power supplies can be placed in parallel in order to
increase the output power to be equivalent to that of an N+1 system but
with the following drawbacks; external wiring is required, no active current
sharing would be present and the DC output will be pulled down if any of
the standalone units fail.
ICT 22012-35N: One Module Power Supply - Rack Mountable
Retail: $ 1199.00
ICT 22012-70N: Two Module Power Supply - Rack Mountable
Retail: $ 1587.00
ICT 22012-30N: Internal Module - Mounts Inside ICT Chassis
Retail: $ 388.00
• Expandable - Add Additional
Modules to Increase Current
Capacity - Redundancy
• Auto Battery Back-Up Capable-
Charges External Batteries
• 2 RU Rack Occupancy
- Saves Rack Space
• Alarm and Status
Operational Outputs
FR5000 / FR6000 Configuration Guide / 7
POWER SUPPLY (continued)
SPECIFICATIONS
Input Voltage Range: 90 - 130 or 180 - 265 VAC
Input Frequency Range: 50 - 60 Hz
Output Voltage: 13.8 VDC +/- 150 mV
Output Current (Continuous): 17.0 Amps
Output Current (Peak): 20.0 Amps
Current Limiting: 20.5 Amps
Line Regulation: 0.20%
Load Regulation: 0.85%
Output Ripple (Max): 25 mV RMS
Efficiency (Min): 85%
Fuse: 5 Amp
Operating Temperature: -50°F to 125°F
-46°C to 52°C
Size (L x W x H): 7.5” x 19” x 3.5”
Weight: 4.8 lbs.
FEATURE HIGHLIGHTS
120 To 220 VAC Manual Switch
Lightweight
Low Profile
High Efficiency MOSFET Design
Current Limiting
Fuse Protection
Battery Back-up – Float Charging
Terminal Block Output Connector
Input & Extra Output Filtering
Noise-free
Retail: $ 399.00
ICT 22012-20 AR
OPTIONAL
Add a second power supply by
adding a ICT-22012-20 A module.
Retail: $ 333.00
Bracket for the second power supply
(ICT-RMB-LARGE).
Retail: $ 26.00
FR5000 / FR6000 Configuration Guide / 8
Duplexer
Repeater configurations utilizing a single antenna for both TX and RX
functions require a duplexer.
This 50 Watt Notch Type duplexer mounts inside the FR5000 chassis
(where the second RF module would go) and is factory tuned and adjusted
to your frequency pair. Included are TX-RX Jumper cables.
Please provide specific RX and TX frequencies when placing your order.
IAS FR 5000 DUP KIT
VHF requires 3 MHz minimum TX-RX separation
IAS FR 6000 DUP KIT
UHF requires 5 MHz minimum TX-RX separation
Retail: $ 560.00
Internally Mounted Notch Type
FR5000 / FR6000 Configuration Guide / 9
BASE STATION: Antenna Switch
Base Station operation utilizing a single antenna requires an antenna
switch. Two options are available in a 19” external rack mount configuration.
This rack mountable 1RU option allows for two RF modules to be installed
in the FR5000 chassis. This unit come in a single or dual configuration.
Control Interface Cable and RF Jumper Cables can be provided upon
request.
IAS 1RU ANTENNA SWITCH: SINGLE
Retail: $ 583.00
IAS 1RU ANTENNA SWITCH: DUAL
Retail: $ 1000.00
External Mounting / Single
External Mounting / Dual
FR5000 / FR6000 Configuration Guide / 10
PILOT TONE GENERATOR:
Conventional Analog Voting System
JPS PTG 10
Retail: $ 980.66
FR6000 UNIVERSAL MOUNTING PLATE: For JPS PTG 10
Retail: $ 26.00
RX PRE-SELECTOR OPTIONS
FIP PR 46 4C PE
UHF 4 Cavity RX Pre-Selector
430-520 MHz
Retail: $ 610.00
FIP PR 16 4H PE
VHF 4 Cavity RX Pre-Selector
150-174 MHz
Retail: $ 626.00
