Icom IC-F50V Manuale utente

OPERATING GUIDE

OPERATING GUIDE FOR

IC-F50V/F60V SERIES

BIIS 1200 OPERATION

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page A (1,1)

IMPORTANT

Thank you for purchasing this Icom radio. The BIIS 1200 system

function is available for your IC-F50V/F60V series radio.

READ ALL INSTRUCTIONS carefully and completely before

using the transceiver.

SAVE THIS OPERATING GUIDE —This operating guide

contains important operating instructions for;

• IC-F50V/F51V VHF TRANSCEIVERS

• IC-F60V/F61V UHF TRANSCEIVERS

NOTE: DO NOT operate the transceiver near unshielded electrical

blasting caps or in an explosive atmosphere. The IC-F50V/F60V

series transceivers are not the explosion-proof construction.

TABLE OF CONTENTS

Icom, Icom Inc. and the logo are registered trademarks of Icom Incorpo-

rated (Japan) in the United States, the United Kingdom, Germany, France, Spain,

Russia and/or other countries.

IMPORTANT …………………… i

TABLE OF CONTENTS ……… i

1 PREPARATION …………… 1

‘

Programmable function keys

2 OPERATION …………… 2–17

‘Default setting …………… 2

‘Receiving a call…………… 3

‘Transmitting a call………… 6

‘Receiving a message …… 9

‘Transmitting a status …… 12

‘Transmitting an SDM …… 13

‘

Position data transmission

‘Printer connection ……… 15

‘PC connection…………… 15

‘Digital ANI ……………… 15

‘Emergency transmission 16

‘Stun function …………… 16

‘BIIS indication …………… 17

‘

Priority A channel selection

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page i (1,1)

PREPARATION

■Programmable function keys

The following functions can be assigned to [P0], [P1], [P2], [P3],

[Red], []and []programmable function keys.

Consult your Icom dealer or system operator for details concerning

your transceivers programming.

If the programmable function names are bracketed in the following

explanations, the speciﬁc switch used to activate the function de-

pends on programming.

DIGITAL BUTTON KEY

➥Push to select the call ID list, transmit message and standby

condition. Toggles between queue channel and received mes-

sage record indication after queue channel is selected.

➥Push and hold to select queue channel indication.

STATUS UP/DOWN KEYS

➥While in the standby condition, push to display the transmit sta-

tus indication and select a status number.

➥When a received SDM is displayed, push to cancel the automatic

scroll and scroll the message manually.

➥When an SDM that contains more than 8 characters is displayed,

push to scroll the message manually.

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page 1 (1,1)

2OPERATION

■Default setting

The following functions are assigned to each programmable key as

the default. However, the assigned function can be changed by

your dealer. Ask your dealer for details.

[P0]; Call : Push to transmit a BIIS code when the se-

lected channel is a MSK channel.

[P1]; Digital Button : Push to select the call list ID/transmit mes-

sage, or push to display the receive message

record for selection.

[P3]; Moni(Audi) : Push this key after the communication to

send a ‘clear down’ signal during MSK chan-

nel operation.

[ ]/[ ]; CH Down/Up

: While in the standby condition, push to select

the operating channel.

After pushing [Digital] or [TX Code CH Se-

lect], push to select call list or TX code chan-

nel, respectively.

[P2]/[Red]; Null : No function is assigned.

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page 2 (1,1)

OPERATION

■Receiving a call

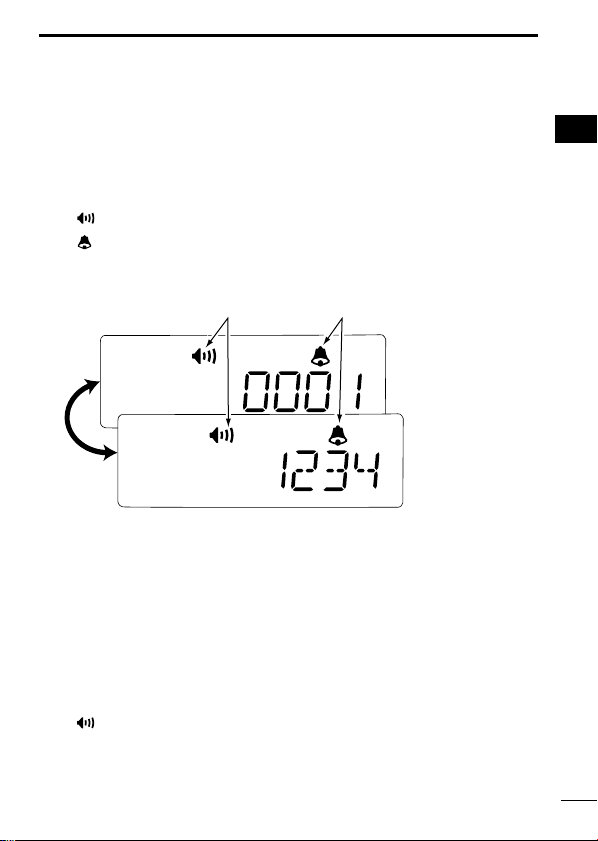

DDIndividual call

qWhen an individual call is received;

• Beeps sound.

• The transceiver vibrates depending on the setting.

• “ ” appears and the mute is released.

• “ ” appears or blinks depending on the setting.

• The own ID (or text) and the calling station ID (or text) is displayed

alternately, depending on the setting.

wPush and hold [PTT], then speak into the microphone at a nor-

mal voice level.

• Transmit/Busy indicator lights red.

eRelease [PTT] to return to receive.

• Transmit/Busy indicator lights green while receiving a signal.

rTo finish the conversation, push [P3] (Moni(Audi)) to send the

‘Clear down’ signal.

• Either station can send a clear down signal.

• “CLR DOWN” is displayed for 2 sec. (approx.).

• “ ” disappears and the transceiver returns to the standby condi-

tion.

Own ID

Calling station ID

Appears Appears or blinks

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page 3 (1,1)

2OPERATION

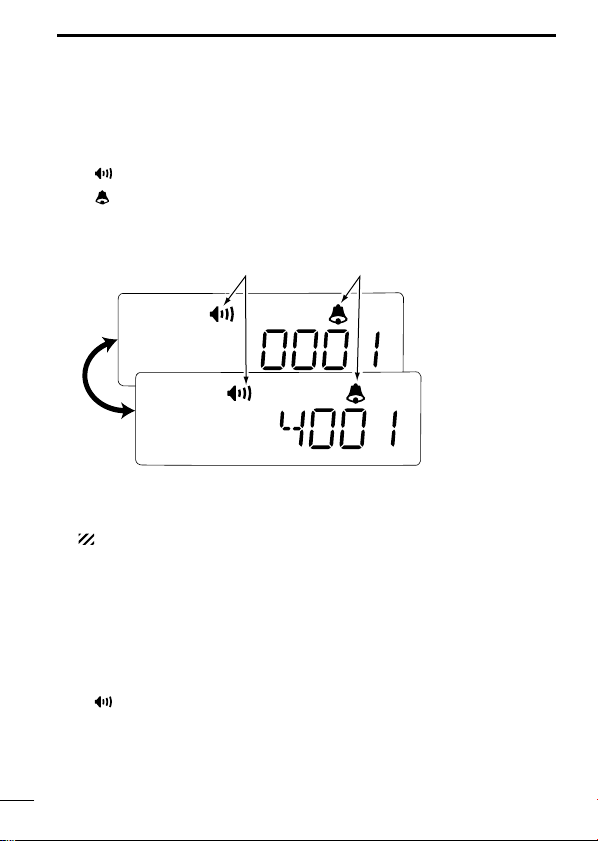

DDGroup call

qWhen a group call is received;

•Beeps sound.

•The transceiver vibrates depending on the setting.

•“ ”appears and the mute is released.

•“ ”appears or blinks depending on the setting.

•The group ID (or text) and the calling station ID (or text) is displayed

alternately, depending on the setting.

wPush and hold [PTT], then speak into the microphone at a nor-

mal voice level.

NOTE: Only one station is permitted to speak.

•Transmit/Busy indicator lights red.

eRelease [PTT] to return to receive.

•Transmit/Busy indicator lights green while receiving a signal.

rTo finish the conversation, push [P3] (Moni(Audi)) to send the

‘Clear down’signal.

•Either station can send a clear down signal.

•“CLR DOWN”is displayed for 2 sec. (approx.)

•“ ”disappears and the transceiver returns to the standby condi-

tion.

Group ID

Calling station ID

Appears Appears or blinks

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page 4 (1,1)

OPERATION

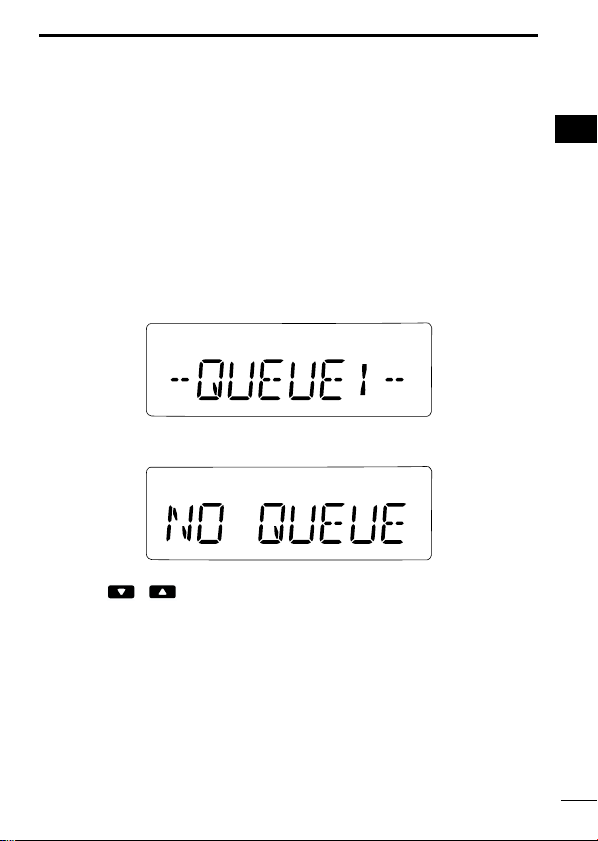

DDDisplaying the received call record

— Queue indication

The transceiver memorizes the calling station ID in the memory. Up

to 3 calls can be memorized, and the oldest call record is erased

when a 4th call is received. However, once the transceiver is pow-

ered OFF, the all records are cleared.

qPush and hold [P1] (Digital) for 1 sec.

•Displays queue memory.

When a record is available

When no record is available

wPush [ ]/[ ] to select the desired call.

ePush and hold [P1] (Digital) for 1 sec. again to return to the

standby condition.

•When no operation is performed for 30 sec., the transceiver returns

to the standby condition automatically.

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:18 PM Page 5 (1,1)

2OPERATION

■Transmitting a call

A total of 3 ways for code selection are available—selecting the

call code from memory, entering the call code from the keypad and

calling back from the queue channel record.

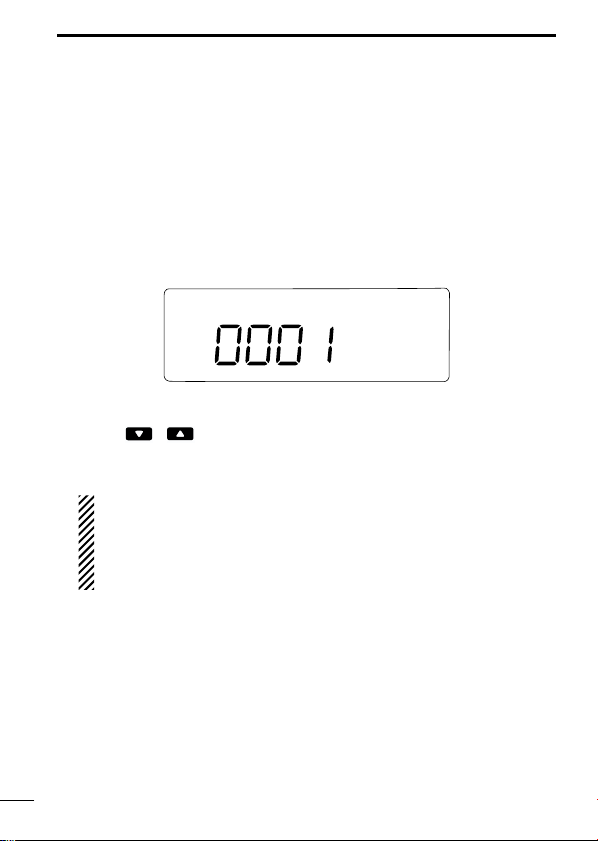

DDUsing call memory

qWhile in the standby condition, push [P1] (Digital) to enter the

call code memory channel selection mode.

wPush [ ]/[ ] to select the desired call code.

ePush [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the transceiver re-

peats the call 3 times (default) automatically, and “WAIT”is

displayed during each call. However, an error beep sounds

and “FAILED”is displayed when no answer back is received

after the calls.

rPush [PTT] to transmit; release to receive.

tPush [P3] (Moni(Audi)) to send the ‘Clear down’signal.

Call code memory is displayed.

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:19 PM Page 6 (1,1)

OPERATION

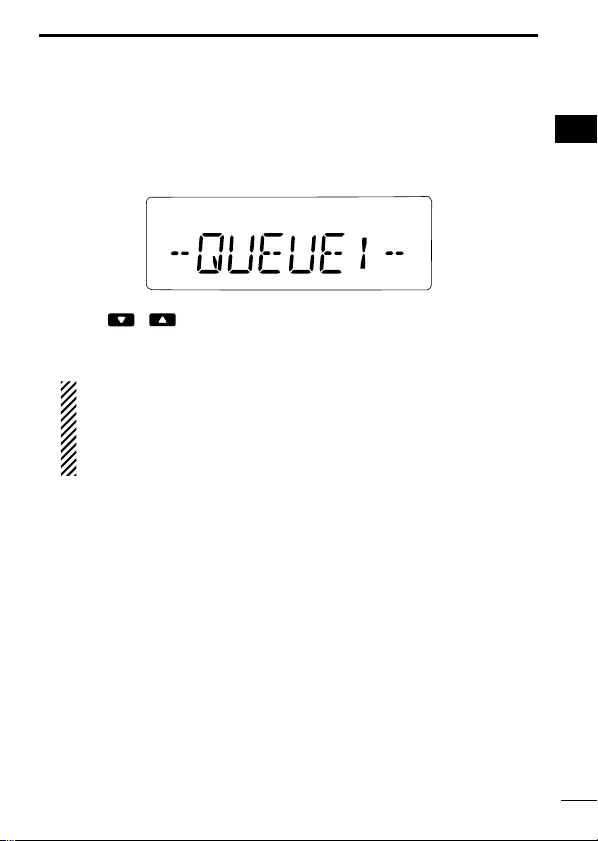

DDCalling back from the queue channel

qWhile in the standby condition, push and hold [P1] (Digital) for

1 sec. to enter queue memory channel selection mode.

wPush [ ]/[ ] to select the desired record.

ePush [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the transceiver re-

peats the call 3 times (default) automatically, and “WAIT”is

displayed during each call. However, an error beep sounds

and “FAILED”is displayed when no answer back is received

after the calls.

rPush [PTT] to transmit; release to receive.

tPush [P3] (Moni(Audi)) to send the ‘Clear down’signal.

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:19 PM Page 7 (1,1)

2OPERATION

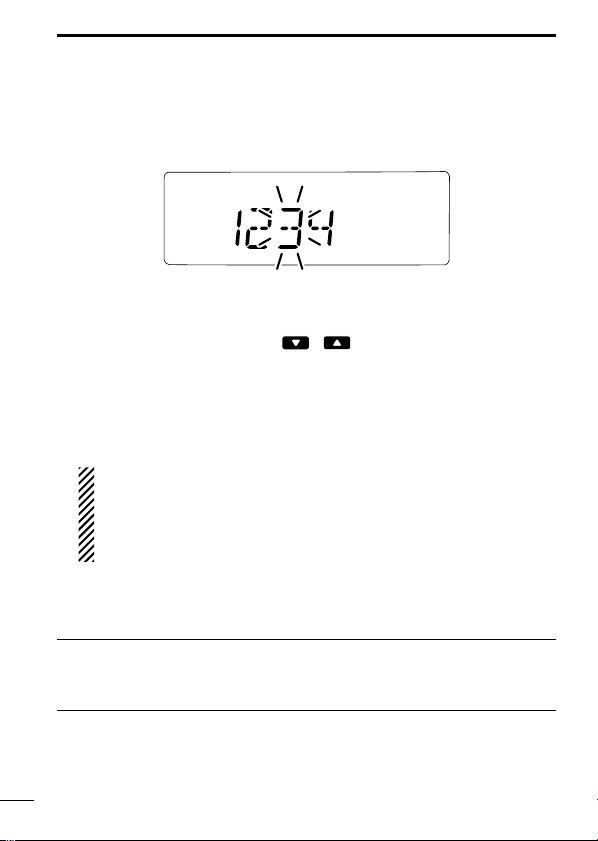

DDDirect code entry

qWhile in the standby condition, push [TX Code Enter] to enter

the TX code edit mode.

•Code digit for editing blinks.

wPush [TX Code Enter] to select the desired digit to be edited.

•Digit for editing differs according to the setting.

eSet the desired digit using [ ]/[ ].

rPush [TX Code Enter] to set the digit, then the digit to the right

will blink automatically.

tRepeat eand rto input all allowable digits.

yPush [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the transceiver re-

peats the call 3 times (default) automatically, and “WAIT”is

displayed during each call. However, an error beep sounds

and “FAILED”is displayed when no answer back is received

after the calls.

uPush [PTT] to transmit; release to receive.

iPush [P3] (Moni(Audi)) to send the “Clear down”signal.

For your information

When the ‘UpDate’setting for the call code is enabled, the set code

is overwritten into the call code memory.

! OG_BIIS_IC-F50V_0.qxd 07.8.8 6:19 PM Page 8 (1,1)
