I-7011, I-7018 User ManualRev:B1.0

Warranty

All products manufactured by ICP DAS are warranted

against defective materials for a period of one year from the date

of delivery to the original purchaser.

Warning

ICP DAS assume no liability for damages consequent to

the use of this product. ICPDAS reserves the right to change this

manual at any time without notice. The information furnished by

ICPDAS is believed to be accurate and reliable. However, no re-

sponsibilityis assumedby ICPDASforits use,nor forany infringe-

ments of patents or other rights of third parties resulting from its

use.

Trademark

The names used for identification only maybe registered

trademarks of their respective companies.

I-7011/11D, I-7011P/11PD,

I-7018, I-7018P

User Manual

Date:1999-10

I-7011, I-7018 User Manual Rev:B1.0

Table of Contents

1.Introduction .....................................................5

1.1 More Information.......................................5

1.2 Pin Assignment ..........................................6

1.3 Specifications ............................................8

1.4 Block Diagram.........................................11

1.5 Wire Connection......................................12

1.6 Quick Start ..............................................14

1.7 Default Setting.........................................14

1.8 Jumper Setting.........................................14

1.9 Calibration...............................................15

1.10 Configuration Tables .............................16

2.Command.......................................................20

2.1 %AANNTTCCFF ...................................22

2.2 #** ...........................................................23

2.3 #AA .........................................................24

2.4 #AAN ......................................................25

2.5 $AA0 .......................................................26

2.6 $AA1 .......................................................27

2.7 $AA2 .......................................................28

2.8 $AA3 .......................................................29

2.9 $AA4 .......................................................30

2.10 $AA5VV ...............................................31

I-7011, I-7018 User ManualRev:B1.0

2.11 $AA6 .....................................................32

2.12 $AA8 .....................................................33

2.13 $AA8V ..................................................34

2.14 $AA9(Data)...........................................35

2.15 $AAB ....................................................36

2.16 $AAF.....................................................37

2.17 $AAM....................................................38

2.18 $AAZ(Data) ..........................................39

2.19 ~AAO(Data)..........................................40

2.20 ~AAEV..................................................41

2.21 @AADI..................................................42

2.22 @AADO(Data)......................................44

2.23 @AAEAT ..............................................45

2.24 @AAHI(Data) .......................................46

2.25 @AALO(Data)......................................47

2.26 @AADA................................................48

2.27 @AACA................................................49

2.28 @AARH................................................50

2.29 @AARL ................................................51

2.30 @AARE ................................................52

2.31 @AACE ................................................53

2.32 ~**.........................................................54

2.33 ~AA0.....................................................55

2.34 ~AA1.....................................................56

I-7011, I-7018 User Manual Rev:B1.0

2.35 ~AA2.....................................................57

2.36 ~AA3EVV.............................................58

2.37 ~AA4.....................................................59

2.38 ~AA5PPSS............................................60

3.ApplicationNote ............................................61

3.1 INIT* pin Operation ................................61

3.2 Module Status..........................................61

3.3 Dual Watchdog Operation .......................62

3.4 Digital Input and Event Counter..............62

3.5 Digital Output..........................................62

3.6 High/Low Alarm......................................63

3.7 Thermocouple Measurement ...................63

I-7011, I-7018 User ManualRev:B1.0

1. Introduction

I-7000 is a family of network data acquisition and control

modules. They provide analog-to-digital, digital-to-analog, digital

input/output, timer/counter and other functions. These modules can

be remote controlled by a set of commands. The common features

of I-7011/11D/11P/11PD/18/18P are given as following :

z3000VDC Isolated analog input

z24-bits sigma-delta ADC to provide excellent accuracy

zThermocouple direct connect with build-in CJC

zSoftware calibration

The I-7011 is a single channel analog input module. The I-

7011Dis the I-7011 witha4½ digitLEDdisplay. The I-7018 is a 8-

channel analog input module. The I-7011P/11PD/18P is the en-

hanced version of I-7011/11D/18. The I-7011P/11PD/18P support

more thermocouple types and enhanced the measure range of some

types.

1.1 More Information

Refer to “I-7000 Bus ConverterUserManual” chapter 1

for more information as following:

1.1 I-7000 Overview

1.2 I-7000 RelatedDocumentation

1.3 I-7000 Command Features

1.4 I-7000 SystemNetwork Configuration

1.5 I-7000Dimension

I-7011, I-7018 User Manual Rev:B1.0

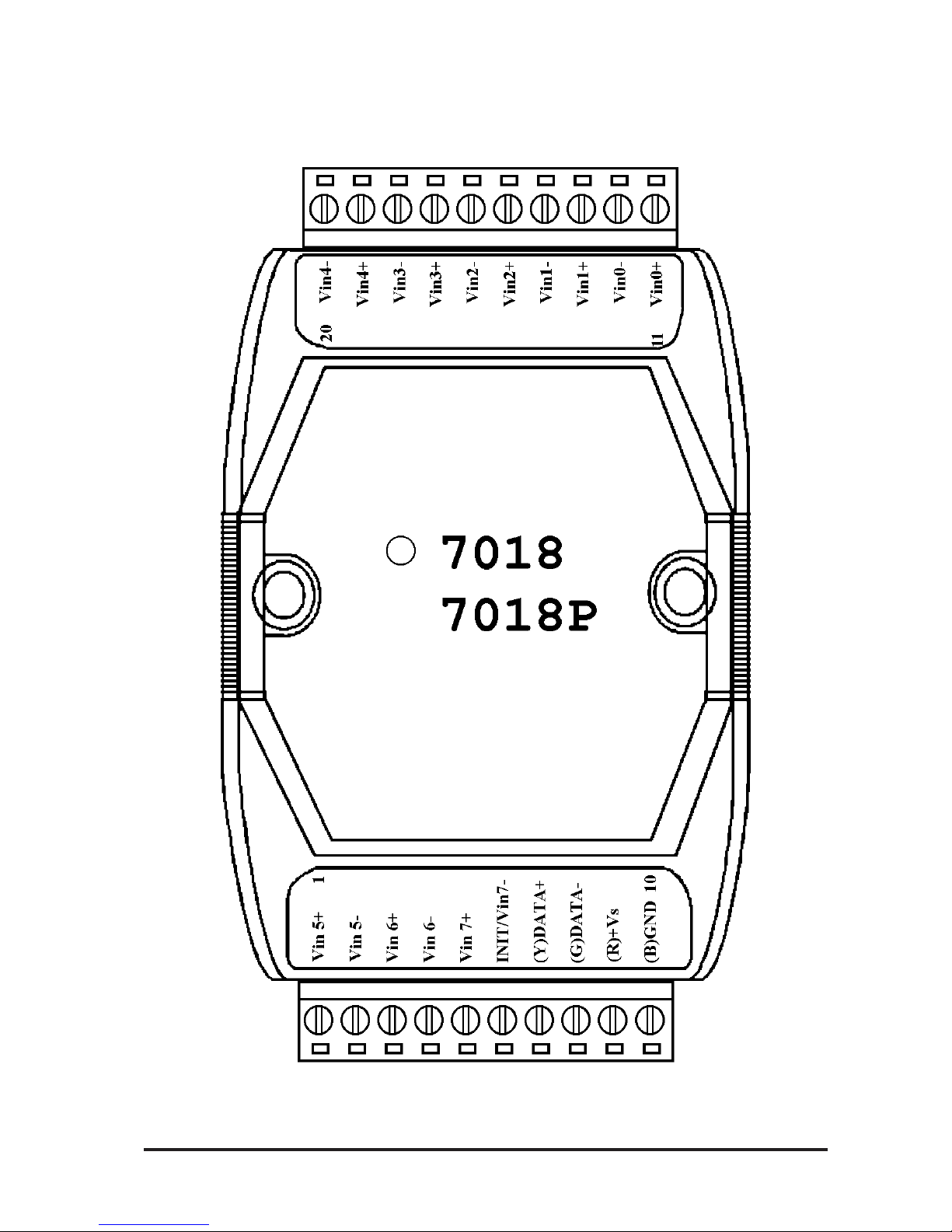

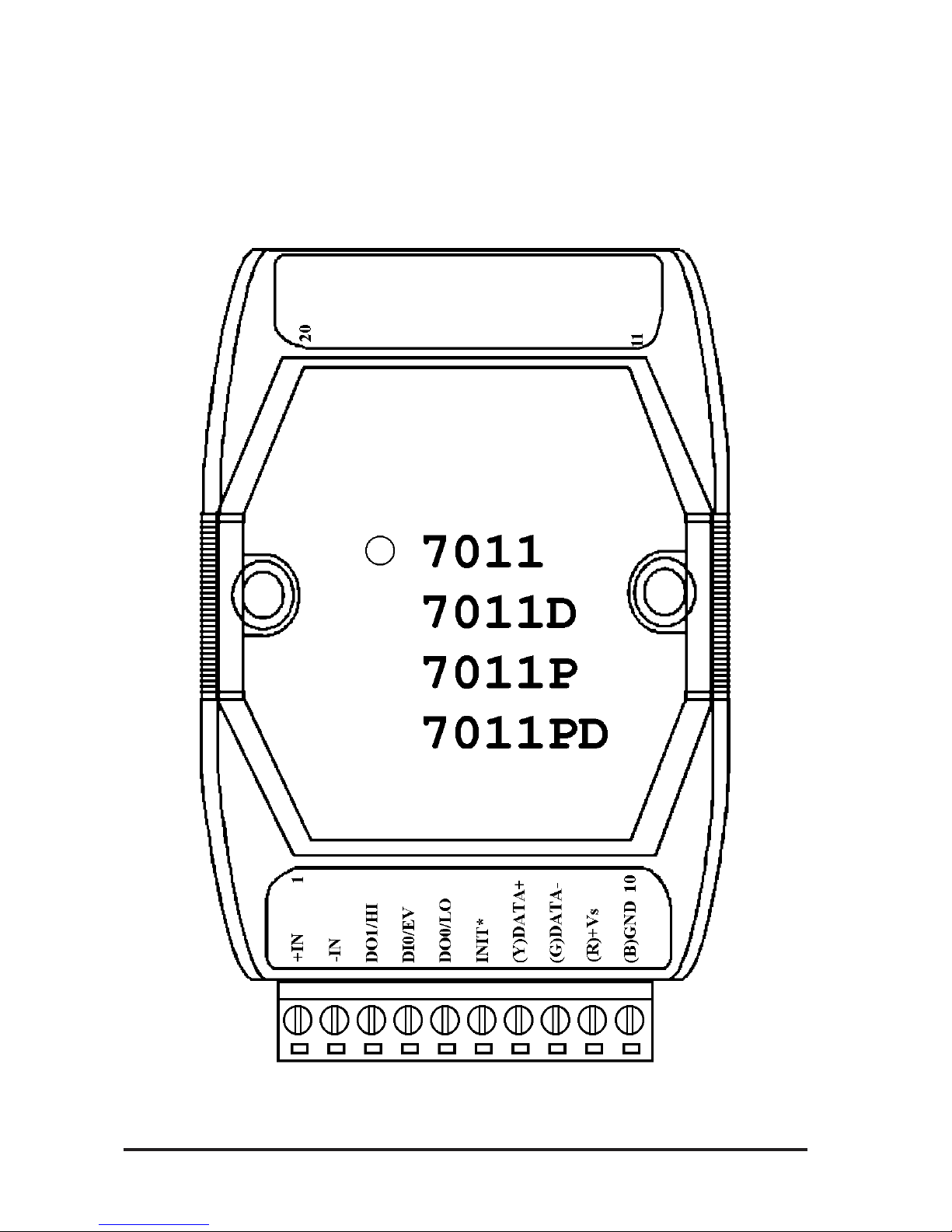

1.2 PinAssignment

I-7011, I-7018 User ManualRev:B1.0

I-7011, I-7018 User Manual Rev:B1.0

1.3 Specifications

I-7011/I-7011D

Analog Input

Input Channel : 1

Input Type :

mV, V, mA(with external

125 ohms resistor)

Thermocouple : Type J, K,

T, E, R, S, B, N, C

Sampling Rate :

10 Samples/Second

Bandwidth : 5.24 Hz

Accuracy : ±0.05%

ZeroDrift : 0.5µV/°C

SpanDrift : 25ppm/°C

CMR@50/60Hz : 150dB

NMR@50/60Hz : 100dB

Input Impedance : 20M Ohms

Isolation : 3000VDC

Digital Output

2 channel

Open Collector to 30V

Output Load : sink 30mA max

PowerDissipation : 300mW

Digital Input

1 channel

Logic Level 0 : +1V max

Logic Level 1 : +3.5 to 30V

Event Counter

Max Input Frequency : 50 Hz

Min. Pulse Width : 1 mS

Displayed LED

4½ digits (for I-7011D)

Power Supply

Input : +10 to +30 VDC

Consumption :

0.9W for I-7011

1.5W for I-7011D

I-7011, I-7018 User ManualRev:B1.0

I-7011P/I-7011PD

Analog Input

Input Channel : 1

Input Type :

mV, V, mA(with external

125 ohms resistor)

Thermocouple : Type J, K,

T, E, R, S, B, N, C, L, M

Sampling Rate :

10 Samples/Second

Bandwidth : 5.24 Hz

Accuracy : ±0.05%

ZeroDrift : 0.5µV/°C

SpanDrift : 25ppm/°C

CMR@50/60Hz : 150dB

NMR@50/60Hz : 100dB

Input Impedance : 20M Ohms

Isolation : 3000VDC

Digital Output

2 channel

Open Collector to 30V

Output Load : sink 30mA max

PowerDissipation : 300mW

Digital Input

1 channel

Logic Level 0 : +1V max

Logic Level 1 : +3.5 to 30V

Event Counter

Max Input Frequency : 50 Hz

Min. Pulse Width : 1 mS

Displayed LED

4½ digits (for I-7011PD)

Power Supply

Input : +10 to +30 VDC

Consumption :

0.9W for I-7011P

1.5W for I-7011PD

I-7011, I-7018 User Manual Rev:B1.0

I-7018

Analog Input

Input Channel :

8 differential or 6 differen-

tial and 2 single-ended.

Jumper select.

Input Type :

mV, V, mA(with external

125 ohms resistor)

Thermocouple : Type J, K,

T, E, R, S, B, N, C

Sampling Rate :

10 Samples/Second

Bandwidth : 15.7 Hz

Accuracy : ±0.1%

ZeroDrift : 0.5µV/°C

SpanDrift : 25ppm/°C

CMR@50/60Hz : 150dB

NMR@50/60Hz : 100dB

Input Impedance : 20M Ohms

Overvoltage Protection : ±35V

Isolation : 3000VDC

Power Supply

Input : +10 to +30 VDC

Consumption : 1.0W

I-7018P

Analog Input

Input Channel :

8 differential or 6 differen-

tial and 2 single-ended.

Jumper select.

Analog Input Type :

mV, V, mA(with external

125 ohms resistor)

Thermocouple : Type J, K,

T, E, R, S, B, N, C, L, M

Sampling Rate :

10 Samples/Second

Bandwidth : 15.7 Hz

Accuracy : ±0.1%

ZeroDrift : 0.5µV/°C

SpanDrift : 25ppm/°C

CMR@50/60Hz : 150dB

NMR@50/60Hz : 100dB

Input Impedance : 20M Ohms

Overvoltage Protection : ±35V

Isolation : 3000VDC

Power Supply

Input : +10 to +30 VDC

Consumption : 1.0W
