ICP DAS USA TPD-433-M2 Manuale utente
TPD-433-M2
Quick Start
v1.1, Jan. 2019
What’s in the box?
Related Information
Thanks for buying ICPDAS TPD-433-M2 device. This shipping
package contains the following items:
TPD-433-M2 x 1
Quick Start x 1 (This Document)
Back Piece x 1
Round Head Screws x 2
If you are new to TPD-433-M2, please read the “Chapter 3. Getting
Started”
of the TouchPAD Hardware User Manual
for detailed
information about install the free development tool –HMIWorks and
how to create your first project.
Documents, such as the User Manuals, the API References,
etc.: http://ftp.icpdas.com/pub/cd/touchpad/document/
Free Development Software, HMIWorks v2.10.10 or above:
http://ftp.icpdas.com/pub/cd/touchpad/setup/
If you have any questions, please feel free to contact us via email.

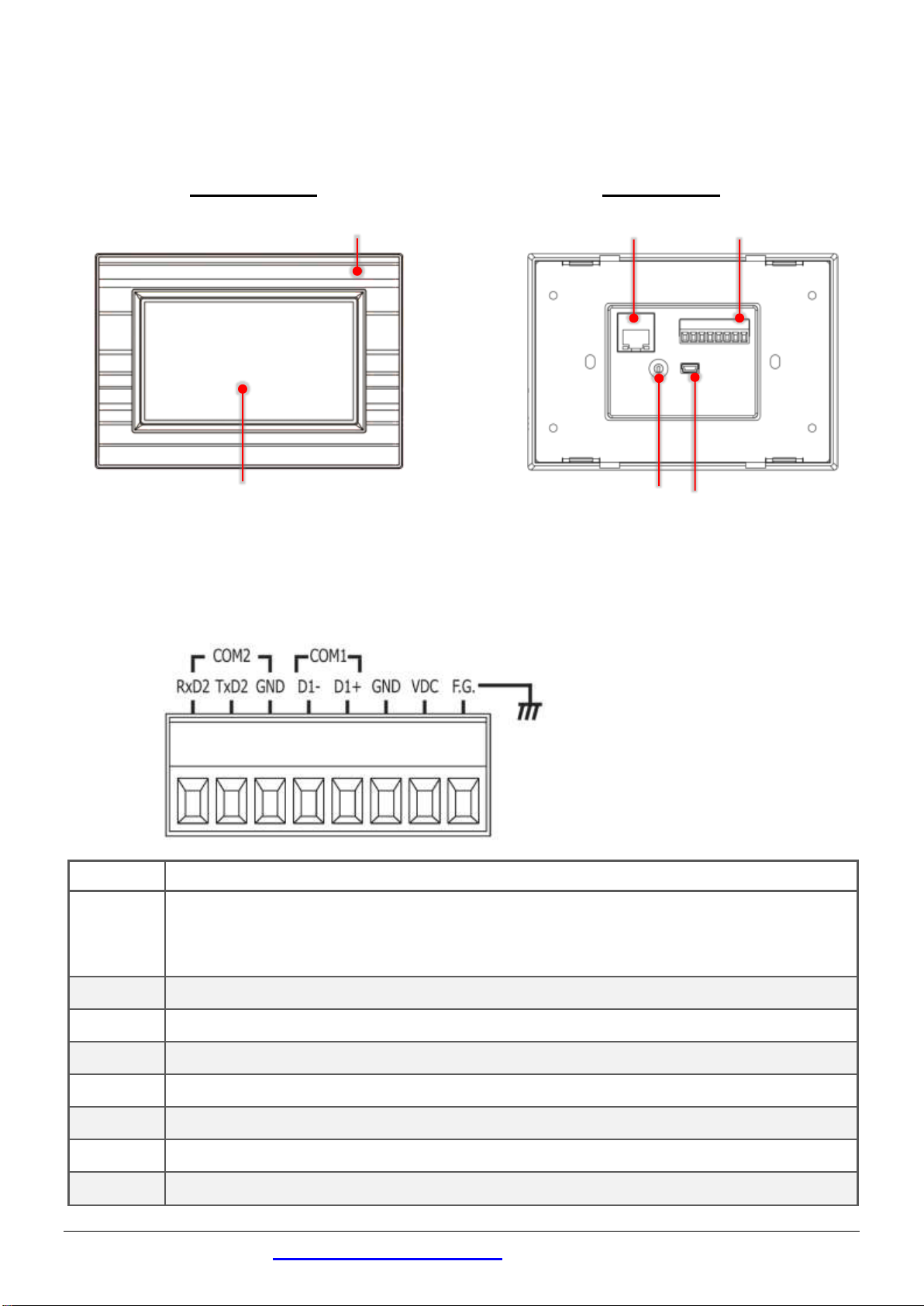

1 Appearance
Front View Rear View
2 Pin Assignments
Pin
Description
F.G.
Frame Ground. F.G. is connected to the inside EMI or ESD
suppression circuits. Make sure that F.G. is connected to the
Earth
VDC
DC input Voltage (range: +12 V ~ +48 V)
GND
Connected to the power supply’s ground pin
D1+
The positive data line of the RS-485 network
D1-
The negative data line of the RS-485 network
GND
Ground pin
TxD2
The pin of transmitted data of the RS-232
RxD2
The pin of received data of the RS-232
LED Indicator
4.3”TFT LCD with Touch Panel
Ethernet
USB
Serial Port
Rotary Switch

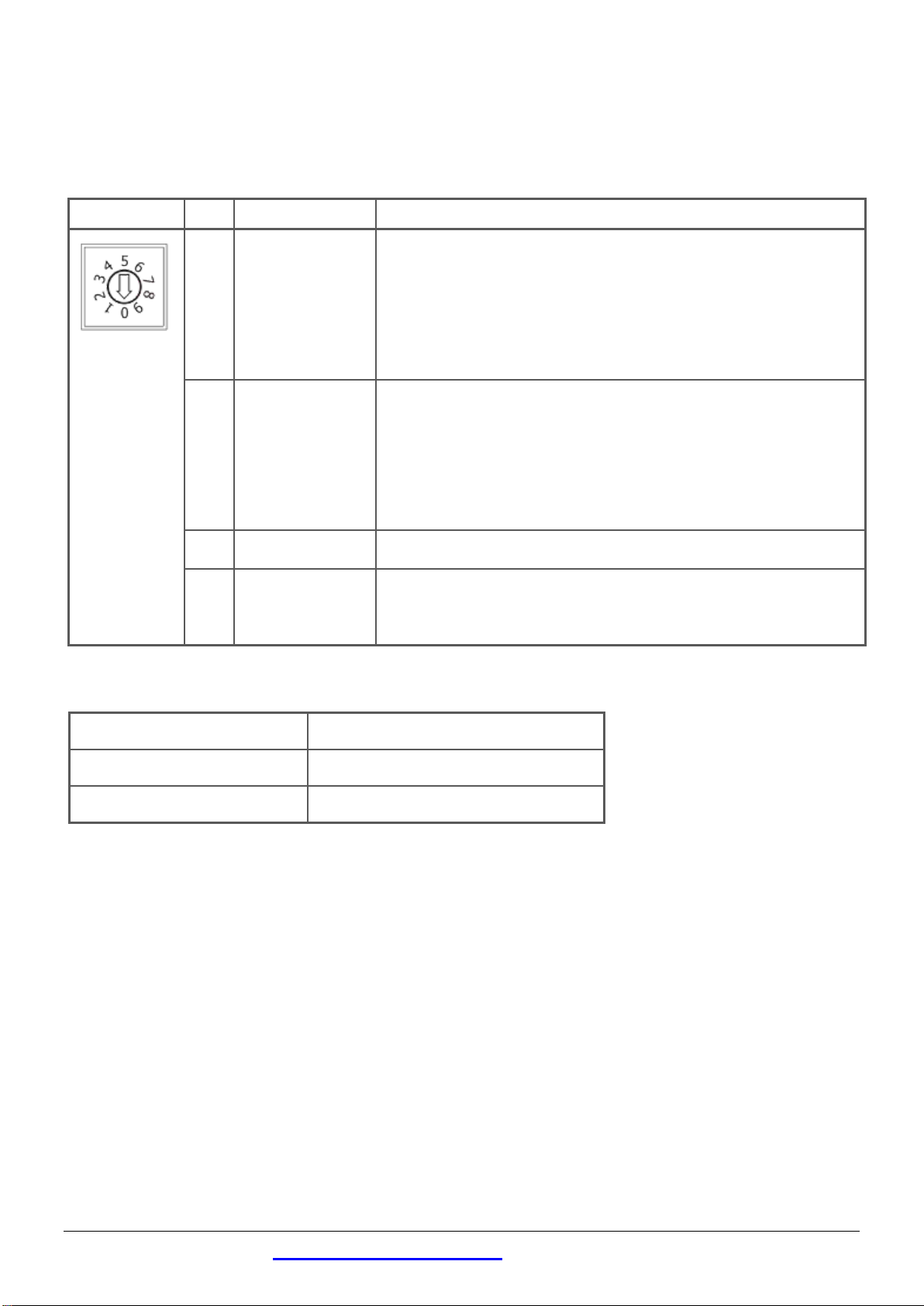

3 Rotary Switch & Default Settings
The definition of the rotary switch:
No
Mode
Description
0
Run &
Update
(Ethernet)
This is a special run mode which is used in
the development stage. The TouchPAD
device can be updated by a PC from the
remote side through Ethernet. (Default)
1
Ethernet
Force
Update
While the application run on the TouchPAD
device seriously crashes, use this mode to
update a new application to the TouchPAD
device through Ethernet.
2
Run Only
Run the program.
9
USB Force
Update
Update a new application to the TouchPAD
device through USB.
Network Default Settings
IP Address
192.168.255.1
Subnet Mask
255.255.0.0
Gateway
192.168.0.1
4 First Use of the TPD-433-M2
1. Connect wires as the below figure or prepare an Ethernet cable which
will be used to supply power through PoE if there’s a RJ-45 Ethernet port
on it. And set the rotary switch to 0 (At this point, the power is not yet
supplied).
2. Supply power to the TPD-433-M2, wait
for several seconds and then you can see
the default program run on it.
3. Try to touch on the icons on the bottom-right corner of the screen of
the TPD-433-M2 and you can find that TPD-433-M2 switches to the
setting pages.

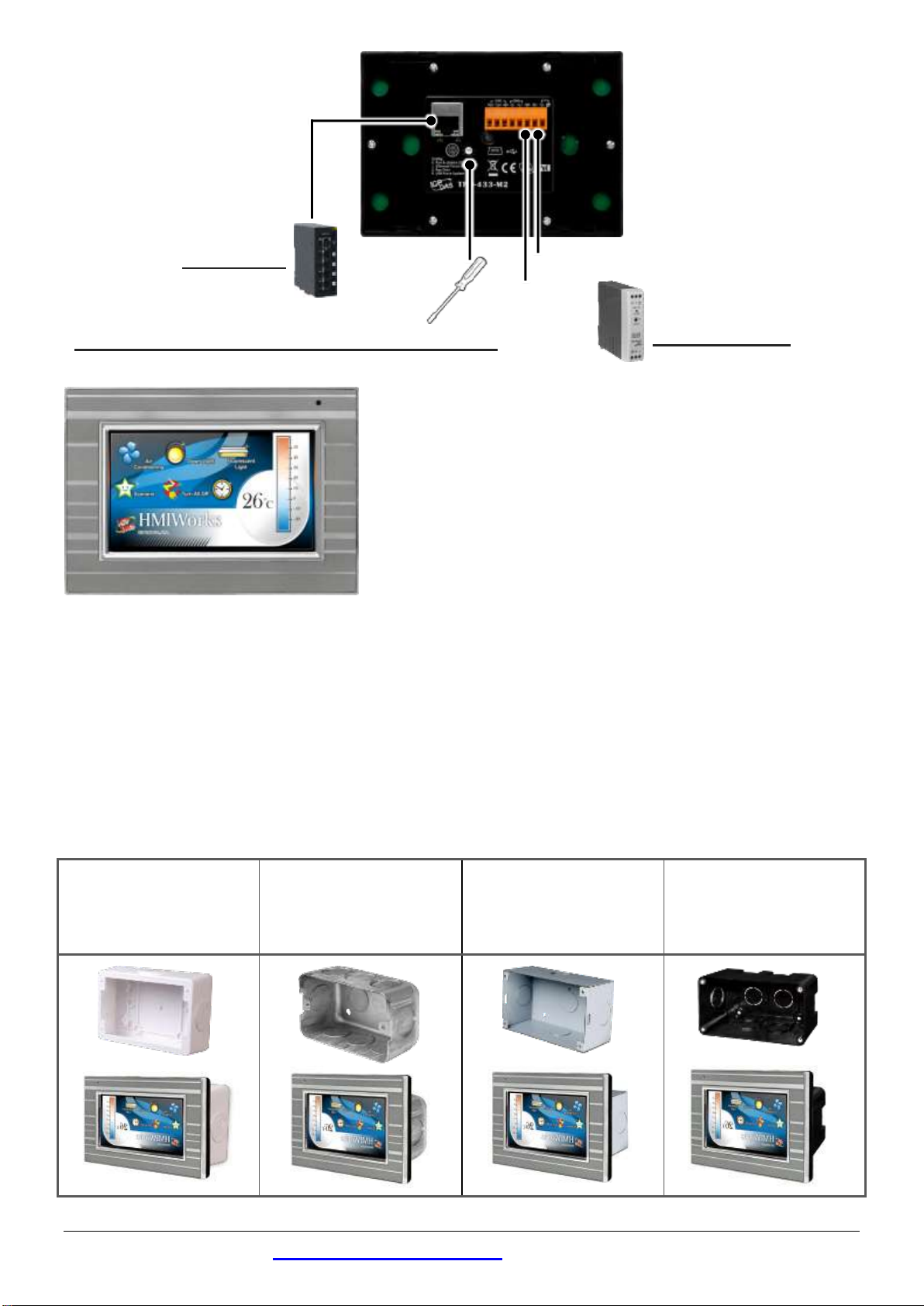

5 Hardware Installation
External Wall Box,
EWB-T43F
(optional)
Outlet Box, OB120
(optional)
Outlet Box, OB140F
(optional)
Outlet Box,
OB140FP (optional)
PoE Switch
Use a flat-head screwdriver to set rotary switch
External Power
GND
VDC (+12-+48 V)
TPD-433-M2 快速入門指南
v1.1, 2019年1月
檢查配件
參考資訊
感謝您購買泓格的
TPD-433-M2
產品。產品包裝內應包含下列配件
:
TPD-433-M2 x 1
產品須知 x 1 (本文件)
面板蓋 x 1
圓頭螺絲 x 2
如果您是第一次使用
TPD-433-M2，請參閱 TouchPAD 硬體使用手
冊的
“第3 章啟動 TouchPAD” 來了解如何安裝免費的開發軟體
HMIWorks
並建立第一個專案以及更多詳細的相關資訊。
相關文件，如使用手冊、應用程式介面指南(API Reference) 等:
http://ftp.icpdas.com/pub/cd/touchpad/document/
免費開發軟體，HMIWorks 版本 2.10.10 或以上版本:
http://ftp.icpdas.com/pub/cd/touchpad/setup/
如有任何問題歡迎使用
E-mail
聯繫我們，我們將會為您提供完善的咨
詢服務。

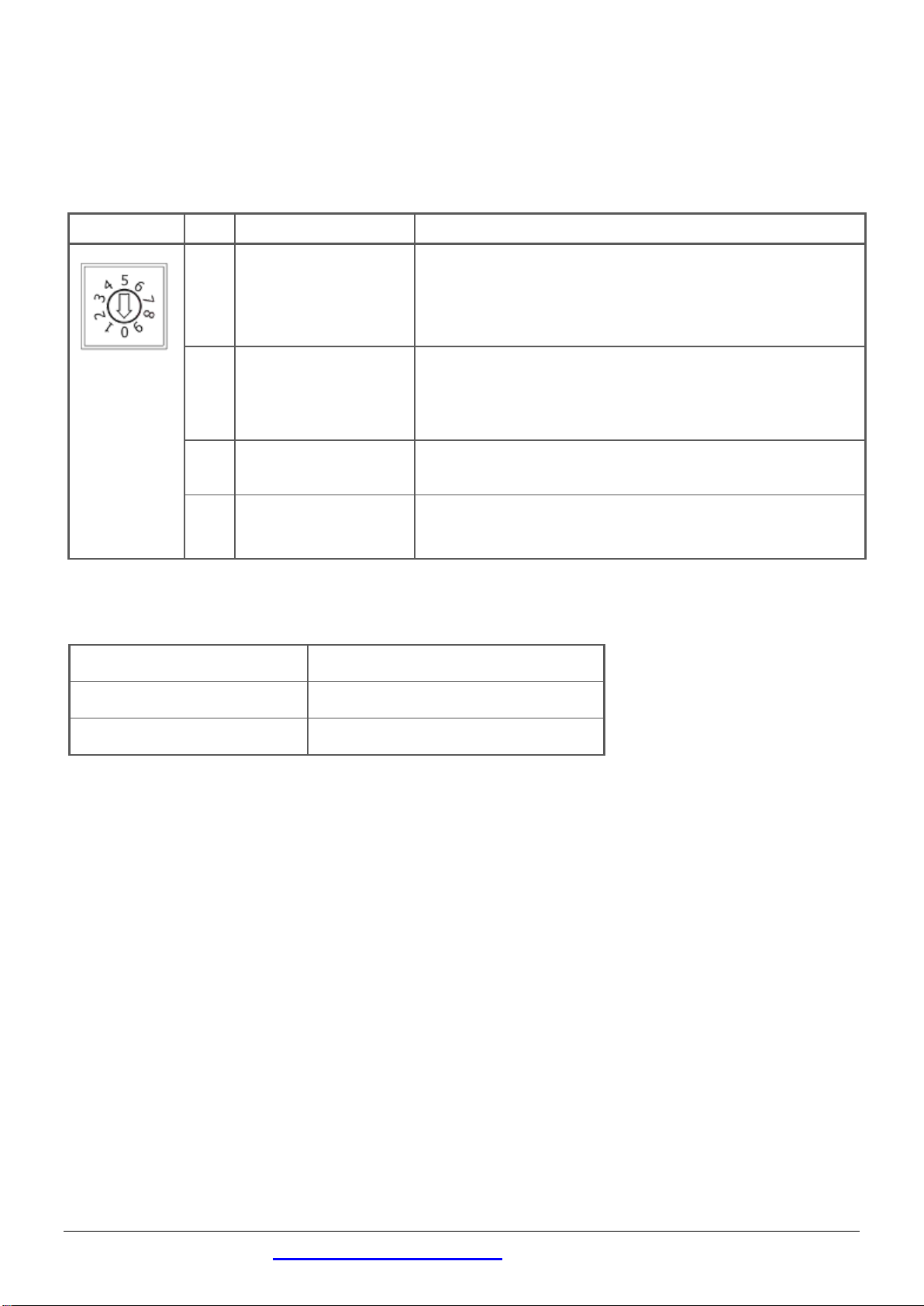

3 旋轉開關及出廠預設值
旋轉開關的配置模式定義:
No
模式
說明
0
Run & Update
(Ethernet)
執行/更新程式，用於程式開發階段 (能
執行程式，也能進行更新)。(出廠預設)
1
Ethernet
Force Update
強制更新，當 TouchPAD 上的程式嚴重
毀損時可用此模式透過 Ethernet 更新。
2
Run Only
執行程式。
9
USB Force
Update
透過 USB 更新程式。
網路設定出廠預設如下表:
IP Address
192.168.255.1
Subnet Mask
255.255.0.0
Gateway
192.168.0.1
4 第一次使用 TPD-433-M2
1. 如下圖所示，將電源和接地線連接完成。或是有 RJ-45 的乙太網路接
孔，可以準備一條網路線，透過乙太網路供電 (PoE)。然後將旋轉開關
(Rotary Switch) 轉到 0 (此時尚未供電)。
