tM-7510U - RS-485 Repeater - QuickStart (Feb/2016)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
tM-7510U
RS-485 Repeater
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/tm_7510u.html
1. Introduction

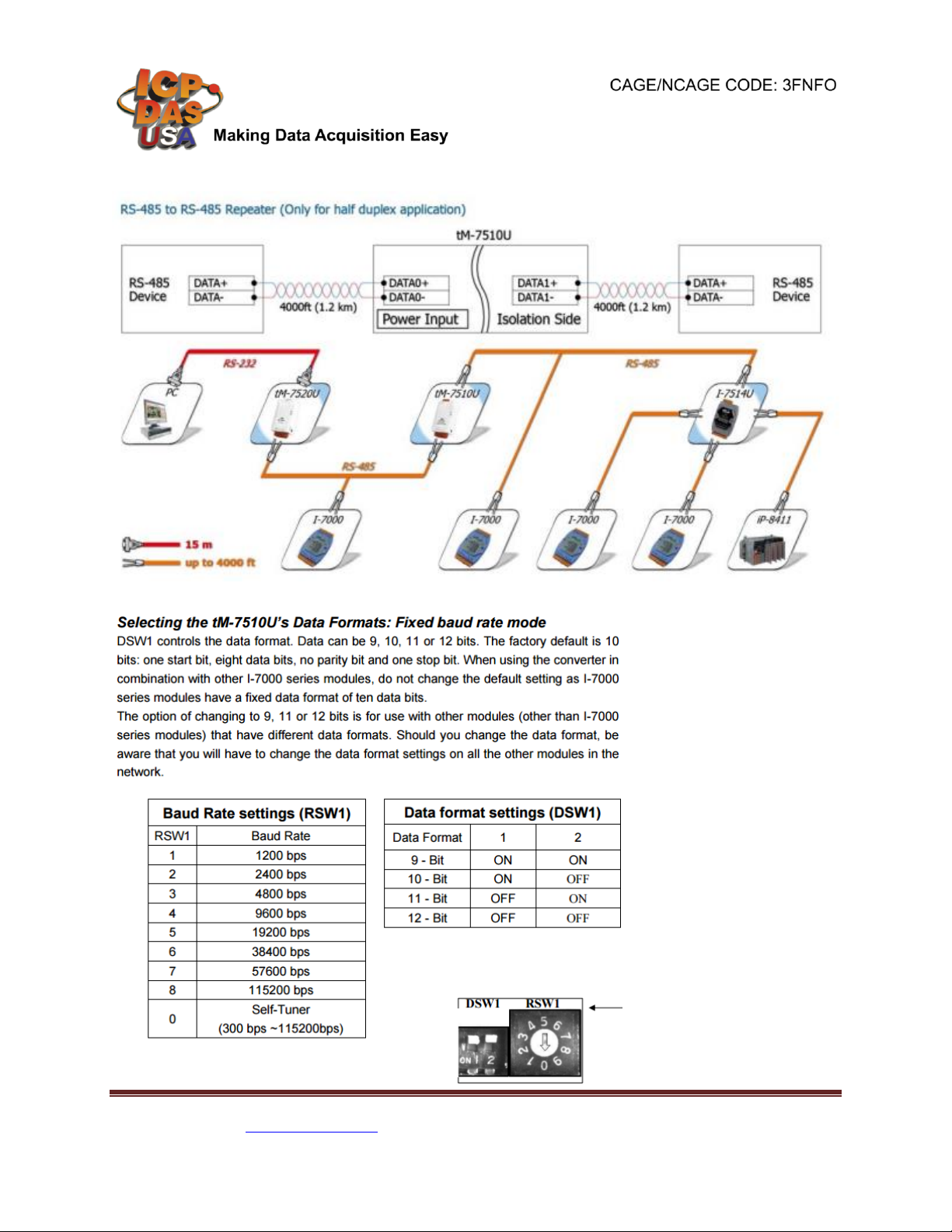

The tM-7510U repeater amplifies and boosts existing RS-485 signals to enable
them to cover longer distances. It extends the communication distance by 4000
feet (1200 meters) or increases the maximum number of bus nodes. The module
provides 2500 VDC of isolation allowing you to separate and protect critical
segments of the system from the rest of the RS- 485 network. Baud rate The tM-
7510U provides 2 modes of baud rate setting, one is Self-Tuner mode and the
other is Fixed baud rate mode. The Self-Tuner mode can support multiple baud
rate and multiple data format. The Self-Tuner design is exactly the same as I-7510
series. The Fixed baud rate mode offers a better quality for data transmission
over long or lossy lines or electrically noisy environments.

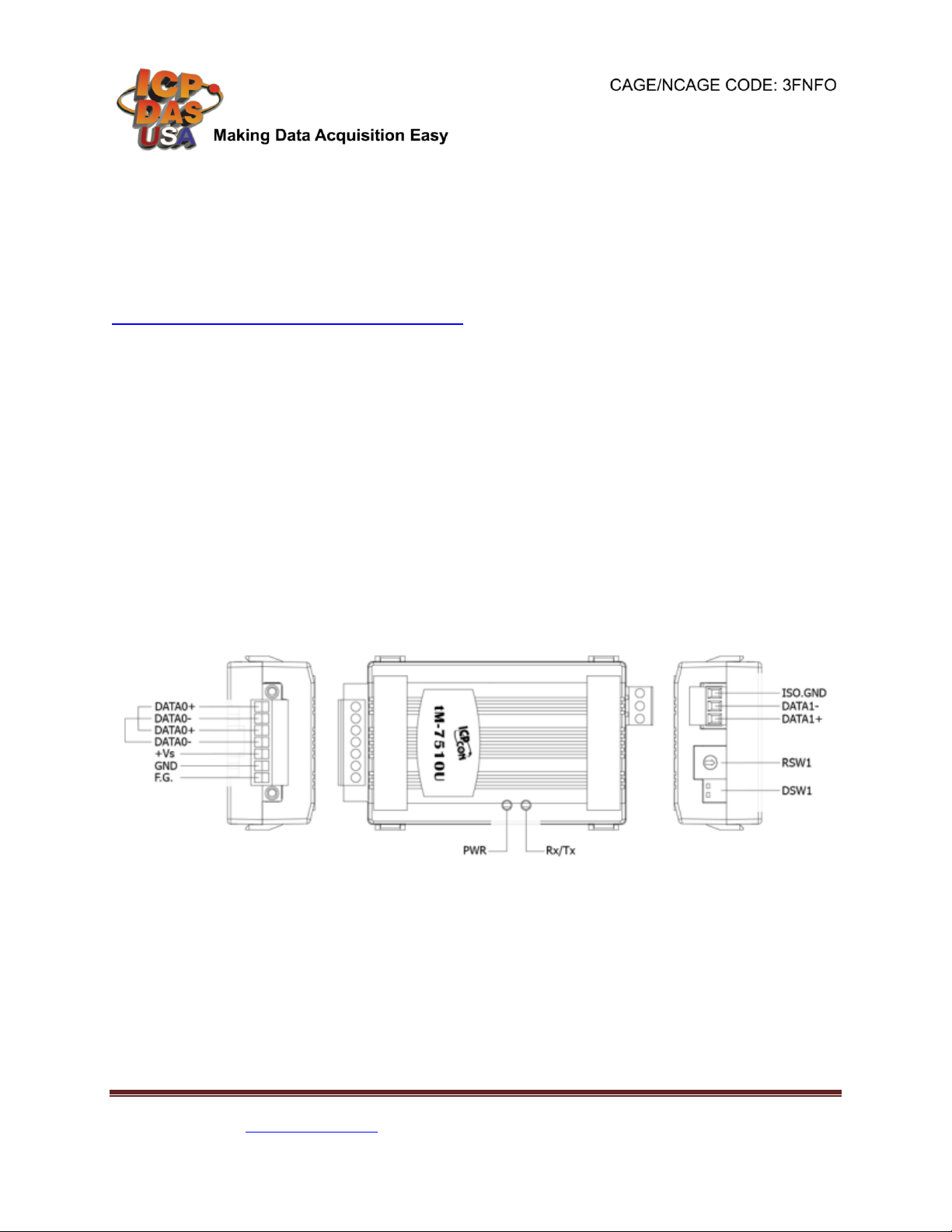

2. Pin Assignment
