ICRealtime ICR2200 Manuale utente

INSTRUCTION MANUAL Ver 1.1

Outdoor High Speed Dome Camera

Speed Dome Camera Instruction Manual 2/47

This lightning flash with arrowhead symbol is intended to alert the user to the

presence of un-insulated "dangerous voltage" within the product's enclosure that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This exclamation point symbol is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

Speed Dome Camera Instruction Manual 3/47

Important Safeguard

1. Read Instructions

Read all of the safety and operating instructions before using the product.

2. Retain Instructions

Save these instructions for future reference.

3. Attachments / Accessories

Do not use attachments or accessories unless recommended by the appliance manufacturer as they may

cause hazards, damage product and void warranty.

4. Installation

Do not place or mount this product in or on an unstable or improperly supported location. Improperly

installed product may fall, causing serious injury to a child or adult, and damage to the product. Use only

with a mounting device recommended by the manufacturer, or sold with the product. To insure proper

mounting, follow the manufacturer's instructions and use only mounting accessories recommended by

manufacturer.

5. Power source

This product should be operated only from the type of power source indicated on the marking label.

Precautions

Operating

zBefore using, make sure power supply and others are properly connected.

zWhile operating, if any abnormal condition or malfunction is observed, stop using the camera

immediately and then contact your local dealer.

Handling

zDo not disassemble or tamper with parts inside the camera.

zDo not drop or subject the camera to shock and vibration as this can damage camera.

zCare must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your

quality of camera.

Installation and Storage

zDo not install the camera in areas of extreme temperature, which exceed the allowable range.

zAvoid installing in humid or dusty places.

zAvoid installing in places where radiation is present.

zAvoid installing in places where there are strong magnetic fields and electric signals.

zAvoid installing in places where the camera would be subject to strong vibrations.

NOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICE

Speed Dome Camera Instruction Manual 4/47

○

1Introduction

Features 5

Product&Accessories 7

PartsName&Functions 8

○

2Installation

DIPSwitchSetup 9

InstallationusingWallMountBracket 11

Installation using Ceiling Mount Bracket 12

Cabling 14

○

3Operation

CheckingBeforeOperation 16

PresetandPatternFunctionPre-Check 16

Start OSD Menu

Reserved Preset

Preset

Swing

Pattern

Group

Other Motion Functions

OSD Display of Main Screen

○

4How to use OSD Menu

General Rules of Menu Operation

Main Menu

Display Menu for Main Screen

Privacy Zone Mask Setup

Camera Module Setup

Motion Setup

Preset Setup

Swing Setup

Pattern Setup

Group Setup

System Initialization

○

5Specifications

Dimension

CONTENTS

Speed Dome Camera Instruction Manual 5/47

Feature s

Camera Specifications

zCCD Sensor : 1/4" SONY Super HAD CCD →×22, ×30 Model

1/4" SONY EXView CCD →×26 Model

zZoom Magnification : ×22 Optical Zoom, ×10 Digital Zoom (Max ×220 Zoom) →×22 Model

×30 Optical Zoom, ×10 Digital Zoom (Max ×300 Zoom) →×30 Model

×26 Optical Zoom, ×12 Digital Zoom (Max ×312 Zoom) →×26 Model

zDay & Night Function

zVarious Focus Mode : Auto-Focus / Manual Focus / Semi-Auto Focus.

zIndependent & Simultaneous Camera Characteristic Setup in Preset operation

Powerful Pan/Tilt Functions

zMax. 360°/sec high speed Pan/Tilt Motion

zUsing Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result,

time to target view is reduced dramatically and the video on the monitor is very natural to watch.

zFor jog operation using a controller, since ultra slow speed 0.05°/sec can be reached, it is very easy

to locate camera to desired target view. Additionally it is easy to move camera to a desired position

with zoom-proportional pan/tilt movement.

Preset, Pattern, Swing, Group, Privacy Mask and More…

zMAX. 127 Presets are assignable and characteristics of each preset can be set up independently,

such as White Balance, Auto Exposure, Label, Digital Outputs and so on.

zMax. 8 set of Swing action can be stored. This enables to move camera repetitively between two

preset positions with designated speed.

zMax. 4 of Patterns can be recorded and played back. This enables to move camera to follow any

trajectory operated by joystick as closely as possible.

zMax. 8 set of Group action can be stored. This enables to move camera repetitively with

combination of Preset or Pattern or Swing. A Group is composed of max. 20 entities of

Preset/Pattern/Swings.

zPrivacy Masks are assignable, not to intrude on other’s privacy. (8 Privacy Zones)

→The availability for Privacy Mask function should be different by models.

PTZ(Pan/Tilt/Zoom) Control

zWith RS-485 communication, max. 255 of cameras can be controlled at the same time.

zPelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.

INTRODUCTION 1

Speed Dome Camera Instruction Manual 6/47

OSD(On Screen Display) Menu

zOSD menu is provided to display the status of camera and to configure the functions interactively.

zThe information such as Camera ID, Pan/Tilt Angle, Alarm I/O and Preset can be displayed on

screen.

Alarm I/O Functions

z4 alarm sensor Inputs and 2 alarm Output relays are available.

zTo reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo

coupler and the relay is used for alarm output.

zThe signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.

Meanwhile, the maximum load of relay contact is AC 250V, 3A or DC 28V, 3A.

zIf an external sensor is activated, camera can be set to move to the corresponding Preset position.

Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions

such as turning on the light or sound the alarm.

Reserved Presets for Special Purpose

zMost camera characteristics can be set up easily and directly with reserved preset, not entering

into OSD menu. For more information, refer to “Reserved Preset” in this manual.

Easy Installation and Perfect Outdoor Environment Compatibility

zFans and heaters are built-in in camera for cold and hot temperature environment. Also idealistic

mechanical design protects camera from water and dust. (IP 66)

zIt is easy to install and maintain camera with terminal for cable connection in brackets.

INTRODUCTION 1

Speed Dome Camera Instruction Manual 7/47

Product & Accessories

Product & Accessories

zMain Body * zMain Body (Sun-Shield) * zDome Cover

zWall mount bracket ** zCeiling Mount Bracket ** zScrews

Options

zPole Mount Adapter zCornor Mount Adapter

INTRODUCTION 1

Speed Dome Camera Instruction Manual 8/47

Parts Name & Functions

Main Body

Cable

DIP Switch

Lockup Screw

Drop Prevention

Spring

Cabling

Terminal Bloc

Fuse

Main Body

Connector

Mold Line

zMain Body zMount Bracket

zDome Cover Do not detach protection vinyl from dome cover before finishing all

installation process to protect dome cover from scratches or dust.

zDIP Switch Sets up camera ID and protocol.

zMain Body Cable

Main Body Connector

Enables signals and power to come and go between main body and

mount bracket.

zDrop Prevention Spring This part keeps the camera from dropping during installation and

maintenance. After install the Bracket, please, hang the spring to the

drop prevention hook of main body as shown in picture for further

tasks.

zLockup Screw After assembling main body to bracket, screw main body to bracket to

protect them from separation by vibration and so on.

zFuse If the fuse is burnt to protect your came from over-current damage, the

fuse have to be replace with new one. The fuse specification is 250V 3A.

However, we recommend consulting with supplier to remove the cause

of over-current.

zCabling Terminal Block During installation, Power, Video, Communication, Alarm I/O cables are

connected on to this cabling terminal block.

zMold Line Mark to assemble main body to bracket.

INTRODUCTION 1

Speed Dome Camera Instruction Manual 9/47

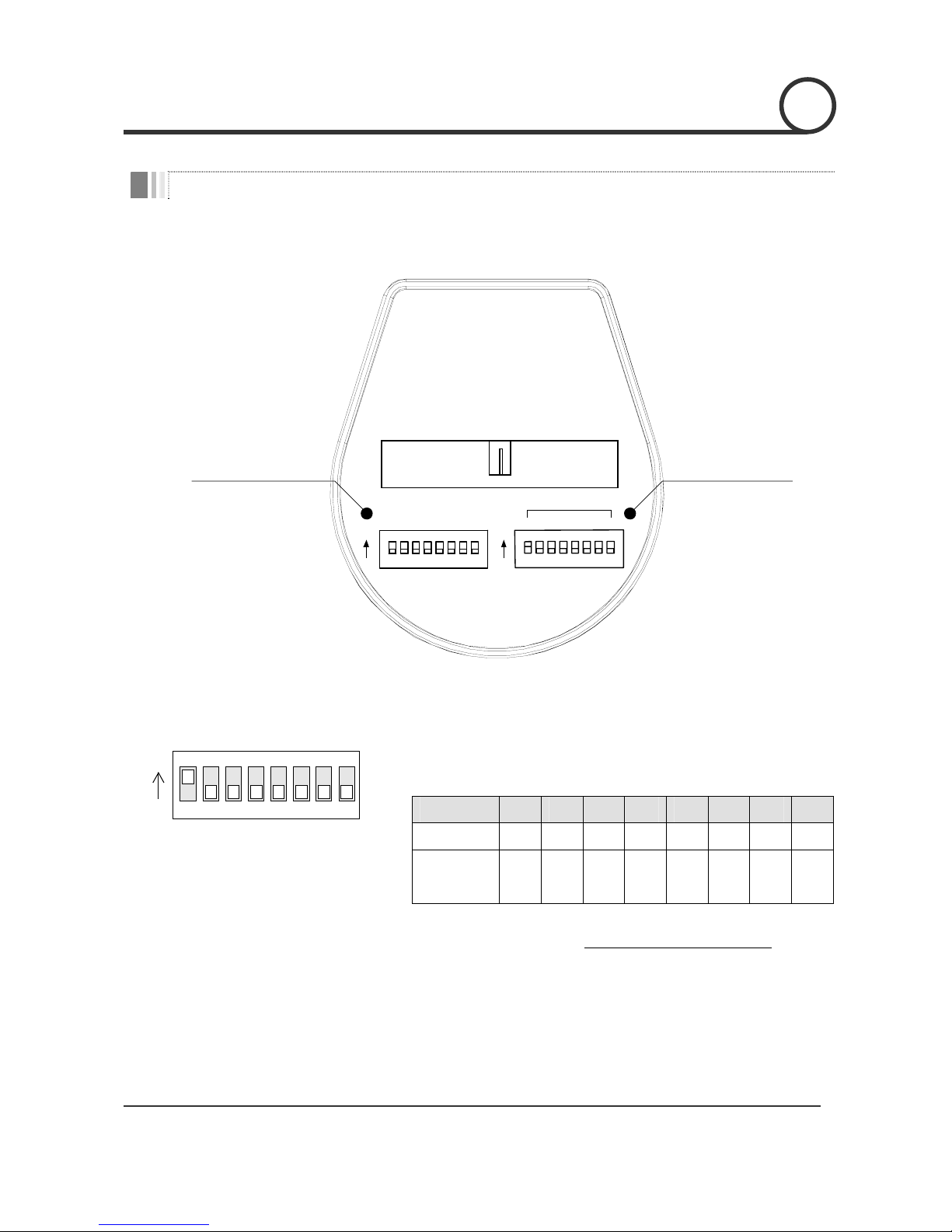

DIP Switch Setup

Before you install the camera, you should set the DIP switches to configure the camera ID, communication

protocol.

ON ON

PROT0

ID0

1818

PROT1

PROT2

ST0

ST1

ST2

ST3

ID7

CAM ID

Communication

Protocol Camera ID

Camera ID Setup

123456

zID number of camera is set using binary number. The example is

shown bellow.

Pin 1 2 3 4 5 6 7 8

ID Value 1 2 4 8 16 32 64 128

ex) ID=5 on off on off off off off off

ex) ID=10 off on off on off off off off

zThe range of ID is 1~255. Do not use 0 as camera ID. Factory

default of Camera ID is 1.

zIf you want to control a certain camera, you must match the camera

ID with Cam ID setting of DVR or Controller.

INSTALLATION 2

Speed Dome Camera Instruction Manual 10/47

Communication Protocol Setup

123456

Sensor Type Setup

123456

zSelect the appropriate Protocol with DIP switch combination.

Switch State

(Pin 1)

(Pin 2)

(Pin 3)

Protocol/Baud rate

OFF OFF OFF PELCO-D, 2400 bps

ON OFF OFF PELCO-D, 9600 bps

OFF ON OFF PELCO-P, 4800 bps

ON ON OFF PELCO-P, 9600 bps

Otherwise Reserved

zIf you want to control using DVR or P/T controller, their protocol must

be identical to camera. Otherwise, you can not control the camera.

zIf you changed camera protocol by changing DIP S/W, the change

will be effective after you reboot the camera.

zFactory default of protocol is “Pelco-D, 2400 bps”.

zIf you want to use Alarm Input, the types of sensor must be selected.

The sensor types are Normal Open and Normal.

~Normal Open Output Voltage is high state when sensor is

activated.

~Normal Close Output Voltage is high state when sensor is not

activated.

Pin No Switch State Sensor Type

ON Sensor 1 : Normal Close Type

ST0 (Pin 4)

OFF Sensor 1 : Normal Open Type

ON Sensor 2 : Normal Close Type

ST1 (Pin 5)

OFF Sensor 2 : Normal Open Type

ON Sensor 3 : Normal Close Type

ST2 (Pin 6)

OFF Sensor 3 : Normal Open Type

ON Sensor 4 : Normal Close Type

ST3 (Pin 7)

OFF Sensor 4 : Normal Open Type

zIf sensor type is not selected properly, the alarm can be activated

reversely.

INSTALLATION 2

Indice

Altri manuali ICRealtime Telecamera di sicurezza

ICRealtime

ICRealtime ICIP D3000AVIR-M Manuale utente

ICRealtime

ICRealtime IC720 Manuale utente

ICRealtime

ICRealtime AVSZ4112T Manuale utente

ICRealtime

ICRealtime ClearView WiFi-2MP-BL100 Manuale utente

ICRealtime

ICRealtime AVSD2218Z Manuale utente

ICRealtime

ICRealtime ICIPD3000 Manuale utente

ICRealtime

ICRealtime AVS-B2712SL Manuale utente

ICRealtime

ICRealtime IPEL-M60F-IRW1 Manuale utente

ICRealtime

ICRealtime ICIP-3000CCD-W Manuale utente

ICRealtime

ICRealtime EL8000IR Manuale utente

ICRealtime

ICRealtime AVS Series Manuale utente

ICRealtime

ICRealtime ICIP-D3077P Manuale utente

ICRealtime

ICRealtime Full HD(HD-SDI) CCTV Box Camera Manuale utente

ICRealtime

ICRealtime ELIP-3000N Manuale utente

ICRealtime

ICRealtime AVS-4MD5110-VIR Manuale utente

ICRealtime

ICRealtime IPFX-S20F-W1 Manuale utente

ICRealtime

ICRealtime F Series Manuale utente

ICRealtime

ICRealtime IPEL-MB80F-IRW1 Manuale utente

ICRealtime

ICRealtime ICIPD1300 Manuale utente

ICRealtime

ICRealtime PTZ-N23X4-S Manuale utente

ICRealtime

ICRealtime AVS-4MB4012-IR Manuale utente

ICRealtime

ICRealtime Elite IPEL-E80F-IRB2 Manuale utente

ICRealtime

ICRealtime AVS-A4112S Manuale utente

ICRealtime

ICRealtime ICIP-P2300Y-IR Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
