Icy Box MS03-EU1.0 Manuale utente
If you have any questions, please contact our customer service.
MS03-EU1.0
75x75
100x100 13~32" 9 kg
19.8 lbs

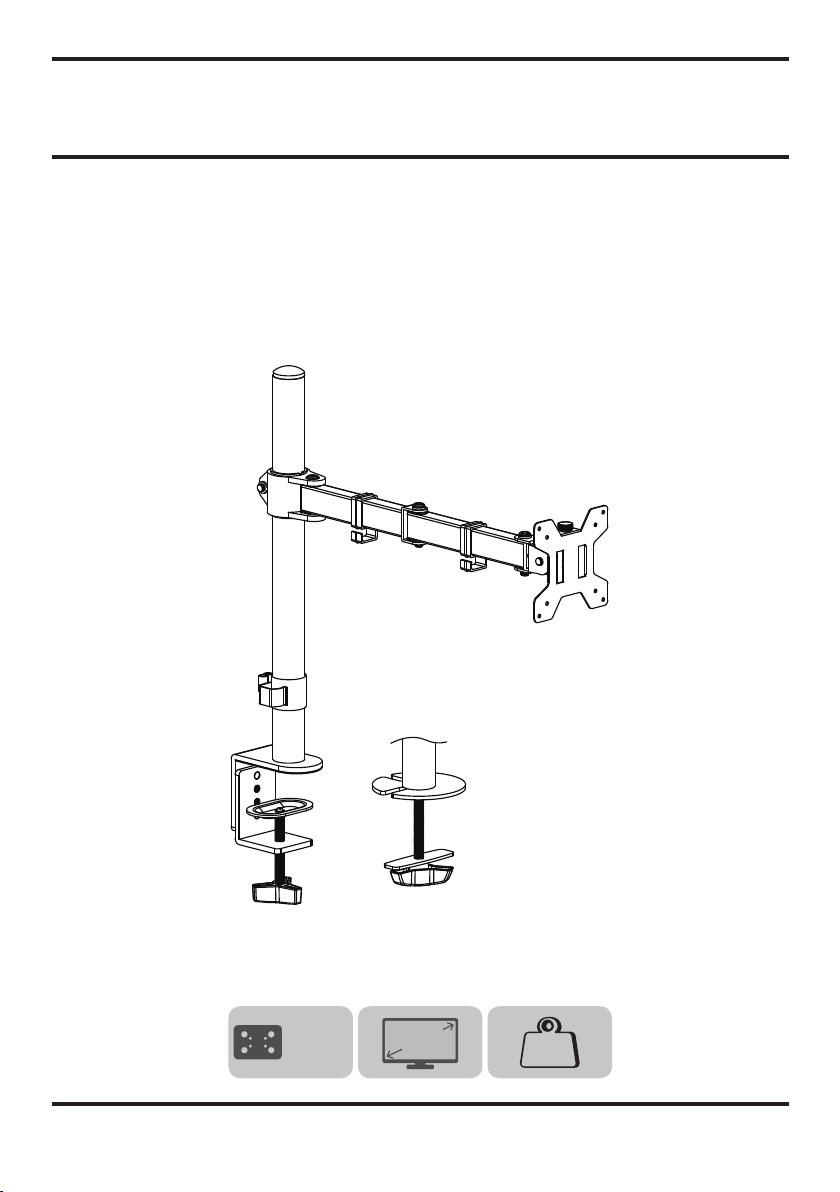

Single Monitor Desk Mount
Instruction Manual
Für die Installationsanweisungen auf Deutsch, siehe Seite 11~12
Pour l'instruction en Français, veuillez vous reporter à la page 13~14
Per le Istruzioni in Italiano, vedi pagina 15~16
Para las instrucciones de la instalación en Español, favor vea la página 17~18
If this mount is NOT compatible, please contact our customer service to nd a compatible mount.
Before getting started,
let's make sure this mount is perfect for you!
MAX:100mm
MAX:
100mm
1. Is your monitor VESA 75×75mm/3x3" or 100×100mm/4x4"?
9 KG
(19.8 LBS)
2. Does your monitor (including accessories) weigh less than 9 KG (19.8 LBS)?
10~80mm
Desk
3. Is your desk thickness 10~80mm?
Yes — Perfect!
No — This mount is NOT compatible.
Yes — Perfect!
No — This mount is NOT compatible.
Yes — Perfect!
No — This mount is NOT compatible.
01
Supplied Parts List
NOTE: Not all hardware included will be used.
Improper installation may cause damage or serious injury. Do not use this product for any purpose
that is not explicitly specied in this manual. We cannot be liable for damage or injury caused by
improper mounting, incorrect assembly or inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN
UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
WARNING!
02
STEP 1: Install the Pole to the Desktop
Option A: Desk Clamp Installation
1. Install the "C"-Clamp Brace (e) to the Pole (a) using 3pcs M5×16 Bolts (C), and tighten
using the Allen Key (G 3mm).
2. Three positionings of the clamp (d) can accommodate dierent thicknesses of desktop,
using 2 pcs M8×12 Bolts (B), tightened by Allen key (G 5mm).
G 6mm
Plastic Knob
3. Tighten the "C"-Clamp to the desktop using the plastic knob or Allen Key (G 6mm).
a
e
C
G 3mm
03
B
G 5mm
d
Option B: Grommet Base Installation
1. If the existing grommet hole comes with a plastic protector, remove it to ensure a at
surface before installing the desk mount.
2. Loosen the screws, separate Bolt (d1) from the "C"-Clamp (d).
STEP 1: (Continued)
G 6mm
Plastic Knob
3. Install the Grommet Base Plate (f) to the Pole (a) using 3pcs M5×16 Bolts (C), and
tighten using the Allen Key (G 3mm).
4. Using the Bolt (d1) through the support plate (g) and grommet hole in desktop.
5. Tighten the Support Plate (g) to the desktop using the plastic knob or Allen Key
(G 6mm).
DESK
DESK
ø10mm~60mm
d
d1
d1
g
a
a
f
C
G 3mm
04
STEP 2: Install Arm to the Pole
1. Install Wire Clip (I) and Swivel Arm (b) to the Pole (a).
2. Fasten the bolt with supplied Allen Key (G 6mm).
3. Attach the Wire Clip (J) to the Swivel Arm (b).
DESK DESK
Pay attention while clamp install !
05
b
a
J
I
G 6mm
b
OPTION A: Flat Back Monitor
Attach the VESA plate (c) to the monitor with M4×12 bolts (E).
NOTE: Hand tighten screws to avoid over tightening.
STEP 3: Attach the VESA Plate to the Monitor
OPTION B: Curved or Recessed Back Monitor
Attach the VESA plate (c) to the monitor with M4×30 bolts (D) and M4 spacers (F).
NOTE: Hand tighten screws to avoid over tightening.
No!
c
E
c
F
D
No!
06
STEP 4: Slide the Monitor onto the Head of Swivel Arm
Slide the monitor onto the head of Swivel Arm (b) as shown in diagram.
Install the security Bolt (A). Make sure the security Bolt is installed before you rotate the
monitor.
07
b
A
STEP 5: (Continued)
STEP 5: Make the Necessary Adjustments
Tighten the bolt with the supplied Allen Key (G 5mm) to x the tilt angle.
Use the supplied Allen Key (G 5mm) to make the necessary adjustments.
Ignore this step if the arm joint has screwed to the proper tightness.
Fix the tilt angle
Fix the swivel angle
Note: If the above is useless, please feel free to contact
our customer service.
08
G 5mm
±90°
±90°
±90° G 5mm
-90°
+70°
STEP 6: Manage the Wires
Manage the wires and store the Allen keys (G 6mm, G 5mm, G 3mm) in Wire Clip (l) for
future use.
09
G 6mm
G 5mm
G 3mm
