IDTECH MINIMAG Manuale utente

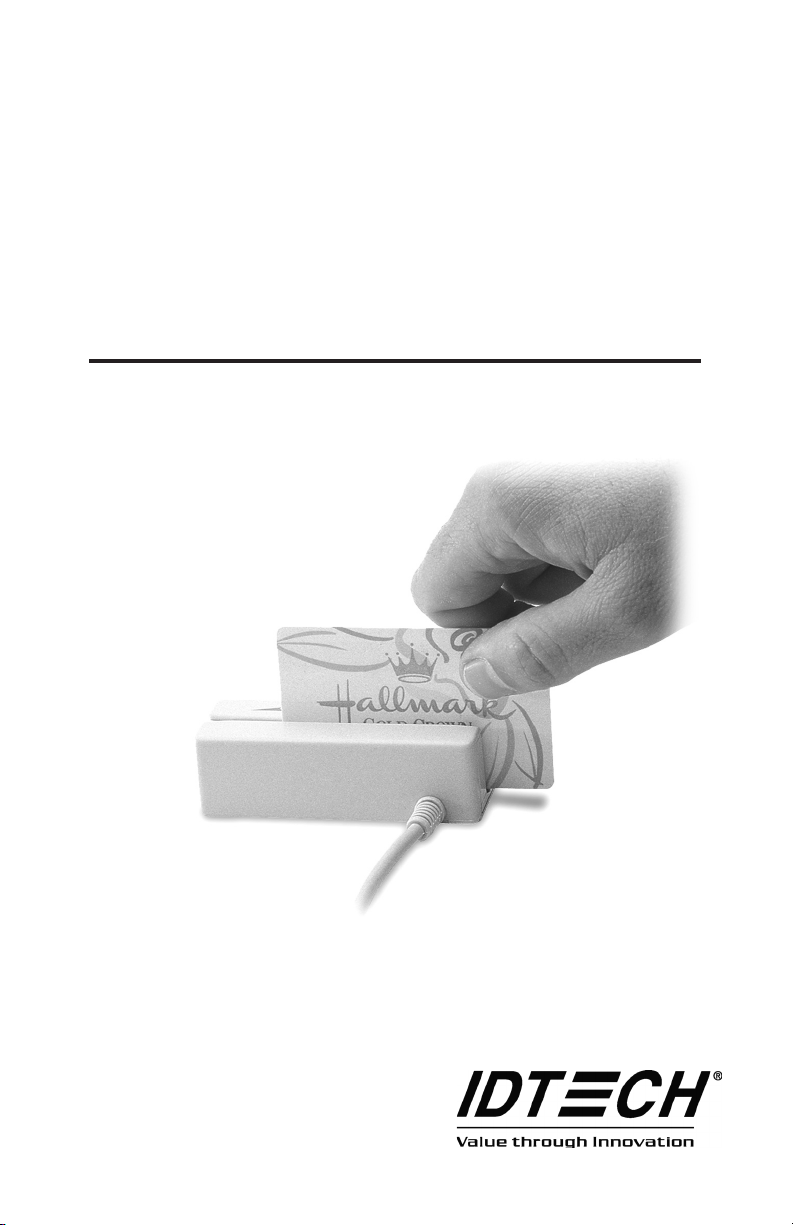

MINIMAG
Magnetic Stripe Reader
Keyboard Wedge
User’s Manual
TM
Agency Approved
Specifications for subpart B of part 15 of FCC rule for a Class A com-
puting device.
Limited Warranty
ID TECH warrants to the original purchaser for a period of 12 months
from the date of invoice that this product is in good working order
and free from defects in material and workmanship under normal use
and service. ID TECH’s obligation under this warranty is limited
to, at its option, replacing, repairing, or giving credit for any product
which has, within the warranty period, been returned to the factory
of origin, transportation charges and insurance prepaid, and which
is, after examination, disclosed to ID TECH’s satisfaction to be thus
defective. The expense of removal and reinstallation of any item
or items of equipment is not included in this warranty. No person,
firm, or corporation is authorized to assume for ID TECH any other
liabilities in connection with the sales of any product. In no event
shall ID TECH be liable for any special, incidental or consequential
damages to Purchaser or any third party caused by any defective
item of equipment, whether that defect is warranted against or not.
Purchaser’s sole and exclusive remedy for defective equipment,
which does not conform to the requirements of sales, is to have such
equipment replaced or repaired by ID TECH. For limited warranty
service during the warranty period, please contact ID TECH to obtain
a Return Material Authorization (RMA) number & instructions for
returning the product.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR PARTICULAR
PURPOSE. THERE ARE NO OTHER WARRANTIES OR
GUARANTEES, EXPRESS OR IMPLIED, OTHER THAN THOSE
HEREIN STATED. THIS PRODUCT IS SOLD AS IS. IN NO
EVENT SHALL ID TECH BE LIABLE FOR CLAIMS BASED
UPON BREACH OF EXPRESS OR IMPLIED WARRANTY OF
NEGLIGENCE OF ANY OTHER DAMAGES WHETHER DIRECT,
IMMEDIATE, FORESEEABLE, CONSEQUENTIAL OR SPECIAL
OR FOR ANY EXPENSE INCURRED BY REASON OF THE USE
OR MISUSE, SALE OR FABRICATIONS OF PRODUCTS WHICH
DO NOT CONFORM TO THE TERMS AND CONDITIONS OF
THE CONTRACT.
©2005 International Technologies & Systems Corporation. The
information contained herein is provided to the user as a convenience.
While every effort has been made to ensure accuracy, ID TECH is
not responsible for damages that might occur because of errors or
omissions, including any loss of profit or other commercial damage.
The specifications described herein were current at the time of
publication, but are subject to change at any time without prior notice.
ID TECH is a registered trademark of International Technologies &
Systems Corporation. MiniMag and Value through Innovation are
trademarks of International Technologies & Systems Corporation.
Table of Contents
Section 1. Introduction
Description 1
Section 2. Installation
Host Connections 2
Section 3. Configuration
Default Settings 3
Configuration Setup Steps 4
General Selections 5
Change to Default Settings 6
Review Settings 6
Message Formatting Selections 8
Magnetic Track Selections 9
Section 4. Data Editing
Functions 12
Fields 13
Formulas 14
Setup Commands 15
Search Command 16
Send Command 19
Section 5. Operation
Operating Procedure 21
Section 6. Troubleshooting
General Procedures 22
Keyboard Interface Problems 23
Appendix A. Default Settings
Default Settings Table 24
Appendix B. Function Codes
Function Codes Table 25
Appendix C. Non-Printable ASCII Characters
ASCII Characters Table 26
Appendix D. Magnetic Stripe Standard Data Formats
ISO Credit Card 27
California Driver’s License 28
AAMVA Driver’s License 29
Appendix E. USB/Keyboard Interface
Installation 31
Operation 32
Section 1
INTRODUCTION
Description
The MiniMag™ compact magnetic stripe reader can read 1, 2, or 3
tracks of magnetic stripe information. In addition, it has full data edit-
ing capabilities.
When connected to the host computer as a keyboard wedge, the Min-
iMag is completely compatible with the host’s software. The decoded
data appears to the host as if it were entered manually by the operator
through the keyboard.
This unit is fully programmable through the keyboard. The data can be
formatted with preamble/postamble and terminator characters to match
the format expected by the host.
Power, when the reader is configured as a keyboard wedge, is obtained
from the host. The MiniMag is fully compatible with ID TECH’s
VersaMag II magnetic stripe reader.
1
Section 2
INSTALLATION
Host Connections
The MiniMag reader is connected between the keyboard input port of the
host computer and the keyboard itself using a “Y” adapter cable.
The “Y” cable has a 5-pin DIN male connector on one end, and a 6-pin
mini-DIN female on the other.
The supplied adapter cable has a 5-pin DIN female connector on one end,
and a 6-pin mini-DIN male connector on the other end. The adapter cable
is used in all installations on one end of the “Y” cable or the other. This
converts the available cable ends for use on either PS/2-style 6-pin mini-
DIN keyboards, or AT-style 5-pin DIN keyboards.
To connect the reader to the host, turn the power off and disconnect the
keyboard from the computer. Insert the male end of the “Y” cable into the
keyboard port. Then connect the keyboard to the female end of the “Y”
connector. This “wedges” the reader between the host and the keyboard.
Manually-entered data from the keyboard passes through the unit to the
host, leaving the keyboard fully functional at all times.
Magnetic data “swiped” into the unit is transmitted to the host keyboard
port, where it appears to the host as coming directly from the keyboard.
This makes the reader, as a data source, completely transparent to the
host’s application software. In other words, if it is expecting data from the
keyboard, that same data can be entered via the MiniMag and make no
difference to the host.
Since the host computer’s application software is expecting data to be
input in a particular order and format, the reader’s output can be config-
ured to simulate the keyboard-entered data stream by adding terminating
characters and special preamble and/or postamble character strings to
scanned data.
2
Section 3
CONFIGURATION
The MiniMag reader must be appropriately configured to your appli-
cation. Configuration settings enable the reader to work with the host
system. These settings are programmed into the reader through the
keyboard. Once programmed, these configuration settings are stored
in the reader’s non-volatile memory (so they are not affected by the
cycling of power).
Default Settings
The MiniMag reader is shipped from the factory with the default
settings already programmed. In the following sections, the default
settings are shown in boldface. For a table of default settings, see
Appendix A. In order to modify these settings, the host computer and
keyboard must be IBM PC/AT compatible.
If you have a different keyboard, you must use an AT-compatible
keyboard to first change the configuration settings, and changing the
default terminal type last. After changing terminal type, you must then
connect the reader to the appropriate computer. (Most keyboards on
PCs with 5 pin DIN and 6 pin MiniDIN connectors are AT compat-
ible.)
To enter the setup mode and change the configuration via keystroke
entry, specific syntax is used. Each setup command starts with /e/d/fx
where “x” is a different lower case character for each command. The
e,d,and f characters must also be lower case. This initial character
string is followed by a space and some option selection characters for
some commands. Selections for each group take effect when you press
enter.
If you unplug the MiniMag while you are in the middle of a command
and have not pressed enter, your custom configuration for that com-
mand will not be saved. If, however, you press ENTER after a
3
4
correct command, but before unplugging the reader, your selections
for that command will remain programmed until you change them or
reset all commands to default.
When entering keyboard commands, type no more than two characters
per second. When entering numbers, use the number keys above the
alpha keys, not the number pad to the right of the alpha keys. After
entering each group, wait one second before moving to the next group.
All commands are case sensitive, so use lower case for all commands.
One beep indicates an accepted command, and two beeps indicate an
incorrect command. If you make a mistake in entering a command,
you must re-enter the entire command. Do not use backspace and
retype the character.
Configuration Setup Steps
1. On an AT-compatible computer, enter any edit mode. (When run-
ning Windows, the Notepad accessory will work fine.)
2. Enter your commands as needed. Refer to the selections available to
you on the following pages. In each instance, you will enter GROUP
SETUP MODE by typing /e/d/fx, followed by the variable syntax.
(The “x” will be different every time, depending on the group setting
you wish to make.)
3. Enter a SPACE <space>.
4. Enter the code for the selection you have made.
5. When finished, exit the group’s setup mode by entering <ENTER>
(the ENTER key).
EXAMPLE:
To set the beep volume to HIGH, enter:
/e/d/fa<space>b2<ENTER>
5
General Selections
This group of configuration settings define the basic operating param-
eters of the scanner.
Syntax: /e/d/fa<space>b1b2b3<ENTER> where...
Terminal Type Selections
The MiniMag can be programmed to interface to a number of different
terminal types. The terminal types supported are:
b1=0 for PC-AT
b1=1 for PS/2 Models 25 and 30
b1=2 for PS/2 Model 50
b1=3 for PS/2 Model 70
b1=4 for Macintosh
Beep Volume
The beep volume can be adjusted to two different levels, or turned off
entirely.
b2=0 for beep volume off
b2=1 for beep volume low
b2=2 for beep volume high
Intercharacter Delay
This is the time period the reader will wait before sending the next
successive character. Certain terminals and computers require an inter-
character delay to simulate their keyboard’s intercharacter delay.
b3=0 for 2 ms intercharacter delay
b3=1 for 5 ms intercharacter delay
6
b3=2 for 10 ms intercharacter delay
b3=3 for 20 ms intercharacter delay
b3=4 for 25 ms intercharacter delay
b3=5 for 50 ms intercharacter delay
EXAMPLE
To set the terminal type to PC-AT, the beep to high, and the interchar-
acter delay to 5 milliseconds, enter:
/e/d/fa<space>021<ENTER>
Note: Two beeps will be heard if entered numbers are outside the al-
lowable range.
Change To Default Settings
This command, /e/d/fn, returns all settings for all groups to their de-
fault values. Data Editing will be turned off, and the formulas will be
retained.
Syntax: /e/d/fn<ENTER>
Review Settings
This command, /e/d/fo, activates the review settings command. This
will send the resident settings for the general group to the host com-
puter, allowing you to review them. The firmware version number is
also shown.
Syntax: /e/d/fo<ENTER>
Altri manuali per MINIMAG
3
Indice
Altri manuali IDTECH Lettore di schede
IDTECH
IDTECH MINIMAG Manuale di istruzioni
IDTECH
IDTECH VP3300 Manuale utente
IDTECH
IDTECH ViVOpay VP5200 Manuale utente
IDTECH
IDTECH iMag Manuale utente
IDTECH
IDTECH ViVOpay VP3300 Series Manuale utente
IDTECH
IDTECH SREDKey Manuale di istruzioni
IDTECH
IDTECH SecureMag Manuale utente
IDTECH
IDTECH Xpress CM100 Manuale utente
IDTECH
IDTECH SecureHead Manuale utente
IDTECH
IDTECH Spectrum IIa Manuale utente
IDTECH
IDTECH Kiosk V Manuale utente
IDTECH
IDTECH ViVOpay VP6300 Manuale utente
IDTECH
IDTECH Augusta Manuale utente
IDTECH
IDTECH MiniSmart II Manuale di installazione
IDTECH
IDTECH Kiosk III Manuale utente
IDTECH
IDTECH ViVOpay VP5300 Manuale utente
IDTECH
IDTECH MINIMAG Manuale di istruzioni
IDTECH
IDTECH Xpress CM100 Manuale di istruzioni
IDTECH
IDTECH MiniSmart II Manuale utente
IDTECH
IDTECH EzWriter Manuale utente
