IEI Technology WAFER-BT-i1 Manuale utente

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC,

VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 3Gb/s, mSATA, COM, Audio and RoHS

WAFER-BT-i1

Quick Installation Guide

Version 1.0

Nov 11, 2014.

Package List

WAFER-BT-i1 package includes the following items:

1 x WAFER-BT-i1 single board computer

1 x SATA with power cable kit (P/N: 32801-000201-100-RS)

1 x Audio cable (P/N: 32000-072100-RS)

1 x Power cable (P/N: 32100-087100-RS)

1 x QIG (Quick Installation Guide)

1 x Utility CD

Specifications

SoC:

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core,

2MB cache, TDP=10W)

Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB

cache, TDP=8W)

Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB

cache, TDP=7W)

Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB

cache, TDP=6W)

Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core,

512KB cache, TDP=5W)

Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB

cache, TDP=10W)

Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core,

2MB cache, TDP=7.5W)

Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core,

2MB cache, TDP=4.3W)

BIOS:AMI UEFI BIOS

Memory:

One 204-pin 1066/1333 MHz single-channel DDR3L

SO-DIMM supports up to 8GB (J1900, N2930, E3845, E3827,

E3826) or 4GB (N2807, E3825, E3815)

Graphics Engine:

Intel® HD Graphics Gen 7 Engines with 4 execution unit,

supports DX11.1, OpenGL 4.2 and OpenCL1.2

Display Output:

Dual Independent Display

1 x VGA (Resolution: 2560x1600@60Hz)

1 x 24-bit dual-channel LVDS connector (1920x1200@60Hz)

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to

3840x2160@60 Hz)

Ethernet:

1 x PCIe GbE by Intel I210 controller (LAN1)

1 x PCIe GbE by Intel I211 controller (LAN2)

Super IO: Fintek F81866

Embedded Controller: ITE IT8528E

I/O Interface:

1 x PS/2 KB/MS

2 x SATA 3Gb/s with 5V SATA power connector (no RAID)

1 x USB 3.0 (on rear I/O)

5 x USB 2.0 (1 on rear I/O, 4 by pin header)

1 x RS-422/485 (by pin header)

3 x RS-232 (1 on rear I/O, 2 by pin header)

SMBus: 1 x 4-pin (1x4) wafer

Audio:

Realtek ALC662 HD codec

1 x Analog audio by 10-pin (2x5) header

Front Panel:

1 x 6-pin (1x6) wafer for power LED & HDD LED

1 x 2-pin (1x2) wafer for power button

1 x 2-pin (1x2) wafer for power reset

LAN LED:2 x 2-pin header for LAN1 Link LED, LAN2 Link LED

Expansion:

1 x Full-size PCIe Mini card slot with mSATA support (SATA2

and mSATA share SATA signal)

iRIS Remote Management Module:1 x iRIS-1010 slot

Digital I/O:8-bit digital I/O (4-bit input, 4-bit output)

FAN:

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

Power supply:

12V DC input only (AT/ATX support)

Watchdog Timer:

Software programmable support 1~255 sec. system reset

Power Consumption:

+12V@1.45A (Intel® Celeron® J1900 CPU, 1 x 8GB 1333

MHz DDR3 memory)

Operating Temperature: -20°C ~ 60°C

Storage Temperature: -30°C ~ 70°C

Operation Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight(GW/ NW): 600g / 250g

Ordering Information

3.5” SBC supports Intel® 22nm quad-core Celeron® J1900 2.0 GHz

on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 3Gb/s, mSATA, COM, Audio, iRIS-1010 and RoHS

WAFER-BT-i1-J19001-R10:

3.5” SBC supports Intel® 22nm dual-core Celeron® N2807 1.58 GHz

(4.3W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0,

PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio, iRIS-1010 and RoHS

WAFER-BT-i1-N28071-R10:

3.5” SBC supports Intel® 22nm quad-core Celeron® N2930 1.86GHz

(7.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0,

PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio, iRIS-1010 and RoHS

WAFER-BT-i1-N29301-R10:

3.5” SBC supports Intel® 22nm Atom™ E38XX on-board SoC with

VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s,

mSATA, COM, Audio, iRIS-1010 and RoHS ( by order production,

MOQ: 100 )

WAFER-BT-i1-E38XX1-R10:

32000-070301-RS:

Dual-port USB cable

32205-003800-300-RS:

RS-422/485 cable

32006-000300-100-RS:PS/2 KB/MS Y-cable without bracket

Jumpers setting and connectors

LABEL FUNCTION

PWR_BTN1 Power On/Off button pin header

RST_BTN1 System Reset button pin header

J_ATX_AT1 AT/ATX mode select switch

J_CMOS1 Clear CMOS button

COM1, COM2, COM3

Serial port, RS-232

COM4

Serial port, RS-422/485

CN4 Front Panel Pin Header

D-SUB VGA connector

USB1, USB4 USB2.0 Port Pin Header

USB2 USB2.0 Port connector

USB3 USB3.0 Port connector

DIO1

8 Bits Digital I/O Pin Header

JSPI1 BIOS SPI ROM Programming Pin

JSPI2 EC SPI ROM Programming Pin

CPU_FAN1 CPU smart FAN connector

SYS_FAN1 System smart FAN connector

LED_LAN1,LED_LAN2 LAN link LED connector

KB_MS1 Keyboard & mouse pin header

CN5 +12V DC power input connector2

CN2 SMBUS connector

DP1 DP port internal pin header

SATA_PWR1, SATA_PWR2

SATA power connectors (5 V)

SATA1, SATA2 SATA 3Gb/s drive connectors

AUDIO1

Audio pin header

INV1 LCD panel backlight power connector

LVDS_PWR1 LCD voltage selection

LVDS1 LVDS panel Connector

SW1 LVDS panel resolution selection

J_FLASH1 Flash Descriptor Security Override/ TXE

COM1: (RS-232) Rear Port Define

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 NDCD1# 6 NDSR1#

2 NRXD1 7 NRTS1#

3 NTXD1 8 NCTS1#

4 NDTR1# 9 NRI1#

5 GND

J_ATX_AT1: AT/ATX mode select switch

PIN NO.

DESCRIPTION

Short A - B

ATX Mode (default)

Short B - C

AT Mode

RST_BTN1: System Reset button pinheader

PIN NO.

DESCRIPTION

Open

Normal Operation (Default)

Short

Reset

J_CMOS1: Clear CMOS button

PIN NO.

DESCRIPTION

Open

Normal Operation (Default)

Push

Clear CMOS Setup

PWR_BTN1: Power On/Off button pinheader

PIN NO.

DESCRIPTION

Open

Normal Operation (Default)

Short

Power on/off

CN4: Front Panel Pin Header

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V

GND

PWR_LED+

PWR_LED-

5 HDD_LED+ 6 HDD_LED-

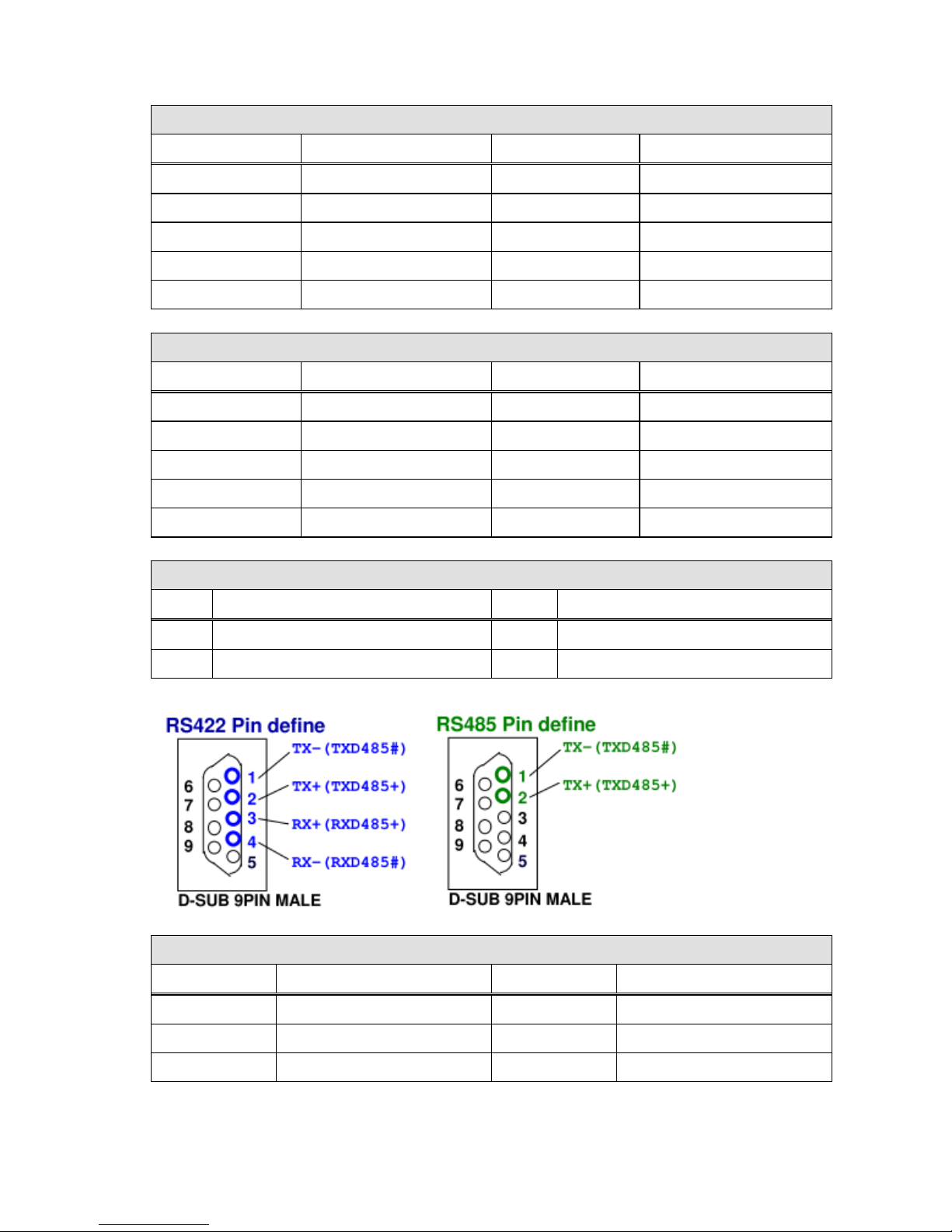

COM4: RS-422/485 serial port connector

DESCRIPTION PIN DESCRIPTION

1 RXD485# 2 RXD485+

3 TXD485+ 4 TXD485#

COM2: (RS-232) Pinheader

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 NDCD2 6 NDSR2

2 NRXD2 7 NRTS2

3 NTXD2 8 NCTS2

4 NDTR2 9 NRI2

5 GND 10 GND

COM3: (RS-232) Pinheader

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 NDCD3 6 NDSR3

2 NRXD3 7 NRTS3

3 NTXD3 8 NCTS3

4 NDTR3 9 NRI3

5 GND 10 GND

USB2: USB2.0 Port connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V

-DATA_USB3

-DATA_USB4

GND

USB1: USB2.0 Port Pin Header

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V

GND

-DATA_USB3

-DATA_USB4

+DATA_USB3

+DATA_USB4

GND

+5V

USB4: USB2.0 Port Pin Header

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V

GND

-DATA_USB1

-DATA_USB2

+DATA_USB1

+DATA_USB2

GND

+5V

D-SUB: VGA connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 Red 2 Green

3 Blue 4 NC

GND

7 GND 8 GND

9 VGAVCC 10 HOTPLUG

DDCDAT

13 HSYNC 14 VSYNC

15 DDCCLK

CPU_FAN1: CPU smart FAN connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+12V

FANIO1

FANOUT1

JSPI2: EC SPI ROM Programming Pin

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 +SPI_VCC_EC 2 SPI_CS0#_CN_EC

3 SPI_SO0_CN_EC 4 SPI_CLK0_CN_EC

5 SPI_SI0_CN_EC 6 GND

JSPI1: BIOS SPI ROM Programming Pin

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 +SPI_VCC 2 SPI_CS0#_CN

SPI_SO0_CN

SPI_CLK0_CN

SPI_SI0_CN

GND

DIO1: 8 Bits Digital I/O Pin Header

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+5V

DGPO3

DGPO2

DGPO1

DGPO0

DGPI3

DGPI2

DGPI1

DGPI0

USB3: USB3.0 Port connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V

USB2P0-

USB2P0+

GND

USB3P0_RXDN1

USB3P0_RXDP1

GND

USB3P0_TXDN1

USB3P0_TXDP1

CN2: SMBUS connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

SMBDATA

SMBCLK

+5V

CN5: +12V DC power input connector2

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+12V

KB_MS1: Keyboard & mouse pin header

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V_KBMS

MSDATA

MSCLK

KBDATA

KBCLK

GND

LED_LAN2: LAN2 link LED connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +3.3VLAN 2 LAN2_LED_LINK#

LED_LAN: LAN1 link LED connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+3.3VLAN

LAN1_LED_LINK#

SYS_FAN1: System smart FAN connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+12V

FANIO2

FANOUT2
