IEI Technology PCISA-9652 Manuale utente
1
!""#$$%&'()#*!'%
+&'%$,%-./%0"
PCISA-9652
Quick Installation Guide
Version 1.0
Jul. 31, 2008
Package Contents:
PCISA-9652 package includes the following items:
1 x PCISA-9652 single board computer
1 x mini jumper pack
1 x ATA 66/100 flat cable
1 x LPT/RS-232 cable
2 x SATA cable
1 x SATA power cable
1 x USB cable
1 x Utility CD
1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
All rights reserved.
2
Specifications:
CPU: Socket P Intel® Core™2 Duo, Core™ Duo, Core™ Solo,
Celeron® M Mobile processor with a 533MHz or 800MHz
System Chipset: Intel® GME965+ ICH8M-E
BIOS: AMI Flash BIOS
System memory: One 240-pin 2GB(max.) 533/667 MHz DDR2
SDRAM DIMM supported
Ethernet: Dual Intel® 82573L PCIe GbE
I/O Interface:
1 x RS-232
1 x RS-232/422/485
1 x LPT
1 x FDD
1 x 6-pin header for KB/MS
3 x SATA II with RAID 0/1 function
1 x IDE
6 x USB 2.0 (2 on bracket, 4 on board by header)
1 x Infrared
Super I/O: ITE IT8712F
Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output
SSD: CF Type II
Display interface:
Integrated in GME965 (Mobile Intel® GMA X3100) support
Intel® Clear Video Technology
Display Output:
HDTV-out support 1080i (max.) Resolution
24-bit Dual channel LVDS
Analog CRT
Audio: Supports 7.1 channel HD Audio via AC-KIT883HD
Watchdog Timer: Software programmable supports 1~255 sec.
system reset
Power Supply: AT/ATX Power
Power Consumption:
5V@ 7.72 A , 12V@ 0.139A (2.0GHz Intel® Core™2 Duo T7300
processor with 667MHZ 1GB DDR2 DIMM) 3D Mark 2001SE
Temperature: 0 ~ 60°C (32 ~ 140°F)
3
Ordering Information:
PCISA-9652-R10:
Half-size PCI and ISA SBC with Intel® Mobile Core™2 Duo/Celeron ® M
CPU at FSB 800/533MHz,GME965 and ICH8M-E,dual PCIe GbE,3
SATAII,24-bit Dual Channel LVDS output,USB2.0
AC-KIT883HD-R10:
7.1 Channel HD Audio kit with Realtek ALC883 support dual audio
streams
HDTVCABLESET-01:
HDTV Cable set with S-Video/ Composite/ Component interface
32200-000058-RS: 2.0mm to 2.54mm 34-pin FDD Cable w/o Bracket
19800-000075-RS: KB/MS cable with bracket
CF-479B-RS: CPU Cooler
4
Jumpers setting and Connectors:
Table of Jumpers and Connectors
LABEL FUNCTION
J_CMOS1 CMOS state setting
J_VLVDS1 LCD Voltage Selector
JCF1 CF Card master (slave) Setup
J_LCD_TYPE1 LVDS Panel Resolution Selection
JP2 COM2 RS232
RS422/485 Selection
LAN1
LAN2 RJ45 LAN Connector
USB_C4,USB_C5 USB Port Connectors
USB01,USB23 Internal USB Connectors
KB_MS1 PS/2 MOUSE & KEYBOARD Connector
VGA1 VGA 15-pin Female Connector
COM1 RS-232 Connectors
COM2 RS-232/422/485 Connectors
J_AUDIO1 Audio HDA Connector
S_ATA1
S_ATA2
S_ATA3
Serial ATA Connectors
PIDE1 IDE Connectors
IR1 IrDA Infrared Interface Connector
JSPI1 Flash SPI ROM
TV1 TV Out Connector
INVERTER1 LVDS Panel Voltage Supply
LVDS1 LVDS Panel Connector
CPU_FAN1 CPU Fan Connector
DIO1 Digital I/O Connector
F_PANEL1 PWR & RST Buttons and Indicators
CF1 CF Card Connector
LPT1 Parallel Port Connector
FDD1 FDC Connector
CN1 SDVO Connector
PWR1 ATX Power In
BAT1 Battery connector
ATXCTL1 Backplane Power Connector
5
J_CMOS1 : Clear CMOS Setup
J_CMOS1
DESCRIPTION
1-2
(default)*
Keep CMOS Setup
(Normal Operation)
Short 2-3
Clear CMOS Setup
J_VLVDS1
: Set The Panel Voltage
J_LVDS1
DESCRIPTION
1-2
(default)*
Set The Voltage Level Of
Panel To VCC3(+3.3V)
Short 2-3
Set The Voltage Level Of
Panel To VCC(+5V)
JP2: Set The COM2
Port
Mode
JP2 DESCRIPTION
1-2
(default)
RS-232
3-4 RS-422
5-6 RS-485
JCF1
:
C
onfigure CF Card type
JCF1 DESCRIPTION
Open
(default) Slave
Short 1-2 Master
J_LCD_TYPE1
:
LVDS Panel Resolution
Selection
JP3 DISCRIPTION
Off 640 X 480 (18bit)
1-2 800 X 600 (18bit)
3-4 1024 X 768 (18bit)
1-2 & 3-4 1024 X 768 (24bit)
5-6 1024 X 768 (48bit)
1-2 & 5-6 1280 X 1024 (48bit)
3-4 & 5-6 1600 X 1200 (48bit)
1-2 & 3-4 &5-6
1280 X 768 (18bit)
7-8 1280 X 800 (18bit)
1-2 & 7-8 1366 X 768 (24bit)
3-4 & 7-8 1440 X 900 (36bit)
1-2 & 3-4 & 7-8
1440 X 900 (48bit)
5-6 & 7-8 1680 X 1050 (48bit)
1-2 & 5-6 & 7-8
1920 X 1080 (48bit)
3-4 & 5-6 & 7-8
1920 X 1200 (48bit)
6
USB01
USB23: Internal USB Connectors
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 VCC 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GND 8 VCC
COM1: External Serial Port Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1 DCD# 2 DSR#
3 RXD 4 RTS#
5 TXD 6 CTS#
7 DTR# 8 RI#
9 GND 10 GND
LVDS1: LVDS Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 GND 2 GND
3 A_Y0 4 A_Y0#
5 A_Y1 6 A_Y1#
7 A_Y2 8 A_Y2#
9 A_CK 10 A_CK#
11 A_Y3 12 A_Y3#
13 GND 14 GND
15 B_Y0 16 B_Y0#
17 B_Y1 18 B_Y1#
19 B_Y2 20 B_Y2#
21 B_CK 22 B_CK#
23 B_Y3 24 B_Y3#
25 GND 26 GND
27 VCC/VCC3 28 VCC/VCC3
29 VCC/VCC3 30 VCC/VCC3
7
COM2 : 14-Pin Serial Port Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1 DCD# 2 DSR#
3 RXD 4 RTS#
5 TXD 6 CTS#
7 DTR# 8 RI#
9 GND 10
NC
11
TX+ 12
TX-
13
RX+ 14
RX-
J_AUDIO1 : Audio Source Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 HDA_SYNC 2 HDA_BITCLK
3 HDA_SDOUT 4 SB_SPKR
5 HDA_SDIN0 6 HDA_RST#
7 VCC 8 GND
9 +12V 10 GND
IR1
: IrDA connector
PIN
DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
TV1: Video output for television
S-Video Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 GND 2 AGREEN_Y
3 GND 4 ARED_C
RCA Connector (only video signal)
5 GND 6 ABLUE_CVBS
KB_MS1
:
6
-
pin Keyboard
Connector
PIN
DESCRIPTION
1 VCC5_KBMS
2 Mouse DATA
3 Mouse CLK
4 Keyboard DATA
5 Keyboard CLK
6 GND
8
F_PANEL1 : External Switches and Indicators panel
PIN
DESCRIPTION
PIN
DESCRIPTION
1 PWR_BTN+ 2
PWR_LED+
PWRBTN
3 PWR_BTN- 4
PWR_LED- Power LED
5 HDD_LED+ 6
RESET+
HDDLED
7 HDD_LED- 8
RESET- RESET
DIO1 : Digital Input / Output Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
7 Input 3 8 Input 2
9 Input 1 10 Input 0
ATXCTL1
:
ATX Connector
PIN NO. DESCRIPTION
1 GND
2 PS_ON#
3 5VSB
JSPI1:FlashSPI ROM
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 3.3V 2 GND
3 CS0# 4 CLK
5 SO0 6 SI
7 N/C 8 N/C
PWR1 : ATX POWER IN
PIN NO. DESCRIPTION
1 +12V
2 GND
3 GND
4 +5VS
9
CN1:SDVO CONNECTOR (optional)
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 GND 2 SDVOC_CLK-
3 SDVOC_CLK+ 4 GND
5 SDVOC_GREEN-
6 SDVOC_GREEN+
7 GND 8 SDVOB_CLK-
9 SDVOB_CLK+ 10 GND
11 SDVOB_GREEN- 12 SDVOB_GREEN+
13 GND 14 SDVOC_INT+
15 SDVOC_INT+ 16 GND
17 SDVOB_INT+ 18 SDVOB_INT+
19 GND 20 SDVOC_BLUE-
21 SDVOC_BLUE+ 22 GND
23 SDVOC_RED- 24 SDVOC_RED+
25 GND 26 SDVOB_BLUE-
27 SDVOB_BLUE+ 28 GND
29 SDVOB_RED- 30 SDVOB_RED+
31 GND 32 SDVO1_STALL-
33 SDVO1_STALL+ 34 GND
35 SDVO_TVCLKIN- 36 SDVO_TVCLKIN+
37 GND 38 SDVO_CLK
39 SDVO_DATA 40 PCIRST
41 +5VS 42 +5VS
43 +5VS 44 N/C
45 N/C 46 GND
47 GND
CPU_FAN1 : CPU Fan
Connector
PIN
DESCRIPTION
1 Ground
2 +12V
3 Rotation Signal
4 Control
INVERTER1:
Panel Power Supply
PIN
DESCRIPTION
1 BRIGHTNESS
2 GND
3 +12V
4 GND
5 BL_EN
10

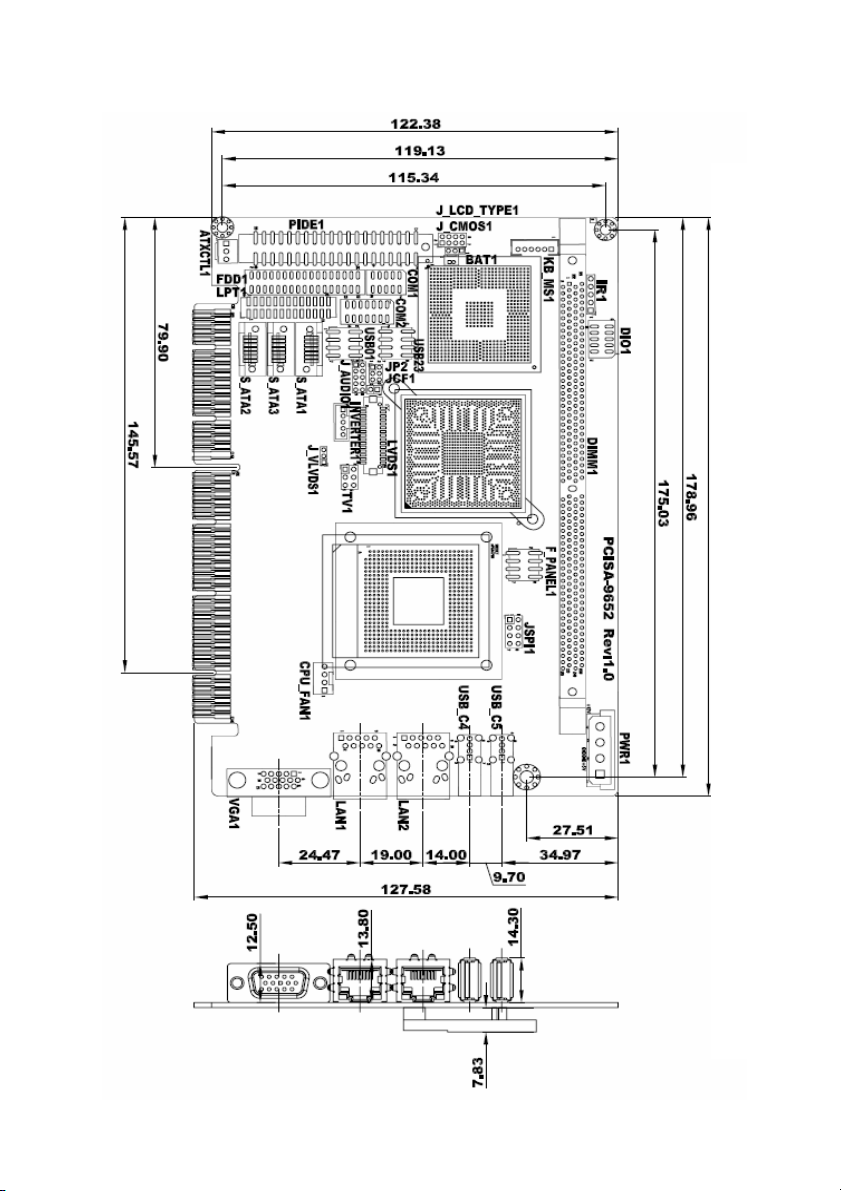

Board Layout: Jumper and Connector Locations
