iFIT NordicTrack EXP7i Manuale utente
USER’S MANUAL
Serial Number
Decal
Model No. NTL10423-INT.1
Serial No.
Write the serial number in the space
above for reference.
MEMBER CARE
UNITED KINGDOM
Website: iFITsupport.eu
E-mail: [email protected]
Write:
iFIT Health & Fitness Limited
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iFIT.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference. iconeurope.com
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO PLUG IN THE POWER CORD ........................................................15
HOW TO USE THE TREADMILL ..............................................................16
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
MAINTENANCE AND TROUBLESHOOTING.....................................................28
EXERCISE GUIDELINES ....................................................................31
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
UK/EU DECLARATION OF CONFORMITY .............................................. Back Cover

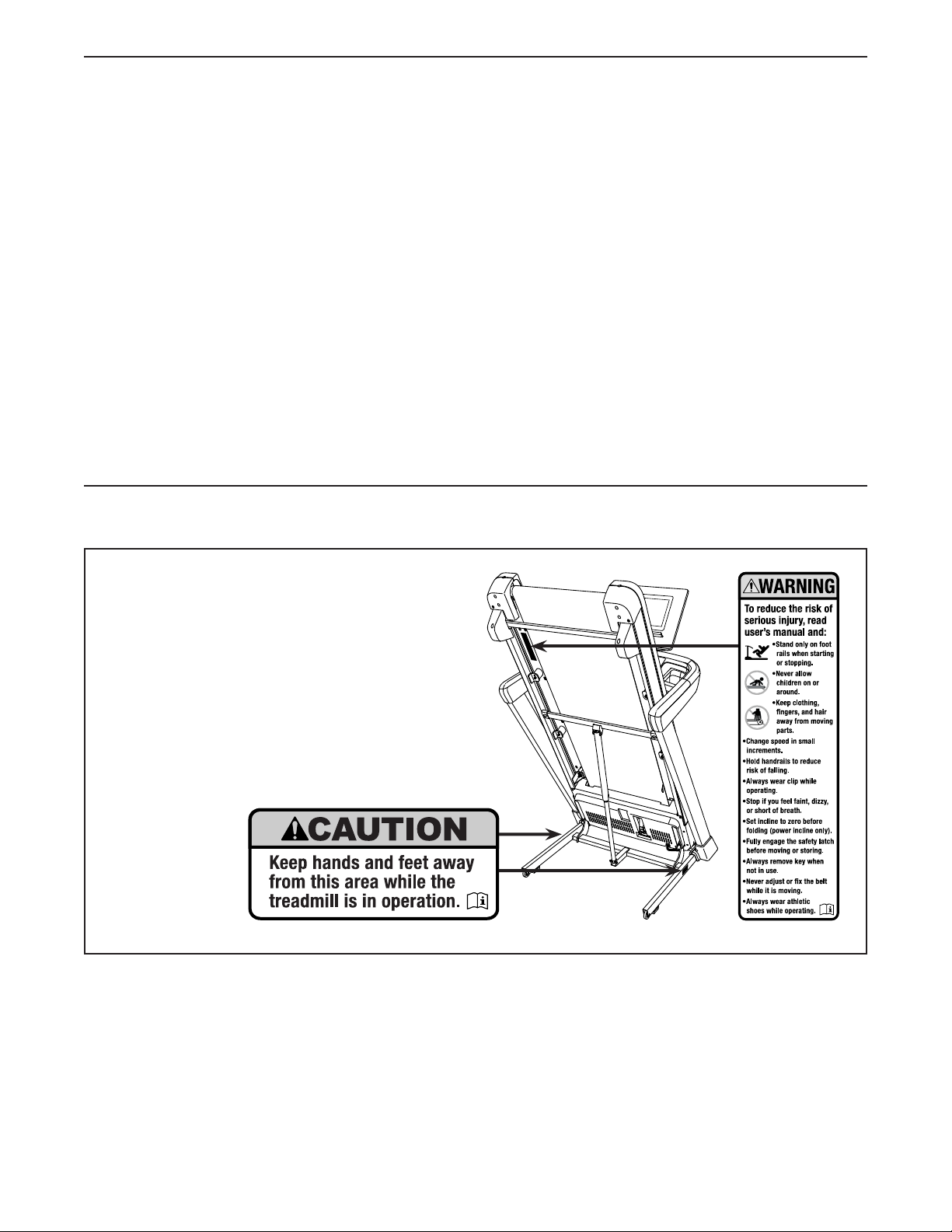

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decals may not be
shown at actual size.
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. The Bluetooth®word mark and logos are regis-
tered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google LLC.
Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.
3
1. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
2. Keep children under age 16 and pets away
from the treadmill at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise
program during pregnancy. Use the treadmill
only as authorized by your health care
provider.
5. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the
use of the treadmill by someone responsible
for their safety.
6. Use the treadmill only as described in this
manual.
7. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
8. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
9. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
10. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
11. The treadmill should be used only by per-
sons weighing 300 lbs. (135 kg) or less.
12. Never allow more than one person on the
treadmill at a time.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
14. When connecting the power cord (see
page 15), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
15. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm2) cord that is
no longer than 5 ft. (1.5 m).
16. Keep the power cord away from heated
surfaces.
17. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 28 if the treadmill is not working
properly.)
18. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE CONSOLE on
page 17). Always wear the clip while using the
treadmill.
19. Be careful when mounting and dismounting
the treadmill. Always stand on the foot rails
when starting or stopping the walking belt.
Always hold the handrails while using the
treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 27.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the new NORDICTRACK®
EXP 7I treadmill. The EXP 7I treadmill provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

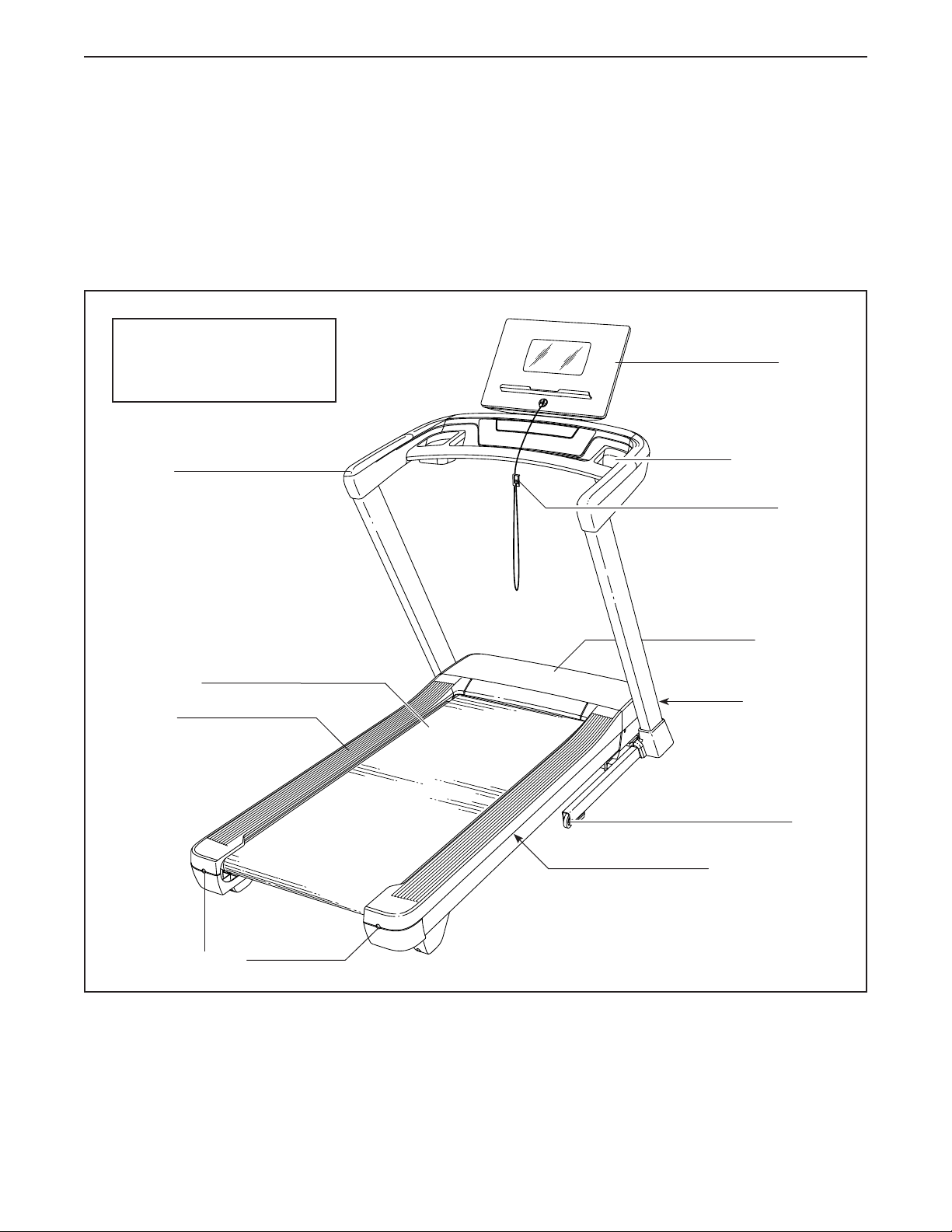

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Key/Clip
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Platform Cushions
Length: 5 ft. 11 in. (180 cm)
Width: 2 ft. 11 in. (87 cm)
Weight: 203 lbs. (92 kg)
6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (6)–12
5/16" Star
Washer (7)–6
3/8" x 2 3/4" Screw (1)–4
3/8" x 3 1/2" Screw (115)–4
3/8" x 3/4"
Screw (2)–4
Ground Screw
(3)–1 5/16" x 1" Screw
(4)–4
7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. To register your product and activate your
warranty in the UK, go to iFITsupport.eu. If you
do not have internet access, complete the war-
ranty registration card in the warranty booklet
and send it by registered post to the address on
the back cover of the warranty booklet.
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
1
8
3. Remove and discard the indicated screw (C) in
the Right Upright (85). Then, attach the ground
wire (D) to the Right Upright with a Ground
Screw (3).
See the inset drawing. Locate the small ear
(E) on the Grommet (86) on the Upright Wire
(82). Insert the ear into the square hole (F) in the
Right Upright (85), and then press the Grommet
into the square hole.
85
2
82
94

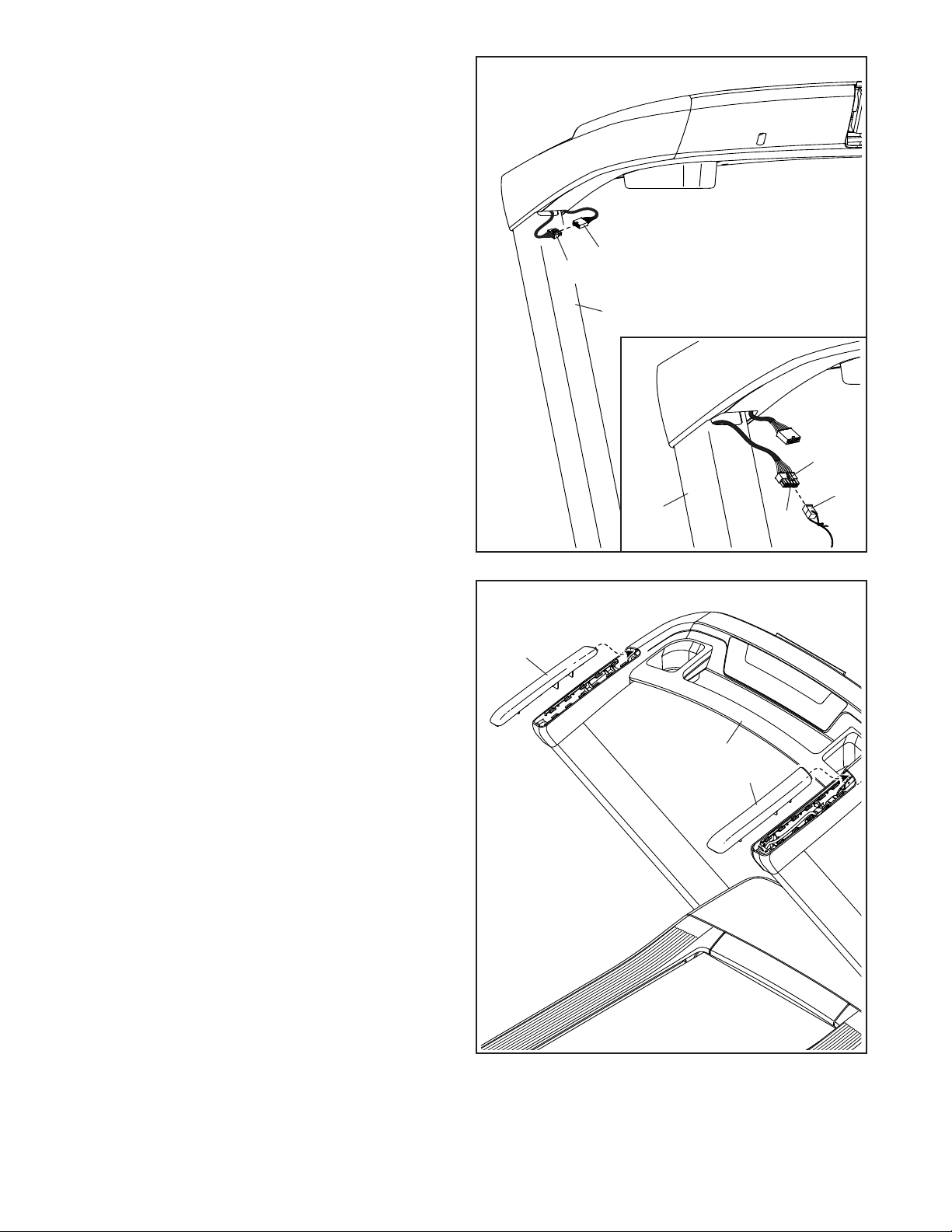

2. Make sure that the power cord is unplugged.
Remove any ties securing the Upright Wire (82)
to the right side of the Upright Base (94).
Next, identify the Right Upright (85), and have a
second person hold it near the Upright Base (94).
See the inset drawing. Locate the wire tie (A)
in the Right Upright (85). Tie the wire tie through
the wire pull (B) on the Upright Wire (82). Then,
insert the wire pull and the Upright Wire into the
Right Upright.
Then, pull the upper end of the wire tie (A) until
the Upright Wire (82) is routed through the Right
Upright (85). Do not untie the wire tie yet.
BA
82
85
85
3
82
3
C
E
F
86
D
85
A
82
9
5. Identify the Right and Left Base Covers (89, 90).
Slide the Right Base Cover onto the Right
Upright (85), and slide the Left Base Cover onto
the Left Upright (84).
Do not pinch the Handrail Wire (83) during
this step. With the help of a second person, hold
the handrail assembly (G) on the Left and Right
Uprights (84, 85). Attach the handrail assembly
with four 3/8" x 3 1/2" Screws (115) and four 3/8"
Star Washers (6); start all four Screws, and
then tighten them.
5
84
G
6
83
89
6
90
4. Have a second person hold the Right Upright
(85) against the Upright Base (94). Make sure
not to pinch the Upright Wire (82).
Insert two 3/8" x 3/4" Screws (2) with two 3/8"
Star Washers (6) into the top of the bracket on
the Right Upright (85), and partially tighten the
Screws into the Upright Base (94); do not fully
tighten the Screws yet.
Finish attaching the Right Upright (85) with
two 3/8" x 2 3/4" Screws (1) and two 3/8"
Star Washers (6); do not fully tighten the
Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There is not a wire on the left
side.
4
6
94
115
115
2
6
82
6
6
85
85
1
2
10
7
7. Identify the Right Handrail Cover (75). Insert
the front edge of the Right Handrail Cover into
the top of the handrail assembly (G) as shown.
Then, press down on the top of the Right
Handrail Cover until it snaps into place.
Attach the Left Handrail Cover (74) to the
handrail assembly (G) in the same way.
G
74
75
6
6. See the inset drawing. Press the small latch (H)
on the connector on the Upright Wire (82), and
remove the wire pull (B). Discard the wire pull.
Next, connect the Upright Wire (82) to the
Handrail Wire (83).
IMPORTANT: The wire connectors should
slide together easily and snap into place with
an audible click. If they do not, turn one con-
nector and try again. You must connect the
wires properly for your treadmill to function
properly.
Then, insert the wire connectors and the excess
wire into the Right Upright (85).
85
H
B
82
83
82
85
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali iFIT Tapis roulant
