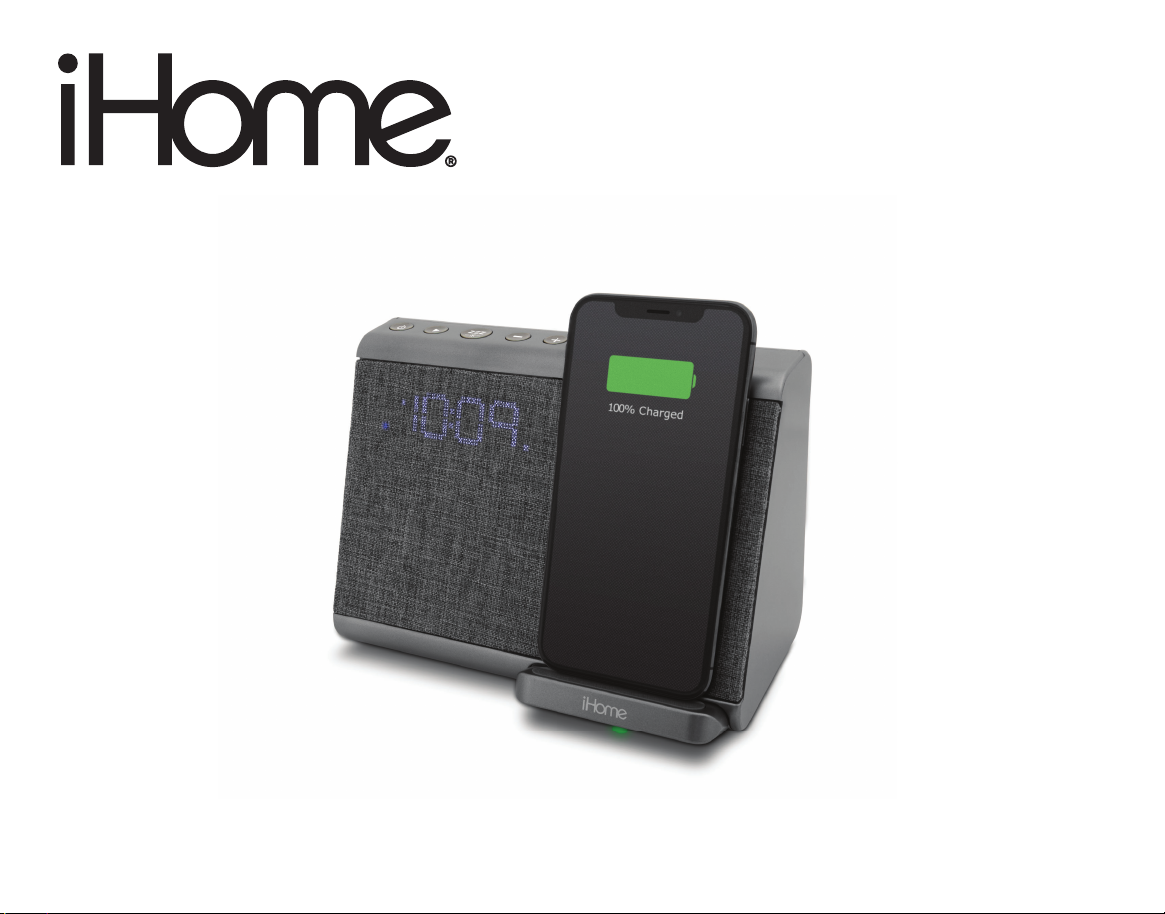

IHome IBTW39v2 Manuale utente

Model: iBTW39v2

Questions? Contact Customer Service at 1-800-288-2792

instruction manual

Bluetooth Bedside/Home Oce

Speaker System

with Qi Wireless Charging

Meet Your iBTW39v2

Top

Speaker

Snooze/Display

Microphone

Power Button

Play/Pause/Voice

Control Button +/– Settings/Volume Buttons

Wireless Charging Pad

(under fabric)

Device Charging Rest

Bottom

Back

Bluetooth

Pairing Button

Alarm 1 Button

Alarm 2 Button

DC Jack

Battery

Door

Wireless Charging Indicator

(below charging rest)

USB

Charging

Port

(1A)

Time Set

Button

Backup Battery Compartment 1

iBTW39v2 AC adapter

What’s

Included:

9V,3A

RESET

TEST

iHome

iBTW39v2

Connect the included AC adapter to the DC jack located

on the back of the unit and connect the other end to a

working wall outlet.

Connecting the Unit

Step One

Quick Set-Up:

Setting Your Clock

Step Two

Bluetooth Pairing

Step Three

• Turn on your Bluetooth device and make it

‘discoverable’ by turning on Bluetooth mode.

• Press the Power Button on the iBT39v2. The ﬁrst

time the unit is powered on, it will automatically

enter pairing mode.

• Select ‘iHome iBT39v2’ on your device’s

Bluetooth menu to connect!

• Press and hold the Time Set Button until the

display ﬂashes.

• Press the – or + Buttons to adjust selections and

press Time Set to conﬁrm.

• Do this for time, year, month and date.

• All done!

The Display

Alarm 1 Active Indicator

Alarm 2 Active Indicator

Bluetooth

Pairing

Indicator

(Blue LED)

PM Time Indicator

Time Display

Low Backup Battery Indicator

(Red LED)

9V, 3A

NOTE: Unit must be

plugged into working

outlet to charge devices

Charging Devices Via USB Port

1. Connect the standard size end of a USB cable

(not included) to the USB port on the back of the

unit and connect the other end to the charging

port on your device.

2. Monitor the charging on your device. Some

devices use a proprietary charging method and

will not charge using the USB port. If this

happens, you must charge your device using

the charger that came with it.

Automatic DST

This product can automatically change your clock in

March and November for daylight savings time! To

enable, hold the Time Set Button for a full 5 seconds.

Press the +/-buttons to select DST ON/OFF.

Setting the Clock

1. Press and hold the Time Set Button located on the back of the unit for 2 seconds until the

clock display ﬂashes and a beep sounds.

2. Press the –or +Buttons to adjust the clock to the current time (hold for rapid setting). Make

sure you set the correct AM/PM time. The PM indicator appears to the left of the display; there is

no AM indicator.

3. To toggle the clock display between standard 12 hour time and 24 hour (“military”) time display,

press the Alarm or Alarm Button while the display is ﬂashing during time setting.

4. Press Time Set to conﬁrm the current time setting. The YEAR will ﬂash on the display. Press the

–or +Buttons to set the correct year.

5. Press Time Set to conﬁrm the current year setting. The Month will ﬂash on the display. Press

the –or +Buttons to set the correct month (hold for rapid adjustment).

6. Press Time Set to conﬁrm the current month setting. The Date will ﬂash on the display. Press

the –or +Buttons to set the correct date (hold for rapid adjustment).

7. Press Time Set to conﬁrm the date. 2 beeps will conﬁrm time setting is complete.

Setting and Using the Alarm

This unit features dual alarms which can be set to dierent times and alarm sources. Each is set in

the same way. Instructions are given as “Alarm Button”; use Alarm Button or Alarm Button

located on the back of the unit to set respective alarms. Note: Each step must be completed while

display is ﬂashing or the step will time-out in 10 seconds without any changes saved.

1. Press and hold the Alarm Button for 2 seconds until the alarm time display and alarm icon ﬂash.

A beep sounds.

2. Press the –or +Buttons to adjust the alarm time to the desired time (hold for rapid setting).

Make sure you set the correct AM/PM alarm time. The PM indicator appears to the left of the time

display; there is no AM indicator.

3. Press the Alarm Button to conﬁrm the alarm time setting. The wake-to schedule will ﬂash. Press

the –or +Buttons to set the desired alarm schedule: 7 Days (every day), 5 Days (week days

only) or 2 Days (weekends only).

4. Press the Alarm Button to conﬁrm the alarm schedule. The wake source indicator will ﬂash on

the display. Press the –or +Buttons to select the wake to alarm source: “bt” (Bluetooth) or

tone. (Continued on next page...)

Snooze/Display Dimmer (ZZZ Button)

1. To program Snooze, press and hold the Snooze/Display Dimmer during normal operation (when

no alarm is sounding).

2. Press the –or +Buttons to select the desired snooze time (between 01 and 29 minutes).

3. Press the Snooze/Display Dimmer Button to conﬁrm Snooze setting. 2 beeps will sound.

4. While the alarm is sounding, press and release the Snooze/Display Dimmer Button to

temporarily silence the alarm for the set duration (9 minutes is the default). Snooze can be used

several times during the 1 hour alarm sounding time.

5. To adjust the brightness of the display, press and release the Snooze/Display Dimmer Button

during normal operation (when no alarm is sounding) to cycle through the brightness display

settings (Hi, 3, 2, Lo, and O).

Previewing the Alarm and Turning the Alarm On/O

1. Press and release the Alarm Button to view the current alarm time.

2. Press and release the Alarm Button as needed to toggle the alarm ON and OFF, indicated by the

related white alarm indicator and a beep.

3. When the alarm sounds, press the Power Button or corresponding Alarm Button (1 or 2) to

disable the alarm and reset it to come on at the same time the next day.

Wake to Bluetooth: You will wake to the currently linked Bluetooth device. If no device

is detected, the alarm will default to current Tone.

Wake to Tone: Press the Alarm Button to conﬁrm. Press the –or +Buttons as

needed to listen to and to select one of the four built-in wake-to

tones (t1 - t4).

5. Press the Alarm Button to conﬁrm the alarm source. The volume display will ﬂash.

6. Press the –or +Buttons to adjust the alarm volume. Note that the alarm volume setting is stored

separately from other volume settings.

7. Press the Alarm Button to conﬁrm the alarm settings and exit alarm setting mode. 2 beeps will

conﬁrm alarm setting is complete. The alarm icon on the display will indicate the alarm is armed.

Using Qi Wireless Charging

This unit will wirelessly charge Qi compatible wireless

charging phones. Place Qi compatible device face up

on charging rest.

Check the Wireless Charging Indicator on the

iBTW39v2 for charging status:

LED glows solid amber for 10 seconds: Device is

charging properly.

Solid green LED: Device is charged.

Rapid blinking amber LED: Device is not charging

properly. Reposition device.

Note: The solid green LED may not glow when iOS

devices are fully charged.

CAUTION: Remove metal protective or magnetic

case from phone before charging. When charging

phone, do not place magnetic-striped or other metal

objects on the charger. Doing so could damage the

object or this unit. Qi compatible phones with

metallic looking ﬁnishes will charge normally.

Wireless Charging

Indicator

iHome

iBTW39v2

Pairing Your Bluetooth Device

Pairing establishes a unique communication connection between your Bluetooth device and the

speaker. Once paired, you will be able to stream audio wirelessly to the iBTW39v2. When AC power

is connected, and the Button OR or Bluetooth Button is pressed, the iBTW39v2 will attempt to

autolink to a previously paired device.

1. Turn on your Bluetooth device and make it “discoverable” by turning on

Bluetooth mode (check in Connections or Settings).

2. Press the Button to turn on the iBTW39v2. The ﬁrst time the unit is

powered on it will enter pairing mode automatically. After this, you will need

to pair using the Bluetooth Button after powering on (see step 3 below).

3. Press and hold the Bluetooth Button on back of the iBTW39v2 for 2

seconds. “PAIR” will appear on the display and the Bluetooth indicator will ﬂash

blue, a voice prompt will announce "PAIRING", indicating the iBTW39v2 is in

pairing mode.

4. Select “iHome iBTW39v2” in your device’s Bluetooth menu to connect device. If

prompted for a passcode, enter “1234” on your device’s keypad.

5. If pairing is successful, a voice prompt will announce “CONNECTED”, then Bluetooth indicator appears

solid blue, indicating the iBTW39v2 is ready to play music. There should also be an indication on your

device. If no device is successfully paired within 3 minutes the iBTW39v2 will default to previous

mode. Once the iBTW39v2 is paired to a device, it will attempt to autolink when the device is within

range (about 33 feet). To reset Bluetooth, press and hold the Bluetooth Button for 10 seconds.

Playing Audio Via Bluetooth

1. “bt” and the Bluetooth indicator appear on the display when the unit is on and your device is

connected. Press the Button on the unit to play or pause audio from your linked Bluetooth

device.

2. Press the –or +Buttons to adjust the volume on the unit.

3. When done listening, press the Button to turn the unit o.

Using the Speakerphone feature

NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call.

1. When a call is received, playing music is muted to hear the ring tone. “Call” will

ﬂash on the display. Press the Button to answer the call; press and hold the

Button to ignore the call.

2. Press the Button to end the call and resume previous function.

Using the Voice Control feature

NOTE: The unit must be powered on and linked to an iOS or Android Bluetooth device to use Voice

Control. Press and hold the Button for 2 seconds. ‘CALL’ will appear on the display. Wait for a

beep to activate voice control with Siri or Google Assistant.

Voice control requires an active internet connection on connected Bluetooth device with iOS 10 and Android 5.0 and later. When

activated, the speaker microphone acts as an extension of the microphone in your smartphone to make/take calls, enable you to ask

Siri®/Google Assistant™ to play music and more.

Replacing and Installing Clock Backup Battery

The unit comes with 1 CR2450 back-up battery installed to

provide continuous alarm operation and clock settings in the

event of a power failure. Remove the battery pull tab before use.

When the Battery Low Red LED located in the middle of the

display is ﬂashing, it is time to replace the back-up battery. The

battery compartment is located on the bottom of the unit.

1. Please make sure the AC adaptor is connected, otherwise all

settings may be lost during battery replacement.

2. Use a Phillips screwdriver to remove the battery

compartment cover located on the bottom of the unit.

3. Remove exhausted battery. Insert 1 CR2450 battery

checking that the + side is facing you. Replace the

compartment door. Do not over tighten.

Note: Make sure you dispose of battery properly (see your local

regulations).

WARNING: Lithium batteries can explode or cause burns if disassembled, shorted, recharged, exposed to water,

ﬁre,or high temperatures. Do not place loose batteries in a pocket, purse, or other container containing metal

objects, mix with used or other battery types, or store with hazardous or combustible materials. Store in cool, dry,

ventilated area. Follow applicable laws and regulations for transport and disposal.

• Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button cell

battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2

hours and can lead to death.

• Keep new and used batteries away from children. If the battery compartment does not close

securely, stop using the product and keep it away from children. If you think batteries might

have been swallowed or placed inside any part of the body, seek immediate medical attention.

Replacing Backup Battery

Indice

Altri manuali iHome Sistema di altoparlanti

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente

iHome IBTW39v2 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche
