Ikan MD7 Manuale utente
MD7
7" High Brightness 3G-SDI Monitor QUICKSTART GUIDE
www.ikancorp.com
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
© 2010 ikan Corporation. All right reserved
What’s included
Checked by
1 x MD7 Monitor
1 x AC Adapter
1 x SM201 Shoe Mount
1 x Cleaning Cloth
All manuals and user guides at all-guides.com
all-guides.com
www.ikancorp.com 713-272-8822
MD7
7" High Brightness 3G-SDI Monitor QUICKSTART GUIDE
MD7
MULTI-FORMAT
Resolution
1024 x 600
BRIGHT
CONTRAST
CHROMA
VOLUME
STANDBY
ENTER
MENU
WF•VS
FALSE
COLOR
DAY
LIGHT
F3 F4
F1
RGB GRAY
H/V DELAY
FOCUS
ZOOM
F2
HDMI ANALOG
SDI-1 SDI-2
MARKER

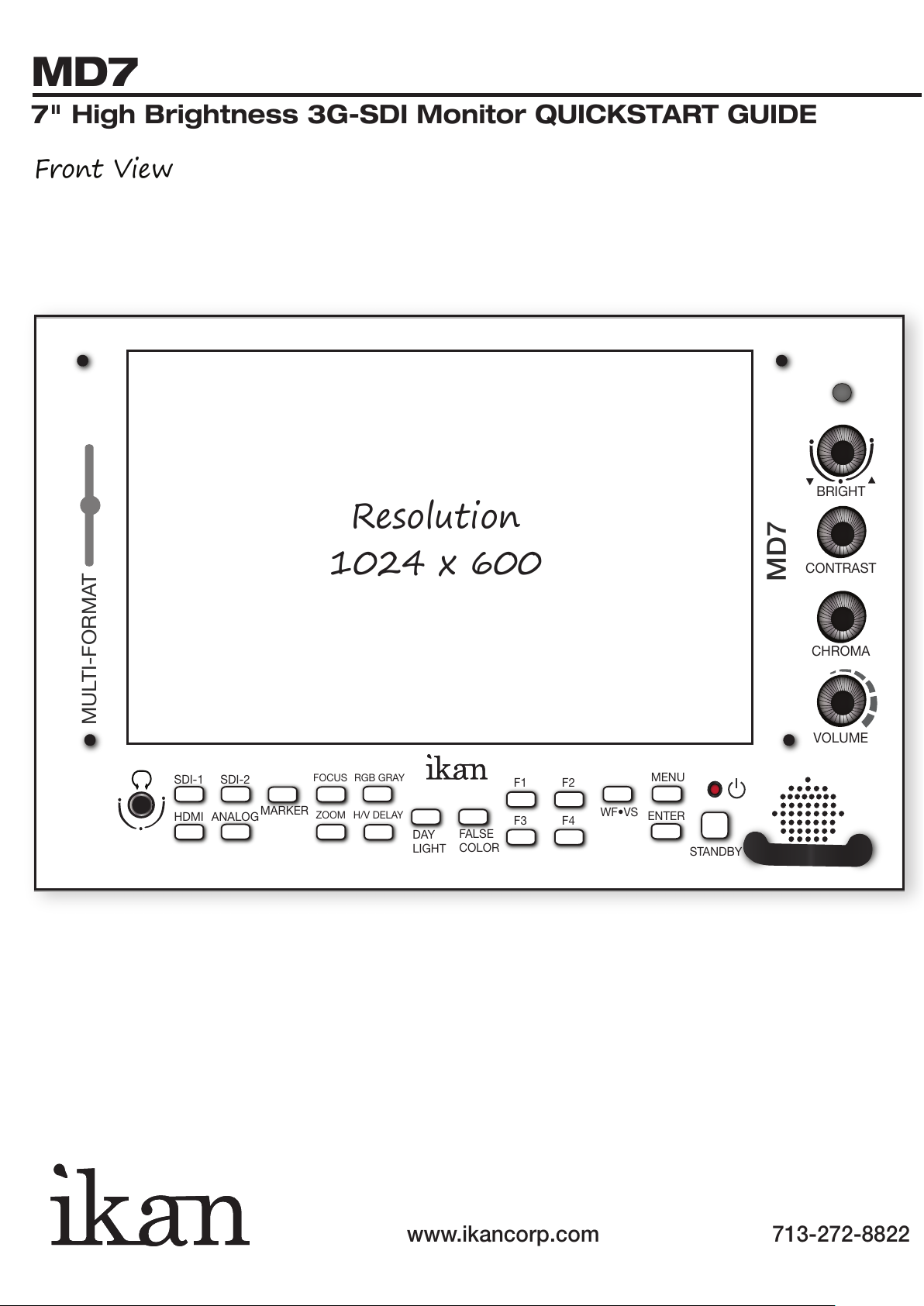

Front View
All manuals and user guides at all-guides.com
www.ikancorp.com 713-272-8822
MD7
7" High Brightness 3G-SDI Monitor QUICKSTART GUIDE
DC 7V~24V
DC 7V~24V
PORT-1PORT-2
SERIAL
AUDIO
HDMI-OUT
HDMI-IN
USB
IN
OUT
SDI-2
SDI-1
Y
Pb
Pr
INOUT
REMOTE
CV1/G/S-Y
CV2/BCV3/R/S-C
Update Port
(RJ-11 Jack)
Rear View
Internal Power
Port
DC Power
Control
Port
All manuals and user guides at all-guides.com
