Ikan PT19-TM Manuale utente

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

PT19-TM

Quick Start Guide

Talent Monitor Add On Kit for PT4900

What’s Included

1 x Teleprompter Monitor w/ Aluminum Chassis

1 x Power Adapter with Cable

1 x VE A Monitor Mount

1 x 15mm Rod Adapter

1 x Mounting Knob

4 x 10mm crews

4 x 15mm crews

2 x Large crews

4 x Riser Washers

1 x Adjustable Plate

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Assembly Steps

Setting Up the Talent Monitor

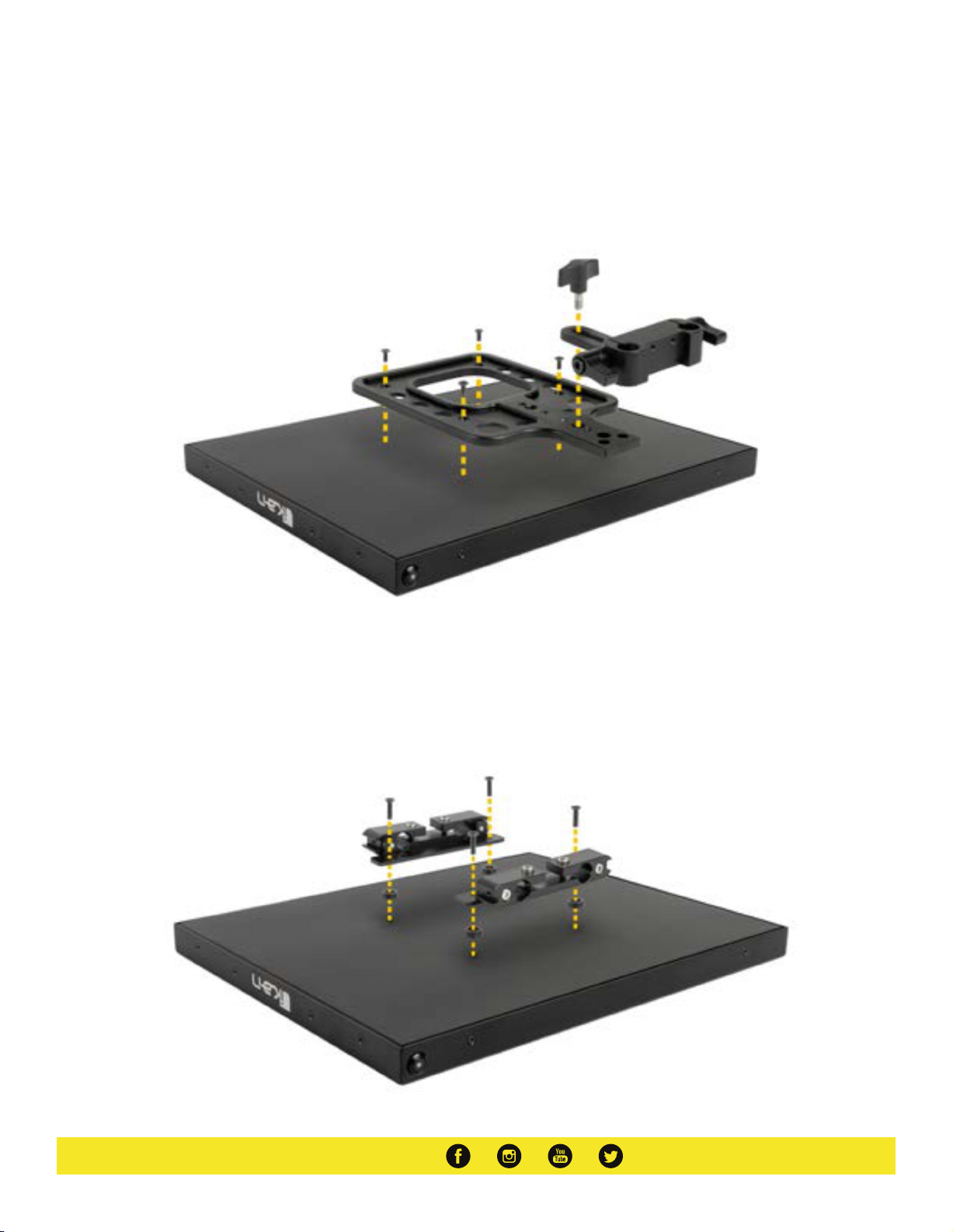

Using the shorter 4 x 10mm crews, attach the VE A Monitor Mount. Make sure that the long end of the VE A Monitor Mount is pointing in the direction

of the power button like the image above. Use the Mounting Knob to tighten the 15mm Rod Adapter to the VE A Monitor Mount.

Setting Up the Teleprompter Monitor (Monitor from the PT4900)

If the mounting brackets where previously installed on the teleprompter monitor, remove those screws. Using the longer 4 x 15mm crews and 4 x Riser

Washers attach the mounting brackets with the washers between the bracket and monitor like the image below.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Attaching the Talent Monitor

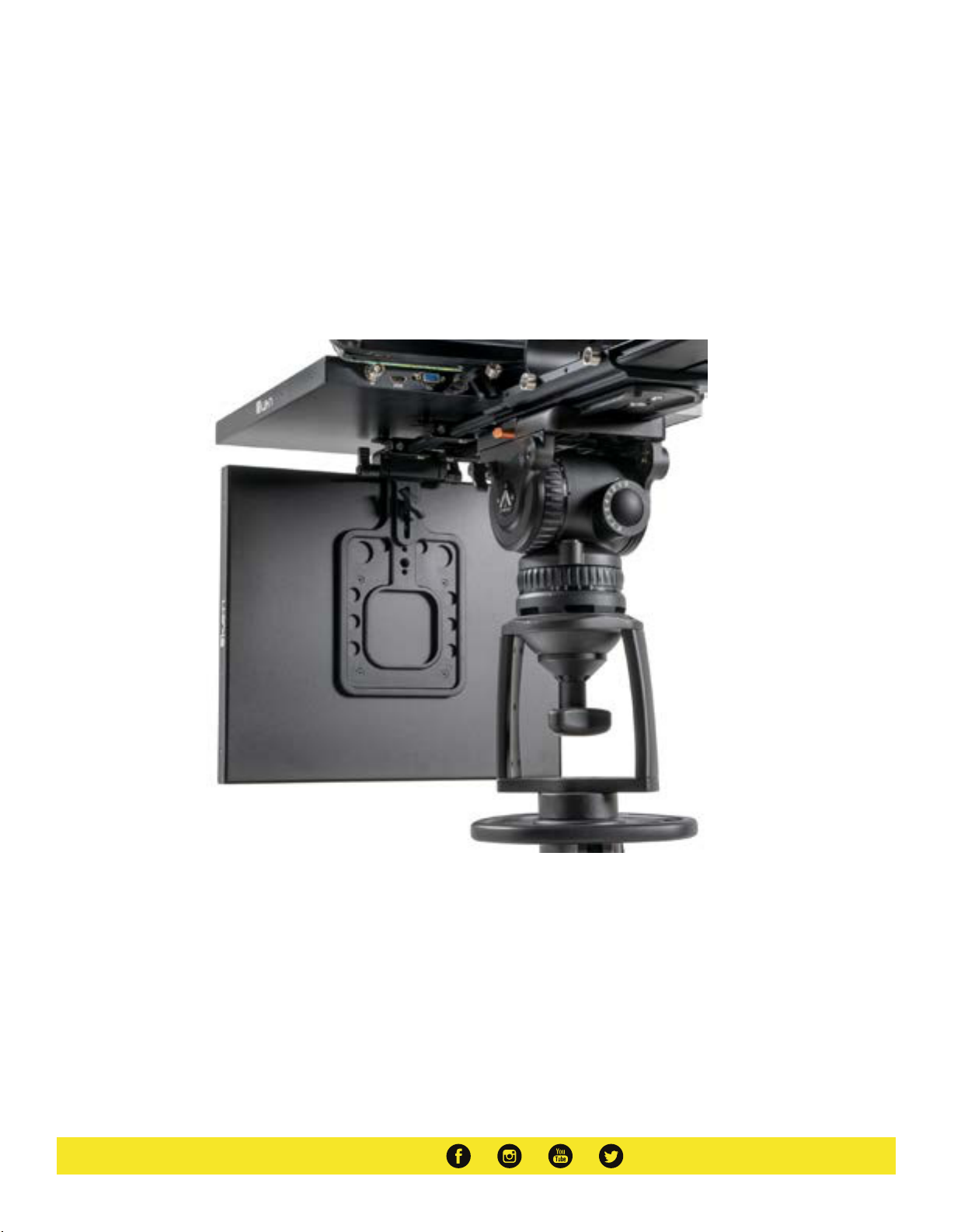

After both the talent monitor and teleprompter monitor are set up, slide the talent monitor on to the PT4900.

*WARNING* We recommend at least 1 inch of rod should be left inside the teleprompter base.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Speciﬁcations

Optional Accessories

ome other products that work well with this item available from Ikan include:

PT4900 19” High Bright Beam plitter Teleprompter

PT 9-TM

19” High-Bright Teleprompter Monitor

Aspect Ratio 4:3

Brightness 1000 cd/m2

creen ize 19”

Video Inputs Composite BNC, VGA, HDMI

Input Voltage DC 12v / 4A

Power Consumption 10 w

Product Weight 12 lbs

Product Dimensions 17” x 15” x 1”

Native Resolution 1280 x 1024

hipping Weight 14 lbs

hipping Dimensions 24” x 20” x 4”

Viewing Angle 160° (H) / 170° (V)

UPC

Build Material

847983033201

Aluminum Chassis

Supported Video Signals

HDMI

720x480i & 720x480p @ 59.94, 60 Hz

720x576i & 720x576p @ 50 Hz

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
