IKEA koppla Manuale utente
1
KOPPLA
2
CONTENTS
START HERE! 4
Insert the batteries in the remote control 4
Set the time and date 4
Program the receiver 7
DIRECT CONTROL 9
Choose channels 9
Functions 10
PROGRAMMING 12
Grouping 12
Choose group 13
Random on/off 13
Delay shut off 14
Timer programming 15
Programming example 18
Deactivate Timer program 21
Activate Timer program 21
OTHER FUNCTIONS 21
Key sound and background
lighting on/off 21
Key lock on 22
Key lock off 22
Language selection 23
RECEIVER 24
Dimmer receiver (fig 2) 24
On/off receiver (fig 3) 25
3
TECHNICAL DATA 27
Remote control 27
Dimmer receiver 27
On/off receiver 27
REMEMBER 28
Installing the wall bracket for
the remote control 29
LCD DISPLAY 30
Remote control (fig 7) 30
Dimmer receiver (fig 8) 30
On/off receiver (fig 9) 30
COMPONENT LAYOUT 32
Remote control (fig 1) 32
Dimmer receiver (fig 2) 32
On/off receiver (fig 3) 32
4
START HERE!
Insert the batteries in the remote
control

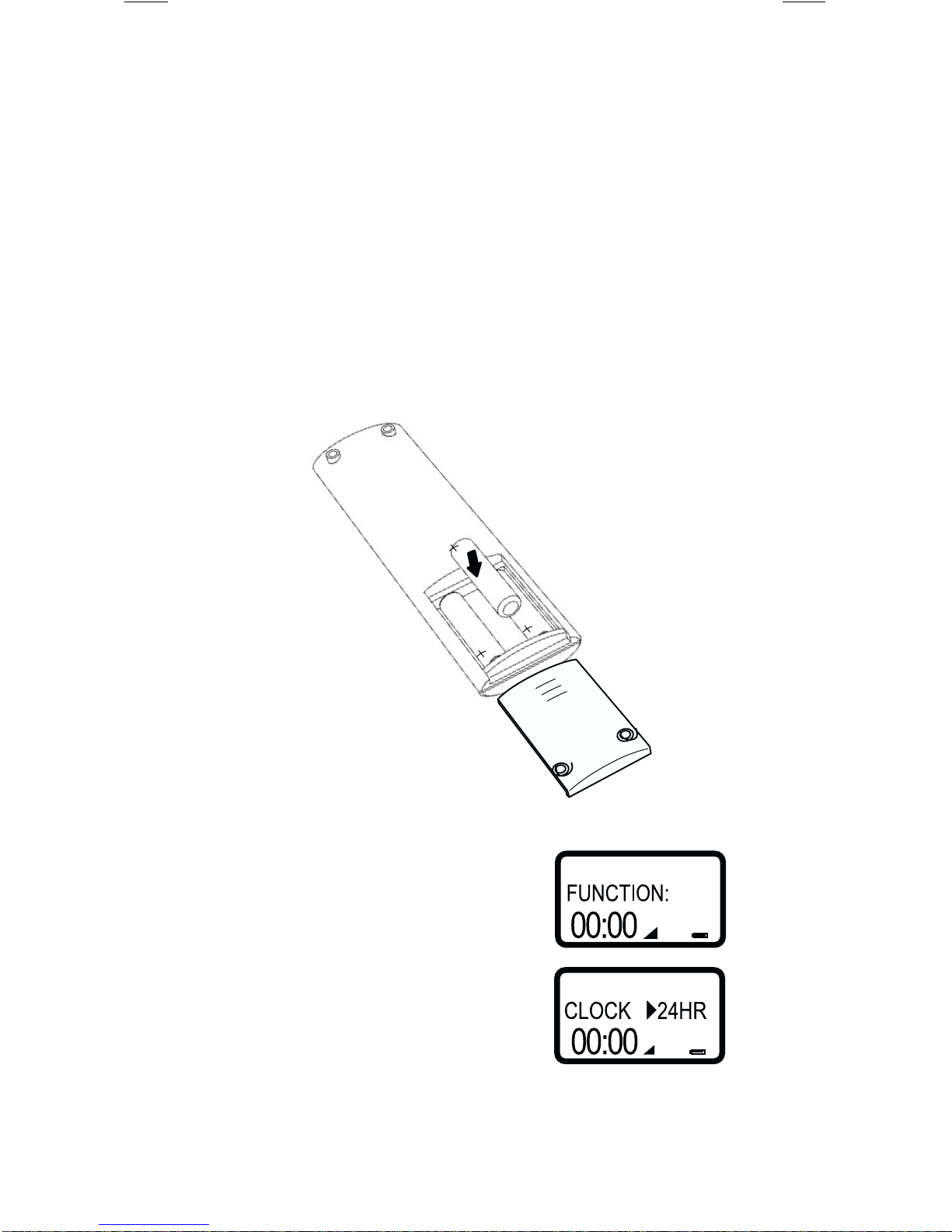

1. Open the battery cover on the back.
2. Insert three AAA/LR03/AM4/ batteries
3. Close the battery cover.
1. Press [FUNCTION]
2. Press [9]
Set the time and date
5

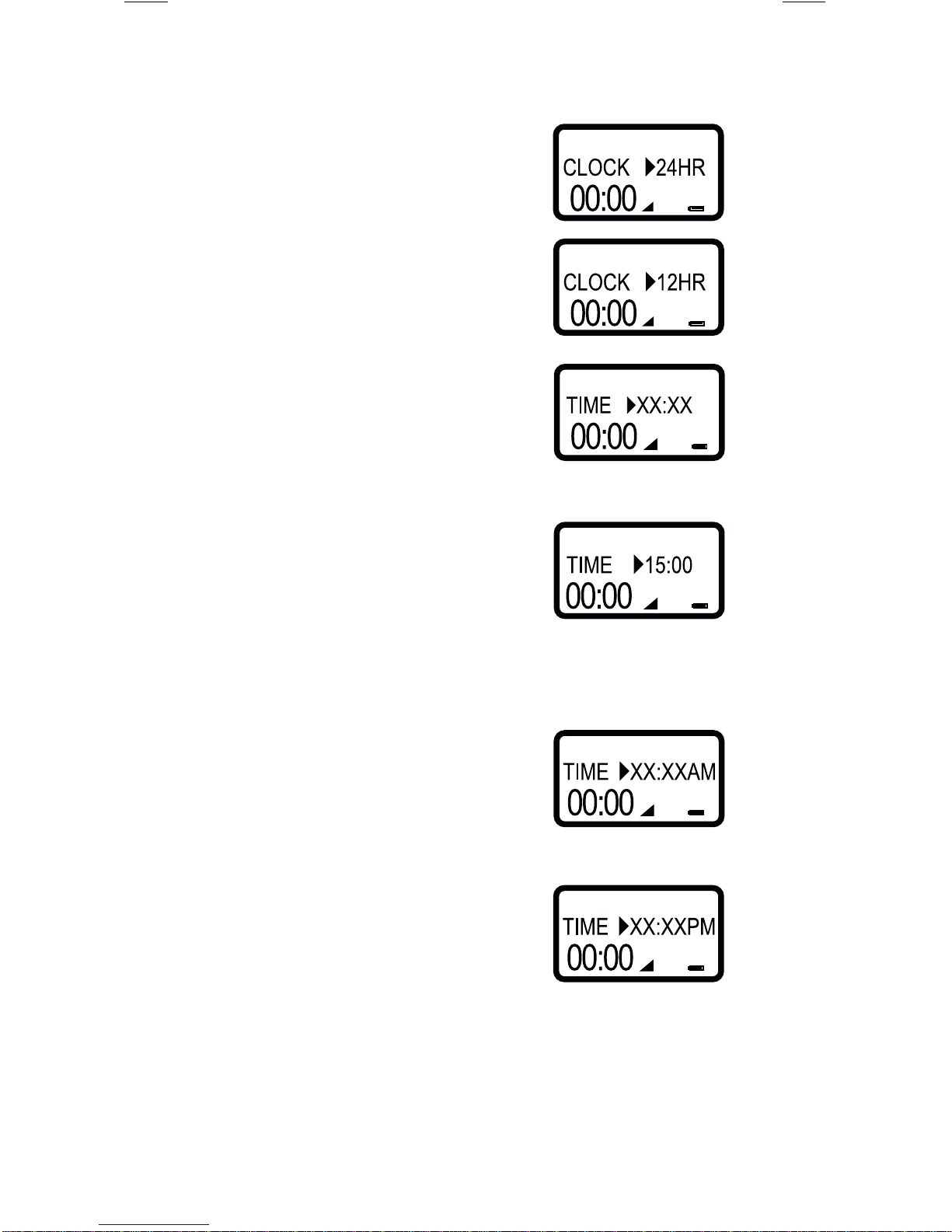

3. Select time format. You can choose
between 12 and 24 hour display.
To change between
12 or 24 hour display,
press [UP]
Press [SET] to continue.
3.1 24 hour display.
Enter the time, for
example, 15.00. Press
[1],[5],[0],[0]
3.2 12 hour display.
Enter the time, for ex-
ample, 3.00 AM. Press
[0],[3],[0],[0], [DOWN]
For 3.00 PM, press
[0],[3],[0],[0],[UP]
6

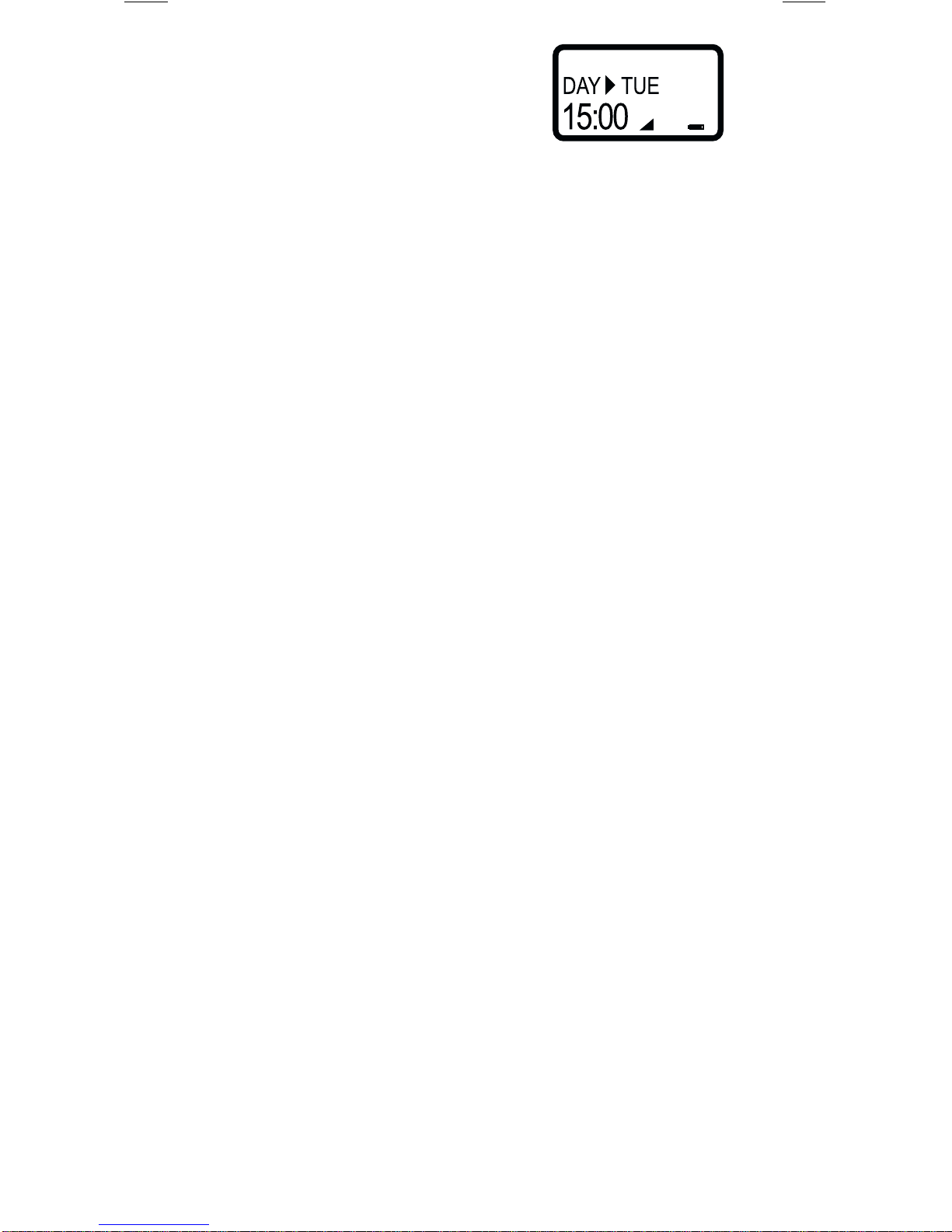

4. State the day of the
week. Press [UP] or
[DOWN] to change the
day of the week.
Sunday (SUN)
Monday (MON)
Tuesday (TUE)
Wednesday (WED)
Thursday (THU)
Friday (FRI)
Monday- Friday (M-F)
Saturday- Sunday (S-S)
Complete week (ALL)
5. Press [SET] to continue.
7
Program the receiver
The receivers must be programmed
to recognise signals from the remote
control. Each receiver corresponds to
a channel on the remote control. Up to
10 channels/receiver can be program-
med.

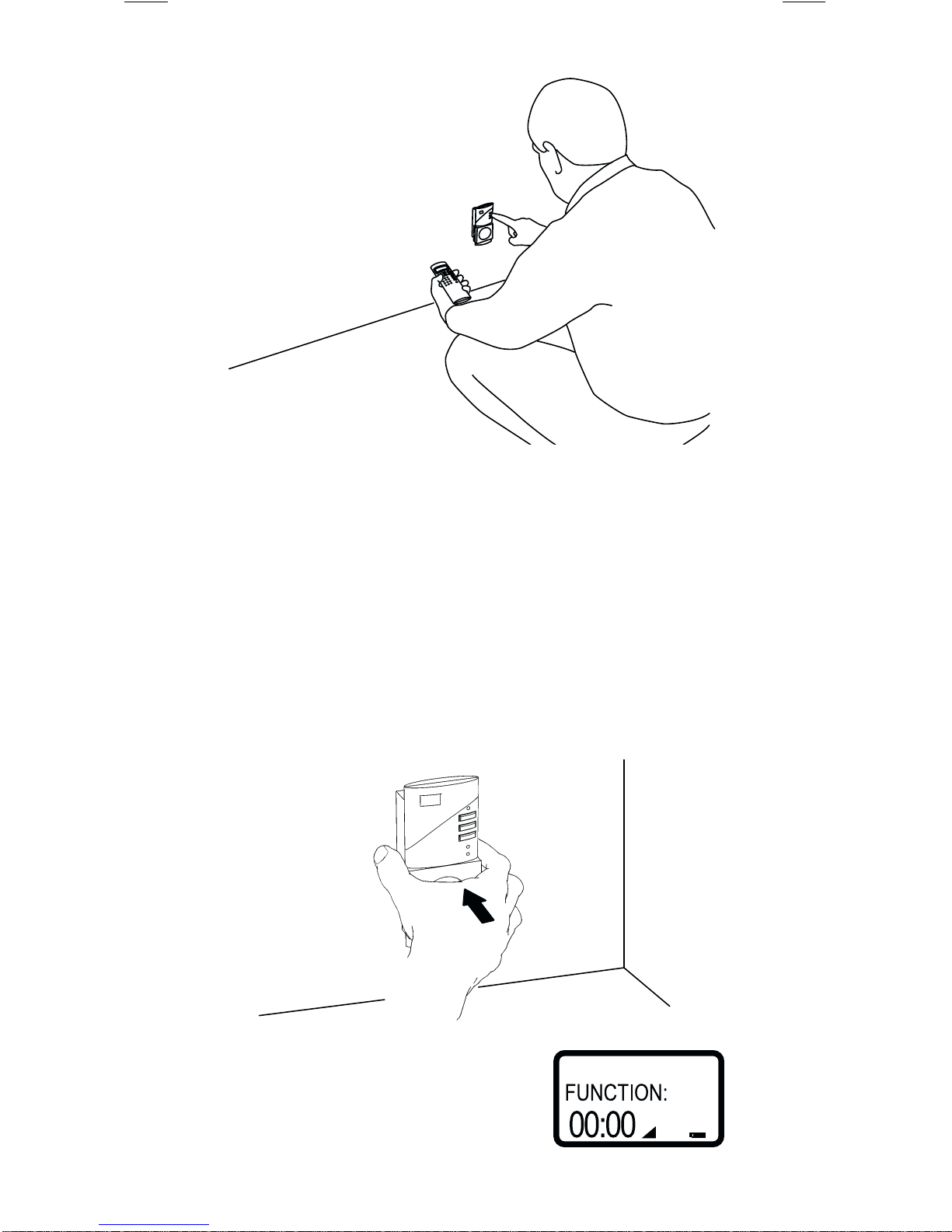

1. Place the receiver in the wall socket.
2. Press [FUNCTION] on
the remote control.
8

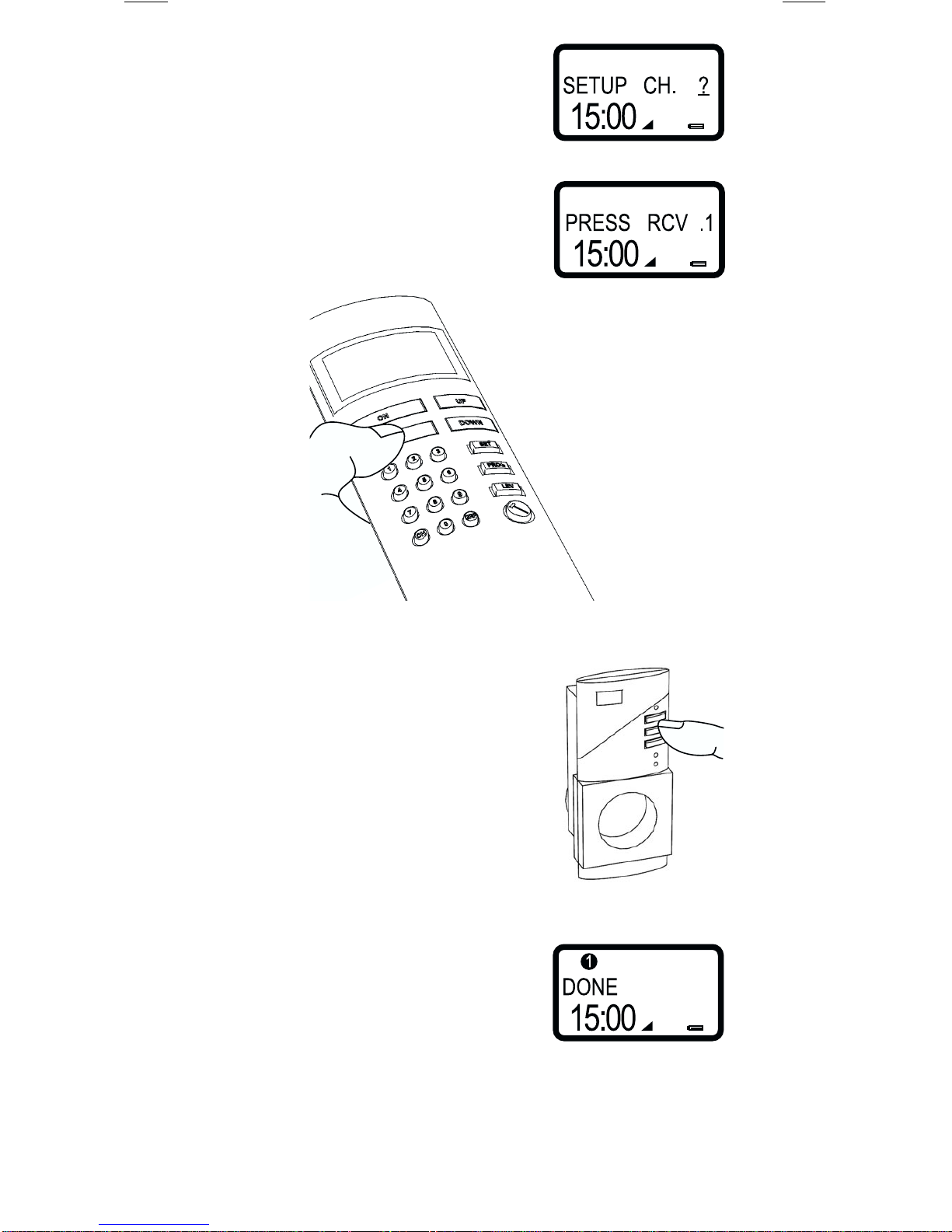

3. Press [6]
4. Select channel (1-10),
for example, 1. Press
[1]
5. Press down one of the
buttons on the receiver
within 10 seconds. The
red lamp on the receiver
starts to flash to ac-
knowledge the receiver
has received the signal
from the remote control.
6. Press [FUNCTION] on
the remote control.
If you have several
receivers, repeat steps
1-6 choosing other
channels. (Up to 10
channels)
9

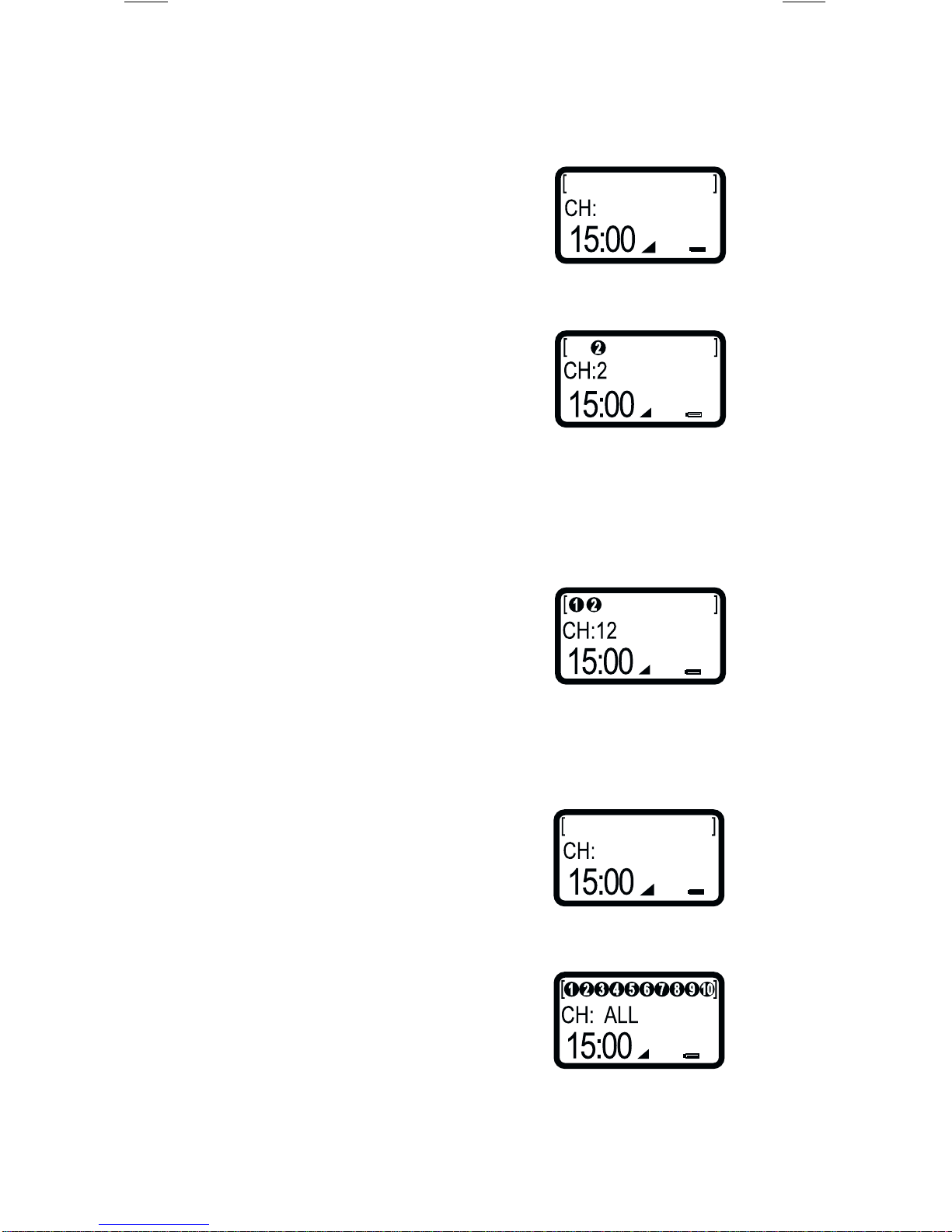

Choose channels
1. To choose one or more
channels (receiver)
press [CH]
2. Choose, for example,
receiver 2 by pressing
[2]. The chosen chan-
nels are shown on the
top row of the remote
control display.
3. If you want to control
several receivers at the
same time, for exam-
ple, receivers 1 and 2,
press [CH] followed by
[1] and [2]
4. To clear the chosen
channels press [CH]
again.
5. To choose all 10 chan-
nels press [CH] once
again.
DIRECT CONTROL
10
Functions

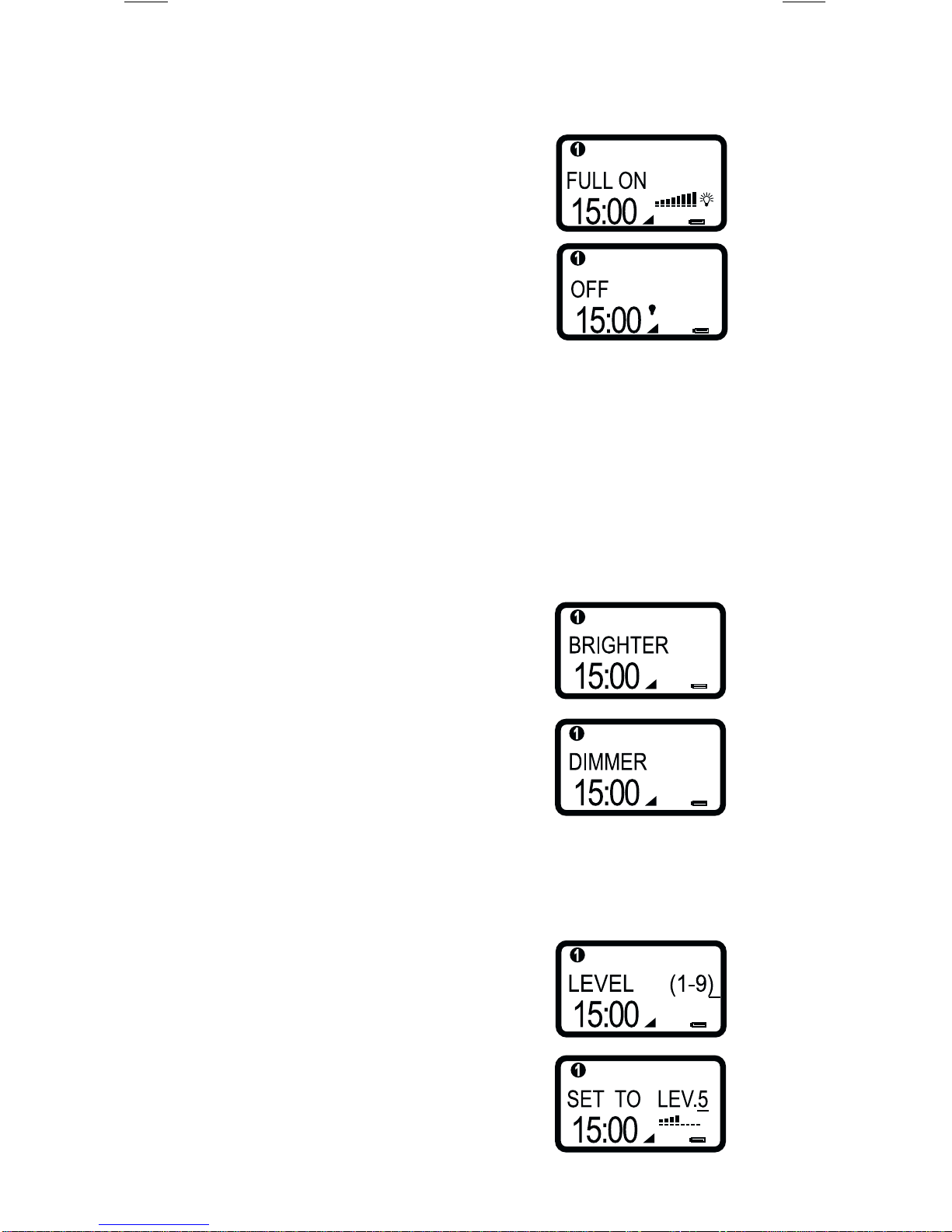

1. Switching on and off.
1.1 Choose the channel/s.
1.2 Press [ON] to
switch on.
1.3 Press [OFF] to
switch off.
2.1 Choose the channel/s.
2.2 Press [UP] to increase
the brightness.
2.3 Press [DOWN] to
reduce the brightness.
3 Set the brightness.
3.1 Choose the channel/s.
3.2 Press [LEV]
3.3 Choose brightness 1-9,
for example 5.
Press [5]
2. Dimmer. Increase or decrease the
brightness. (Only applies to receivers
with the dimmer function.)
NOTE: Energy saving bulbs do not work.
