Contents
Safety information 4
Safety instructions 5
Product description 7
Control panel 8
Programmes 8
Options 10
Settings 11
Before first use 14
Daily use 16
Hints and tips 18
Care and cleaning 20
Troubleshooting 22
Technical information 26
ENVIRONMENTAL CONCERNS 26
IKEA GUARANTEE 26
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe and
accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when the
door is open.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
ENGLISH 4
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and other
working environments;
–by clients in hotels, motels, bed & breakfast and other
residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum) must
be between 0.5 (0.05) / 8 (0.8) bar (MPa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put the cutlery in the cutlery basket with the sharp ends
pointing down or put them in the cutlery drawer in a
horizontal position with the sharp edges down.
•Do not leave the appliance with the open door unattended to
avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
•Do not use high pressure water sprays and/or steam to clean
the appliance.
•If the appliance has ventilation openings in the base, they
must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
Safety instructions
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Follow the installation instruction
supplied with the appliance.
ENGLISH 5
• Make sure that the appliance is installed
below and adjacent to safe structures.
Electrical connection
Warning! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA (BS
1362).
Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
Warning! Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the mains
socket. Contact the Authorised Service
Centre to replace the water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may remain
on the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Internal light
Warning! Risk of injury.
• This appliance has an internal lamp that
comes on when you open the door and
goes off when the door is closed.
• The lamp in this appliance is not suitable
for household room illumination.
• To replace the lamp, contact the Service.
ENGLISH 6
Service
• Contact the Authorised Service Centre to
repair the appliance. We recommend
only the use of original spare parts.
• When you contact the Authorised Service
Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
Serial Number :
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

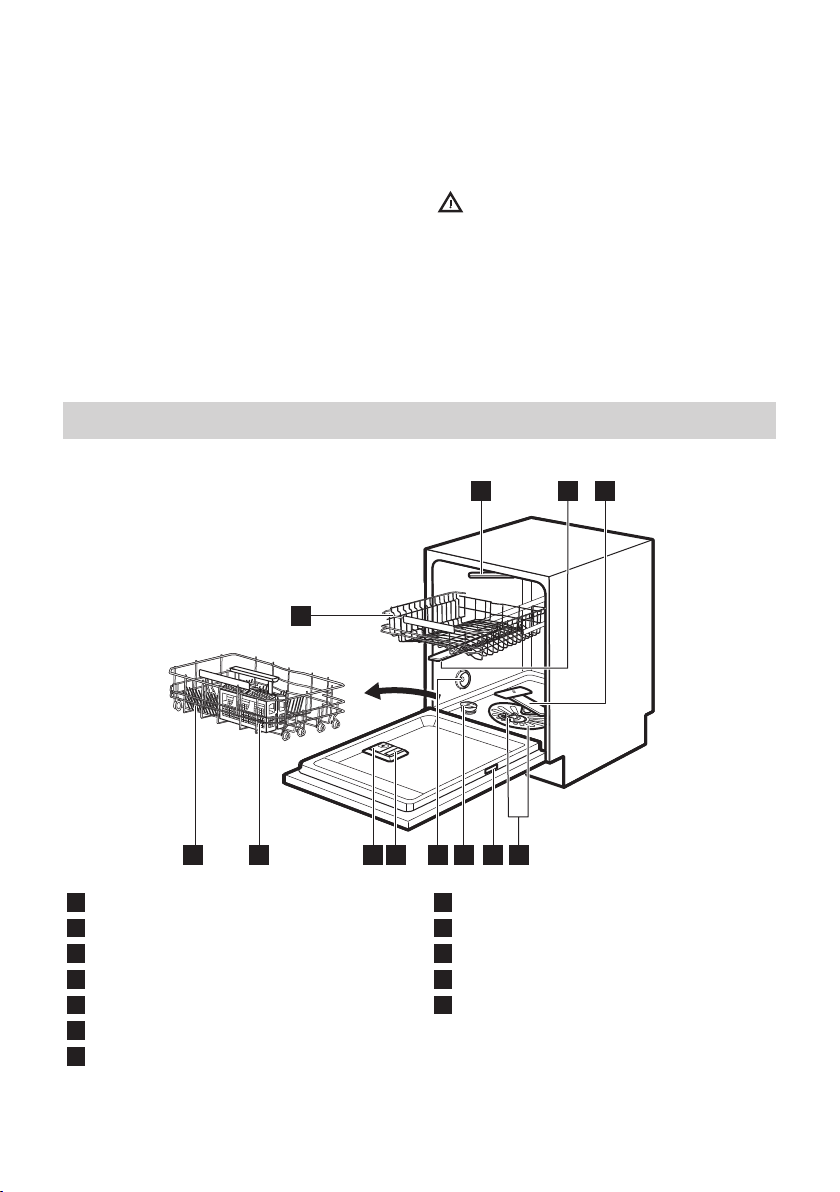

Product description
54
67
9 8
12
23
1
11 10
1Top spray arm
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
ENGLISH 7

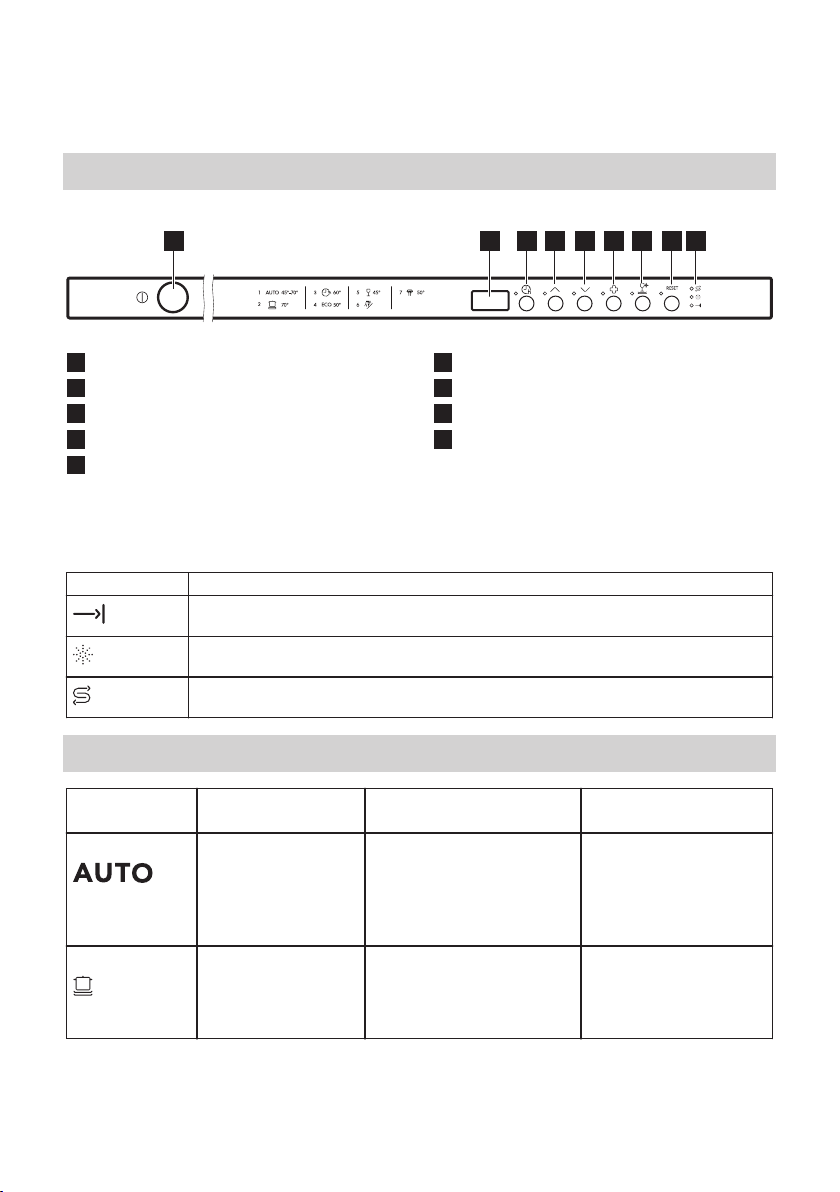

Control panel
12 3 4 5 6 7 8 9
1On/off button
2Display
3Delay button
4Programme button (up)
5Programme button (down)
6ExtraHygiene button
7DryPlus button
8RESET button
9Indicators
Indicators
Indicator Description
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
Programmes
Programme Degree of soil
Type of load
Programme phases Options
P1
1)
• All
• Crockery, cutlery,
pots and pans
• Prewash
• Wash from 45 °C to 70
°C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
P2 • Heavy soil
• Crockery, cutlery,
pots and pans
• Prewash
• Wash 70 °C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
ENGLISH 8
Programme Degree of soil
Type of load
Programme phases Options
P3
2)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C
• Rinse
• ExtraHygiene
• DryPlus
P4
3)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
P5 • Light soil
• Delicate crockery
and glassware
• Wash 45 °C
• Rinses
• Dry
• DryPlus
P6
4)
• All • Prewash
P7
5)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• DryPlus
1)
The appliance senses the degree of soil and the quantity of items in the baskets . It automatically adjusts the tem-
perature and the quantity of water, the energy consumption and the programme duration.
2)
With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
3)
With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with
normal soil. (This is the standard programme for test institutes).
4)
With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form
in the appliance. Do not use detergent with this programme.
5)
This is the most silent programme. The pump works at a very low speed to decrease the level of noise. Because of
the low speed, the programme duration is long.
Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1 7 - 14 0.6 - 1.6 40 - 170
P2 12.5-14.5 1.4-1.7 170-190
P3 10 0.9 41
ENGLISH 9
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P4 10.5 0.83 232
P5 12 - 14 0.7 - 0.9 82-92
P6 4 0.1 14
P7 9 - 10 1.1 - 1.3 230 - 250
1)
The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
Information for test institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC) that
is on the rating plate.
Options
Desired options must be
activated every time before you
start a programme.
It is not possible to activate or
deactivate options while a
programme is running.
Not all options are compatible
with each other. If you have
selected non compatible options,
the appliance will automatically
deactivate one or more of them.
Only the indicators of the options
still active will stay on.
DryPlus
Activate this option when you want to boost
the drying performance. With use of this
option, the duration of some programmes,
water consumption and the last rinse
temperature can be affected.
The combination of DryPlus and rinse aid
gives you even better drying result.
The DryPlus option is a permanent option
for all programmes other than P4 (ECO)
and need not to be selected at every cycle.
Every time P4 (ECO) is activated, DryPlus
option is off and needs to be chosen
manually. In other programmes, the setting
of DryPlus is permanent and is
automatically used in the next cycles. The
setting can be changed at any time before
programme starts.
How to activate DryPlus
Press .
ENGLISH 10
Altri manuali per RENODLAD
7
Indice
Lingue:
Altri manuali IKEA Lavastoviglie
IKEA
IKEA SKINANDE Manuale utente
IKEA
IKEA LAGAN Manuale utente
IKEA
IKEA LAGAN Manuale utente
IKEA
IKEA HYGIENISK Manuale utente
IKEA
IKEA HYGIENISK Manuale utente
IKEA
IKEA MEDELSTOR Manuale utente
IKEA
IKEA SKINANDE Manuale utente
IKEA
IKEA W10282555A Manuale utente
IKEA
IKEA HYGIENISK Manuale utente
IKEA
IKEA TORSBODA Manuale utente
IKEA
IKEA LAGAN 305-061-02 Manuale utente
IKEA
IKEA PROFFSIG Manuale utente
IKEA
IKEA RENGÖRA Manuale utente
IKEA
IKEA SKINANDE Manuale utente
IKEA
IKEA RENGÖRA Manuale utente
IKEA
IKEA SKINANDE Manuale utente
IKEA
IKEA SKINANDE Manuale utente
IKEA
IKEA RENODLAD Manuale utente
IKEA
IKEA DISKAD Manuale utente
IKEA
IKEA RENODLAD Manuale utente
