Ikegami LCM-971 Manuale utente

- 1 -

Installation and User’s Gui

INSTRUCTION MANUAL

9.7” LCD VID O MONITOR

Model :

Please read this manual thoroughly before use and keep for future reference.

LCM-971

- 2 -

Installation and User’s Gui

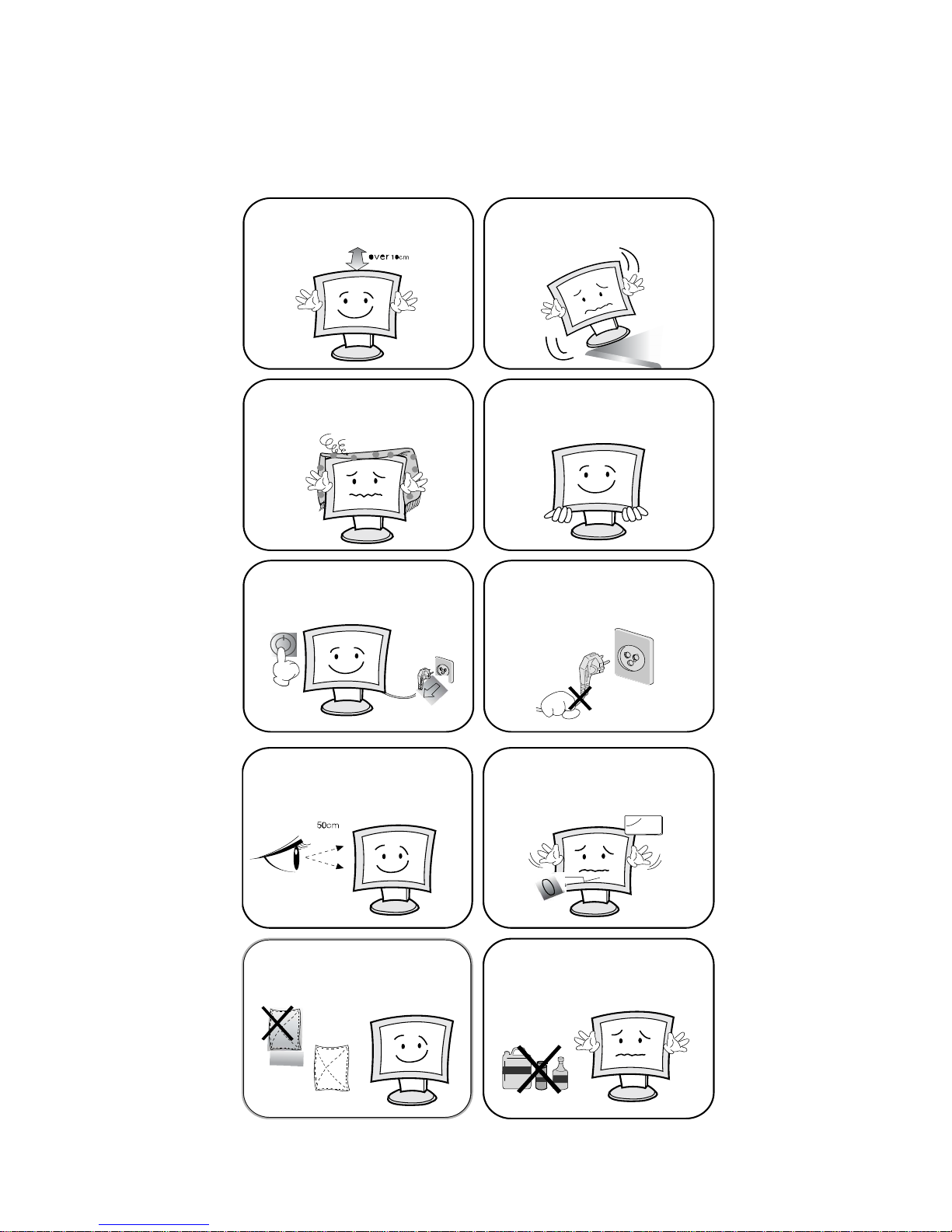

* Follow this safety instruction to use the monitor properly and prevent the damages.

* Keep this user’s guide book for later use.

Warning Statements

* This safety instruction has “ Warning” and “ Caution” as below.

WARNING: If the user does not follow this instruction,

it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Never remove the back over and touch

the inside of the monitor. If you need a

service, please contact the service center.

Keep away the monitor from the

direct sunlight and a heating appliance.

Never push objects of any kind into this

product as they may result in a risk of fire

or electric shock.

Connect the power code to the wall

outlet tightly. If the power code or plug are

defective and the wall outlet is not tight,

please do not use them.

- 3 -

Installation and User’s Gui

Warning Statements

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

or cleaning do not use liquid cleaners.

Never touch the power plug with wet-

hands.

When lightning and thundering, unplug

the monitor from the wall outlet and never

touch it.

Unplug this product from the wall outlet,

when It does not operate for a long time.

When smoking and noising from the

monitor, unplug the product from the wall

outlet and contact a service center.

How to fix

1. Do not open this product as it contains high voltage inside.

2. It may create an electric shock.

3. It the user disassembles and remove the back cover, it does not make sure

4. To make up for the damages and do a service and exchange the monitor..

- 4 -

Installation and User’s Gui

Cautions

Install this monitor some distance

rom the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface.

When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Before carrying the monitor, tum it off and

Unplug the signal cables and the power code

rom the wall outlet.

Take the power plug out from the wall

outlet. Do not pull the cable. It may snap the

inner wires and cause overheating and fire.

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands or the

sharpened material hardly.

or cleaning, unplug the monitor from the Wall

outlet. Do net use the liquid cloth. Use the soft

cloth.

Do not use the chemical liquid for cleaning. It

may cause fading and breakage.

- 5 -

Installation and User’s Gui

TABLE OF CONTENTS

1. INSTALLATION .................................................................................................................

Unpacking

……

.....

....

.......................................................

.................

...........

OSD S TTING

…

...

....

.......................................................

.................

....................

....

3. SP CIFICATION .............................................................................................................

5. TROUBL SHOOTING

....

.......................................................

.................

....................

6. LIMIT D WARRANTY

....

.......................................................

...........

......

...................

Main unctional Button

……

.....

...

.......................................................

.................

........

4. APP NDIX

....

.......................................................

................

.........................

Part List

……

.....

....

.......................................................

.................

............................

Connection

……

.....

....

.......................................................

.................

........................

- 6 -

Installation and User’s Gui

INSTALLATION

1.1 Unpacking

Remove the package cover and place the product on a flat and secure surface or in the installation

location. This equipment should be unpacked and handled with care. If an item appears to have been

damaged in shipment, notify the shipper immediately. Check whether all the following device and

accessories are included with the main system. If any items are missing, notify your Sales or

Customer Service Representative.

1.2 Part List

The following table lists the parts included:

MONITOR USER’S GUIDE EXTERNAL POWER CABLE

POWER ADAPTOR

VGA CABLE

- 7 -

Installation and User’s Gui

INSTALLATION

MENU / EXIT

Activates and exits t e OSD.

SOURCE / ▽

▽▽

▽

Select input source, and move t e OSD menu.

AUTO / △

△△

△

Move t e OSD menu and auto adjustment of RGB source.

◁

◁◁

◁ / VOL

Decrease t e level of volume and move t e previous menu.

Enable Key lock On/Off control w ile it is pus ing for 3 second.

▷

▷▷

▷ / SELECT

Increase t e level of volume and select t e OSD menu.

/ POWER

Turns t e power ON or OFF. T ere will be a few seconds delay before t e display appears.

T e power LED(next to t e power switc ) lig ts wit green w en t e power is turned ON.

T e power is turned off by pressing t e power switc again and t e power LED goes Red.

LED LAMP

Power ON Indicator

SPEAKERS

1.3 Main Functional at Front Panel

- 8 -

Installation and User’s Gui

1.4 Connection at Back Panel

1. HDMI Input

2. AV1 Input

Composite signal input for AV 1.

3. AV1 Output

Video Looping output for AV 1.

4. AV2 Input

Composite signal input for AV2.

5. AV2 Output

Video Looping output for AV 2.

,7. AUDIO1 IN

Stereo audio signal input.

T is input for AV1 and S-VIDEO.

8. S-Video Input

Y/C separated signal input.

9. PC AUDIO Input

10 RGB Input

11. DC 12V Input

- 9 -

Installation and User’s Gui

SD (On Screen Display) SETTING

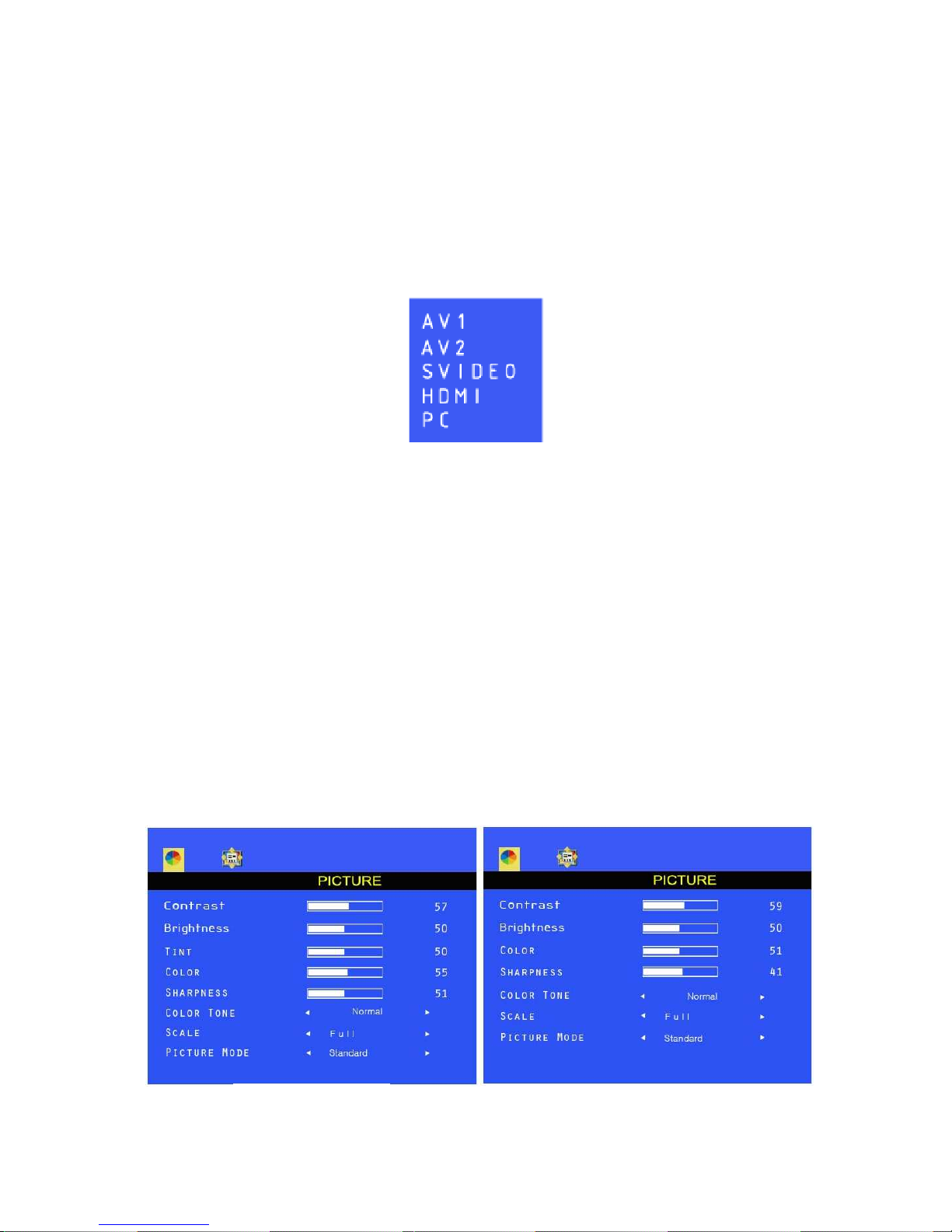

■ A. INPUT Select

Inputs can be set to AV1, AV2, S-VIDEO, HDMI and PC mode.

1. Press t e SOURCE button and t en ▲/▼ Button to move t e source

2. Press t e ▶ button to select t e source.

3. Press t e MENU/EXIT Button to exit t e INPUT menu.

■ B. MENU SELECTION

1. Press t e MENU/EXIT key to access t e main menu.

2. Use t e  and  arrow key to ig lig t a selection.

3. Press t e ►/SELECT key to select an item.

4. Use t e  and  arrow key to ig lig t a selection.

5. Use t e ◀ and  arrow key to adjust t e setting on a selected item.

■ C.

PICTURE MENU on OSD

C. 1 INPUT SOURCE (AV1, AV2, S-VIDEO, HDMI)

- OSD Menu is working on after it connects the source signal.

AV1, AV2, S

VIDEO

HDMI

- 10 -

Installation and User’s Gui

1. Press t e MENU/EXIT Button and t en ◀ / ▶ Button to select t e PICTURE menu.

2. Press t e ▲ or ▼ Button and t en button to select t e Button to select t e adjustment item you

need.

3. Press t e ◀ or ▶ Button to active t e item.

Ex) if you select t e BRIGHTNESS, t en t e below picture appears on t e bottom screen.

4. Press t e MENU/EXIT button to move to t e previous menu.

C.2 INPUT SOURCE (PC Mode only)

5. Press t e MENU/EXIT Button and t en ◀ / ▶ Button to select t e PICTURE menu.

6. Press t e ▲ or ▼ Button and t en button to select t e Button to select t e adjustment item you

need.

7. Press t e ◀ or ▶ Button to activate t e function.

Ex) if you select t e BRIGHTNESS, t en t e below picture appears on t e bottom screen.

8. ‘Auto’ function is adjusting t e location of screen by receiving t e sync signal from PC.

Ex) Resolution c ange.

9. ‘Color Auto’ is adjusting t e optimum color coordination automatically.

■ D.

VOLUME MENU on OSD (AV1, AV2, S-VIDEO, PC, HDMI)

1. Press t e ▶/Enter button for adjusting t e volume up and down.
