Ikelite 6214.30 Manuale del proprietario
Thank you for your purchase of Ikelite equipment. Please read the
“Instruction anual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.
Digital Housing
Supplemental Instructions
6214.30 Sony DSC-WX300, WX350
Housing Specifications
Controls ............................All camera functions
Width ................................6.2 in (157 mm) including controls
Height ..............................4.5 in (114 mm) including controls
Depth ................................4.8 in (122 mm) including controls
Weight ..............................1.7 lb (771 g)
Buoyancy..........................Slightly positive in freshwater
Depth Rating .................... 200 ft (60 m)
Built-in Flash ....................Yes
Strobe Connection............Optical Trigger
Tray ounting ..................12-24 thread with 3 in spacing (76 mm)
ain O-Ring ....................0132.45
Port O-Ring ......................0103
Port Outer Diameter ........3.9 in (99 mm)
46mm Acc. Lenses ..........No
67mm Acc. Lenses .......... acro lenses only with 9306.82 acro Adapter
Bayonet ount Lenses ....No
WD-4 Wide Angle Dome ..Yes
2
Supplied Accessories
- 0200.08 Vinyl Port Cover
- 0321.10 Safety Lanyard
- Flash Diffuser
- Flash Deflector
- 0184.1 Silicone Lubricant
- Extra Control Tips/Sleeves
3

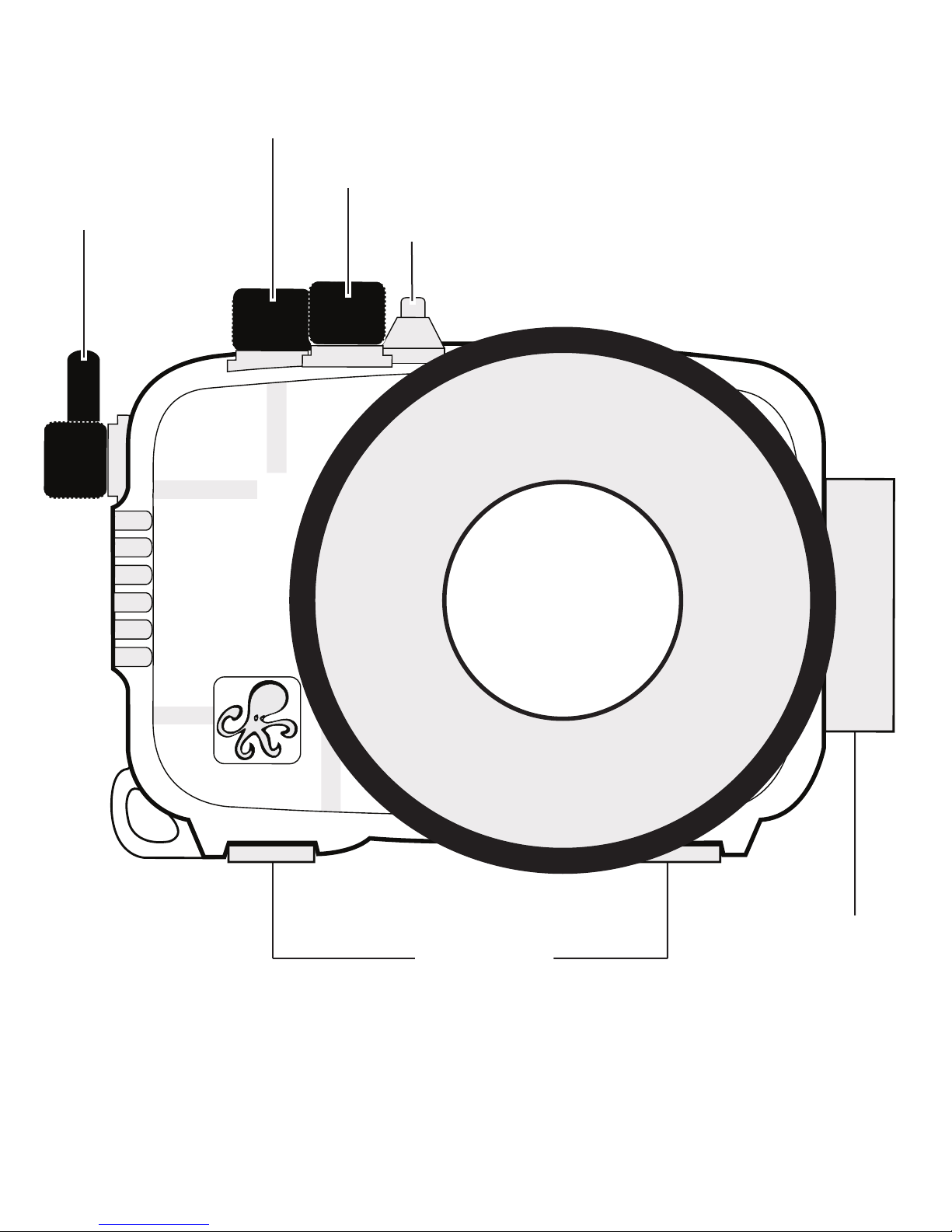

Parts of the Housing - Front View
ode Dial
Tray ounts
Latch
Lens Port
ON/OFF Button
Shutter Button
Zoom Lever
4

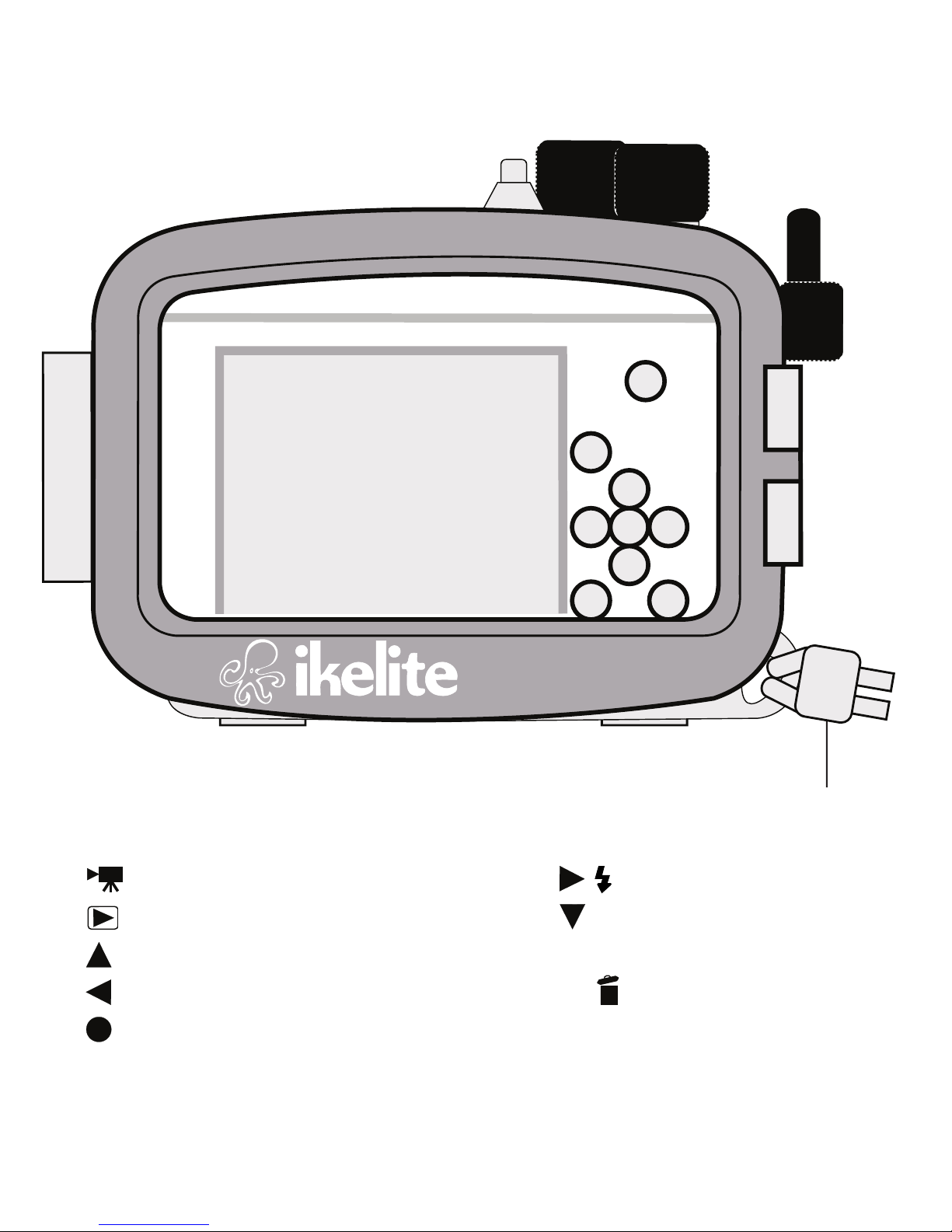

1. ovie Button
2. Playback
3. DISP. / Up button
4. Self-Timer / Left Button
5. SET Button
6. Flash / Right Button
7. Down Button
8. MEN Button
9. ?/ Guide / Delete Button
Lanyard
54
1
9
3
2
8
7
6
ULTRA
compact
Made in USA
Parts of the Housing - Back View
5
Initial Camera Settings (before placing camera in housing)
- Insert fully charged camera battery.
Set ode Dial to “P” Program Auto. The shutter speed will be locked at
1/30th second when the flash is activated.
Set Still Image Size to “4:3(18 )” or “16:9(13 ) for widescreen view.
Set ISO to “200.”
Set White Balance to WB/Auto. For best results, manually set white
balance for each working depth using “One Push Set.”
Set Focus to “Center AF” and etering ode to “Center.”
Set Smile Shutter to “Off.”
Set ovie Quality to “FX” and Still Image Size (Dual Rec) to “16:9/13 .”
Set ovie SteadyShot to “ACT.”
-In Menu:
Set ovie Format to “AVCHD”.
Set AF Illuminator, Digital Zoom and Red Eye Reduction to “Off.”
Set Disp. Resolution to “High.”
Set Power Save to “Off.”
Insert and format an SDHC memory card.
Set Date and Time.
- Set flash function to “On” Always use flash.
* All menu functions not mentioned should be set to user preference.
6
External Macro Adaptor 9306.82
Allows attachment of 67mm threaded macro lenses from Inon and
Epoque. NOT for use with 67mm threaded wide-angle lenses.
WD-4 Wide-Angle Conversion Dome 6430.4
The removeable WD-4 corrects light refraction underwater,
restoring the camera’s original angle of coverage. Approximately
3/4 of the camera's zoom range can be used with the dome in
place. Slight vignetting may occur at camera’s widest angle setting.
Note: Other wide angle conversion or accessory lenses cannot be used
with this housing.

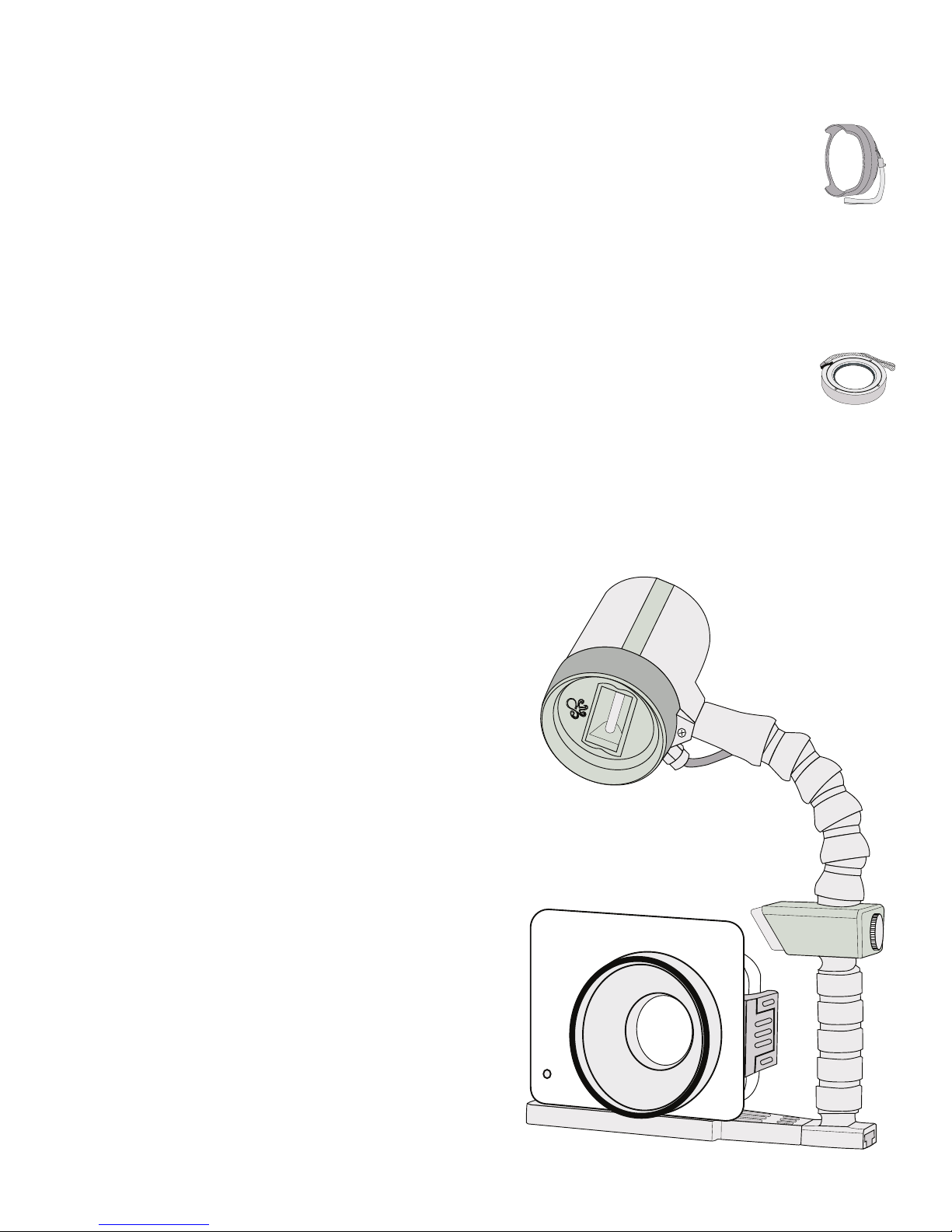

Housing Accessories
AF35 Strobe Package 4035
The AutoFlash AF35 kit is a great
compliment, and an effortless,
affordable way to add a flash to your
new Ikelite point and shoot camera
system. Everything you need to get
started is in the box. Just attach it to
the bottom of your housing and start
taking pictures!
The AF35 Strobe Package is available
to support your housing along with a
full range of accessories. Please visit
www.ikelite.com to see the most
current information about
recommended accessories for your
housing.
ikelite
35
AF
ikelite
AUTOFLASH
Limited Warranty
This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
Ikelite product.
7
Customer Support
Please read the troubleshooting section of the “Instruction anual”
before contacting Ikelite.
6214.30_Sony_WX300_350_2-0614
Ikelite nderwater Systems
50 West 33rd Street
Indianapolis, IN 46208 SA
www.ikelite.com
© 2014 Ikelite Underwater Systems
