Ilsco TaskMaster TR-CUT95CUS Manuale utente
Instruction manual
Model: TR-CUT95CUS
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
TASKMASTER TOOLS
4730 Madison Road
Cincinnati OH 45227
www.ilsco.com
Phone:
800-776-9775
513-533-6200
2
TR-CUT95CUS
Table of Contents
Warranty and Servicing......................................................................................................................................................3
Safety Symbols......................................................................................................................................................................3
Safety........................................................................................................................................................................................4
Technical Specications.....................................................................................................................................................5
Identication..........................................................................................................................................................................6
Operating Instructions.......................................................................................................................................................7
Tool Maintenance.................................................................................................................................................................8
Head Assembly Breakdown and Parts List..................................................................................................................9
Thank you...
for buying a TASKMASTER TOOL. Our mission is to bring product innovation and exceptional
customer service to the marketplace. This tool line is reliable, dependable, and durable for our
customer’s needs.
Please read this instruction manual carefully before using the product. If you have any questions
about our product please reach out to our customer service department (see back cover). No part
of the contents of this manual may be reproduced, transmitted or circulated in any form or by any
means without the prior written authorization of TASKMASTER TOOLS.
3
TR-CUT95CUS
SAFETY SYMBOLS
Do not dispose
of product.
Please recycle
Electric Shock
Hazard- use
proper protective
equipment
Attention!
Risk of
cutting injury
Never use
with unlocked
workhead
Read the operating
instructions
before use
Wear protective
goggles
WARRANTY AND SERVICING
TASKMASTER PRO 5-Year Tool Service Protection Program
Introducing the industry’s best service & support program for all your ILSCO hydraulic crimping and
cutting tools. All ILSCO tool buyers are automatically registered in the TASKMASTER PRO Service
Protection Program and will receive free tool repairs for defects in material or workmanship on their
tool(s) for ve years after their original purchase date. (Excludes abuse, non-intended use, tampered
with or normal wear and tear.)
TASKMASTER PRO Tool 5-Day Repair Pledge
If your tool(s) need repair at any time within ve years of your original purchase date, our
TASKMASTER PRO service network will repair your registered tools within ve business days of
receipt.
TASKMASTER PRO Tool Loaner Program
If you need a replacement tool during any repair, our TASKMASTER PRO network can typically
provide a comparable loaner tool to registered tool owners while your tool is being repaired.
FREE Tool Reconditioning
Your rst reconditioning is on us!
To Find a TASKMASTER PRO Service Partner
Call ILSCO for assistance in solving tool performance issues or for any of your service needs.
ILSCO tool owners will be oered options to solve any tool replacement, parts or repair
issues.
Call 513-533-6200 or 800-776-9775
Monday to Friday
8:00AM to 5:00PM Eastern Time (ET)
4
TR-CUT95CUS
SAFETY
Read all safety warnings, instructions provided with this tool. Failure to follow all
instructions listed below may result in electric shock, re and/or serious injury. Save all
warnings and instructions for future reference.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Keep children and bystanders away while operating a hydraulic tool. Distractions can
cause you to lose control.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a
hydraulic tool. Do not use a hydraulic tool while you are tired or under the inuence
of drugs, alcohol, or medication. A moment of inattention while using hydraulic tools
may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective
equipment such as rubber gloves, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the tool in unexpected situations.
• Do not let familiarity gained from frequent use of hydraulic tools allow you to
become complacent and ignore tool safety principles. A careless action can cause
severe injury within a fraction of a second.
SERVICE
• Have your tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the hydraulic tool is maintained.
5
TR-CUT95CUS

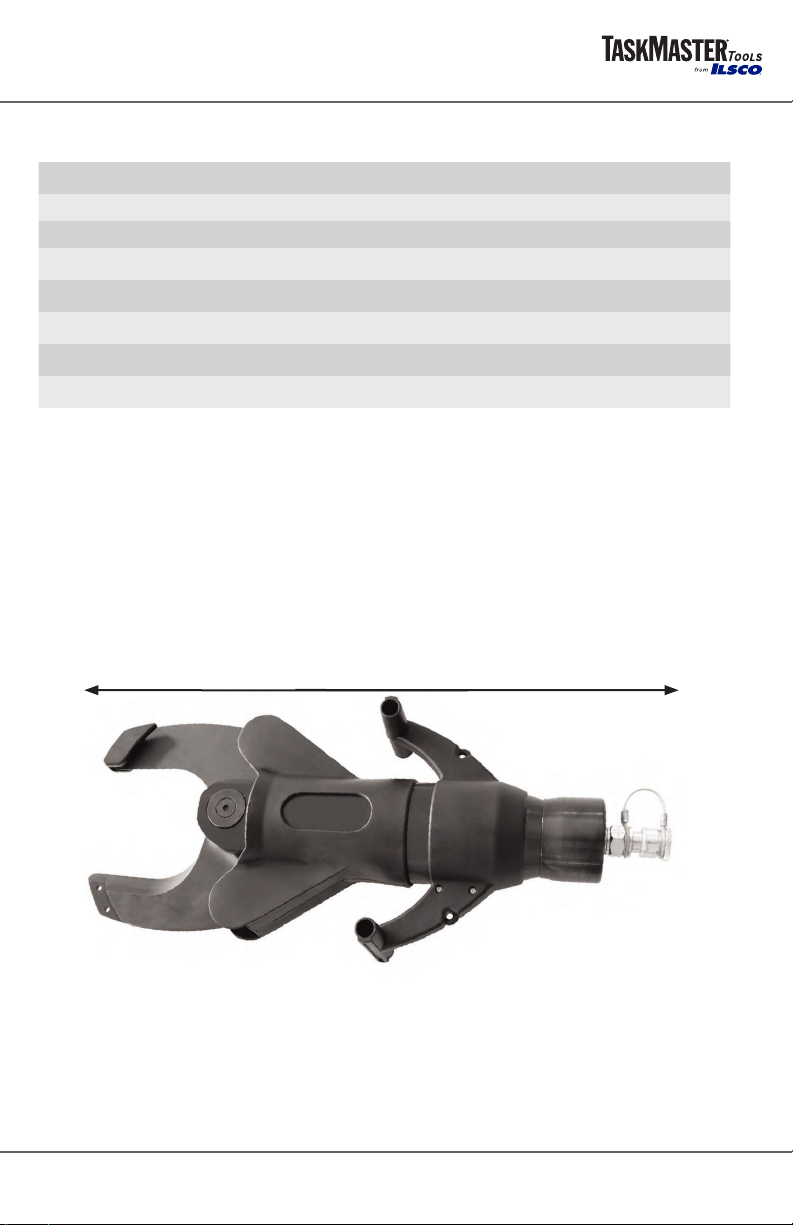

TECHNICAL SPECIFICATIONS
Force developed: 7.3 tons
Jaw opening: 3.75 in.
Dimensions: 18.3 in. x 7.9 in. x 3.5 in. (L x W x H)
Weight: 15.2 lbs.
Cut Capacity
CU conductor: 1000 kcmil
AL conductor: 3.5“
18.3 in. (465 mm)
6
TR-CUT95CUS
Cutting Blades
Carrying Handles
Male Coupler
IDENTIFICATION
NOTE: Includes molded carrying case.
7
TR-CUT95CUS
OPERATING INSTRUCTIONS
Be sure to read instructions carefully, wear safety goggles, and keep ngers away from cutting
head.
NOTE: Connect head to 10,000 PSI hydraulic pump.
CUTTING
1. Fully retract the cutting blades.
2. Place the wire between the cutting head jaws. Make sure all cuts are made perpendicular to
the cutting head.
3. Advance the head.
4. Once cut is complete, fully retract the cutting blades.
CAUTION: always wear eye protection
while cutting
WARNING: do not cut steel
8
TR-CUT95CUS
TOOL MAINTENANCE
Daily maintenance:
• After each cutting cycle wipe the cutting head jaws free of metal shavings.
• Wipe down all steel parts with WD-40.
• Store the tool in a non-humid environment.
The head should provide many years of service when given the proper maintenance and care.
Should you experience any diculty with the operation and maintenance of this tool, contact our
customer service department (see back cover).
# Part # Part Description Qty
1 200623 CAP SCREW 1
2 713738 BRIDGE 1
3 713741 BOLT 1
4 701008 GRUB SCREW 1
5 712882 HANDLE 2
6 100831 PT-SCREW 6
7 712903 PROTECTION 1
8 710710 CAP SCREW 1
9 712887 CYLINDER 1
10 713779 PISTON CPL 1
11 713753 GUIDE BUSHING 1
9
TR-CUT95CUS
HEAD ASSEMBLY BREAKDOWN AND PARTS LIST
# Part # Part Description Qty
1 200623 CAP SCREW 1
2 713738 BRIDGE 1
3 713741 BOLT 1
4 701008 GRUB SCREW 1
5 712882 HANDLE 2
6 100831 PT-SCREW 6
7 712903 PROTECTION 1
8 710710 CAP SCREW 1
9 712887 CYLINDER 1
10 713779 PISTON CPL 1
11 713753 GUIDE BUSHING 1
# Part # Part Description Qty
12 712892 SCRAPER RING 1
13 713751 BODY 1
14 705806 FILTER DISC 1
15 713743 PRESSURE DISC 1
16 713748 SCREW 1
17 713752 SHIM RING 2
18 713736 PUSH ROD 2
19 713739 BOLT 4
20 700570 LOCKING RING 8
21 E712823 COUPLER 1
1
4
20
19
18
17
16
15
14
13
12
11
10
9
8
1
7
6
5
3
2
6
17 18
19
20
20 21
10
TR-CUT95CUS
