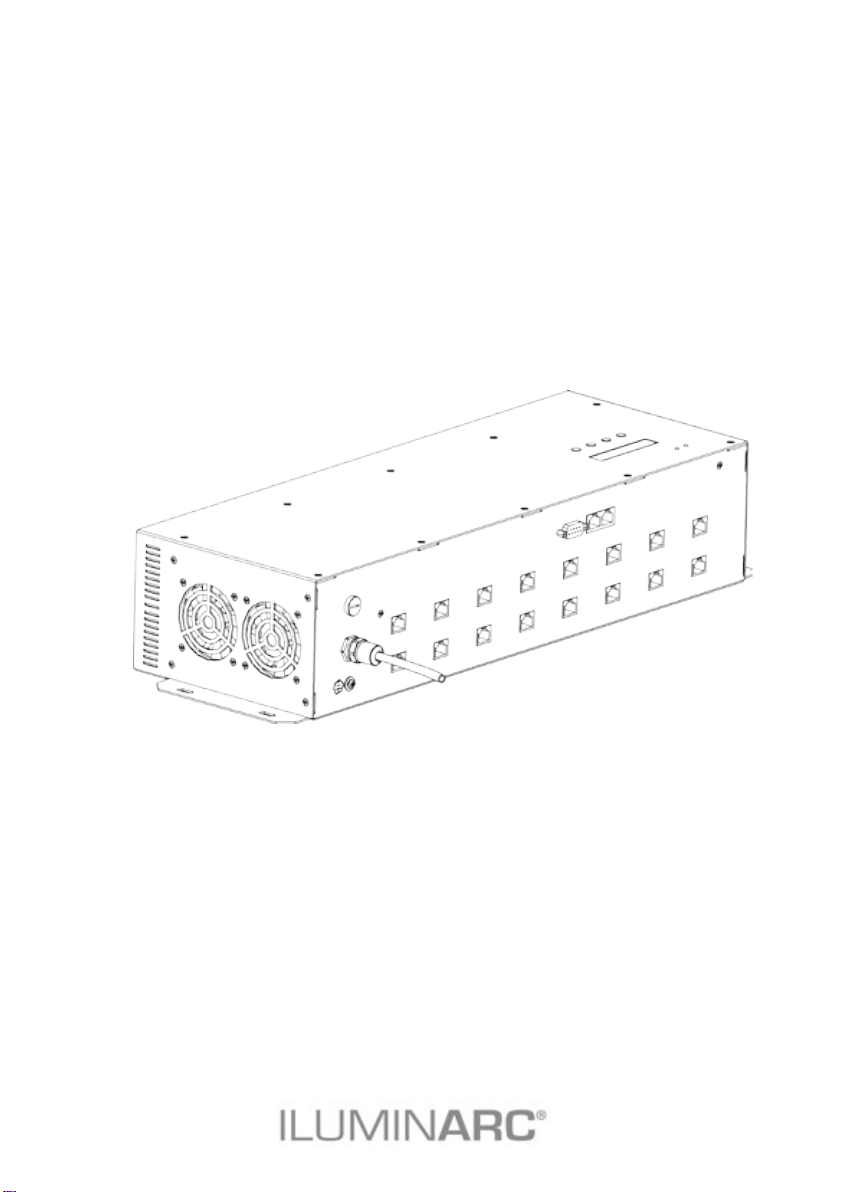

LΩGIC 16X36

Quick Reference Guide

LΩGIC 16X36 QRG

About this

Guide

The LΩGIC 16X36 Quick Reference Guide (QRG) only contains the

product’s connection and mounting information, as well as the menu

options and the DMX values.

Disclaimer

This QRG does not replace the product’s User Manual. You must

download the corresponding User Manual from the ILUMINARC Web

site (www.iluminarc.com) to learn about the disclaimers, safety notes,

programming modes, and technical information.

Safety Notes

•

DO NOT open this product unless instructed. It contains no user

serviceable parts.

•DO NOT look at the light source when the LΩGIC products are

on.

•DO NOT touch the LΩGIC controller or products while operating

because they may be hot.

•DO NOT cover the ventilation slots when this product is operating

to avoid internal overheating.

•DO NOT leave any flammable material within 50 cm from the

LΩGIC controller or products while connected to the power outlet

to minimize the risk of fire.

•DO NOT mount this product overhead without using a safety

cable.

•DO NOT operate this product or any LΩGIC product in any

location where dust, excessive heat, water, or humidity may affect

them.

•DO NOT operate this product or any LΩGIC product if you see

damage on the housing, lenses, or cables. In such case, have the

damaged parts replaced by an authorized technician at once.

•DO NOT connect this product to a dimmer or rheostat.

•ONLY connect this product to a grounded and protected circuit.

What Is

Included

•

One LΩGIC 16X36

•One RJ-45 to 3-pin DMX male adapter (input)

•One RJ-45 to 3-pin DMX female adapter (output)

•Sixteen (16) RJ-45 couplers

•One Warranty Card

•

One Quick Reference Guide

LΩGIC 16X36 QRG

Features

1, 2, 3, 4, 6, 9, or 48-channel DMX control

Operating modes:

1-channel: RGB, dimmer (no individual RGB adjustments)

3-channel: RGB control (individual RGB adjustments)

4-channel: RGB control, dimmer

6-channel: RGB control, dimmer, color macro, strobe

channel: RGB control, dimmer, color macro, strobe, auto

+ custom, auto speed, zone selection

48-channel: RGB control, line control

•16 output lines

•RGB color mixing with or without DMX control

•Automated and customizable programs

•Recall auto and custom programs via master/slave or DMX

Additional Features

•Master/Slave (RJ-45)

•Static Playing

•RGB and white color calibration

•Schedule playback with time clock functions

•LCD display with password protection

•

LΩGIC 16X36 QRG

AC Power

The LΩGIC 16X36 has an auto-ranging power supply that can work

with an input voltage range of 100~240 VAC, 50/60 Hz.

Make sure that you are connecting this product to the proper voltage, as

per the specifications in this guide, the product’s User Manual,

or on the

product’s sticker.

AC Plug

The LΩGIC 16X36 comes with a power input cord that enters through a

strain relief boot that is then hardwired to the inside of the unit. The

other end of the power cord is bare-ended. Please use the table below to

wire the new plug.

Connection Wire (US) Screw Color

(US)

Wire

(Europe)

AC Live

Black

Yellow or

Brass

Brown

AC Neutral

White

Silver or Gray

Blue

AC Ground

Green/Yellow

Green

Green/Yellow

Fuse

Replacement

1) Disconnect the product from the power outlet.

2) With a Phillips #2 head screwdriver, unscrew the fuse holder cap from

its housing.

3) Remove the blown fuse and replace it with a good fuse of the same type

and rating (F 10 A, 250 V).

4) Screw the fuse holder cap back in its place and reconnect power.

LΩGIC 16X36 QRG

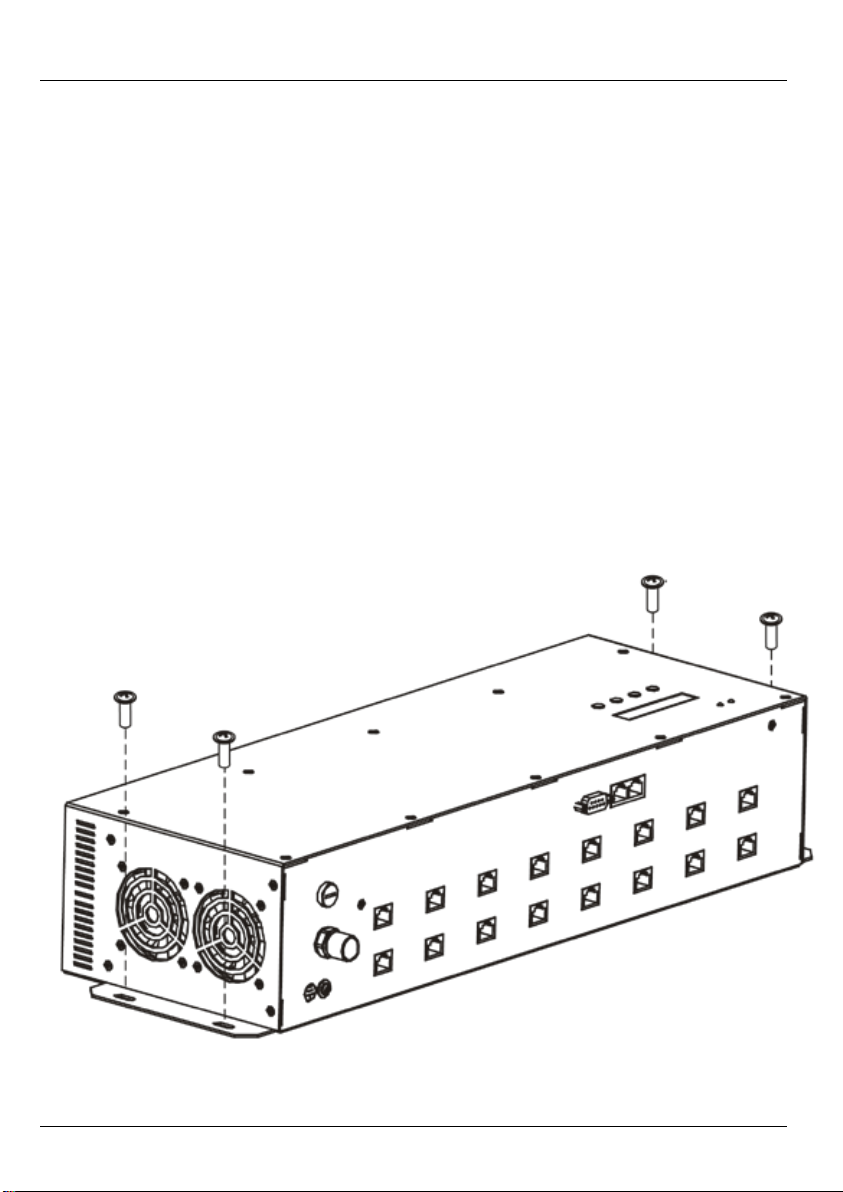

Mounting

Before mounting this product, read the safety notes at the beginning of

the LΩGIC 16X36 User Manual and follow the mounting procedures

indicated in it.

The LΩGIC 16X36 consists of a single unit with 4 mounting point

ILUMINARC

recommends following the general guidelines below when

mounting the LΩGIC 16X36.

When selecting an installation location, consider ease of access to the

unit for operation, programming adjustments, and routine

maintenance.

Never mount the unit in places where rain, high humidity, extreme

temperature changes, or restricted ventilation may affect it.

Make sure that the location where you are mounting the unit can support

its weight. Please see the Technical Specifications section of the

User Manual for the weight requirement of this unit.

Use four screws to attach the unit to a flat, dry surface. Make sure that

you can access the unit for maintenance and programming.

LΩGIC 16X36 QRG

CAT5 Linking

The LΩGIC 16X36 controller uses a signal patch implemented with a

CAT5/6 cable to link to other LΩGIC 16X36 controllers (see Cable

Connections).

To use this product in Master/Slave mode,

you must connect the master

and slave LΩGIC 16X36 controller using the CAT5 link.

DMX Linking

Each LΩGIC 16X36 controller comes with a pair of RJ-45 to XLR 3

adapters for connection to a DMX universe (DMX controller and other

DMX products linked with a DMX connection). See Cable Connections

for a detailed pin out diagram.

LΩGIC Fixture

Connectivity

Each LΩGIC product comes with a CAT5 cable to link it to the LΩGIC

16X36 controller. You can connect the product directly to any of the 16

output lines of the LΩGIC 16X36 controller, or you could make an

extension to install the LΩGIC product at a farther location.

In this case, you can use an RJ-45 coupler or an RJ-45 splitter to

connect the LΩGIC product to the extension cable. See Fixture

Connection Diagram for more details.

Splitter

Each LΩGIC product comes with an RJ-45 splitter to allow the

connection of two products to a single LED output port of the LΩGIC

16X36 controller. You can use more than one splitter on a single LED

output as long as you respect the maximum load of 36 LEDs (12 LEDs

per color). See Maximum Output Line Loading for more details.

RJ-45

Terminator

To make an RJ-45 terminator, connect 120 ohms, ¼ W resistor between

pins 6 (green/white) and 7 (white/brown) of an RJ-45 plug.

Insert the terminator into the DMX Out RJ-45 jack of the last LΩGIC

16X36 controller, as shown in Product Connection Diagram.

LΩGIC 16X36 QRG

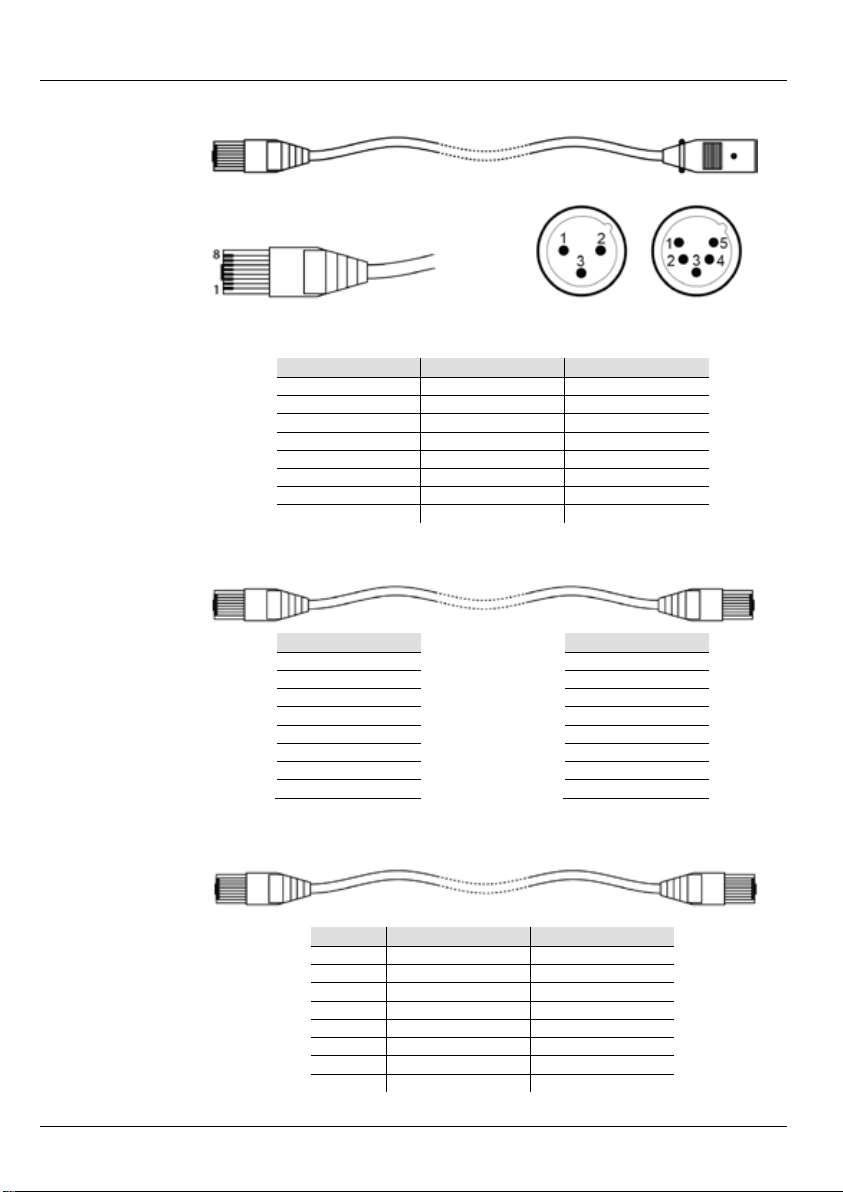

Cable

Connections

RJ-45 Plug

3-pin XLR Male

5-pin XLR Male

Pin 1: Not Used

Pin 2: Not Used

Pin 3: Not Used

Pin 4: Not Used

Pin 5: +5 V

Pin 5: Not Used

Pin 6: Data +

Pin 3: Data +

Pin 7: Data -

Pin 2: Data -

Pin 8: GND

Pin 1: GND

RJ-45 Plug

Pin 1: Not Used

Pin 2: Not Used

Pin 3: Not Used

Pin 4: Not Used

Pin 5: +5 V

Pin 6: Data +

Pin 7: Data -

Pin 8: GND

Pin #

Wire Color

Function

White/Orange

Red LED +

Orange/White

Green LED +

White/Green

Blue LED +

Blue/White

Not Used

White/Blue

Red LED -

Green/White

Green LED -

White/Brown

Blue LED -

Brown/White

Not Used

DMX to RJ-45 adapter: Used to link a DMX controller to the LΩGIC 16X36

RJ-45 Plug Pin Assignment

View facing pins

XLR (male)

3-pin

Signal Patch cable: Used for linking two LΩGIC 16X36 controllers

LED Patch Cable: Used to link the LΩGIC 16X36 controller to its products.

RJ-45 Plug

DMX XLR (male)

XLR (male)

5-pin

LΩGIC 16X36 QRG

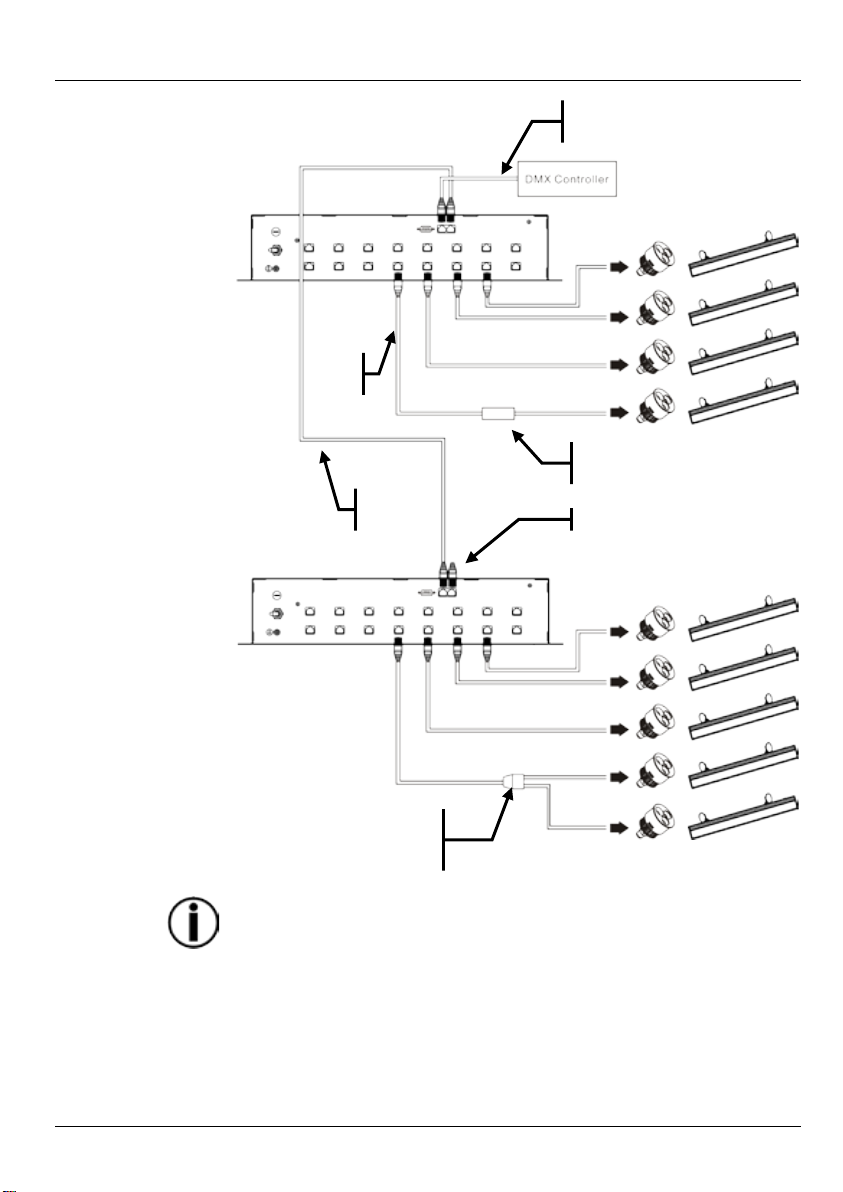

Product

Connection

Diagram

Connect the DMX

controller to the first

LΩGIC 16

X36 using a

DMX to RJ-45 ad

apter

cable.

Link each LΩGIC

16X36 with a RJ-

signal patch cable, as

shown.

You can use a

RJ-45 coupler

to link

the LED patch and the

product’s CAT5 cable.

You should use an RJ-

45 terminator

on the

DMX output of the last

LΩGIC 16X36.

Once done

, connect

your lights (loads)

directly to the

corresponding line

outputs.

Alternatively, you can

use the line splitter

connector(s), as seen

the diagram

Do not use the splitter as a cou

pler. All cables must be terminated to a

product.

RJ-45 Coupler

(Included with controller)

RJ-45 to DMX adapter

(Included with controller)

RJ-45 Terminator

RJ-45 Splitter

(Included with

product)

Signal

patch

LED

patch

LΩGIC 16X36 QRG

Fixture

Internals

To understand the maximum load allowed per output line, it is

important to know how the internal components are wired inside the

LΩGIC products.

LEDs and Dies

Single color LEDs have a single die (the part of the LED that generates

light). Tri-color LEDs have three dies (one for each color) on a single

package.

LEDs and

Clusters

Inside the LΩGIC products, the LEDs are grouped in clusters of three

LED dies each.

•In a product with single color LEDs, three individual LEDs compose the

cluster.

•In a product with tri-color LEDs, a single tri-color LED makes up the

cluster.

LEDs Wiring

In an LED cluster, each LED die connects to an individual output

channel from the LΩGIC controller. When a product has more than one

cluster, all the LED dies

of a particular color connect to the same output

channel.

Maximum

Output Line

The LΩGIC 16X36 controller has 16 output lines. You can select each

output line individually or you can select all output lines (Zone

Selection).

Each output line has three channels: Red, Green, and Blue.

Each of the three output channels can support up to 12 LED dies.

Therefore, the maximum number of LED dies supported per output line

is 36.

When connecting LΩGIC products to the LΩGIC 16

X36 controller, do not

exceed the maximum of 12 LED dies per output channel (36 LEDs dies

per output line).

The table below shows the maximum number of LΩGIC products that

can be loaded onto an output line per product model.

Model Name

Total

LEDs

Total LED

Dies

Max. Fixtures

per Output

Ilumiline LΩGIC 24 RGB

Ilumiline LΩGIC 24 Optic RGB

Ilumiline LΩGIC 12 Optic RGB

Ilumipod LΩGIC 12 Optic RGB

Ilumipod LΩGIC 6 Optic RGB

Ilumipod LΩGIC 3 Optic RGB

Ilumipod LΩGIC Tri-1 RGB

Ilumipod LΩGIC Tri-4 RGB

LΩGIC 16X36 QRG

RGB Mode Menu Options

Main

Programming Steps

Instructions

1. Play auto

RGB 1~10

SPEED 1~255 Choose from 20 automatic

programs

RGBL 1~10

2. Play custom CUSTOM 1~10

Choose from 10 user-defined

programs

3. Play static STATIC

PLAYING

LALL

L-1~16

(Output Line)

RED

0~255

Configure and/or play a single step

program per output line

GREEN

BLUE

DIMMER

STROBE

0~20

4. Play schedule

SCHEDULE PLAYING!

Play scheduled program

5. DMX address

001~512

Sets DMX starting address

6. Personality

EFFECT

9-channel mode

RGB

3-channel mode

RGB+D

4-channel mode

RGB+DMS

6-channel mode

RGB+LINE

48-channel mode

RGB+LINE+DMS

51-channel mode

SOLID

1-channel mode

7. Edit custom C-1~10

(Custom) S-1~20

(Scene)

0~255 Combine Red, Green, and Blue to

generate a custom color

0~20

Set the strobe frequency

0~255

Set the on time

Set the fading time

8. Settings

PASSWORD ON/OFF

Turn password protection on after

30 seconds of being idle

ALLOW EDIT

YES/NO

Enable/disable Custom program

editing

RESET ALL

Default all settings

RESET CUSTOM

Erase the custom programs

RESET SCHEDULE

Erase the schedule

UPLOAD PASSWORD? [Enter Password]

Transfer custom programs from

master to slave units

CLOCK

TIME NOW

View the current DOW, date, and

time.

EDIT TIME

DOW

SU~SA

Edit the DOW, date, and time

DAY

01~31

MONTH

01~12

YEAR

00~99

HOUR

00~23

MIN

00~59

SEC

Continues on the next page

Indice

Altri manuali Iluminarc Attrezzatura di illuminazione

Iluminarc

Iluminarc Colorist Panel 36Qa Manuale utente

Iluminarc

Iluminarc LOGIC DRIVE 2X Manuale utente

Iluminarc

Iluminarc Colorist POD 18Qa Manuale utente

Iluminarc

Iluminarc ILUMIPANEL 24g2 IP Manuale utente

Iluminarc

Iluminarc Ilumipanel 90 IP Optic RGB Manuale utente

Iluminarc

Iluminarc Ilumipanel 40 Manuale utente

Iluminarc

Iluminarc COLORIST LINE 12Qa Manuale utente

Iluminarc

Iluminarc Ilumipod Inground Tri-12 IP Manuale utente

Iluminarc

Iluminarc Colorist Panel 8Qa Manuale utente

Iluminarc

Iluminarc Ilumiline 36 Manuale utente

Iluminarc

Iluminarc Colorist Panel 8Qa Manuale utente

Iluminarc

Iluminarc Ilumipanel 90 IP Optic RGB Manuale utente

Iluminarc

Iluminarc Ilumiline 36 Manuale utente

Iluminarc

Iluminarc ILUMILINE ML Manuale utente

Iluminarc

Iluminarc IP Series Manuale utente

Iluminarc

Iluminarc Ilumipod 18g2 IP Optic RGB Manuale utente

Iluminarc

Iluminarc Ilumipanel 28 Manuale utente

Iluminarc

Iluminarc ILUMIPANEL ML Manuale utente

Iluminarc

Iluminarc Ilumipanel 180 Manuale utente

Iluminarc

Iluminarc Ilumipod 7 Manuale utente

Iluminarc

Iluminarc Ilumipod Inground Tri-12 IP Manuale utente

Iluminarc

Iluminarc LOGIC DRIVE 2X Manuale utente

Iluminarc

Iluminarc ILUMIPOD ML Manuale utente

Iluminarc

Iluminarc Ilumipod 18g2 IP Optic RGB Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
