tape cartridges

LTO Ultrium 4

advancing the power of

open system data storage

DATA BACKUP JUST BECAME FASTER

the new standard in high-capacity, open system data storage

For years companies have relied on the power of LTO Ultrium technology to provide a scalable, adaptable open tape format for their storage requirements. Now

Imation has advanced the power of LTO even further with LTO Ultrium generation 4 tape cartridges. These next-generation cartridges combine the advantages

of linear, multi-channel, bi-directional formats with enhancements in servo technology, data compression, track layout and error correction. The result is an

exciting new tape storage media that delivers outstanding performance and twice the capacity of LTO generation 3 cartridges. LTO Ultrium WORM Cartridges

are also available for write-once archival applications. LTO Ultrium generation 4 cartridges also support encryption technology to further secure mission critical

data.

Imation LTO Ultrium Tape Cartridges

Ultrium LTO 4

Capacity up to 1.6TB*

Transfer rate up to 240MB/sec*

* assuming 2:1 compression

Ultrium LTO 3

Capacity up to 800GB*

Transfer rate up to 160MB/sec*

Ultrium LTO 2

Capacity up to 400GB*

Transfer rate up to 80MB/sec*

The Imation LTO Ultrium Universal

Cleaning Cartridge can be used in all

generation 1, 2, 3 and 4 Ultrium format

tape drives. Each cartridge provides

approximately 15–50+ cleanings.

Order Number: 51122-15931

UTILIZES THE MOST ADVANCED TAPE TECHNOLOGY

Imation Tera Ångstrom Technology

Imation's Weatherford manufacturing facility features Imation's proprietary Tera Ångstrom™Technology. Consisting of an advanced metal particulate

formulation and manufacturing process, Imation’s Tera Ångstrom technology employs three unique steps—an impingement process, a quiescent

drying process, and advanced in-line calendering. These steps combine to create magnetic media with a significantly smoother surface and a high

signal-to-noise ratio (SNR), delivering reduced errors and increased productivity and throughput. With Tera Ångstrom technology, Imation continues to

advance magnetic tape development by reaching the next milestone on the LTO Ultrium roadmap.

For more information, visit www.imation.com/teraangstrom

Imation Tera Ångstrom technology provides

advancements in quality, reliability and performance

Quality: The development of our new advanced terabyte-class manufacturing facility builds on Imation’s

quality discipline and incorporates state-of-the-art quality practices.

Reliability: Is it a 0 or is it a 1? Surface uniformity (smoothness) and high signal-to-noise ratios (SNR)

allow accurate data reading.

Performance: High SNR and consistent signal strength help ensure efficient processing time. Noise can slow

down processing time—a high SNR helps enable faster transfer rates for increased productivity.

A proprietary servo-writing process optimizes tape tracking and helps ensure accurate read/write operations,

enabling best-in-class Position Error Signal (PES) performance to minimize servo off-track errors and improve

overall transfer rates.

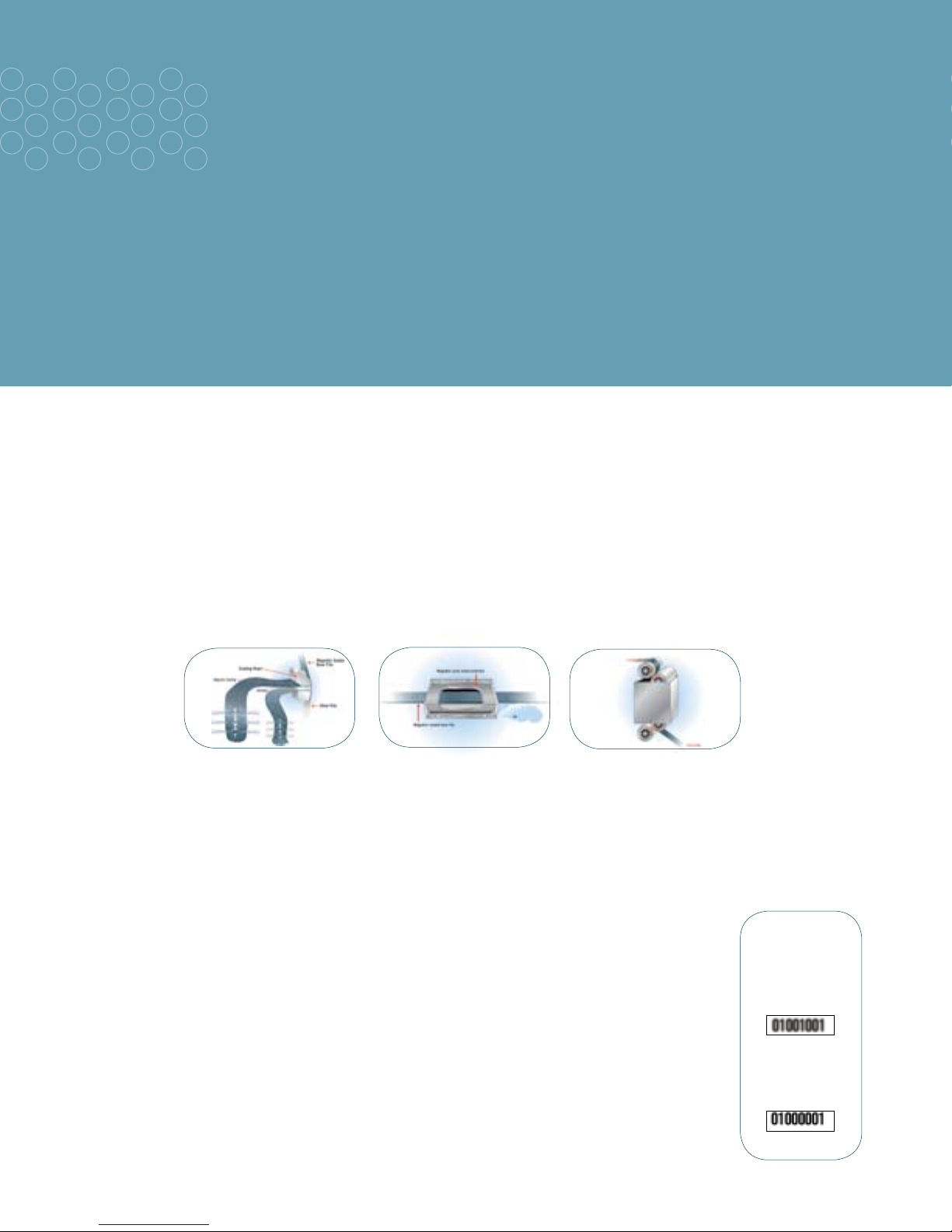

Impingement process to reach

nanometer size particles using

>10,000 psi, high-pressure jets.

Quiescent drying process with low air

velocity and magnetic coils to achieve

high degree of particle orientation.

In-line calendering process to

achieve surface smoothness on the

order of angstroms.

Example - The

digital letter “A” in

magnetic bits (1s, 0s)

Weak signal

amplitude with

competitive process

ERROR!

Strong signal strength

(high SNR) with Tera

Ångstrom Technology

Accurate Data

The Imation Ultrium Advantage

Robust cartridge construction

•Imation’s proprietary patented corner snap keeps the leader pin in place and the cartridge tightly closed. This prevents error-causing debris

from entering the cartridge and helps ensure that the tape flows evenly for maximum read/write capability.

•Our patented three-piece tape spool design distributes stress more evenly over the tape compared to two-piece spools. This construction keeps

the tape flat, helping protect data across the entire tape.

Exceptional performance and quality

•Imation introduced the first servo-written tape cartridge more than 10 years ago and continues to improve the technology. Advance servo writing

allows closer track spacing and more data, while keeping drive heads aligned on the data tracks for precise data reading/writing and improved

reliability.

Unmatched service and support

•Imation’s manufacturing expertise stems from more than 50 years in the media business. As part of 3M, we launched the world’s first computer

tape in 1952. Today we partner with leading drive manufacturers who count on us to provide the highest quality data storage media.

•Imation offers data protection unlike any other LTO cartridge. We pioneered backcoating technology, which is now standard on LTO/Ultrium

cartridges. Today, we continue to advance technologies specifically designed to meet the storage demands of midrange and enterprise networks.

And because Ultrium technology provides organizations with the first tape storage standard with a six-generation roadmap, not only is your data

secure, but so is your technology investment.

•Imation's three-stage service platform includes a telephone helpline, root cause lab analysis and advice from our technical service engineers.

•Imation Ultrium cartridges come with a limited lifetime warranty against manufacturing defects.

Upper Flange

Winding Surface

Lower Flange

224 Data Tracks

896 Data Tracks

Tape Width

Servo Tracks

Patented corner snap Patented three-piece

tape spool design

Advance servo writing

Imation was the ﬁrst manufacturer

to ship LTO 3 and 4 cartridges.

A MULTI-GENERATIONAL REMOVABLE MEDIA SOLUTION

Ultrium System Migration Path

Generation 1 Generation 2 Generation 3 Generation 4 Generation 5† Generation 6†

Capacity Native 100GB 200GB 400GB 800GB

2:1 compression Compressed 200GB 400GB 800GB 1.6TB 3.2TB 6.4TB

Transfer Rate Up to 40MB/sec 80MB/sec 160MB/sec 240MB/sec 360MB/sec 540MB/sec

2:1 compression

† Hewlett-Packard, IBM, and Quantum reserve the right to change the information in this migration path without notice.

LTO Ultrium Tape Cartridge Compatibility

LTO CARTRIDGE LTO Gen 1 Drive LTO Gen 2 Drive LTO Gen 3 Drive LTO Gen 4 Drive

LTO Gen 1 Cartridge Write & Read Write & Read Read Only Will not function

at 100GB at 100GB

LTO Gen 2 Cartridge Will Not Function Write & Read Write & Read Read only

at 200GB at 200GB

LTO Gen 3 Cartridge Will Not Function Will Not Function Write & Read Write & Read

at 400GB at 400GB

LTO Gen 3 WORM Cartridge Will Not Function Will Not Function Write-once & Read Write-once & Read

at 400GB at 400GB

LTO Gen 4 Cartridge Will Not Function Will Not Function Will Not Function Write & Read

at 800GB

LTO Gen 4 WORM Cartridge Will Not Function Will Not Function Will Not Function Write-once & Read

at 800GB

Universal Cleaning Will Clean Will Clean Will Clean Will Clean

Cartridge

Imation LTO Ultrium 4 Imation LTO Ultrium 3 Imation LTO Ultrium 2 Imation LTO Ultrium 1

Tape Cartridge Tape Cartridge Tape Cartridge Tape Cartridge

CHARACTERISTICS

Tape Width 12.65mm 12.65mm 12.65mm 12.65mm

Tape Length 820m 680m 609m 609m

Cartridge Dimensions (W x L x H) 105.4 x 102 x 21.5mm 105.4 x 102 x 21.5mm 105.4 x 102 x 21.5mm 105.4 x 102 x 21.5mm

Tape Thickness 6.6µm 8.0µm 8.9µm 8.9µm

Number of Data Tracks 896 704 512 384

Capacity (native) 800GB 400GB 200GB 100GB

Capacity (compressed) 1.6TB 800GB 400GB 200GB

Data Transfer Rate (compressed) 240MB/sec 160MB/sec 80MB/sec 40MB/sec

Cartridge Color Teal Blue-Gray Purple Black

MAGNETIC LAYER CHARACTERISTICS

Coercivity 2550 Oersted 2690 Oersted 2100 Oersted 1850 Oersted

Surface Resistance 5 x 105Ohm to 5 x 108Ohm 5 x 105Ohm to 5 x 1010 Ohm 5 x 105Ohm to 5 x 1010 Ohm 5 x 105Ohm to 5 x 1010 Ohm

Media Type Metal Particle (MP5) Metal Particle (MP4) Metal Particle (MP3) Metal Particle (MP2)

BACKCOAT LAYER CHARACTERISTICS

Surface Resistance < 2 x 107Ohm < 2 x 106Ohm < 2 x 106Ohm < 2 x 106Ohm

TAPE LIFE

Estimated Archival Life 30 years 30 years 30 years 30 years

Load/Unload Cycles 20,000 20,000 20,000 20,000

speciﬁcations

LTO Ultrium WORM Cartridge

Imation LTO Ultrium generation 3 and 4 WORM

cartridges provide a non-rewritable solution to

meet data retention and archival needs. Write

once, read many (WORM) technology is designed

for archival applications that require data to

be unchanged through its retention period. The

servo pattern and cartridge memory contain

format information that identify the cartridge

as write once for WORM-enabled LTO 3 and 4

drives.

Imation and the Imation logo are trademarks of Imation Corp. All other trademarks

are property of their respective owners.

IMATION ENTERPRISES CORP.

Corporate Headquarters / 1 Imation Place / Oakdale, Minnesota 55128-3414 USA

Customer Service Tel. 888 466 3456 / Customer Service Fax 800 537 4675

www.imation.com

for more information

To learn how Imation LTO Ultrium 4 Tape Cartridges will deliver

outstanding performance with terabyte capacity in you data center,

contact your Imation sales representative or visit www.imation.com.

To view our complete line of removable data storage products,

visit Imation’s website at www.imation.com.

UPC Description

26592 LTO Ultrium 4 Tape Cartridge, with case

26596 LTO Ultrium 4 Tape Cartridge, with case, labeled

26594 LTO Ultrium 4 Tape Cartridge, without case

26597 LTO Ultrium 4 Tape Cartridge, without case, labeled

26598 LTO Ultrium 4 WORM Tape Cartridge, with case

26601 LTO Ultrium 4 WORM Tape Cartridge, with case, labeled

26599 LTO Ultrium 4 WORM Tape Cartridge, without case

26603 LTO Ultrium 4 WORM Tape Cartridge, without case, labeled

17532 LTO Ultrium 3 Tape Cartridge, with case

17533 LTO Ultrium 3 Tape Cartridge, with case, labeled

17534 LTO Ultrium 3 Tape Cartridge, without case

17535 LTO Ultrium 3 Tape Cartridge, without case, labeled

17960 LTO Ultrium 3 WORM Tape Cartridge, with case

17961 LTO Ultrium 3 WORM Tape Cartridge, with case, labeled

16598 LTO Ultrium 2 Tape Cartridge, with case

16599 LTO Ultrium 2 Tape Cartridge, with case, labeled

16601 LTO Ultrium 2 Tape Cartridge, without case

16600 LTO Ultrium 2 Tape Cartridge, without case, labeled

41089 LTO Ultrium 1 Tape Cartridge, with case

16232 LTO Ultrium 1 Tape Cartridge, with case, labeled

41277 LTO Ultrium 1 Tape Cartridge, without case

41278 LTO Ultrium 1 Tape Cartridge, without case, labeled

ordering information

20 each/box
