IME Milesight UG56 Manuale utente
Industrial
LoRaWAN®Gateway
UG56
Quick Guide
www.ime.de
2
Safety Precautions
Milesight will not shoulder responsibility for any loss or damage resulting from not following the
instructions of this operating guide.
The device must not be modeled in any way.
Do not place the device close to objects with naked flames.
Do not place the device where the temperature is below/above the operating range.
Do not power on the device or connect it to another electrical device when installing.
Check lightning and water protection when used outdoors.
Do not connect or power the equipment using cables that have been damaged.
Related Documents
This Quick Start Guide only explains the installation of Milesight UG56 LoRaWAN®Gateway. For more
functionality and advanced settings, please refer to the relevant documents as below.
Document
Description
UG56 Datasheet
Datasheet for UG56 LoRaWAN®Gateway.
UG56 User Guide
Users can refer to the guide for instruction on how to log in the web GUI, and
how to configure all the settings.
The related documents are available on Milesight website: https://www.milesight-iot.com
Declaration of Conformity
UG56 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and
RoHS.
For assistance, please contact
Milesight technical support:
Email: iot.support@milesight.com
Support Portal: support.milesight-iot.com
Tel: 86-592-5085280
Fax: 86-592-5023065
Revision History
Date
Doc Version
Description
Aug.8, 2022
V1.0
Initial version
Apr. 3, 2023
V1.1
Add external cellular antenna option and installation
www.ime.de
3
Contents
1. Packing List .................................................................................................................................................... 4
2. Hardware Introduction ...................................................................................................................................4
2.1 Overview ............................................................................................................................................... 4
2.3 LED Indicators ...................................................................................................................................... 5
2.4 Reset Button .........................................................................................................................................5
3. Hardware Installation .....................................................................................................................................6
3.1 SIM & Micro SD Installation .................................................................................................................6
3.2 Antenna Installation .............................................................................................................................6
3.3 Power Supply ........................................................................................................................................7
3.4 Gateway Installation ............................................................................................................................ 7
4. Web GUI Access .............................................................................................................................................9
4.1 Wireless Access ...................................................................................................................................9
4.2 Wired Access ..................................................................................................................................... 10
5. Network Connection .................................................................................................................................... 13
5.1 Configure the Ethernet Connection .................................................................................................. 13
5.2 Configure the Wi-Fi Connection ........................................................................................................ 13
5.3 Configure the Cellular Connection ....................................................................................................14
6. Packet Forwarder Configuration .................................................................................................................16
7. Network Server Configuration .....................................................................................................................18
7.1 Connect UG56 to Milesight IoT Cloud .............................................................................................. 18
7.2 Connect UG56 to MQTT/HTTP Server ............................................................................................. 20
www.ime.de
4

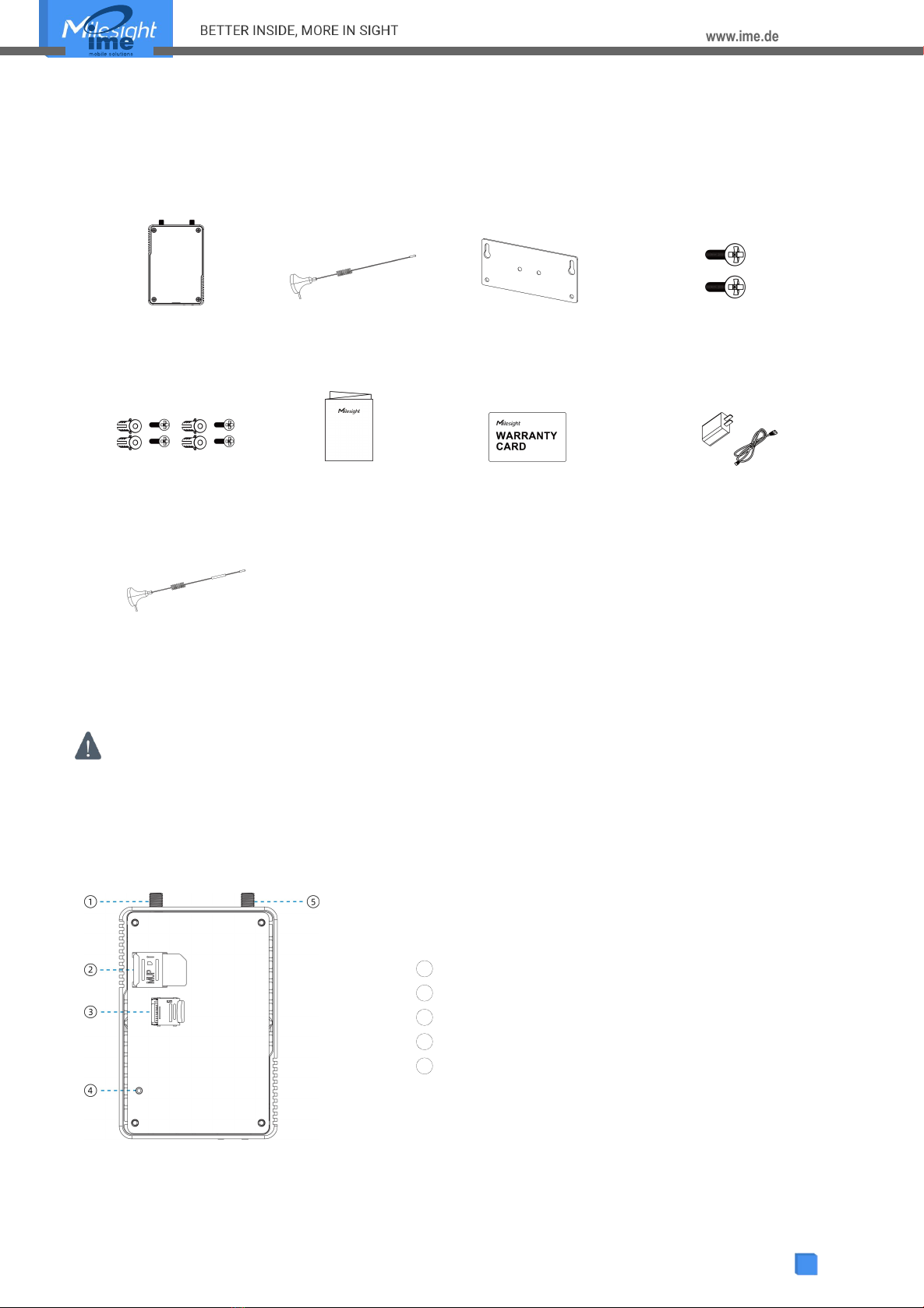

1. Packing List
Before you begin to install the UG56 LoRaWAN®Gateway, please check the package contents to verify
that you have received the items below.
4 x Wall Mounting
Kits
1 x Quick Start Guide
1 × Warranty Card
1 × Type-C Cable & Power
Adapter (Optional)
1 × Cellular Magnetic
Antenna
(Cellular Version Only)
If any of the above items is missing or damaged, please contact your sales representative.
2. Hardware Introduction
2.1 Overview
1 × UG56 Device
1 × LoRaWAN®
Magnetic Antenna
1 × Wall Mounting
Bracket
2 × M3 Bracket Fixing
Screws
1LoRaWAN®Antenna Connector
2SIM Slot
3Micro SD Slot
4Reset Button
5Cellular Antenna Connector
(Cellular Version Only)
www.ime.de
5
2.2 Dimensions (mm)
2.3 LED Indicators
LED
Indication
Status
Description
SYS
System Status
Off
The system is starting up
Red Light
The system goes wrong
Green Light
The system is running properly
LoRa
LoRa Status
Off
Packet Forwarder mode is running off
On
Packet Forwarder mode is running well
Ethernet
Port
Link Indicator
(Yellow)
Off
Disconnected or connect failure
On
Connected
Blinking
Transmitting data
Rate Indicator
(Green)
Off
Other modes
On
100 Mbps mode
2.4 Reset Button
Function
Description
SYS LED
Action
Reset
Static Green
Press and hold the reset button for more than 5 seconds.
Static Green →
Rapidly Blinking
Release the button and wait.
Off →Static Green
The gateway resets to factory default.
6LED Indicators
7Type-C Power & Console Port
8Ethernet Port (PoE)
www.ime.de
6
3. Hardware Installation
3.1 SIM & Micro SD Installation
Remove the front panel of the device, insert the SIM card or micro SD card into the corresponding slot.
Note: UG56 does not support hot plugging (also called hot swapping). please turn off the power before
you insert or take off cards.
3.2 Antenna Installation
Rotate antennas into the antenna connectors. The antennas should be installed vertically and kept away
from barriers.
If you need to fix the LoRaWAN®fiber-glass antenna to a pole, please pass the LoRaWAN®antenna
through the antenna clamp and fix it with 4 screws, then wrap the U-bolt around a pole and fix the clamp
with nuts and other accessories.
www.ime.de
7
3.3 Power Supply
UG56 can be powered by 802.3af standard PoE or Type-C port (5 VDC). If both are connected, the device
will be powered by the former method (PoE).
Power by a PoE Switch
Power by a PoE injector
Power by a Type-C Port
Note: When connecting, Ethernet cable of UG56 device side should be installed first, otherwise, PoE
devices or gateway may be damaged.
3.4 Gateway Installation
Before you get started, make sure all fittings are installed and the power supply is disconnected.
A. Fix the wall mounting bracket to the device with 2 x M3 bracket fixing screws.
www.ime.de
8
B. Drill 4 holes on the wall according to the wall mounting bracket, then fix the wall plugs into the wall.
C. Fix the device to the wall plugs with M3 wall mounting screws. When installation, it’s suggested to fix
the upper two screws first.
www.ime.de
9
4. Web GUI Access
UG56 provides web-based configuration interface for management. If this is the first time you configure
the gateway, please use the default settings below:
ETH IP Address: 192.168.23.150
Wi-Fi IP Address: 192.168.1.1
Wi-Fi SSID: Gateway_******
Username: admin
Password: password
Browser: Chrome(recommended)
4.1 Wireless Access
A. Enable wireless network connection on your computer and search for access point “Gateway_******”
to connect it.
B. Open a web browser on your PC (Chrome is recommended) and type in the IP address 192.168.1.1 to
access the web GUI, enter the username and password, click “Login”.
If you enter the username or password incorrectly more than 5 times, the login page will be locked
for 10 minutes.
D. After logging the web GUI, follow the guide to complete the basic configurations. It’s suggested that
you change the password for the sake of security.
www.ime.de
10
E. You can view system information and perform configuration of the gateway.
4.2 Wired Access
Connect PC to UG56 ETH port directly or through PoE injector to access the web GUI of gateway. The
following steps are based on Windows 10 system for your reference.
A. Go to “Control Panel” →“Network and Internet” →“Network and Sharing Center”, then click
“Ethernet” (It may have different names).
www.ime.de
