IMP Series User’s Manual

600 / 670

1.0 Introduction------------------------------3

2.0 Getting started-------------------------4

3.0 Features of the IMP------------------5

4.0 Computer Operation------------------8

5.0 Hardware installation------------14

5.1 Illustration for IMP-600--------14

5.2 Illustration for IMP-670--------20

6.0 Software installation-------------28

7.0 Maintenance-----------------------------28

8.0 Problem solving----------------------30

9.0 SKD Accessory Kits--------------32

IMP Series 600 / 670

Index

Series User

’

s Manua

２

Specification of

IMP

Series

Model No. IMP-600 IMP-670

Motherboard SBC + PBP ATX

SBC + PBP

Slot 8 7, 10, 12

Drive Bay 2 x 5.25"(open)

1 x 3.5"(open) 2 x 5.25"(open)

2 x 3.5"(open)

Color Black

LCD 14.1"

14.1" LCD, 150 nits brightness,

30,000 hrs of backlight life

15.1" & 15.4"

250 nits brightness,

50,000 hrs of backlight life

17”

280 nits brightness,

30,000 hrs of backlight life

Resolution 1024 x 768 1024 x 768, 1280 x1024,

D/C

ATI M3 chipset AGP card with 16MB

（with special backplane）

ATI M6 chipset AGP card with 64MB

（with special backplane）

ATI M6 D/C with 64MB Video RAM

ATI M3 chipset AGP card with 16MB

ATI M6 chipset AGP card with 64MB

Analog-to-digital conversion board

ATI M6 D/C with 64MB Video RAM

Keyboard / Mouse 108 keys, multi-languages/touchpad

Case Size 15.75"x12"x11.31" (400 x305 x 287mm) 17.75"x10.25"x14.4"(451x260x366 mm)

Power Supply Auto Sensing Active PFC PS/2 350 Watt Full range PS/2 400W with Active PFC

SKD Weight 15.9 kg (35 lbs) 17 kg (37 lbs)

Speaker Built-in amplified speaker

Amplified board output: 2 x 6 Watt Stereo

Speaker output: 1/2 Watt

Carrying Case Padded carrying case with wheels

Card Stabilize

Bars 1

Cooling Fan 2 x 60 x 60 x 25 mm 1 x 80 x 80 x 25 mm

Case Metal chassis-flame

Environmental Specification

Oper. Temp. 0°C-50°C

Relative Lum. 20-80% (non-condensing)

Shock

(operating, all

axes) 15g

Vibration

(operating, all

axes) 1.25g @ 10-100Hz

Compliance CE & FCC Class B Compliant, UL, CCIB

Series User

’

s Manua

３

Version: 2004.2

IMP Series Portables:

zHeavy duty & powerful rugged designed portable

zOffer 7-8 slots expansion capability to accommodate a standard

ATX size or SBC motherboard.

zHigh performance processing power.

zXGA （1024*768）TFT LCD Screen (from 14.1”-to 15.4”) steel frame

zThe new RJ-45 cabling style.

zMetal frame construction.

The IMP is a heavy-duty rugged industrial portable computing solution.

And it is highly compatible across a broad range of hardware,

software and operating systems. It has more computing power than

that of most desktops, and traditional portable computers. Its full size

add-in slots, Pentium 4 processing power, and a XGA resolution TFT

color display make it a high performance field solution. The IMP series

portables comply with FCC class B Part 15 and CE Mark. It’s an

unpredictably powerful choice for workstation or server.

You can find IMP in industrial environment serving you with high

performance computer bus analysis & telecommunication testing,

multi-protocol network analysis, PLC programming, real time

automatic industrial application and much more. It is designed to

function with your needs in mind.

1.0 Introduction

Series User

’

s Manua

４

2.0 Getting Started

The IMP is a well design compact portable computing machine that is

both nimble as well as rugged. It will serve your needs for both

expansion as well as performance. An important aspect of the IMP is

the concept of standardizations, which means all components that

you can find off the shelf or proprietary designed will fit into the IMP. If

the peripheral is designed according to industry standard for

interconnectivity then it will fit. With that in mind, we will layout and

identify each of the component. In this section you can find each

component of the IMP with respect to its purpose and usage.

IMP 600

IMP 670

2.0 Getting Started

Series User

’

s Manua

５

Drive Bays:

IMP 600 –with 2 x 5.25” open bays, 1x 3.5” open bays

IMP 670 – with 2 x 5.25” open bays, 2 x 3.5” open bays,

3.0 Feature of the IMP series serser

Features of the

Series User

’

s Manua

６

Keyboard:

108-key keyboard is integrated with the portable allow closing

against the portable for both connivance and protection in

transportation.

Keyboard Cable:

The keyboard cable connects to the keyboard internally with

cable jack on other end for insertion into the portable lower right

hand corner; allow easy access and removal of the keyboard.

LED Status Indicator:

The green LED indicates power on, the red LED indicates hard disk

drive access.

Display:

Integrated TFT Active Matrix LCD provides XGA color display with

resolution of 1024*768 or 1280*1024 (for 14” & 15”).

Speaker:

Integrated two speakers built-in allow media audio play back

without having to outsource attachment. Speaker has volume

control for different environment usage（IMP 670）.

Drive Bay:

The IMP 600 come standard with 2×5.25”size drives bays, and 1×3.5

size drive bays. IMP 670 come standard with 2×5.25”size drives bays,

and 2×3.5 size drive bay

Power Switch:

The power switch to turn on the computer is located on the right

side.

Fan:

Located inside the chassis, these fans will help draw out and push

in cool air to alleviate excessive heat built-up for components

inside the portable allowing worry free operation.

Filters:

Filters located on both sides of the portable help block out dust

and particle from entering the machine.

Series User

’

s Manua

７

Expansion Slots:

Opening to provide access to the I/O ports on the installed add-in

cards.

Expansion slot Cover:

The slot cover covers the I/O opening for protection of vital

equipment inside, it serves to detour object from entering as well

as cooling (drilled opening).

Handle:

Large handle provide convenient transportation of the portable

with comfort and ease.

Keyboard Release Buttons:

These buttons when depressed will release the locking mechanism

to detach the keyboard from the main portable chassis.

Series User

’

s Manua

８

4.1 Keyboard and Touch pad:

How to release

There are two release buttons

located on the top-left and top-right

of the keyboard. When depressed,

the keyboard is disengage from the

portable and will release the

keyboard structure. There are also

two mounting leg located at the

bottom of the keyboard that are

inserted into the portable for fitting

and stability, in which case you can

start lifting the keyboard upward.

The keyboard now can then be

removed for usage.

How to close keyboard

Closing the keyboard back onto the portable

follows the same procedure as opening, in a

reverse manner. It is noted that the keyboard

cable should be put back into its proper

lodging location. Make sure the two locking

mechanism are properly secure after it is put

back.

What to look for

The keyboard cable is located

on the top portion of the

keyboard; it is a coil cable with

a RJ45 connector at the end.

The jack should now be

attached to the portable (at

the lower right hand corner) to

be operational.

4.0 Computer operation

Features of the IMP

Press to release

Push

Here

Series User

’

s Manua

９

K/B usage

Keyboard is the main medium for inputting data into the system. The

keyboard of the IMP series portables contains both a keyboard and

a touch pad. Keyboard is a 108-keys Windows ready keyboard with

power function and shortcut keys.

Keyboard position

You may want to adjust the keyboard angle by folding the top

portion of the keyboard or just taking off the main case.

TOUCHPAD operation

TOUCHPAD surface can be use to move

the cursor in the GUI environment by

placing and moving your finger. The two

buttons located below the touch pad

act as same as the mouse left/right

button. Or you may wish to tap on the

touch pad to indicate a left click.

Series User

’

s Manua

１０

4.2 Side Panel:

The side panel is located behind the plastic protection cover that can

be removed by pushing the clip. Depending on the system board and

your add-on cards, you may also have other ports such as Ethernet port,

and Audio ports. When in use, side panel can also be stored in a slot

located on the back cover

4.4 Power switch and plug:

The power receptacle is located on the right side of the machine near

the bottom. The three-prong power plug is supplied. Depending on

your Power supply type, you may find a main power switch located

next to the power receptacle and the position of the switch is of the

following: O=Off, I=On. This is the main power, to power up the system,

user still require to power on the machine at the front of the portable,

labeled Power. If your power supply does not have a main switch, user

will control power on/off using the power switch located in the front.

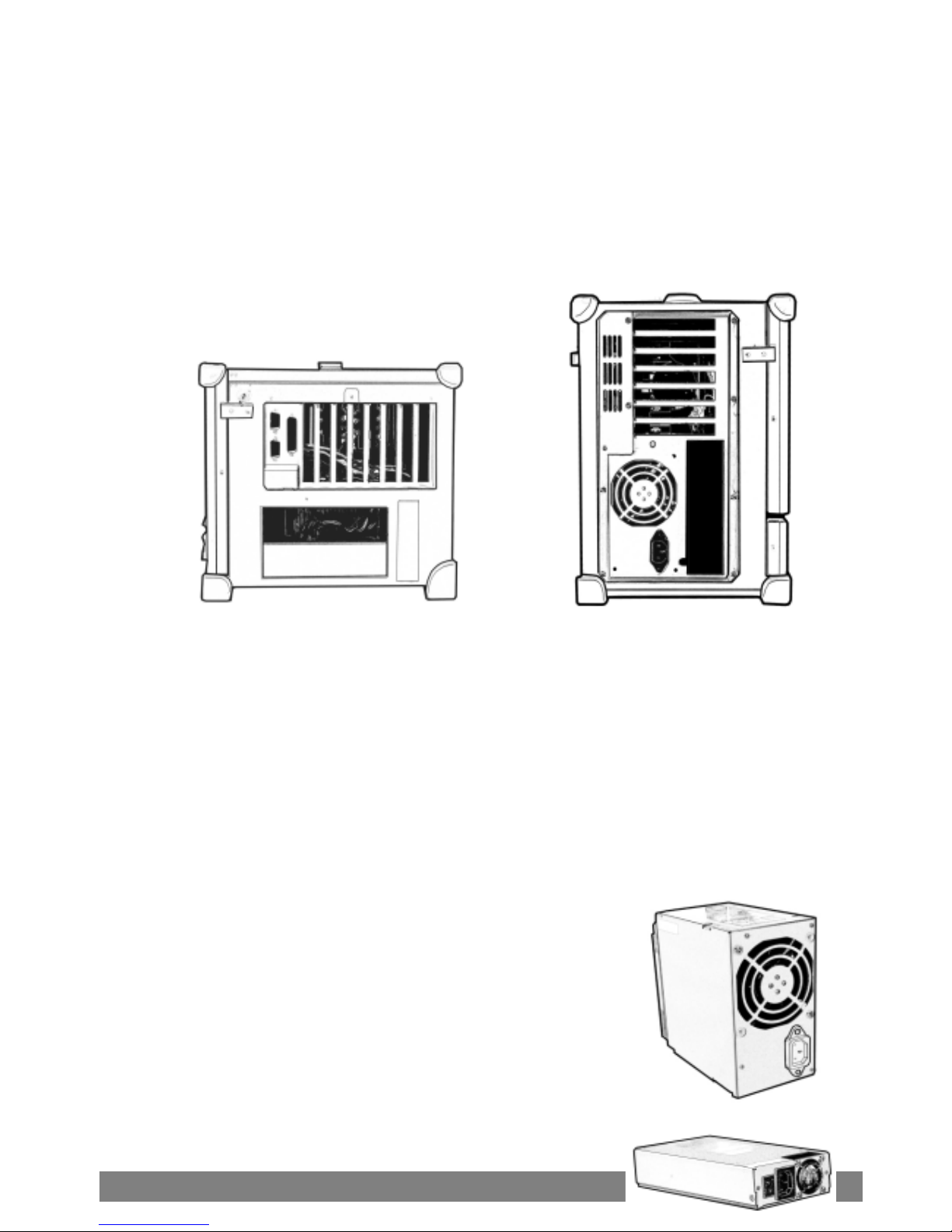

4.5 Power supply（PS/2）

This kind of power supply is supported in IMP 600 /

670 series.

It’s also Active PFC Full-Range, 400W output.

4.55 Power supply（1U）:

This kind of power supply is supported only in

IMP 600 IMP 670
