OWNER'S

MANUAL

MARCY MACH IV

HOME GYM

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 4

PARTS LIST......................................................................................................17

HOW TO USE……………………………………………………………………….. 19

RESISTANCE CHART………….........................................................................20

WARRANTY.................................................................................................… 21

ORDERING PARTS......................................................................................... 21

BEFORE YOU BEGIN

Thank you for selecting the MARCY MACH IV PERSONAL TRAINER by IMPEX

FITNESS PRODUCTS. For your safety and benefit, read this manual carefully

before using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are missing

or damaged parts, we guarantee you complete satisfaction through direct

assistance from our factory. To avoid unnecessary delays, please call our TOLL-

FREE customer service number. Our Customer Service Agents will provide

immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply whenever

you operate a piece of exercise equipment. Be sure to read the entire manual before you

assemble or operate your machine. In particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.

THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS

WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING

ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL

INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS

PRODUCT.

SAVE THESE INSTRUCTIONS.

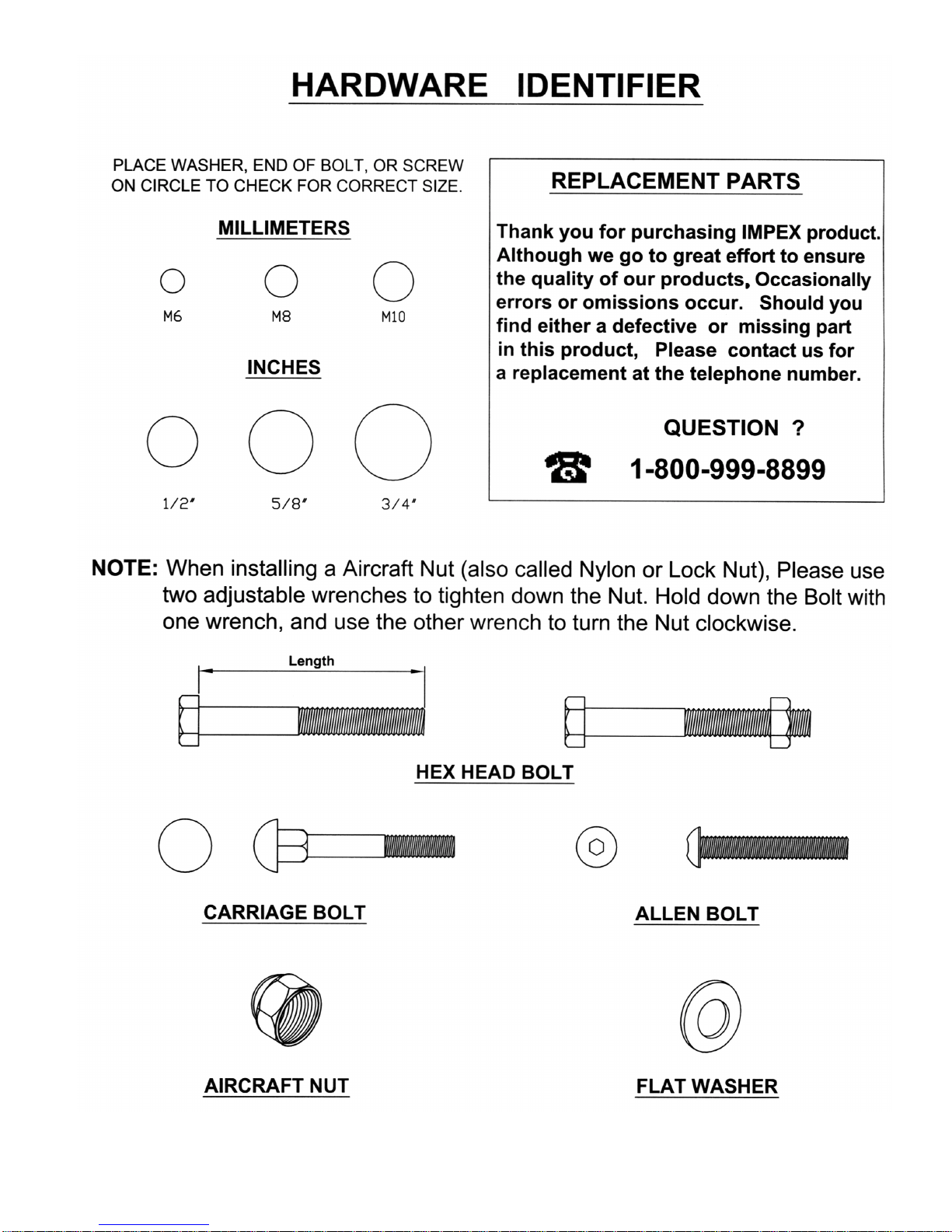

ASSEMBLY INSTRUCTION

Tools Required to Assemble the Machine: Two Adjustable Wrenches and Allen Wrenches

NOTE: It is strongly recommended this machine be assembled by two or more people to

avoid possible injury.

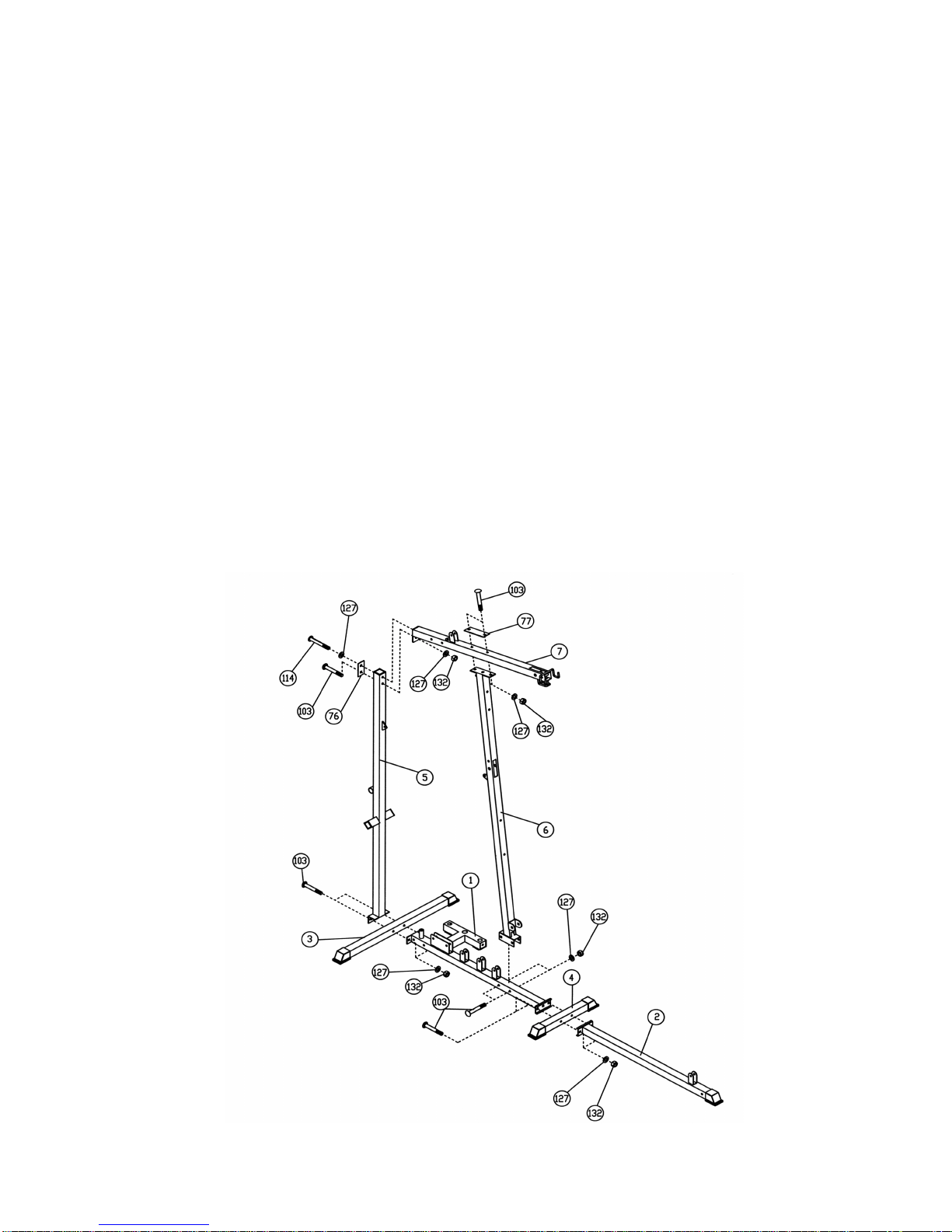

STEP 1 (See Diagram 1)

A.) Place the Main Base Frame (#1), Front Stabilizer (#4) and Front Base Frame (#2) on the floor.

Secure the three pieces together with two M10 x 2 ¾” Carriage Bolts (#103), ∅3/4” Washers

(#127), and M10 Aircraft Nuts (#132). DO NOT tighten all the nuts and bolts yet.

B.) Attach the Rear Stabilizer (#3) and Rear Vertical Beam (#5) to the back end of the Main Base

Frame (#1). Secure it with two M10 x 2 ¾” Carriage Bolts (#103), ∅3/4” Washers (#127), and

M10 Aircraft Nuts (#132).

C.) Attach the Front Vertical Beam (#6) to the Main Base Frame (#1). Secure it with two M10 x 2

¾” Carriage Bolts (#103), ∅3/4” Washers (#127), and M10 Aircraft Nuts (#132).

D.) Attach the Upper Frame (#7) to the Rear Vertical Beam (#5). Secure the top hole with one 4”

x 2” Bracket (#76), ∅3/4” Washer (#127), and M10 x 2 ½” Allen Bolt (#114). Secure the

bottom hole with one M10 x 2 ¾” Carriage Bolt (#103), ∅3/4” Washer (#127) and M10 Aircraft

Nut (#132).

E.) Attach the Upper Frame (#7) to the top of the Front Vertical Beam (#6). Secure it with two

M10 x 2 ¾” Carriage Bolts (#103), one 6 ¼” x 2” Bracket (#77), two ∅3/4” Washers (#127)

and M10 Aircraft Nuts (#132). DIAGRAM 1

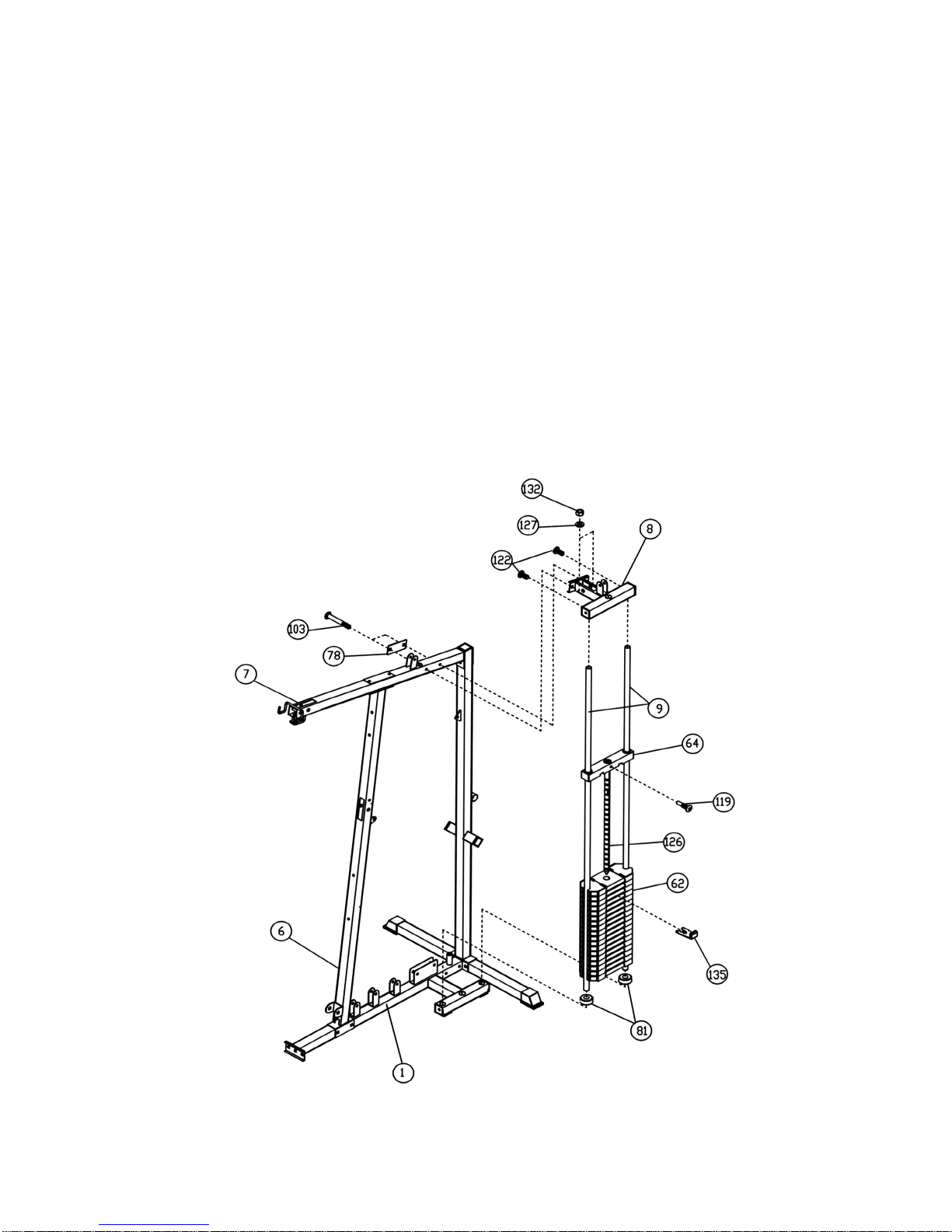

STEP 2 (See Diagram 2)

A.) Align two Rubber Bumpers (#81) to the holes on the Main Base Frame (#1). Push two Guide

Rods (#9) into the holes. Install 19 Weight Plates (#62). To install the plates, hold the plate at

an angle and place between the two guide rods then drop it down. Make sure the grooves on

the plastic covers all face up. The plates should all interlock with each other. See diagram

below. It is strongly recommended to spray some lubricant such as WD-40 on the two

chromed Guide Rods (#9) to minimize friction.

B.) Insert the Selector Rod (#126) into the center hole on the plates. Slide the Selector Stem (#64)

onto the Guide Rods from the top. Align the holes and secure it with a M10 x ½ Allen Bolt

(#119).

C.) Insert the Weight Plate Selector Pin (#135) in between the plates to secure the rod. Make sure

the magnet on the pin faces upward.

D.)Attach the Top Socket Assembly (#8) to the top of the Guide Rods (#9). Secure the Top

Socket Assembly (#8) to the Upper Frame (#7) with two M10 x 2 ¾” Carriage Bolts (#103), one

4 ¾” x 2” Bracket (#78), two ∅3/4” Washers (#127), and two M10 Aircraft Nuts (#132).

E.) Securely tighten all the nuts and bolts previously installed.

F.) Attach two M6 x 5/8” Allen Bolts (#122) to the Top Socket Assembly (#8). DO NOT over

tighten these two bolts. DIAGRAM 2

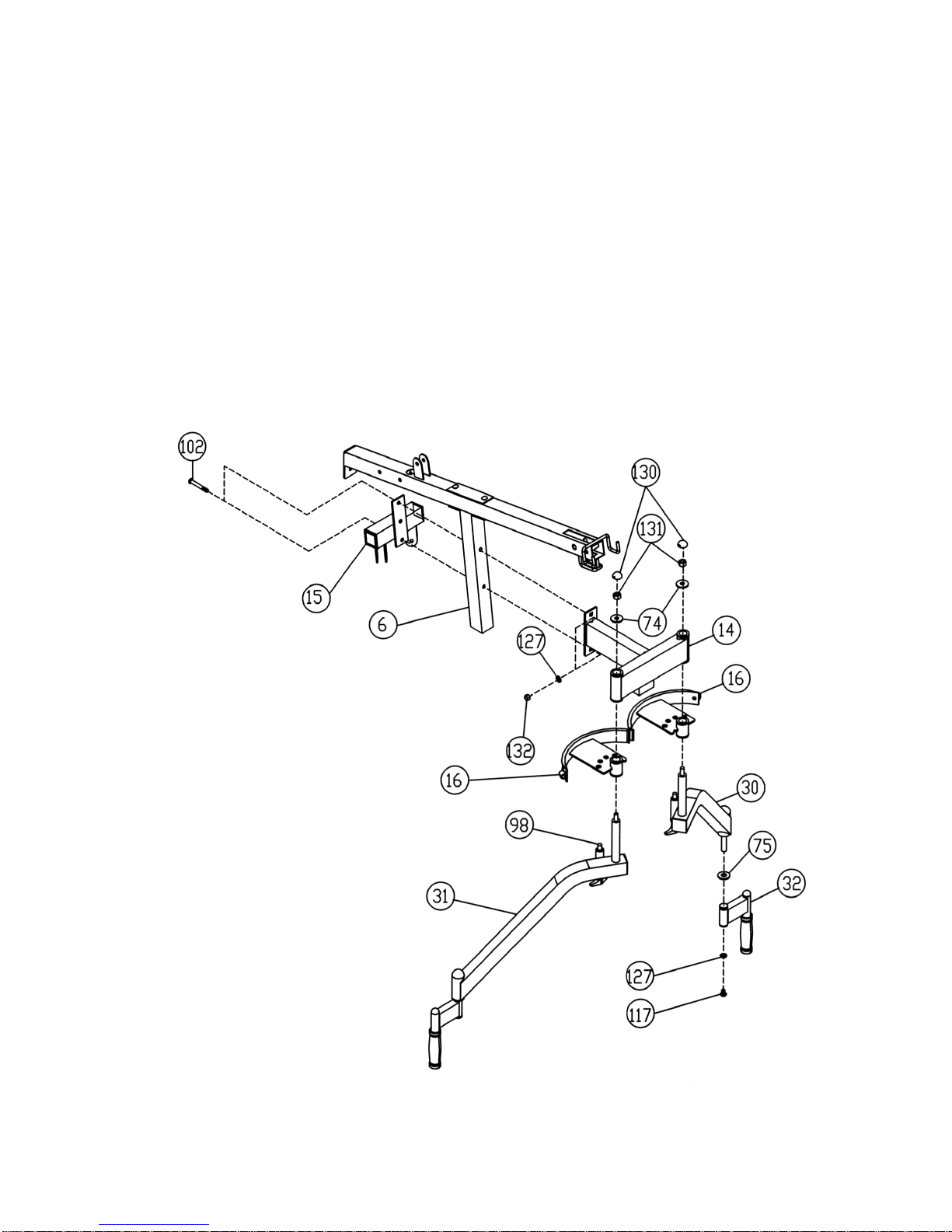

STEP 3 (See Diagram 3)

A.) Attach the Butterfly Support Frame (#14) to the front of the Front Vertical Beam (#6). Attach

the Butterfly Pulley Support (#15) to the back of the Front Vertical Beam (#6). Secure them

with two M10 x 3” Carriage Bolts (#102), ∅3/4” Washers (#127), and M10 Aircraft Nuts (#132).

B.) Attach a Pull Pin Set (#98) to the Right Butterfly Arm (#31). Repeat for the Left Butterfly Arm

(#30).

C.)Slide a Butterfly Pulley Bracket (#16) onto the axle on the Right Butterfly Arm (#31). Make

sure the Clip is on the outside. Insert the axle on the Right Butterfly Arm (#31) into the hole on

the Butterfly Support Frame (#14) from the bottom up. Secure it with a ∅1 ½” Washer (#74)

and M12 Aircraft Nut (#131). Securely tighten all the nuts and bolts. Close the end with a

Round Cap (#130). Repeat the same procedure to install the Left Butterfly (#30).

D.)Place a ∅1 ½” Washer (#75) onto the axle on the bottom of the Left Butterfly Arm (#30). Slide

a Swivel Handle (#32) onto the axle. Secure it with a ∅3/4” Washer (#127) and M10 x ½”

Allen Bolt (#117). Repeat for the other side.

DIAGRAM 3

STEP 4 (See Diagram 4)

A.) Attach Foot Support (#11) to the Main Base Frame (#1). Secure it with one M10 x 2 ¾”

Carriage Bolt (#103), 4” x 2” Bracket (#76), ∅3/4” Washer (#127), and M10 Aircraft Nut (#132)

to the rear hole. Secure the front hole with one M10 x 2 ½” Allen Bolt (#114) and ∅3/4”

Washer (#127).

B.) Slide a ∅5/8” Ring (#95) onto the pivot axle on the back of the Main Base Frame (#1). Attach

the Swivel Frame (#10) onto the axle. Secure it with a ∅3/4” Washer (#127) and M10 x ¾”

Allen Bolt (#116).

C.)Attach the Leg Developer Holder (#25) to the Front Base Frame (#2). Secure it with a M10 x 2

¾” Carriage Bolt (#103), ∅3/4” Washer (#127), and M10 Aircraft Nut (#132).

D.)Slide the Sliding Block (#47) onto the Main Seat Support (#17). Secure it with a Quick Release

Pin (#80). Attach the back end of the Main Seat Support (#17) to the bracket on the bottom of

the Front Vertical Beam (#6). Secure it with a M10 x 2 ¾” Carriage Bolt (#103), ∅3/4” Washer

(#127), and M10 Aircraft Nut (#132). Secure the front end of the Main Seat Support (#17) to

the Leg Developer Holder (#25) with a M10 x 2 ¾” Carriage Bolt (#103), ∅3/4” Washer (#127),

and M10 Aircraft Nut (#132).

E.) Attach the Leg Developer (#26) to the Leg Developer Holder (#25). Insert a 2 3/16” Axle

through the pivot. Secure it with two M8 x 5/8” Allen Bolts (#121) and ∅5/8” Washers (#128).

F.) Attach the Arm Curl Handle (#19) to the front of the Leg Developer (#26). Insert a 12” Tube

(#28) through the Handle and push two Grips (#79) onto the Handle.

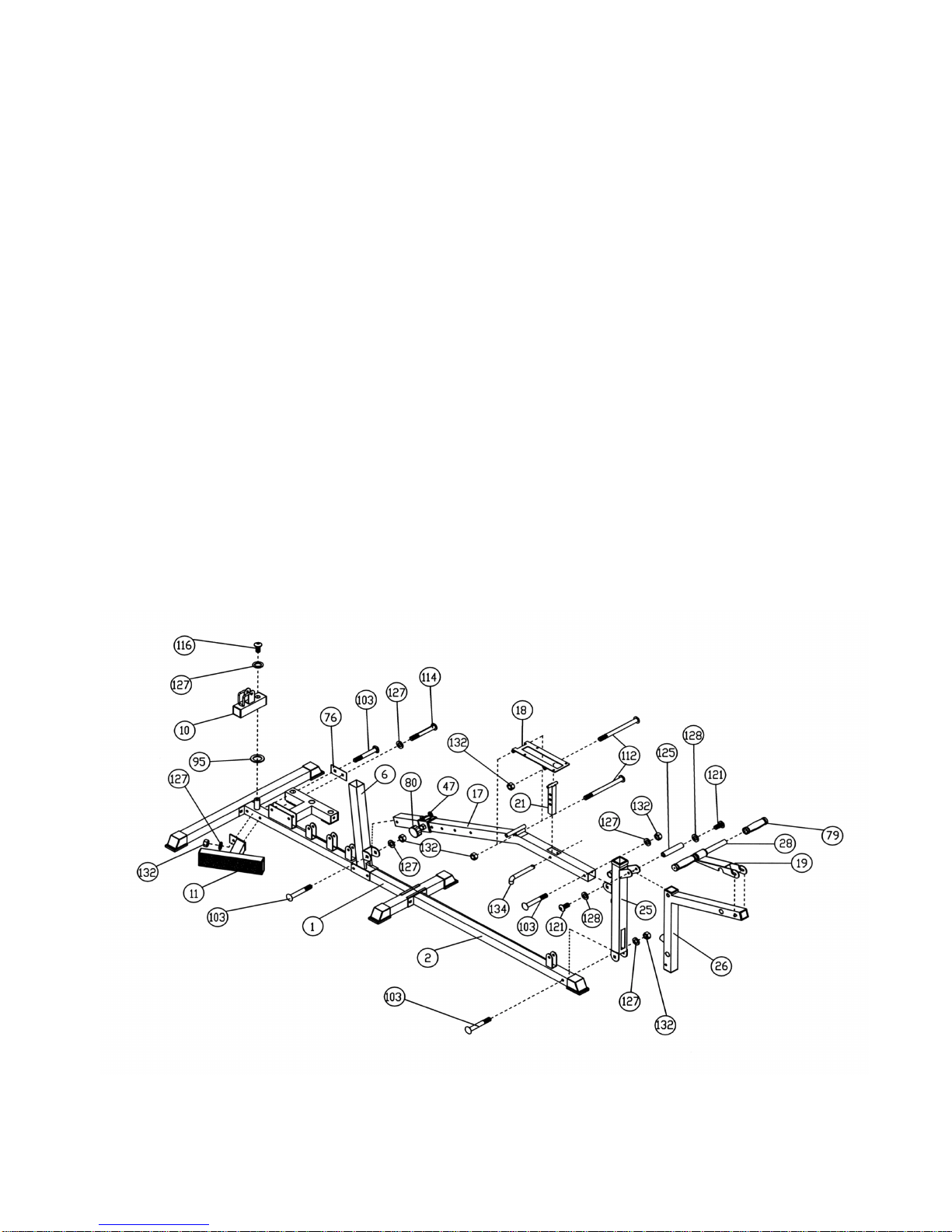

G.)Attach the Seat Bracket (#18) to the pivot tube on the Main Seat Support (#17). Secure it with

a M10 x 4 ¾” Allen Bolt (#112) and M10 Aircraft Nut (#132).

H.)Attach the Seat Incline Support (#21) to the bottom of the Seat Bracket (#18). Secure it with a

M10 x 4 ¾” Allen Bolt (#112) and M10 Aircraft Nut (#132). Adjust the incline with a L Shaped

Pin (#134). DIAGRAM 4

STEP 5 (See Diagram 5)

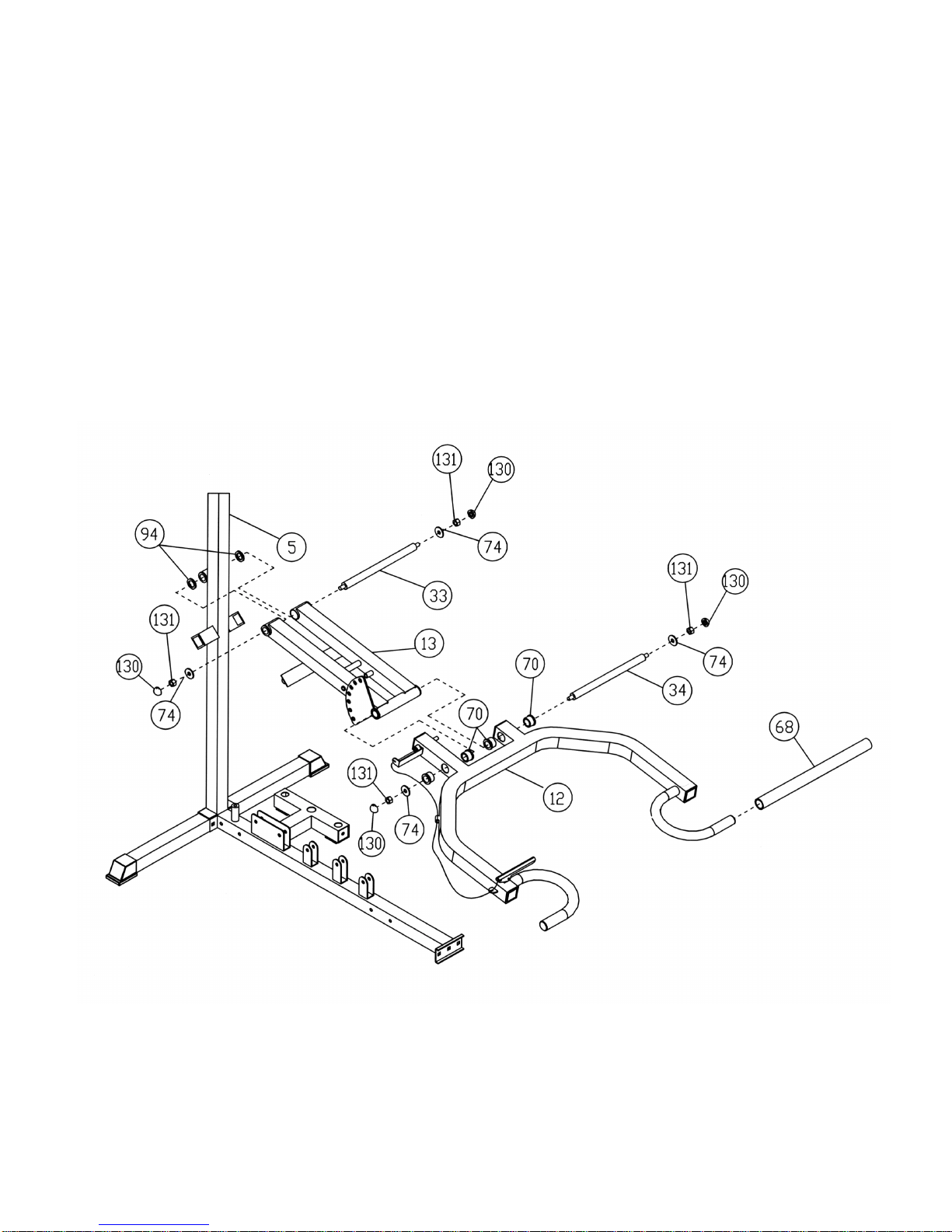

A.) Attach the Bench Press Base (#13) to the opening on the Rear Vertical Beam (#5). Carefully

place two ∅1 ½” Washers (#94) in between the Base (#13) and the Vertical Beam (#5). Align

the holes and insert a ∅1” x 8” Axle (#33). Secure both sides with two ∅1 ½ Washers (#74)

and M12 Aircraft Nuts (#131). Close both ends with two Round Caps (#130).

B.) Attach four ∅1” Bushings (#70) to the openings on the Bench Press Frame (#12). Then attach

the Bench Press Frame (#12) to the Bench Press Base (#13). Align the holes and insert a ∅1”

x 12 ½” Axle (#34). Secure both sides with two ∅1 ½” Washers (#74) and M12 Aircraft Nuts

(#131). Close both ends with two Round Caps (#130).

C.)Lubricate the inside of the Foam Grips (#68) with water then slide them onto the Bench Press

Frame (#12).

D.)To adjust the Bench Press Arm, simply squeeze down the break handle on the right side of the

Press Arm.

DIAGRAM 5

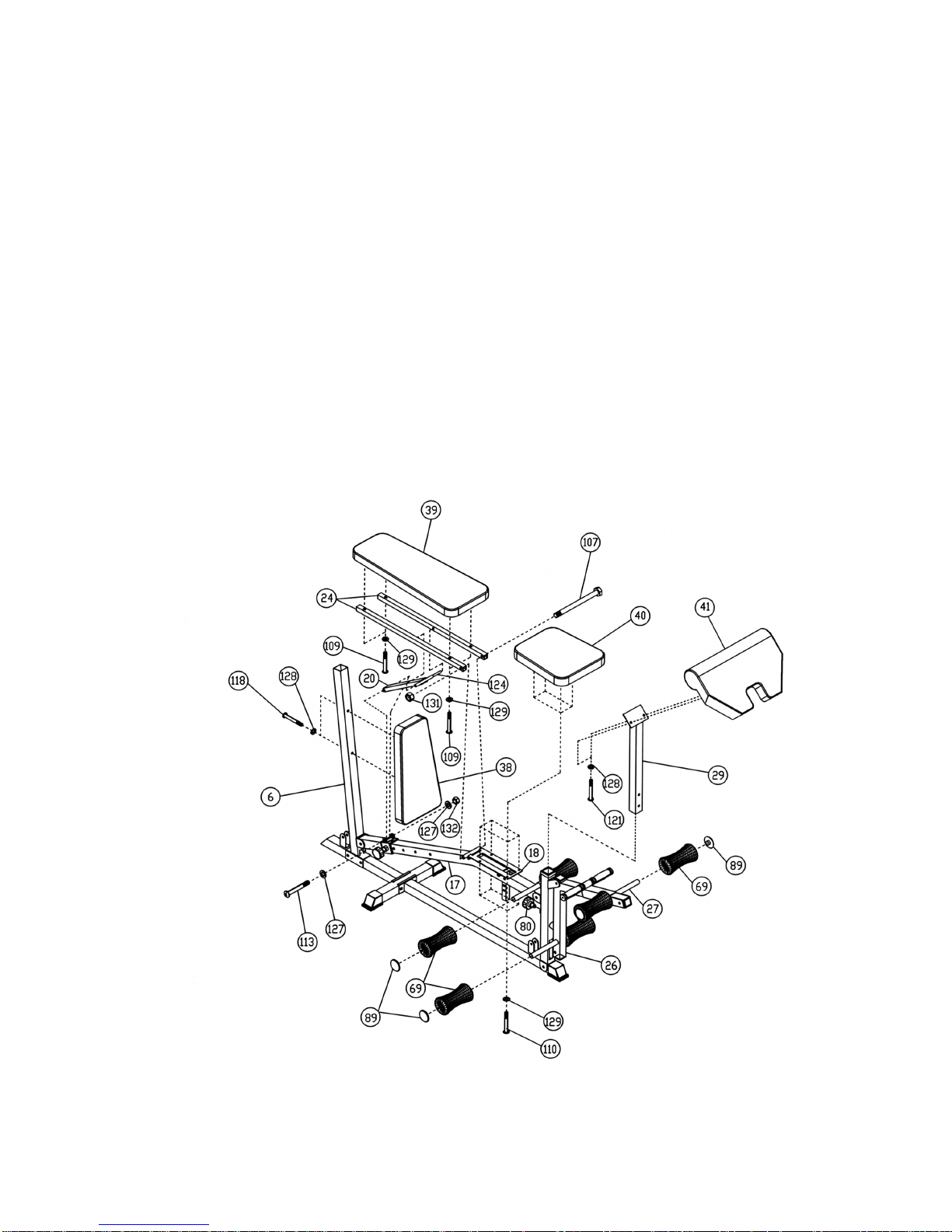

STEP 6 (See Diagram 6)

A.) Insert three Foam Roll Tubes (#27) halfway through the holes on the Leg Developer (#26).

Push six Foam Rolls (#69) onto the Tubes from both sides. Close the ends with six ∅1” End

Caps (#89).

B.) Attach the Vertical Backrest Board (#38) to the Front Vertical Beam (#6). Secure it with two

M8 x 2 ½” Allen Bolts (#118) and ∅5/8” Washers (#128).

C.) Attach the Arm Curl Pad (#41) to the Arm Curl Stand (#29). Secure it with two M8 x 5/8” Allen

Bolts (#121) and ∅5/8” Washers (#128). Insert the Arm Curl Stand (#29) into the opening on

the Leg Developer Holder (#25). Secure it with a Quick Release Pin (#80).

D.) Attach the Seat (#40) to the Seat Bracket (#18). Secure it with four M6 x 5/8” Bolts (#110)

and ∅1/2” Washers (#129).

E.) Attach the “Hole-side” of the Backrest Supports (#24) to the pivot tube on the Main Seat

Support (#17). Secure it with a M12 x 7 ¼” Bolt (#107) and M12 Aircraft Nut (#131).

F.) Insert a 6 ¼” Pivot Axle (#124) halfway through the Diagonal Support (#20). Attach the Axle

to the holes on the Backrest Supports (#24) in the mid-span. Attach the other end of the

Diagonal Support (#20) to the Sliding Block (#47) on the Main Seat Support (#17). Secure it

with a M10 x 3” Allen Bolt (#113), two ∅3/4” Washers (#127) and one M10 Aircraft Nut (#132).

G.) Attach the Backrest Board (#39) to the Backrest Supports (#24) and secure it with four M6 x 1

3/8” Bolts (#109) and ∅1/2” Washers (#129).

DIAGRAM 6
