Impex MACH V Manuale utente

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Resistance Chart

Warranty

Ordering Parts

Model

MACH V

Retain This

Manual for

Reference

08-26-03

OWNER'S

MANUAL

MARCY MAGNUM V

HOME GYM

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICE...................................................................... 2

HARDWARE PACK…….......…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 7

PARTS LIST...................................................................................................... 25

RESISTANCE CHART…………......................................................................... 27

WARRANTY.................................................................................................… 28

ORDERING PARTS......................................................................................... 28

BEFORE YOU BEGIN

Thank you for selecting the MARCY MAGNUM V PERSONAL TRAINER

by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this

manual carefully before using the machine. As a manufacturer, we are

committed to provide you complete customer satisfaction. If you have

any questions, or find there are missing or damaged parts, we

guarantee you complete satisfaction through direct assistance from our

factory. To avoid unnecessary delays, please call our TOLL-FREE

customer service number. Our Customer Service Agents will provide

immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire

manual before you assemble or operate your machine. In particular, note the following

safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches

NOTE: It is strongly recommended this machine be assembled by two or more

people to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach two Ø 2 ½” Rubber Bumpers (#88) to the holes on the Main Base Frame (#1).

B.) Align the holes and insert two Guide Rods (#10) into the holes. Secure the Guide

Rods from the Bottom of Main Base Frame with two M10 x ¾” Allen Bolts (#120) and

Ø ¾” Washers (#124). DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Connect the Main Base Frame (#1) to both the Front & Rear Stabilizers (#5 & 4). Secure each end

with two M10 x 2 ¾” Carriage Bolts (#109), one 4 ¾” x 2” Bracket (#44), two ∅¾” Washers

(#124), and two M10 Aircraft Nuts (#128). DO NOT tighten all the nuts and bolts yet.

B.) Attach the Rear & Front Vertical Beams (#6 & 7) to the Main Base Frame (#1). Secure each Beam

with two M10 x 2 ¾” Carriage Bolts (#109), ∅¾” Washers (#124), and M10 Aircraft Nuts (#128).

C.)Place the Upper Frame (#8) onto the Front & Rear Vertical Beams. Secure the Upper Frame to

Rear Vertical Frame with two M10 x 2 ¾” Carriage Bolts (#109), ∅¾” Washers (#124), and M10

Aircraft Nuts (#128).

D.)Secure the Upper Frame to the Front Vertical Beam with two M10 x 3 ½” Carriage Bolts (#108),

one 6 ¼” x 2” Bracket (#43), two ∅¾” Washers (#124), and two M10 Aircraft Nuts (#128).

E.) Attach the Lat Bar Holder (#31) to the front of the Upper Frame (#8). Secure it with one M10 x 2

¾” Carriage Bolt (#109), ∅¾” Washer (#124), and M10 Aircraft Nut (#128).

F.) Securely tighten all Bolts and Nuts.

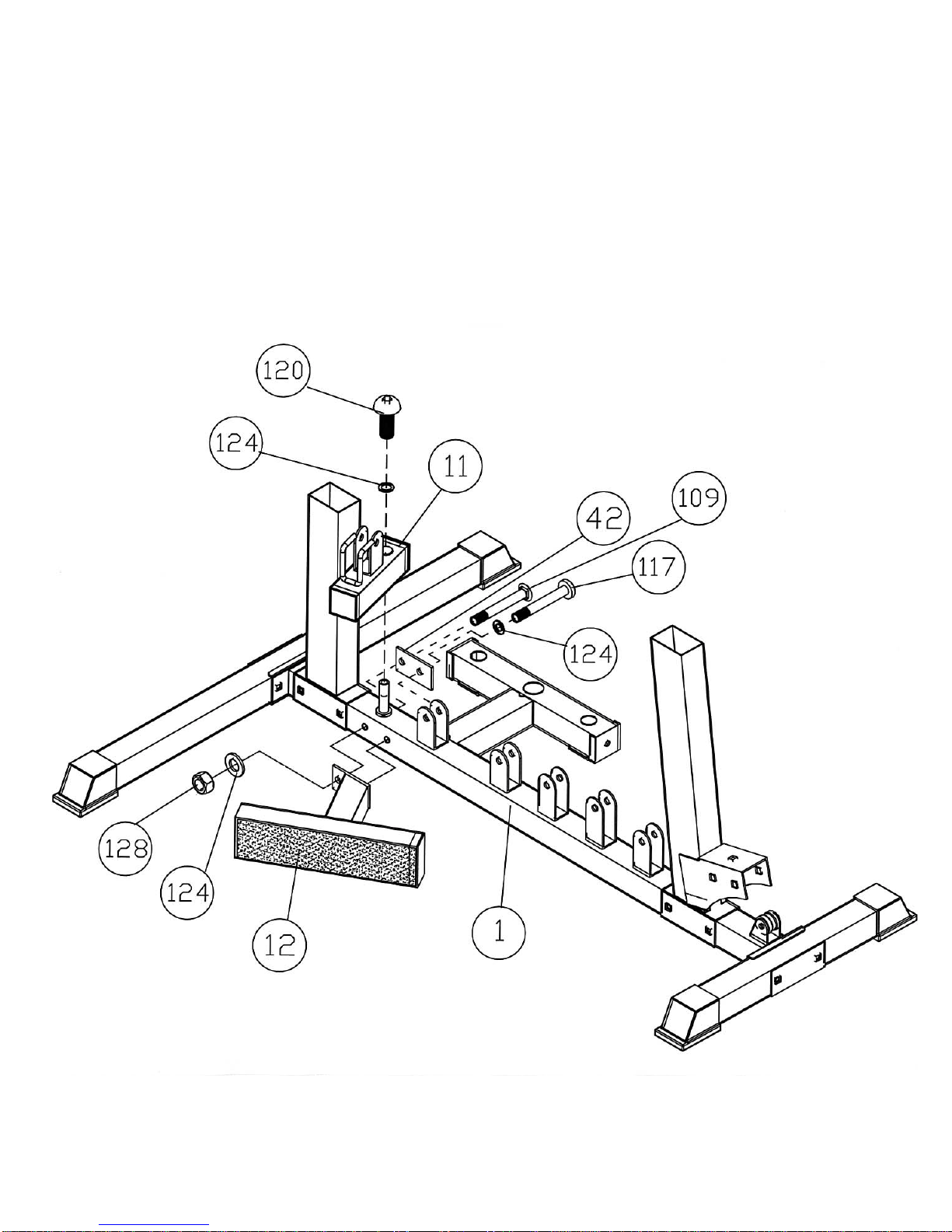

STEP 3 (See Diagram 3)

A.) Place the Swivel Frame (#11) onto the axle on the Main Base Frame (#1). Secure it with one

M10 x ¾” Allen Bolt (#120) and Ø ¾” Washer (#124).

B.) Attach the Foot Support (#12) to the Main Base Frame. Attach the 4” x 2” Bracket (#42) to

the opposite side on the Main Base Frame. Secure them with one M10 x 2 ¾” Carriage Bolt

(#109), Ø ¾” Washer (#124), and M10 Aircraft Nut (#128) to the hole near the Rear

Stabilizer. Secure the other hole with a M10 x 2 ½” Allen Bolt (#117) and Ø ¾” Washer

(#124). DIAGRAM 3
