Mobile Mold Setup Cart
IMS # 120100
ASSEMBLY INSTRUCTIONS
June 1, 2011
IMS Company
10373 Stafford Road
Chagrin Falls, OH 44023-5296
Telephone: (440) 543-1615
Fax: (440) 543-1069
Email: sales@imscompany.com
Website: www.imscompany.com
© Copyright 2011 IMS Company. All rights reserved. An ISO 9001:2008 Registered Quality Company
2
Please review contents before assembly, if parts are missing – contact IMS
Company at 1-440-543-1615 for replacements.
Tools needed for assembly:
Wrench, Nut Driver or Rachet and Socket – ¼'' and 3/8''
Caster/Base Pan Assembly Parts
1 – Base Pan
2 – Swivel Casters
2 – Fixed Casters
16 – Hex Head Bolts 3/8''-16 x 1''
16 – Flat Washers 3/8''
16 – Locking Washers 3/8''
16 – Hex Nuts 3/8''-16
Frame and Shelf Assembly Parts
1 – Top Frame Assembly
2 – Shelves
1 – Front Support w/Hangers, Left
1 – Front Support w/Hangers, Right
2 – Rear Supports
20 – Hex Head Bolts ¼''-20 x 5/8''
6 – Hex Head Bolts ¼''-20 x 3/4''
32 – Flat Washers ¼''
26 – Locking Washers ¼''
26 – Hex Nuts ¼''-20
Parts List
© Copyright 2011 IMS Company. All rights reserved. An ISO 9001:2008 Registered Quality Company
3

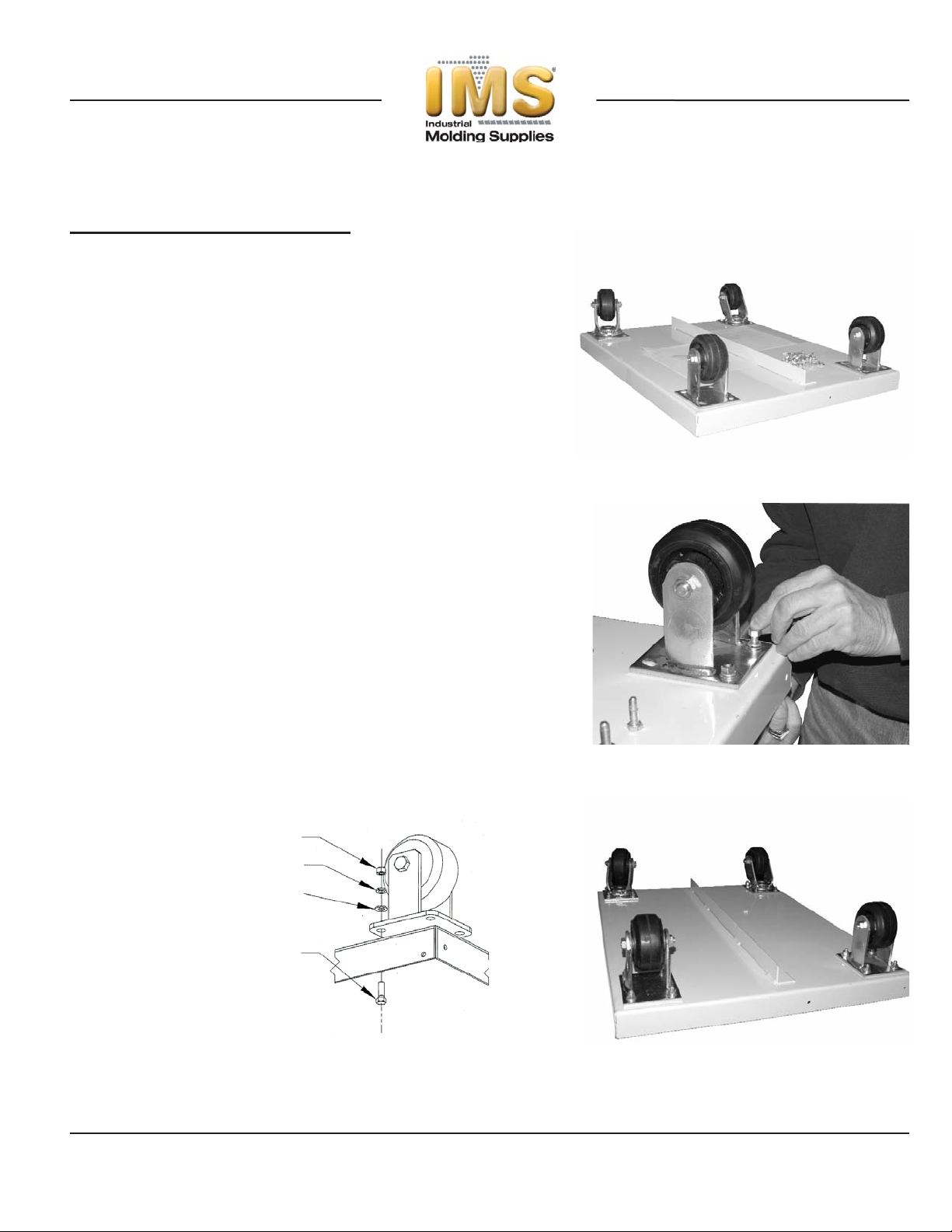

Caster/Base Pan Assembly
1. Place Base Pan upside down on bench.
2. Position 2 Swivel and 2 Fixed Casters on
Base Pan – match hole patterns of casters
to holes of Base Pan. (image A)
3. Insert 3/8''-16 x 1'' Hex Head Bolt through Base Pan, use
3/8'' Flat Washer, 3/8'' Locking Washer and 3/8''-16 Hex
Nut to secure bolt. (see drawing 1, image B & image C)
C
A
B
drawing 1
3/8''-16 x 1'' HEX NUT
3/8'' LOCK WASHER
3/8'' FLAT WASHER
HEX BOLT 3/8''-16 x 1''
© Copyright 2011 IMS Company. All rights reserved. An ISO 9001:2008 Registered Quality Company
4
E
D
HEX BOLT
1/4''-20 x 5/8''
1/4''-20
HEX NUT
1/4'' LOCKING
WASHER
1/4'' FLAT
WASHER
drawing 2
Rear
Holes
Hanger
Posts

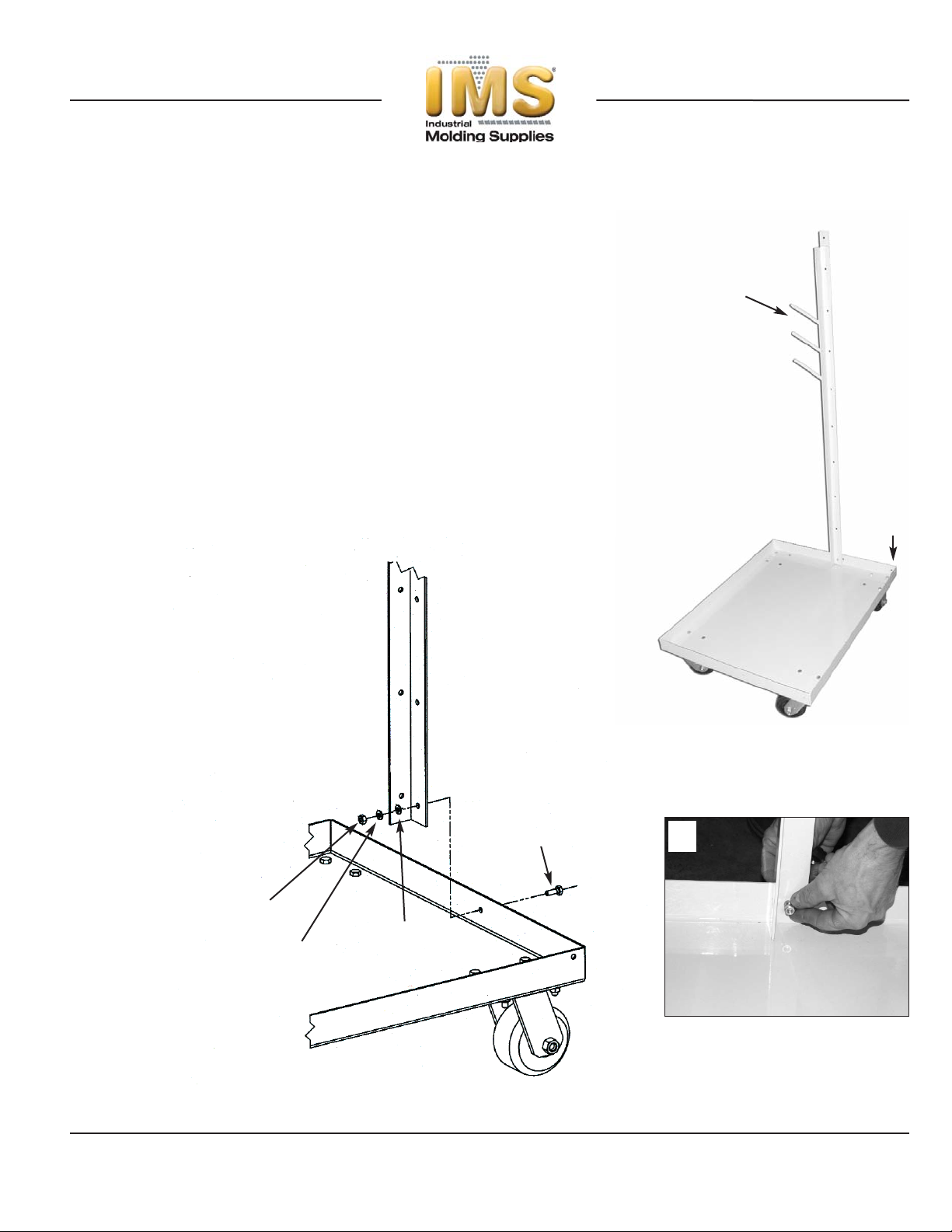

Frame and Shelf Assembly
4. Flip base onto casters
5. DO NOT OVER TIGHTEN ANY BOLTS UNTIL ALL ASSEMBLY
IS COMPLETE – the “looser” bolts will allow easier assembly
of subsequent shelves.
6. Find Holes in lip of Base – 2 holes on lip on one half
of the base – attach right and left Front Support w/Hangers
to the middle holes of the Base. Position Hanger Posts
so they point away from rear holes (image D).
Attach using ¼''-20 x 5/8'' Hex Head Bolt, ¼'' Flat Washer,
¼'' Locking Washer, & ¼''-20 Hex Nut (see drawing 2 & image E).
© Copyright 2011 IMS Company. All rights reserved. An ISO 9001:2008 Registered Quality Company
5
G

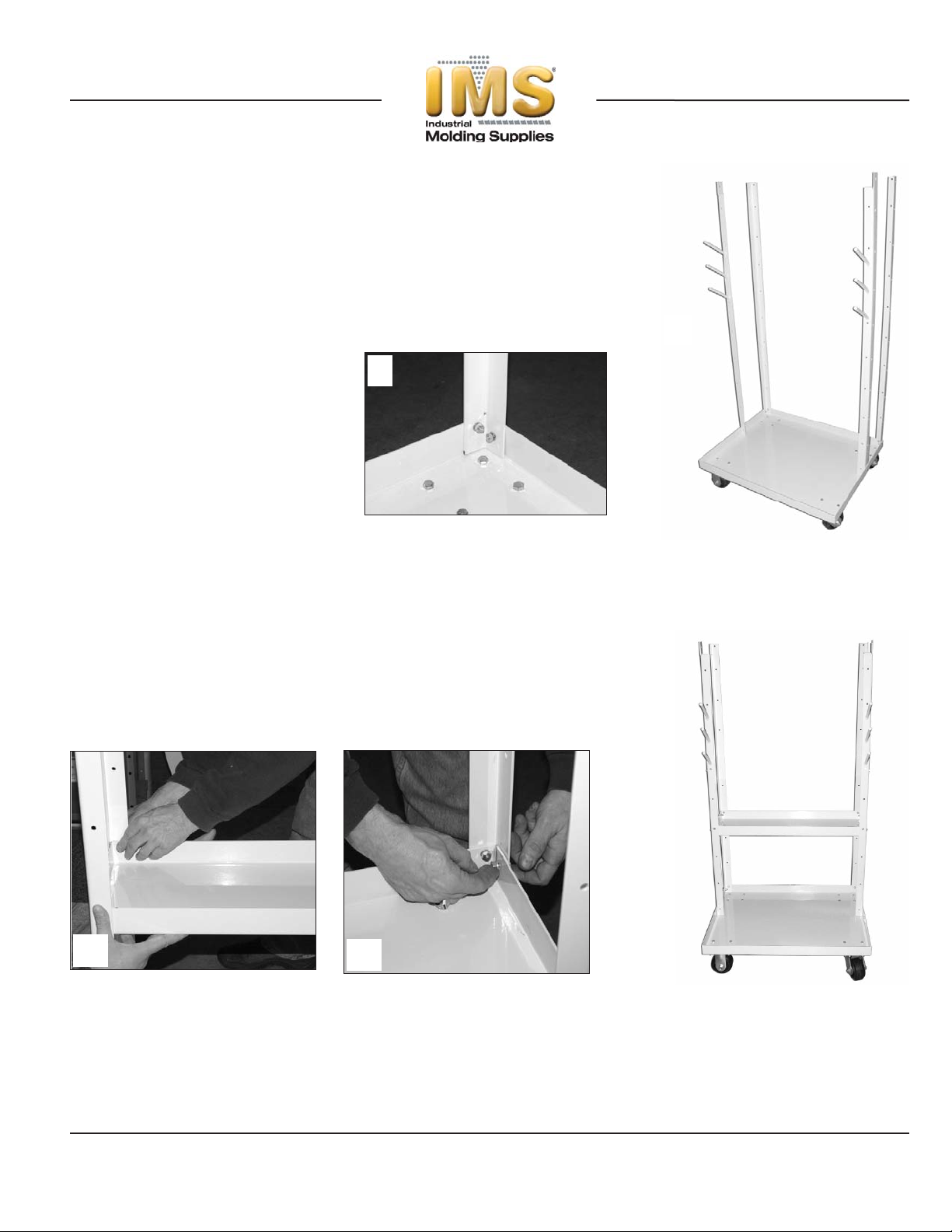

7. Attach Rear Support to Base Pan using ¼''-20 x 5/8''
Hex Head Bolt, ¼'' Flat Washer, ¼'' Locking
Washer, & ¼''-20 Hex Nut (see images F & G).
8. Select required height for lowest Shelf. With assistance,
position Shelf with lip pointing upward and attach using
¼''-20 x 5/8'' Hex Head Bolt, ¼'' Flat Washer, ¼'' Locking
Washer, & ¼''-20 Hex Nut (images H, I, and J).
HJ
I
F
© Copyright 2011 IMS Company. All rights reserved. An ISO 9001:2008 Registered Quality Company
6

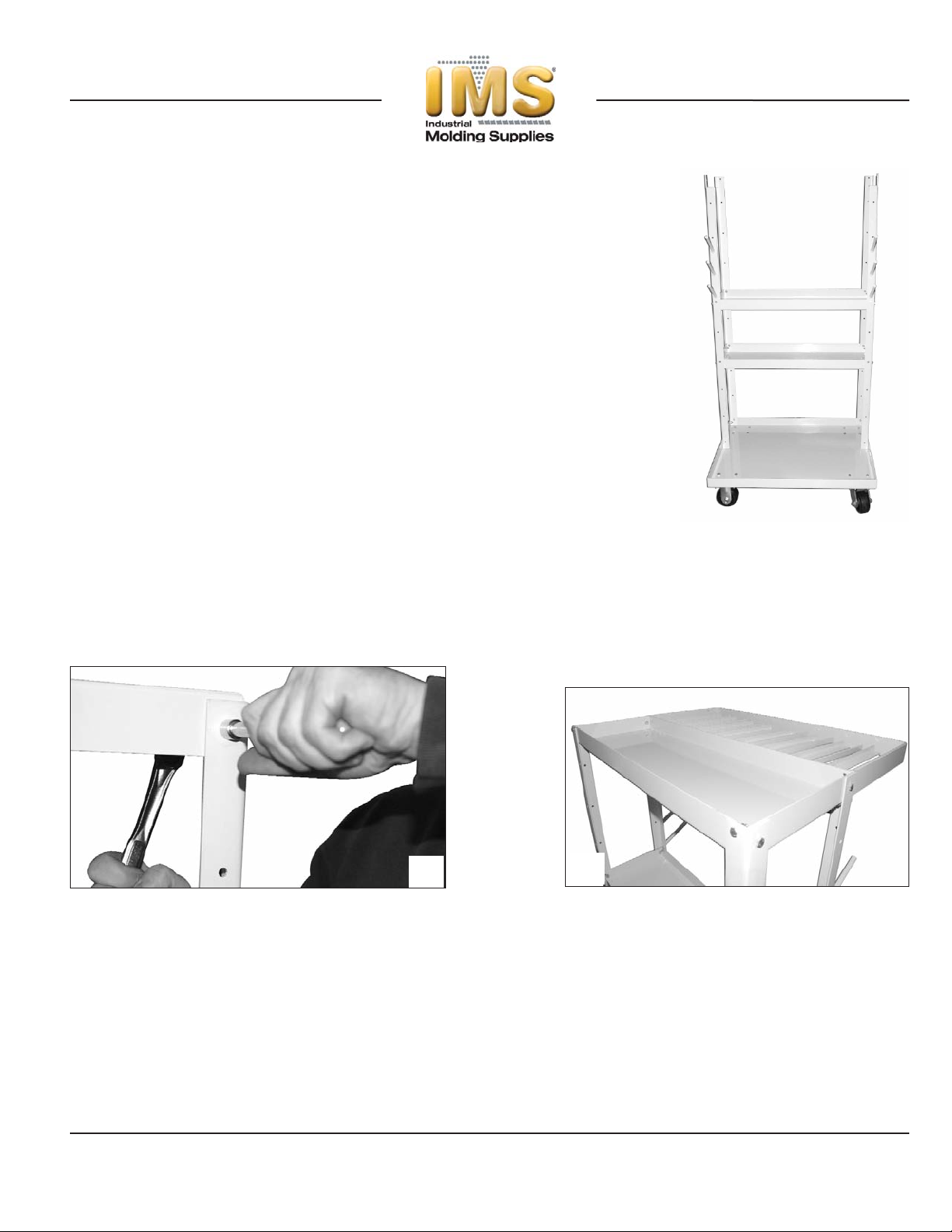

9. Select required height for second Shelf –
repeat step 8 to assemble (image K)
10. Position Top Frame Assembly at top of frame using
¼''-20 x 3/4 '' Hex Head Bolt, ¼'' Flat Washer, ¼'' Locking
Washer, & ¼''-20 Hex Nut (images L & M).
M
L
K
© Copyright 2011 IMS Company. All rights reserved. An ISO 9001:2008 Registered Quality Company
7
N
O

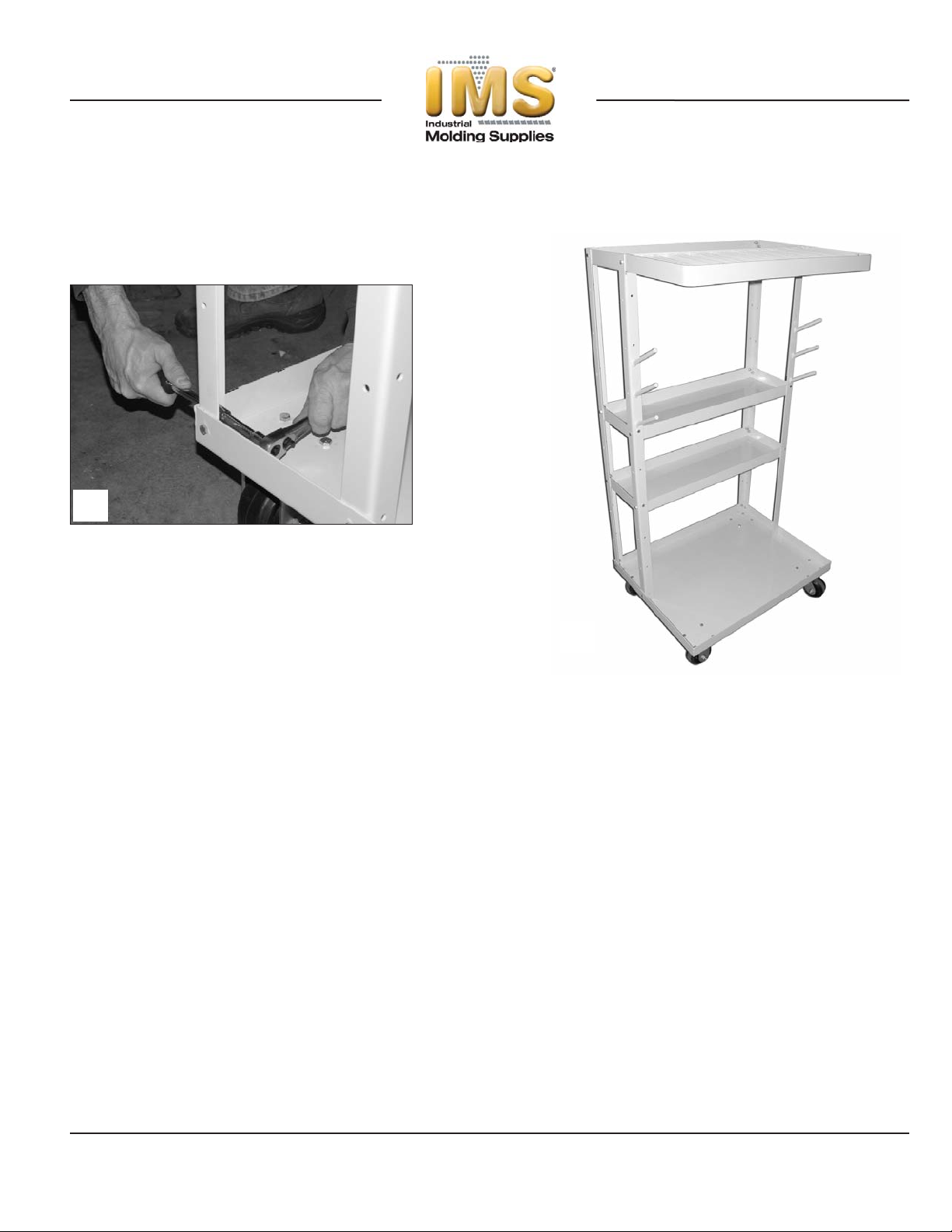

11. Tighten up all nut/bolt combinations
to finish assembly (images N &O)
