INDCO DL Series Manuale utente

OWNERSMANUAL

DL(G) Drum Lid Series Mixers

TABLEOFCONTENTS:

Safety & General ................................................................................2

Receiving &Installation.....................................................................3

Operation ..............................................................................................4

Parts List.................................................................................................5-10

P4040 Earnings Way NEW ALBANY, IN 47150

P: 8129415954 F: 8129449742 

INDCO.COM INFOINDCO.COM



Drum

Lid

Mixers

Warranty

Our products are guaranteed against

defective materials and workmanship,

we will repair or replace such items

as may prove defective at our option.

Warranty period is one year on items

manufactured by INDCO, except for

the MixMaster Series Shakers which

carries a two year warranty. On items

not manufactured by INDCO, the

manufactures warranty applies. All

component parts of our products are

covered by this warranty, except for

normal wear items such as belts or

impellers. We cannot be responsible

for damage or abuse to equipment

caused by improper installation or

operation. Warranties can also be

voided by unauthorized disassembly

of equipment. For warranty repairs,

equipment is returned to INDCO at

the customer’s expense; we will repair

and return to customer at our expense.

Under no circumstances will we allow

labor charges or other expense to repair

defective merchandise. This warranty

is exclusive and is in lieu of all other

warranties, whether express or implied.

INDCO shall not be liable for any other

damages, whether consequential,

indirect, or incidental, arising from the

sale or use of its products.

DL Series

- direct drive -

DLG Series

- gear drive -

Safety:

Please follow the below safety precautions. If there are any questions, please call INDCO at 800-942-4383. Please read this

complete manual before trying to operate your mixer. Failure to follow these instructions could result in serious bodily injury

or death.

 

Keep all hands, feet, clothes, neckties, necklaces and other objects clear of moving parts.

 

 

 

 

 

 

ELECTRIC MOTOR SAFETY:

Motors should be installed, protected and fused in accordance with latest issue of National Electrical Code, NEMA Standard

Publication No. MG 2 and local codes. Frames and accessories of motors should be grounded in accordance with National

Electrical Code (NEC) Article 430. For general information on grounding refer to NEC Article 250. Not all rotating parts are



and non-standard connections. If environment has hazardous combustible fumes present, use only explosion-proof electric

motors.

AIR MOTOR SAFETY:

The air motor is designed to be driven by compressed air and under no circumstances be driven with any other gases. Fluids,

particles, solids or any substance mixed with air, particularly combustible substances likely to cause explosions, must not drive

air motor.

 

 



 

thrust that could damage air motor.

 

 

damage.

 

 

 

clearances and rapid motor damage will result.

 

models.

General:



 

 

 



This line of drum lid mixers oer a low cost method of agitating and blending 55-gallon open head drums of low viscosity liquids.

All units include steel drum lids.



This line of rugged, heavy duty drum lid mixers are ideal for vigorous mixing of heavy-bodied coatings, epoxies, mud, plaster and

slurries. Built around a 5:1 ratio gear box, they have extra power and high torque necessary for tough drum and tank mixing jobs.

All units include steel drum lids.



Receiving:

Before removing any packing, visually inspect the exterior of the shipment for any sign of damage. Should there be any damage,

bring it to the attention of the delivering UPS or truck line and note the same on the receiving ticket. Should there be damage you

must place a claim with the truck line.

They are the only ones who will pay for the damage done and you are the only one

who can place that claim.

Installation:



machine before it’s operational.

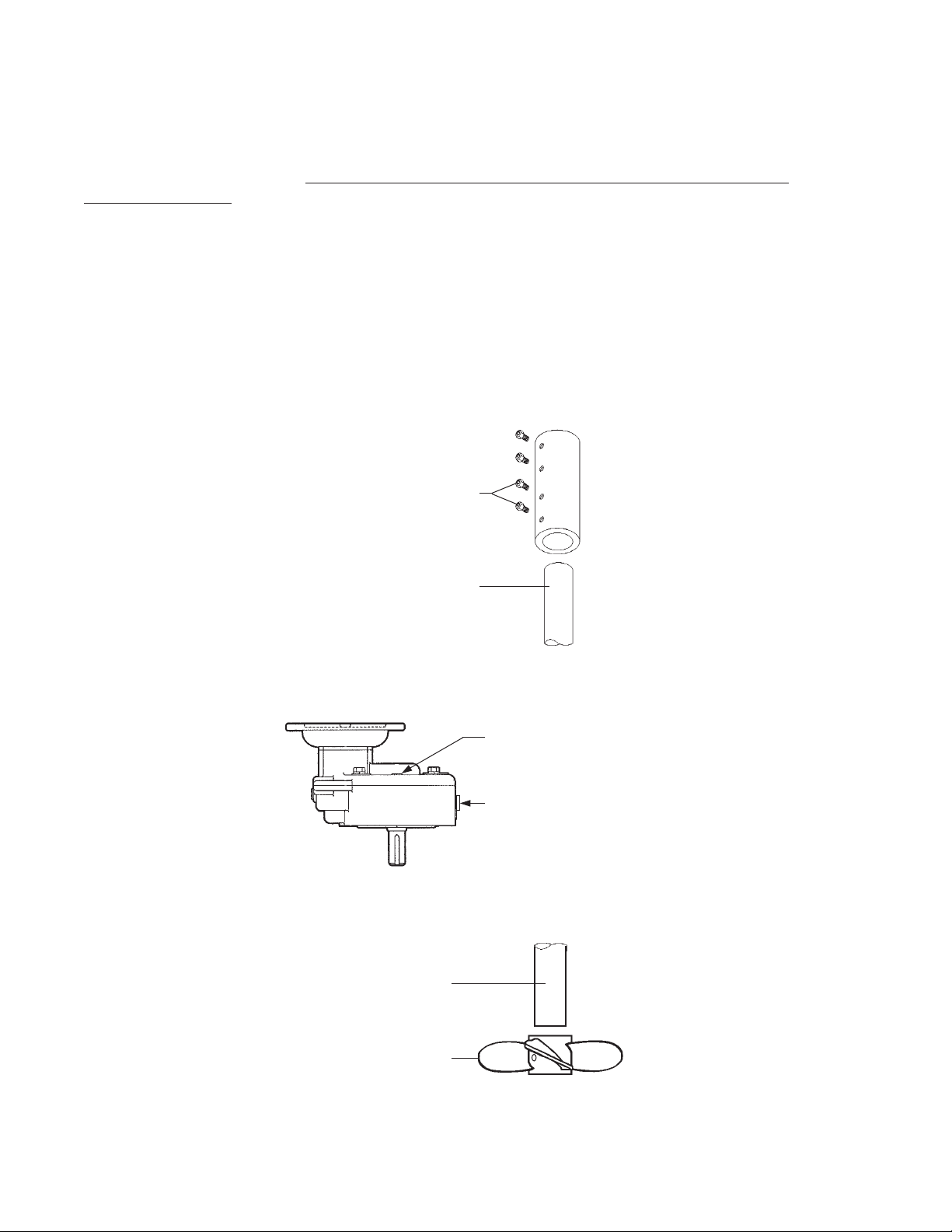

Shaft & Coupler

To install mixer shaft, back o the set screws as far as possible without removing them. Insert mixing shaft into the coupler as far



Gear Drive, DLG Series

 

 

point as shown below.

IMPELLERS:

To install the impeller, back o the set screw(s) as far as possible without removing them. Insert mixing shaft into the bore and





set screws

shaft

shaft coupler

Filler-Vent Plug Location

• Remove Allen head plug

Drain Plug Location

shaft

set screws

IMPELLER PLACEMENT:

For mixers with ONE impeller, mount it 1 to 2 impeller diameters o the bottom of the mixing container. For mixers with TWO or

more impellers, mount the lowest impeller 1 to 2 diameters distance o the bottom of mixing container. Mount the imellers 1 to

2 impeller diameters apart. The uppermost impeller should be positioned approximately 1 impeller diameter under the surface



placement may provide your best results.

Operation:

ELECTRIC POWER: Once the electric motor has been wired. check rotation to be sure the mixer shaft is rotating in a clock-

wise direction, looking downward into the container.

AIR POWER: Check to ensure the air valve in in the closed position, then connect air supply. Check rotation to be sure the

mixer shaft is rotating in a clock-wise direction, looking downward into the container.

Once the mixer is in the container, it is now safe to operate.

Caution:

Never run the mixer without a propeller.

Never run the propeller in open air.

Never run propeller outside a container.

MAINTENANCE:

Maintaining your mixer is not dicult if you follow these guidelines:

 

 

 

 

  

LUBRICATION:

Gear Drive Models:

The gearbox contains oil from the factory. The recommended replacement oil is:

Gearbox models #RPQ1 and #RPQ2:

 

 

 

 

- For 50°F to 125°F ambient.

- RPQ1 Oil capacity is 11 ounces.







Item 100 Part No. Description

MTR-3/4-HUB-AIR-CCW Hub Mount - 3/4 HP (2AM-NCC-16) CCW rotation only

N-K202 Repair Kit* (2AM-NCC-16)

MTR-3/4-FOOT-AIR-CCW Foot Mount - 3/4 HP (2AM-FCC-1) CCW rotation only

N-K202 Repair Kit* (2AM-FCC-1)

MTR-3/4-56C-AIR 56C Mount - 3/4 HP (2AM-NRV-90) bi-rotational

N-K510 Repair Kit* (2AM-NRV-90)

HDW-1/4-VALVE Needle valve, brass - 1/4”

HDW-2502-SNB Pipe nipple, steel - 1/4” X 2”

N-AC980 Mu󰀪er, metal

MTR-1.5-HUB-AIR Hub Mount - 1.5 HP (4AM-NRV-22B) bi-rotational

N-K205 Repair Kit* (4AM-NRV-22B)

MTR-1.5-FOOT-AIR Foot Mount - 1.5 HP (4AM-FRV-13C) bi-rotational

N-K205 Repair Kit* (4AM-FRV-13C)

MTR-1.5-56C-AIR 56C Mount - 1.5 HP (4AM-NRV-50C) bi-rotational

N-K206A Repair Kit* (4AM-NRV-50C)

HDW-1/4-VALVE Needle valve, brass - 1/4”

HDW-25-CNG Pipe nipple, steel - 1/4” X 7/8”

N-AC980 Mu󰀪er, metal

MTR-4-FOOT-AIR Foot Mount - 4 HP (6AM-FRV-5A) bi-rotational

N-K208 Repair Kit* (6AM-FRV-5A)

MTR-4-56C-AIR 56C Mount - 4 HP (6AM-NRV-11A) bi-rotational

N-K208 Repair Kit* (6AM-NRV-11A)

HDW-1/2-VALVE Needle valve, brass - 1/2”

HDW-50-CNG Pipe nipple, steel - 1/2” X 1-1/8”

N-AC990 Mu󰀪er, metal

* Repair Kits include: Vanes, shaft seal, o-rings, DE & NDE bearings,

body & end cap gaskets.

Air Motors

3/4 HP1.5 HP4 HP





MTR-1/2-56C-1-EP 56C, xed speed 1/2 HP Explosion-Proof 115/230VAC 1-phase

MTR-1/2-56F-1-EP 56F, xed speed 1/2 HP Explosion-Proof 115/230VAC 1-phase

MTR-1/2-56C-1-TEFC 56C, xed speed 1/2 HP TEFC 115/230VAC 1-phase

MTR-1/2-56F-1-TEFC 56F, xed speed 1/2 HP TEFC 115/230VAC 1-phase

CPG-INLINE-18/3 Cord 18/3 - 6’, plug and in-line ON-OFF switch

MTR-098000 56C, variable speed 1/2 HP TEFC 115VAC to 90VDC 1-phase

MTR-DC-CONTROL DC motor controller, variable speed - 1/3 thru 2HP

CPG-18/3 Cord 18/3 - 6’ with plug

MET-VSO-BRACKET Angle brackets, mounts v.s. controller to motor (2 req’d)

MTR-3/4-56C-1-EP 56C, xed speed 3/4 HP Explosion-Proof 115/230VAC 1-phase

MTR-3/4-56F-1-EP 56F, xed speed 3/4 HP Explosion-Proof 115/230VAC 1-phase

MTR-3/4-56C-1-TEFC 56C, xed speed 3/4 HP TEFC 115/230VAC 1-phase

MTR-3/4-56F-1-TEFC 56F, xed speed 3/4 HP TEFC 115/230VAC 1-phase

CPG-14/3 Cord 14/3 - 5’ with plug

SWT-TOGGLE ON - OFF switch

SWT-GUARD Switch guard

MTR-108018 56C, variable speed 3/4 HP TEFC 115VAC to 90VDC 1-phase

MTR-DC-CONTROL DC motor controller, variable speed - 1/3 thru 2HP

CPG-14/3 Cord 14/3 - 5’ with plug

MET-VSO-BRACKET Angle brackets, mounts v.s. controller to motor (2 req’d)

MTR-1-56C-1-EP 56C, xed speed 1 HP Explosion-Proof 115/230VAC 1-phase

MTR-1-56F-1-EP 56F, xed speed 1 HP Explosion-Proof 115/230VAC 1-phase

MTR-1-56C-1-TEFC 56C, xed speed 1 HP TEFC 115/230VAC 1-phase

MTR-1-56F-1-TEFC 56F, xed speed 1 HP TEFC 115/230VAC 1-phase

CPG-14/3 Cord 14/3 - 5’ with plug

SWT-DP-TOGGLE ON - OFF switch

SWT-GUARD Switch guard

MTR-108022 56C, variable speed 1 HP TEFC 115VAC to 90VDC 1-phase

MTR-DC-CONTROL DC motor controller, variable speed - 1/3 thru 2HP

CPG-14/3 Cord 14/3 - 5’ with plug

MET-VSO-BRACKET Angle brackets, mounts v.s. controller to motor (2 req’d)

Electric Motors

1 HP 3/4 HP

Item 100 Part No. Description

1/2 HP





100

600

700

200

300

400

601





Item Qty. Part No. Description

100. 1 see ‘Parts List - Drive Motors’ Motor, air

100. 1 see ‘Parts List - Drive Motors’ Motor, electric

200. 1 CPL-6262 Coupling - shaft, 5/8” bore x 5/8” bore - stainless

300. 1 SS632 Shaft - impeller, 5/8” dia. x 32” long - stainless

400. 1~2 specify model Impellers

401. 2~4 specify model Set screw (not shown)

Mounting Base Assembly:

600. 1 N-MNT-FLE 56C Face Mount, Air & Electric motors - cast aluminum w/ oor ange

601. 1 HDW-150-FLANGE Floor Flange, 1-1/2”, 150# - cast iron

700. 1 HDW-BUDL Drum Lid, 55-gallon - painted steel

700. 1 HDW-BUDL-SS Drum Lid, 55-gallon - 304 stainless steel





300

400

210

100

200

600

601

700

100





Item Description Part No. Qty.

100. Motor, air see ‘Parts List - Drive Motors’ 1

100. Motor, electric see ‘Parts List - Drive Motors’ 1

200. Gear Box, 5:1 ratio HDW-GB-56C 1

200. Gear Box, 5:1 ratio for: DLG-4A only HDW-GB-56C-LG 1

210. Coupling - shaft, 5/8” bore x 3/4” bore - stainless CPL-6275 1

300. Shaft - impeller, 3/4” dia. x 32” long - stainless SS732 1

400. Impellers specify model 1~2

401. Set screw (not shown) specify model

2~4

Mounting Base Assembly:

600. 56C Face Mount, Air & Electric motors - cast aluminum w/ oor ange N-MNT-FLE 1

601. Floor Flange, 1-1/2”, 150# - cast iron HDW-150-FLANGE 1

700. Drum Lid, 55-gallon - painted steel HDW-BUDL 1

700. Drum Lid, 55-gallon - 304 stainless steel HDW-BUDL-SS 1
