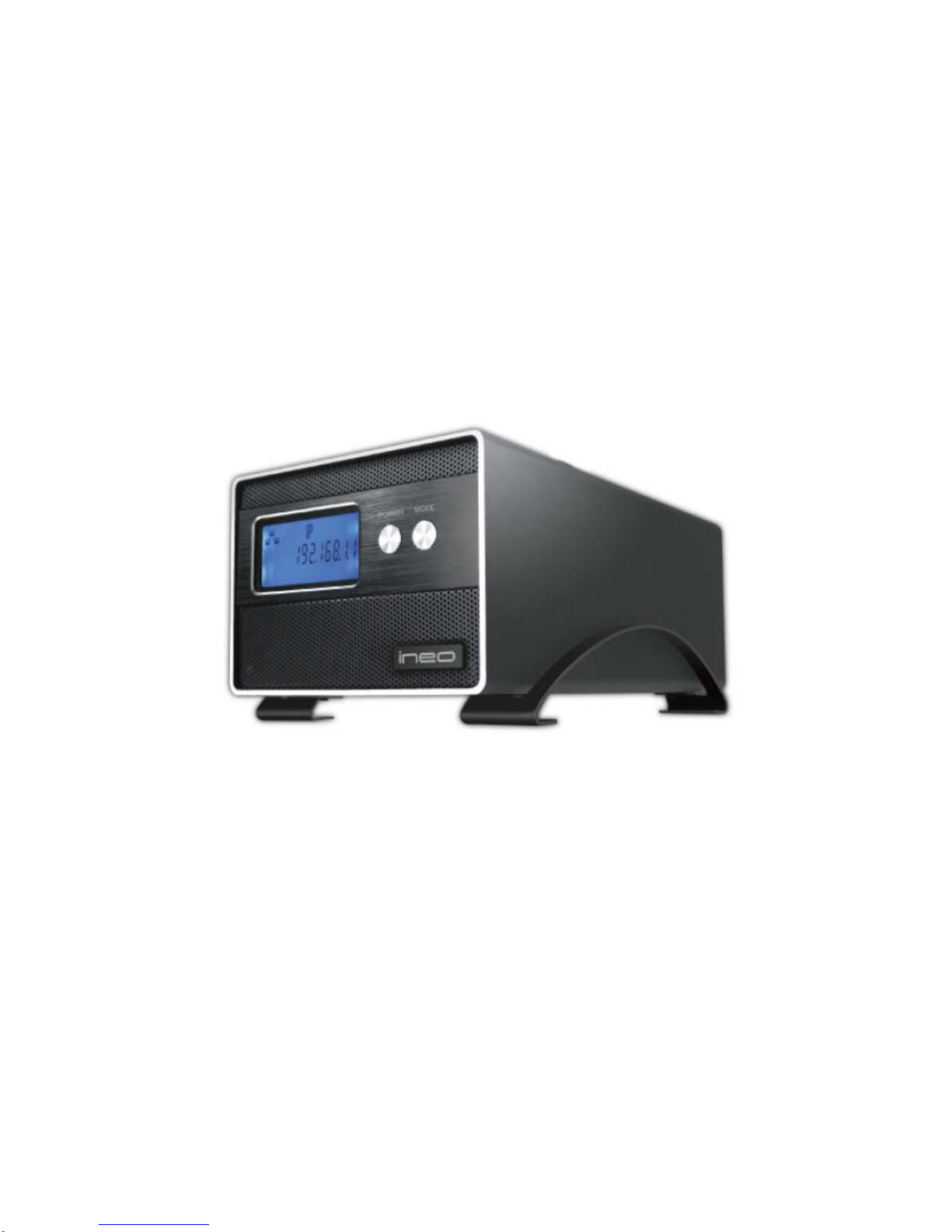

iNeo I-NA312N1-S Manuale utente
Model:I-NA312N1-S
Network Attached Storage
User Manual
www.ineotechusa.com
Content
1Getting Started
Product Specification………..
Networking Concept……….
Package Contents …………………………...…….
System Requirements …………………………..
Updating Your Operating System ………………
Handling Precautions……………………
2Setting Up
I-NA305N1 Front View ……………
The information on LCD……………..
Hard Disk Drive Installation…………
3Connecting the NAS
Connecting the Cables ……………….
NAS Mode
Enclosure Mode
Powering Up the NAS ……..………
4Configuring the NAS
Overview……….
First Time Login…………..
Basic Setup…………..
Control Panel……………………
uShare
Web Album
IP Camera
Web Server
PHP BB
Gallery
5Appendixes
A: Mount NFS share in Linux
B: USB Devices
C: Remote Login FTP
D: Printer Server
E: Modify Password by User
F: Map NAS
G: Promise
1. Getting Started
FOREWORD
Thank you for choosing ineo products. This user manual provides detailed
instructions of usingI-NA312N1-S. Please read carefully and start to enjoy the
design of intimate user interface ofI-NA312N1-S.
Note
1. This manual provides the description of all functions ofI-NA312N1-S. The
product you purchased may not support certain functions dedicated to
specific models.
2. All features, functionality and other product specifications are subject to
change without prior notice or obligation.
3. All brands and products names referred to are trademarks of their
respective holders.
LIMITED WARRANTY
In no event shall the liability of ineo Tech Computers, Inc. ineo exceed the
price paid for the product form direct, indirect, special, incidental, or
consequential software, or its documentation. ineo makes no warranty or
representation, expressed, implied, or statutory, with respect to its products or
the contents or use of this documentation and all accompanying software, and
specifically disclaims its quality, performance, merchantability, or fitness for
any particular purpose. ineo reserves the right to revise or update its products,
software, or documentation without obligation to notify any individual or
entity.
Attention: Please backup your system periodically to avoid any potential
data loss. ineo disclaims any responsibility of all sorts of data
loss or recovery. If you return any components ofI-NA312N1-S
package for refund or maintenance, make sure they are
carefully packed for shipping. Any form of damages due to
improper packaging will not be compensated.
Product Specification
Networking Concept
Package Contents
Chipset Solution
Storlink 3516ARM9 300MHz
LAN Interface
Data Transfer Rates: 10/100/1000 Mbps
Connector Type: RJ-45 x 1port
Internal Hard Drives
Number of Drives: 2
Drive Interface: RJ-45 for SATA HDD
Interface
Standard Compliance: USB 2.0
Connector Type: USB Host A (Female) x 1
port
Device: works with USB devices, like USB
HUB, USB Printer, USB Enclosure, and USB
Pen Drive.
Supports USB printer server function
File System Management
EXT2 / EXT3 / FAT32
Language
English, Traditional Chinese, Simplified
Chinese
System Tools
System Firmware upgrades
Reset system setting
Display log file with SAMBA/FTP/DHCP
server/system/Administration
Support Hard Drive Capacity
Up to 4TB (2TB x 2)
Protocol Support
Networking: TCP/IP
File Sharing: SAMBA, FTP
Management: HTTP
User Management
User account management (no limit)
User group management (no limit)
User can change password
OS Supported (for Client PC)
Microsoft Windows 98SE / NT / 2000 / XP /
2003 / Vista / 7
Linux Redhat / Fedora / SUSE
Mac OS X
Wireless Network (I-NA305N1 w/ WiFi Optional)
Fixed / Dynamic IPAddress
DHCP Server
Encryption with 128 bit WEP / WPA I/II
IEEE 802.11 b/g/n
Features
Aluminum alloy casing with secure front door
LCD Display
Gigabit Transfer rate up to 1000Mbps
Fully compatible with 3.5" SATA I/II HDD
Support RAID 0/1 Function
Truly Plug and Play
Powerful and Quiet 40 x 40 mm Fan
External Power Adapter
Networking Concept
I-NA305N1 LAN to SATA HDD w/o WiFi
CD Yes
RJ-45 Cable Yes
Key Yes
User Manual Yes
Power Adapter Yes
System Requirements
Hardware
Pentium®II, 200 MHz equivalent or newer for IBM compatible PC
PowerPC G4, 350 MHz or newer for PowerPC-based Apple Computer Core®
or newer for Intel-based Apple Computer
Software
Windows 98SE / 2000/ 2003 / XP / Vista / 7
Mac®OS X
Note: For highest performance and reliability, we recommend that you install
the latest service pack (SP) and updates.
Updating Your Operating System
Windows
Go to the Start menu and select Windows updates. For more information
regarding updating your system, visit http://windowsupdate.microsoft.com.
Macintosh
Go to the Apple menu and select Software Update. For more information
regarding updating your system, visit http://www.apple.com/macosx.
Handling Precautions
Our products are precision instruments and must be handled with care during
unpacking and installation. Drives may be damaged by rough handling, shock,
or vibration. Be aware of the following precautions when unpacking your
external storage kit:
Do not unpack the product until you are ready to install it.
Do not drop or jolt the product.
Do not move the external storage when it is powered up.
2. Setting Up
You will need one or two 3.5 inch SATA Hard Disk Drives. Carefully follow
the procedures to install the Hard Disk Drives into the NAS System.
ineo |I-NA312N1-S Front View
The Information on LCD

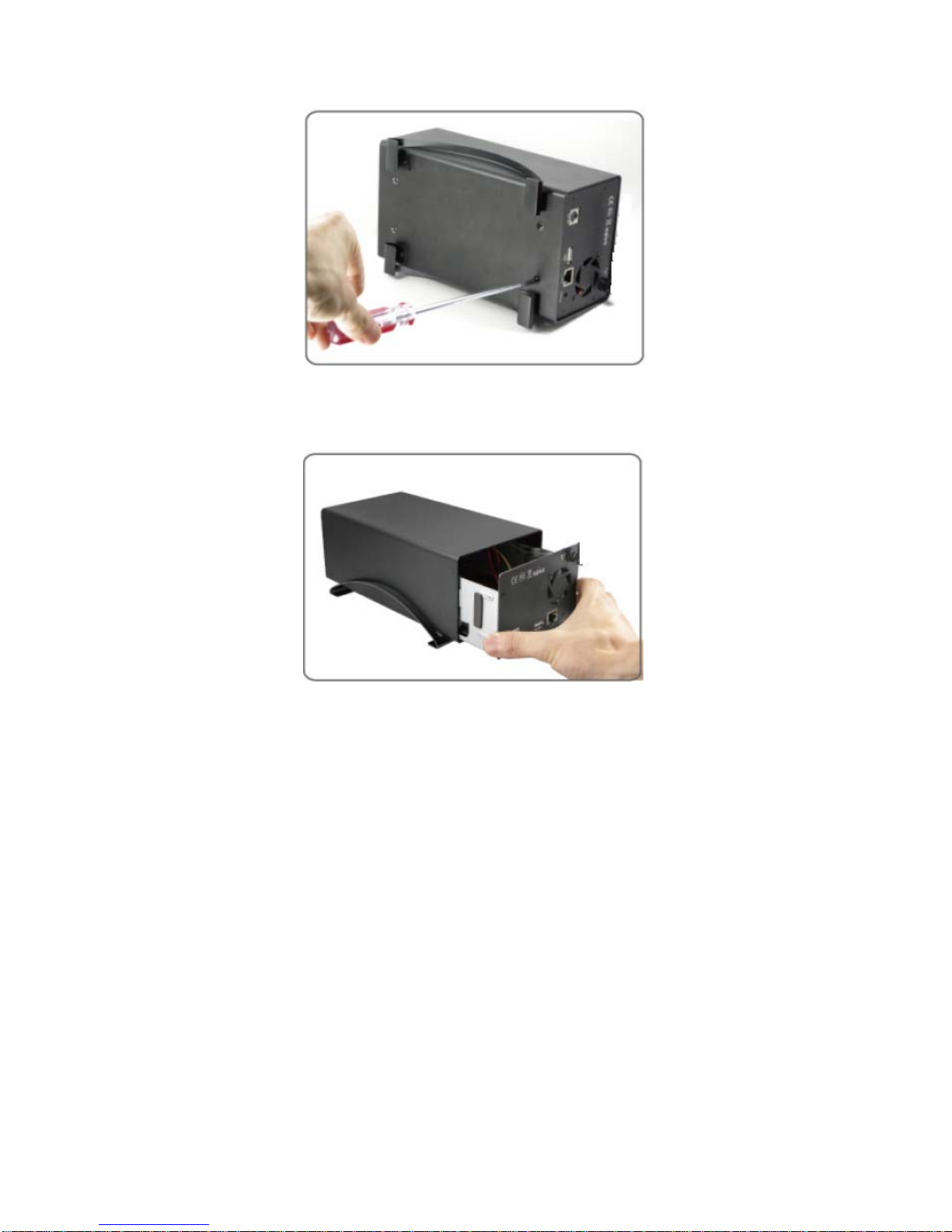

Hard Disk Drive Installation
1. Loosen four screws from the bottom of the NAS
2. Please pull out the disk mounting tray from housing
3. Please connect SATA1 cable to the larger size hard disk drive
(Install two SATA hard disk drives into the SATA Connectors on the disk
mounting trays. If the hard disk driver does not have the same size, please
place the lager hard disk drive to SATA1 cable. If you format HDD
separately, the operating system only can identify the HDD connect to
SATA1 cable)
