Easy, out-of-the-box experience with 5th-generation CAPSENSE™ technology
demonstrating best-in-class low-power touch performance on PSoC™ 4.
Step 1: Power up the kit
1. Ensure that the jumper is
populated at J2 header.
2. Ensure that the jumper is
populated at J6 (between Pin1
and Pin2).
3. Ensure the SW2 position is at I2C.
4. Connect the board to your PC using
the USB Type-C cable at J1
connector and observe that the
Power and Status LEDs
(LED1, LED4) turn ON.
Step 2: Test the operation
1. Touch one of capacitive button
(either CSB1 or CSB2) and the LED2
will turn ON.
2. Swipe capacitive slider and the
LED3 brightness will change
relative to finger position on slider.
Published by Infineon Technologies AG 81726
Munich, Germany
Document Number: 002-38473 Rev. *A
Date: 11 / 2023
© 2023 Infineon Technologies AG.
All Rights Reserved.
PSoC™ 4000T CAPSENSE™ Prototyping Kit
CY8CPROTO-040T
For more information, please visit: www.infineon.com/CY8CPROTO-040T
Note : *footprint only, not populated on the board
QUICK START GUIDE

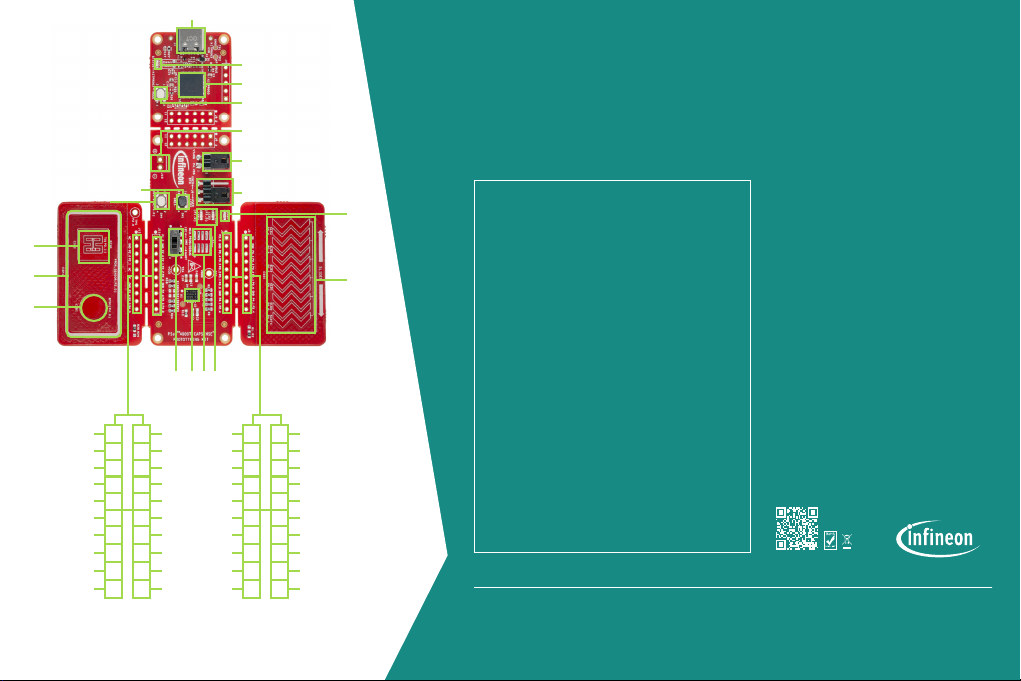

1 USB Type-C connector (J1)
2 KitProg3 status LED (LED4)
3 PSoCTM 5LP MCU with KitProg3
firmware (U2)
4 KitProg3 mode switch (SW3)
5 External power input (J10)*
6 Target MCU current measurement header (J2)
7 USER LED2 and User button
selection header (J6)
8 Power LED (LED1)
9 CAPSENSETM 5-segment slider (CSS1)
10 USER LED's (LED2, LED3)
11 MiniProg4 SWD interface header
provision (J7)*
12 PSoCTM 4000T MCU (U1)
13 Target I2C/UART interface
selection switch (SW2)
14 CSD CAPSENSETM button (CSB1)
15 CAPSENSETM proximity sensor (CSP1)
16 CSX CAPSENSETM button (CSB2)
17 USER button (SW4)
18 RESET switch (SW1)
NC
GND
P2_0
P2_1
NC
NC
GND
P2_4
P2_5
P4_0
P1_0
GND
P2_0
P2_1
P2_2
P2_3
GND
P2_4
P2_5
P4_0
P3_0
GND
P0_4
P0_3
P0_2
P0_1
P0_0
GND
P4_1
P2_4
NC
GND
P0_4
P0_3
P0_2
P0_1
P0_0
GND
P4_1
P2_4
1
2
3
4
5
6
7
8
9
10111213
14
15
16
17 18
