Infinix Zero 5G Manuale utente

Infinix X6815B

User Manual (B)

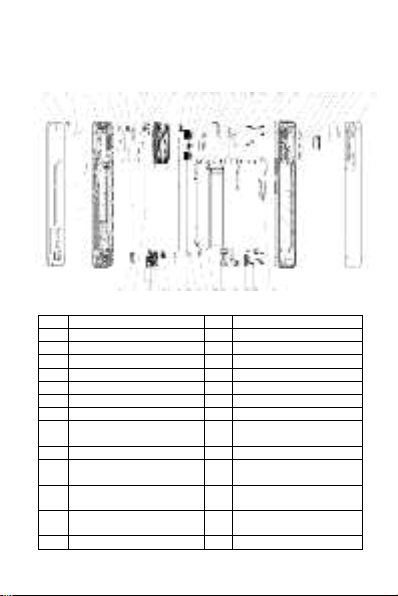

Explosion diagram specification

PF F HSG+FL(CTP+LCM)

LT SENSOR RUBBER

F HSG RADIATING FILM

F HSG ASM

SHIELD COP FOIL

F CAM RUBBER 16M

HEAT CON COPPER PIPE

R CAM CON FOAMS 48M

R CAM CON FOAMS 13M

R CAM RIGID CON FOAMS

CAM FF 16M

PCBA MB

REC

CAM AF 48M

CAM FF 2M

CAM AF 13M

R CAM CONN RUBBER

F CAM CONN WATERPROOF

RUBBER

R CAM RUBBER 2M

REC DECO PART

F CAM FRAME ASM

LCM CONN WATERPROOF

RUBBER

MAIN FPC WATERPROOF

RUBBER

MAIN RADIATING FILM

BAT CONN WATERPROOF

RUBBER

FPC SIDE KEY

MACHINE SCREW M1.4*L3.5

MID FRAME ASM

R CAM LENS Φ12*0.5

R CAM LENS Φ5.8*0.5

R CAM LENS Φ8.7*0.5

CARD HOLDER ASM

F CAM CON GRAPHITE FILM

REC CON FOAMS

BAT COVER ASM

SPK

F HSG HEAT PIPE MYLAR

PCBA SUB

MOTOR FPC

COAXIAL CABLE

MOTOR CON FB

FPC MAIN

BAT

DOWN FRAME ASM

USB RUBBER

EARPIECE RUBBER

MC SCREW M1.4*L2.5

FM(GSL6157)

Know your phone

1. Front camera

2. Volume + key

3. Volume - key

4. Power key & side fingerprint sensor

SIM/SD card installation

1. Power off mobile.

2. Refer to the following picture for SIM / SD card

installation.

Charging the phone

You can charge your device using a charger or by connecting

it to the computer using a USB cable (comes with the

phone).

Use only INFINIX charger and cables. Other chargers or

cables may damage the device. This will invalidate your

phone warranty.

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received,

including interference that may cause undesired operation.

2. Changes or modifications not expressly approved by the

party responsible for compliance could void the user's

authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

SAR Information Statement

Your wireless phone is a radio transmitter and receiver. It is

designed and manufactured not to exceed the emission

limits for exposure to radiofrequency (RF) energy set by the

Federal Communications Commission of the U.S.

Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for

the general population. The guidelines are based on

standards that were developed by independent scientific

organizations through periodic and thorough evaluation of

scientific studies. The standards include a substantial safety

margin designed to assure the safety of all persons,

regardless of age and health. The exposure standard for

wireless mobile phones employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The SAR

limit set by the FCC is 1.6 W/kg. * Tests for SAR are

conducted with the phone transmitting at its highest

certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified

power level, the actual SAR level of the phone while

operating can be well below the maximum value. This is

because the phone is designed to operate at multiple

power levels so as to use only the power required to reach

the network. In general, the closer you are to a wireless
