Dual-spectrum PT Network Thermal Camera Quick Start Guide

Preface

The following is about the correct use of the camera. In order to prevent

danger and loss of property, please read this manual carefully before

using the camera and strictly follow it during use. Please keep the

manual properly after reading.

Overviews

This manual is suitable for dual-spectrum PT network thermal cameras.

This manual describes the installation steps, installation precautions and

basic operations of dual-spectrum PT network thermal cameras.

Symbol Description

The description of the symbols that appear in the document is as

follows.

Instruction

The instructions are an emphasis and supplement to the main

text.

Caution

Cautions indicates potential risks. If ignored, it may lead to

product damage, data loss, product performance degradation,

or unpredictable results.

Warning

Warnings indicates that low or medium potential risk is

existing. The ignorance of the warnings may lead to injury,

equipment damage, or business interruption.

Danger

Dangerous text indicates that there is a high potential risk. If

it is not avoided, a major risk of personal injury or even death

may be caused.

Dual-spectrum PT Network Thermal Camera Quick Start Guide

Important Safety Notice

Warnings

The local electrical safety standards should be rigorously followed in

the process of installation and usage.

⚫Please use power adapter which is produced by regular companies.

Please check whether the power is normal or not before starting the

camera. (Power supply requirements should comply with that on the

product labels.)

⚫In order to make emergency power off when necessary, please install

power-off equipment which is easy to use when installing the wires.

⚫Please protect power lines from being treaded or pressed, especially

the connecting points which are led from the plug, power socket or

other unit.

⚫Please make sure the camera is fixed firmly in case of being installed

on walls or ceilings.

⚫If the camera does not work normally, please contact the purchased

shops or factories. Do not disassemble or revise the camera in any

way (The manufacturing company is not responsible for problems

that are caused by unauthorized modification or maintenance.)

Cautions

⚫Please do not put the camera in damp, dusty, extremely hot or cold

places, or places with corrosive gas or unstable light.

⚫Please transport, use and store the camera within the allowable

humidity and temperature range.

⚫Avoid making the lens aiming at strong light (e.g. sun or laser),

otherwise the imaging sensor would be damaged.

Dual-spectrum PT Network Thermal Camera Quick Start Guide

III

⚫Please do not block the vents near the camera in case of heat

accumulated.

⚫Please use the factory packaging or materials of the same quality

when shipping the device.

⚫Please do not press, vibrate violently or soak the camera during

transportation, storage or installation.

⚫It is advised to use the camera with lighting protector.

⚫Soft dry cloth can be used to clean the camera. For the dirt difficult

to clean, please use soft cloth with little neutral detergent and then

wipe dry. Do not use volatile detergent like alcohol, benzene or

diluent, or strong and abrasive detergent, otherwise the camera

coating would be damaged and also the camera performance could be

degraded.

⚫The lens cover is optical device, so please do not touch directly or

wipe the cover. Soft brush or hairdryer can be used to blow the dust

away. For the grease or fingerprint, soft cloth can be used to wipe it

away. Cotton cloth or lens cleaning paper with cleaning solution can

be used to wipe repeatedly until it’s clean.

⚫Please revise the password promptly after logging in.

Instruction

⚫Please use the accessories or parts specified by the manufacturer and

have them installed and repaired by professional service personnel.

⚫Quality requirements for installation and maintenance personnel:

Personnel should have the qualification certificate or experience to

engage in the installation and maintenance of video surveillance

systems, and have the qualification to engage in related jobs (such

Dual-spectrum PT Network Thermal Camera Quick Start Guide

as high-altitude operations, etc.), in addition to the following

knowledge and operating skills.

Equipped with basic knowledge and installation skills of video

surveillance system and its components.

Equipped with basic knowledge and operating skills of low-voltage

wiring and low-voltage electronic circuit wiring.

Equipped with basic network security knowledge and skills, and

have good acknowledge of this manual.

⚫Requirements for lifting equipment:

Safe lifting equipment suitable for site and method of camera

installation.

The lifting equipment is able to reach enough height of installation

position.

The lifting equipment has good safety performance.

Dual-spectrum PT Network Thermal Camera Quick Start Guide
 V
Table of Contents
Camera Introduction ....................................................- 1 -
1 Camera Description................................................... - 1 -
2 Camera Features........................................................ - 1 -
3 Camera Appearance .................................................. - 2 -
4 Cable Instructions...................................................... - 3 -
5 Alarm Interface Connection...................................... - 4 -
Camera Installation ...................................................... - 4 -
1 Instructions before Installation ................................. - 4 -
2 Cable Planning and Wiring....................................... - 4 -
3 Mounting Bracket...................................................... - 5 -
4 TF Card Installation .................................................. - 6 -
5 PT Installation........................................................... - 7 -
6 Install Network Port Protective Cover...................... - 8 -
Operation Guide............................................................ - 9 -
1 Preparations............................................................... - 9 -
2 Login System............................................................. - 9 -
3 Main Interface Description ..................................... - 11 -
Appendix A Camera Maintenance .................................- 12 -
Appendix B Operating Distance .....................................- 13 -


Dual-spectrum PT Network Thermal Camera Quick Start Guide

- 1 -

1. Camera Introduction

1.1 Camera Description

The dual-spectrum PT network camera is a thermal imaging network

camera that integrates remote monitoring in all-weather conditions, video

services and high-definition camera functions. In addition to the basic

visible light imaging, the camera also comes with a thermal imaging

channel, which can more comprehensively collect the characteristic

information of the measured scene while realizing dual-light shooting. It

can be widely used in indoor and outdoor scene monitoring, perimeter

prevention, fire warning integration and other fields of smart security.

1.2 Camera Features

⚫With the latest InfiRay® 12μm IR thermal imaging detector, the thermal

camera can make farther and clearer images.

⚫With a maximum thermal imaging resolution of 1.3 megapixels and a

35x 4 megapixel visible light camera，high-definition dual-spectrum

imaging can be achieved.

⚫Support 75mm fixed-focus and 25～75mm continuous zoom infrared

lens, which can meet various inspection needs.

⚫Support network high-definition transmission, which can transmit visible

light videos and infrared videos at the same time.

⚫Combining multiple network monitoring methods, the camera also

supports ONVIF protocol.

⚫With high-speed, high-precision pan-tilt, the network camera supports 5

scanning methods and 17 scanning track with speed memory;

Dual-spectrum PT Network Thermal Camera Quick Start Guide

- 2 -

⚫Support smart fire detection to meet the requirements of forest fire

protection and smart fire protection

⚫Support intelligent infrared video analysis, including intelligent analysis

functions such as regional intrusion, trip wire, etc.

⚫IP66

1.3 Camera Appearance

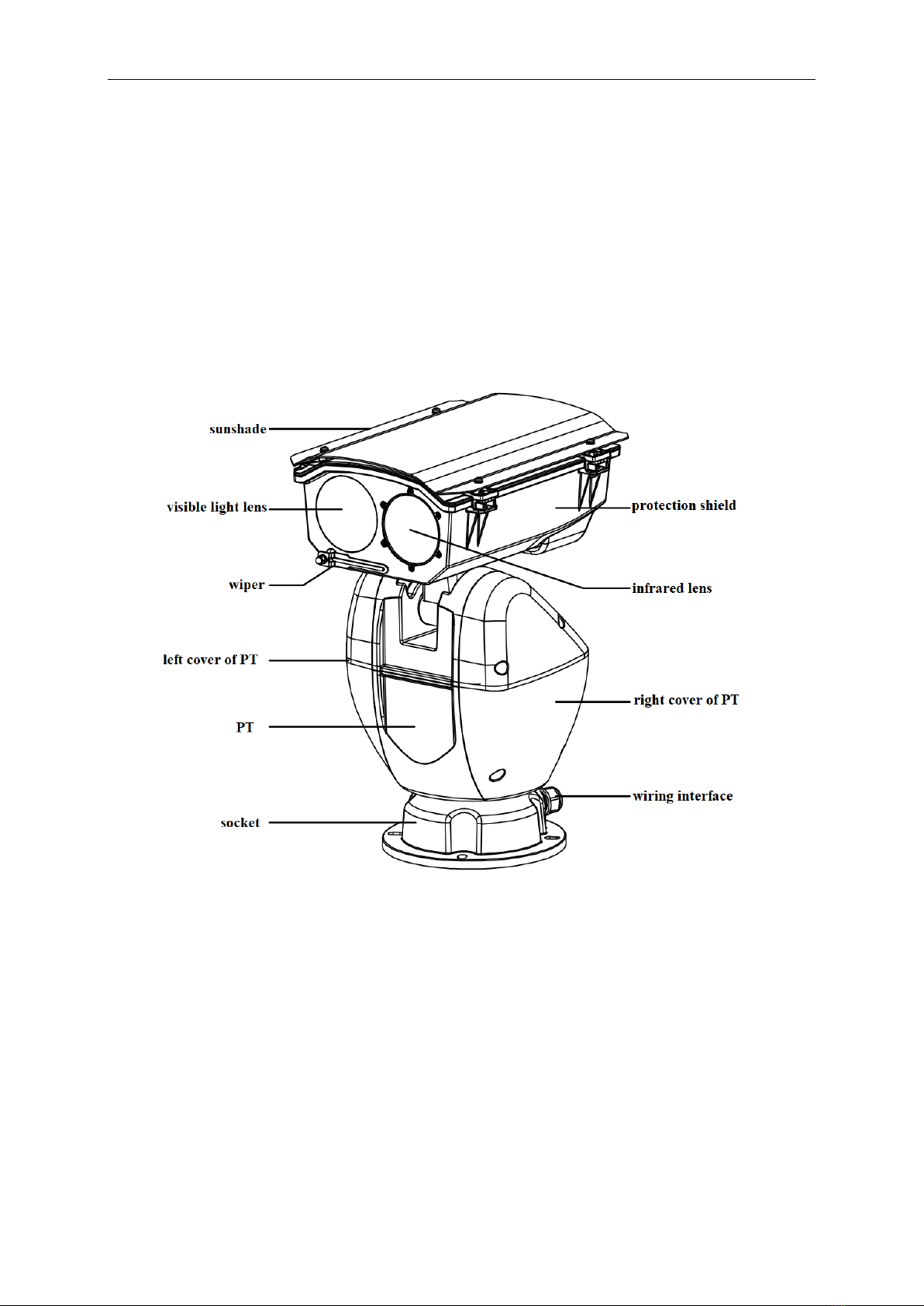

Figure 1.1 Appearance and Interface of Dual-spectrum PT Network

Thermal Camera

Dual-spectrum PT Network Thermal Camera Quick Start Guide

- 3 -

1.4 Cable Instructions

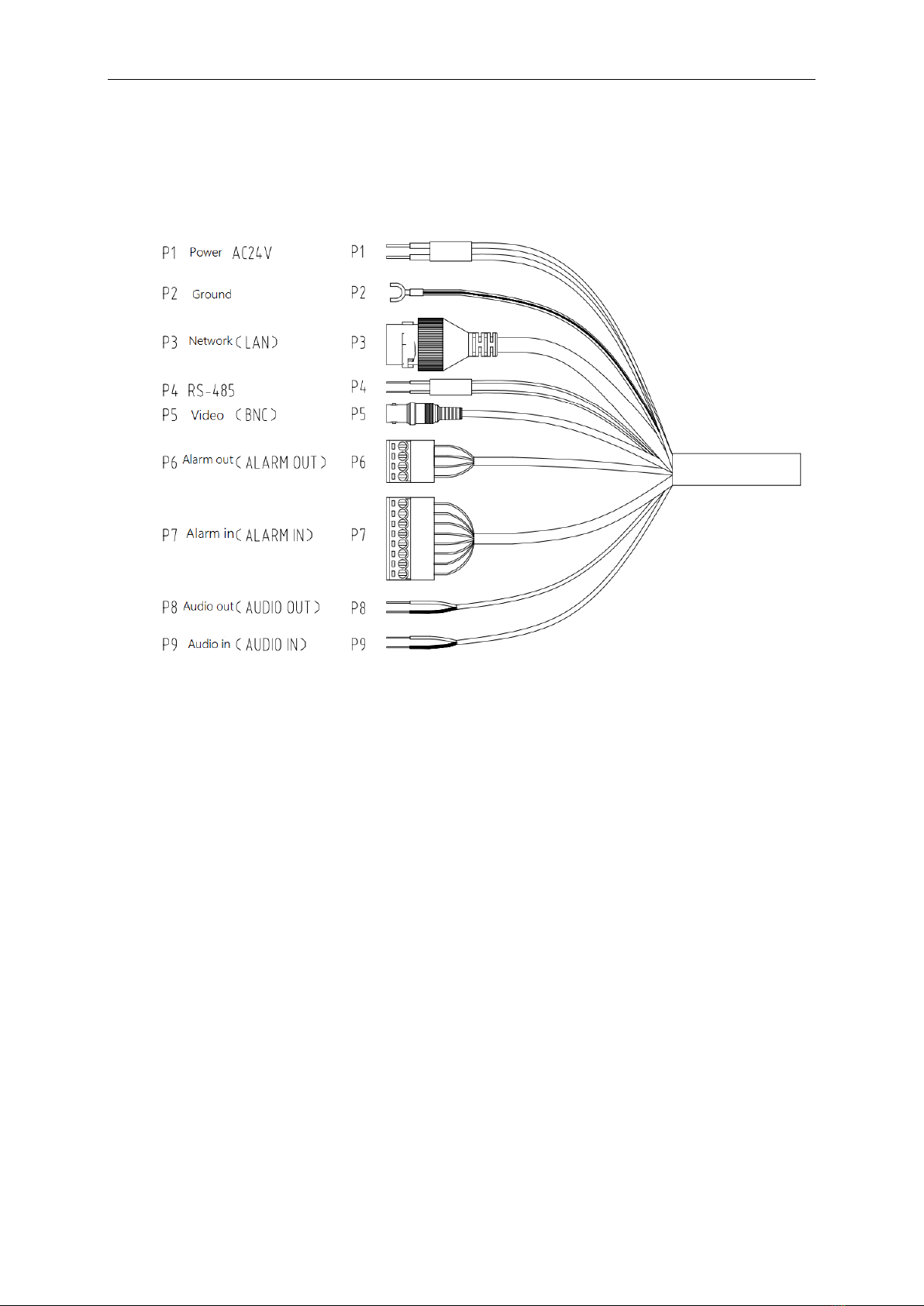

The cable includes interfaces for power, alarm, audio, RS-485, and network,

etc. Please see the following figure for interface instructions.

Figure 1.2 Cable Instructions

⚫P1 power interface (AC24V): Support AC 24V power supply.

⚫P2 ground interface (GND): Ground interface.

⚫P3 network interface (LAN): Output network signal and connect to

standard Ethernet cable.

⚫P4 RS-485 interface (485):RS485 interface for PT control.

⚫P5 video interface (BNC): Output standard PAL analog videos.

⚫P6 alarm output (ALARM OUT): Output alarm switch signal to alarm

equipment.

⚫P7 alarm input (ALARM IN): Receive the switch signal from the

external alarm source.

⚫P8 audio output (AUDIO OUT): Output audio signal to speakers and

other equipment for sound output.

⚫P9 audio input (AUDIO IN): Input audio signal and connect

microphone for receiving linear analog audio signal to collect sounds.

Dual-spectrum PT Network Thermal Camera Quick Start Guide

- 4 -

1.5 Alarm Interface Connection

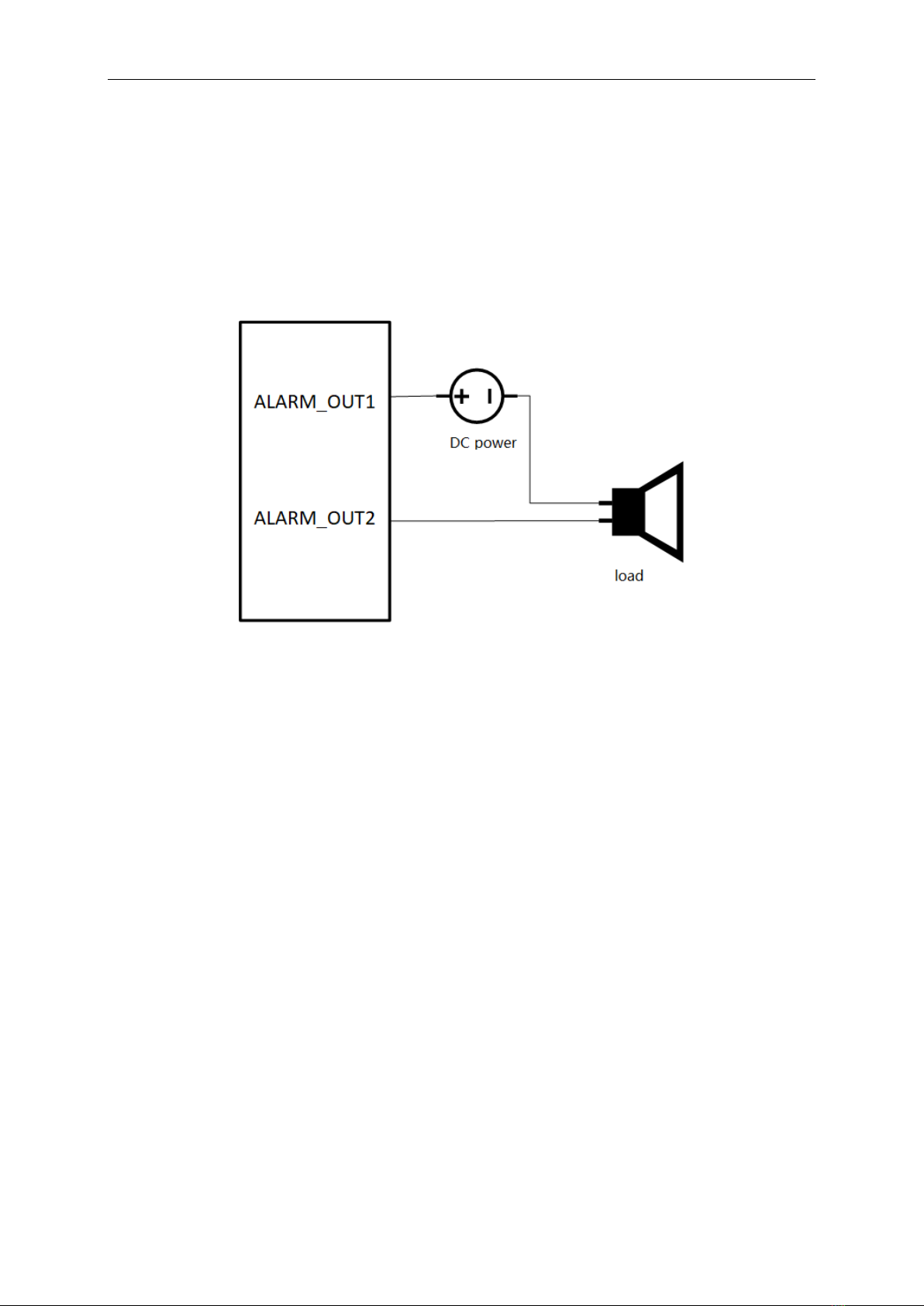

The camera can be connected with alarm signal (0～DC5V) input and

switch output (no voltage). An external power supply is required when

connecting the alarm. The specific wiring method is shown in the figure

below.

Figure 1.3 Alarm Output Wiring Method

2. Camera Installation

2.1 Instructions before Installation

⚫Before installation, please make sure that the camera in the package is in

good condition and all parts are complete.

⚫Before installing the PT, please prepare in advance the tools and cables

that may be required for installation.

2.2 Cable Planning and Wiring

It is necessary to survey and plan the lines in advance since the

environment and location of the PT installation is different, and then to

arrange the lines precisely so as to provide safe and stable power and

wiring for the PT. In the process of cable planning and wiring, you need to

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali InfiRay Telecamera termica

InfiRay

InfiRay AT1280 Manuale utente

InfiRay

InfiRay AT Series Manuale utente

InfiRay

InfiRay S Series Manuale utente

InfiRay

InfiRay AT20 Manuale utente

InfiRay

InfiRay AT1280H Series Manuale utente

InfiRay

InfiRay Tube SE Series Manuale utente

InfiRay

InfiRay Tube Series Manuale utente

InfiRay

InfiRay Geni Series Manuale utente

InfiRay

InfiRay Clip CH50 V2 Manuale utente

InfiRay

InfiRay ZOOM ZL38 Manuale utente

InfiRay

InfiRay AT31 Manuale utente

InfiRay

InfiRay AT300 Series Manuale utente

InfiRay

InfiRay Tianxuan M20 Series Manuale utente

InfiRay

InfiRay M200 Series Manuale utente

InfiRay

InfiRay ITSII 300 Manuale di istruzioni

InfiRay

InfiRay AT Series Manuale utente

InfiRay

InfiRay CLIP NV Series Manuale utente

InfiRay

InfiRay Xtherm II Series Manuale utente

InfiRay

InfiRay FINDER FH35R Manuale utente

InfiRay

InfiRay AT31F Manuale utente

InfiRay

InfiRay Xmini Manuale utente

InfiRay

InfiRay PT2 Manuale utente

InfiRay

InfiRay XTHERM II Manuale utente

InfiRay

InfiRay Tianshu C Series Manuale utente

Manuali Telecamera termica popolari di altre marche

Hikmicro

Hikmicro B20 Manuale utente

FLIR

FLIR E-EST Series Manuale utente

FLIR

FLIR M-Series Manuale utente

BST

BST BT-72 Manuale utente

FLIR

FLIR G300 pt Series Manuale utente

CBC

CBC EN7-S02T Manuale utente

Satir

Satir YRH600 Manuale utente

TESTO

TESTO 882 Manuale utente

TECPEL

TECPEL TIG-320 Manuale utente

SKF

SKF TKTI 21 Manuale utente

TESTO

TESTO 885 Manuale utente

FLIR

FLIR X6530sc Series Manuale utente

Videotec

Videotec MAXIMUS MVXT Manuale utente

Guide Sensmart

Guide Sensmart D384M Manuale utente

NBN

NBN FLIR A6 Series Manuale utente

WORKSWELL

WORKSWELL SAFETIS Manuale utente

Major tech

Major tech MTi11 Manuale utente

COHU

COHU 5935-1000/T100 Manuale utente
