INFOBIT www.infobitav.com info@infobitav.com
iSwitch UVC03K
USB 3.0 4K Ultra HD Video Capture Card
User Manual V2.0
Special Notice
To ensure the best performance of the product and correct using, please read
the instructions carefully before connecting, operating, or debugging this
product, and keep this manual for reference.
Cannot record 4K image when HDMI input resolution is less than 4K.
The stuttering phenomenon when recording the screen indicates that the
computer hardware configuration is too low, please reduce the recording
resolution or change to a higher configuration computer.
Introduction
This product can easily mix and record HDMI 4K high-definition video and audio
from an external microphone to your computer through third-party acquisition
software, or live broadcast through the Internet.
Features
INFOBIT AV www.infobitav.com info@infobitav.com
⚫One HDMI Input, one HDMI Loop Output. Monitoring and recording.
⚫Use USB 3.0 to record full HD images at high-speed.
⚫Support most software, such as PotPlayer, VLC, OBS…
⚫No need to install driver, plug and play.
⚫Support NV12, YUY2, XRGB/RGB32 video formats.
⚫Support HDMI 4K/60hz resolution input.
⚫Support capturing 4K/30Hz resolution.
⚫High-quality aluminum alloy material.
⚫Support 3.5mm/TRS microphone input and audio out.
⚫Support UVC, UAC without any software or settings.
Datasheet
Model
iSwitch UVC03K
Name
USB 3.0 4K Ultra HD Video Capture Card
USB Bandwidth
USB 3.0 300-350MB/s, USB 2.0 40MB/s
Input
HDMI 1x
HDMI Resolution
480i, 480p, 576p, 720p50, 720p60, 1080i50, 1080p60,
1080p24/25/30/50/60, 4K/60
Frame Rate
25/29.97/30/50/59.94/60fps
Capture audio and
video
Support UVC and UAC
Support OS
Windows 7, 8, 10 or 11, 64bit; macOS 10.12 version or
higher; Ubuntu 16.04 LTS 64bit or higher; Android 9.0
or higher
Support software
OBS, VLC, PotPlayer, Windows media Encoder, Adobe
Flash Media Live-Encoder, Real Producer Plus, Quick
Time Broadcaster, Quick Time Player, Wirecast, vMix
and etc.
Dimension
105x68x25 LWH, mm
Power
max. 25W
Operating Temp.
0-50 degrees C
Storage Temp.
-20 to 70 degrees C
Humidity
5% to 90%
Computer hardware requirements
Configuration
Desktop PC
Laptop PC
CPU
Intel Core i5-6xxx or
Intel Core i7-7700HQ or higher
INFOBIT AV www.infobitav.com info@infobitav.com
higher
Graphics card
NVIDIA Ge-Force GTX
1060 or higher
NVIDIA Ge-Force GTX 1050 or
higher
Ram
8G (Dual Channel)
8G (Dual Channel)
Support third-party software
OBS Studio (Windows, OS X)
Windows media Encoder (Windows)
Adobe Flash Media Live-Encoder (Windows, OS X)
Real Producer Plus (Windows)
VLC (Windows, OS X Linux)
Quick Time Broadcaster (OS X)
Quick Time player (OS X)
Wirecast (Windows,OS X)
vMix (Windows)
PotPlayer (Windows) and etc
Product Specifications
⚫HDMI Input and loop-out max. resolution: 4k60 4:4:4
⚫HDMI input max audio sampling rate: PCM48Khz
⚫USB3.0 Highest bandwidth: 3Gbps
⚫USB2.0 Highest bandwidth: 311Mbps
⚫3.5mm headphone output power: 32Ω/50 MW
⚫Working Current: 5V/0.9A
⚫Working temperature range: -40℃ ~ +85℃
⚫Working humidity range: 90% RH No condensation
⚫Product size: 105x68x25mm
⚫Material: Aluminum alloy
⚫Color: Blue and Red
⚫Net Weight: 131g

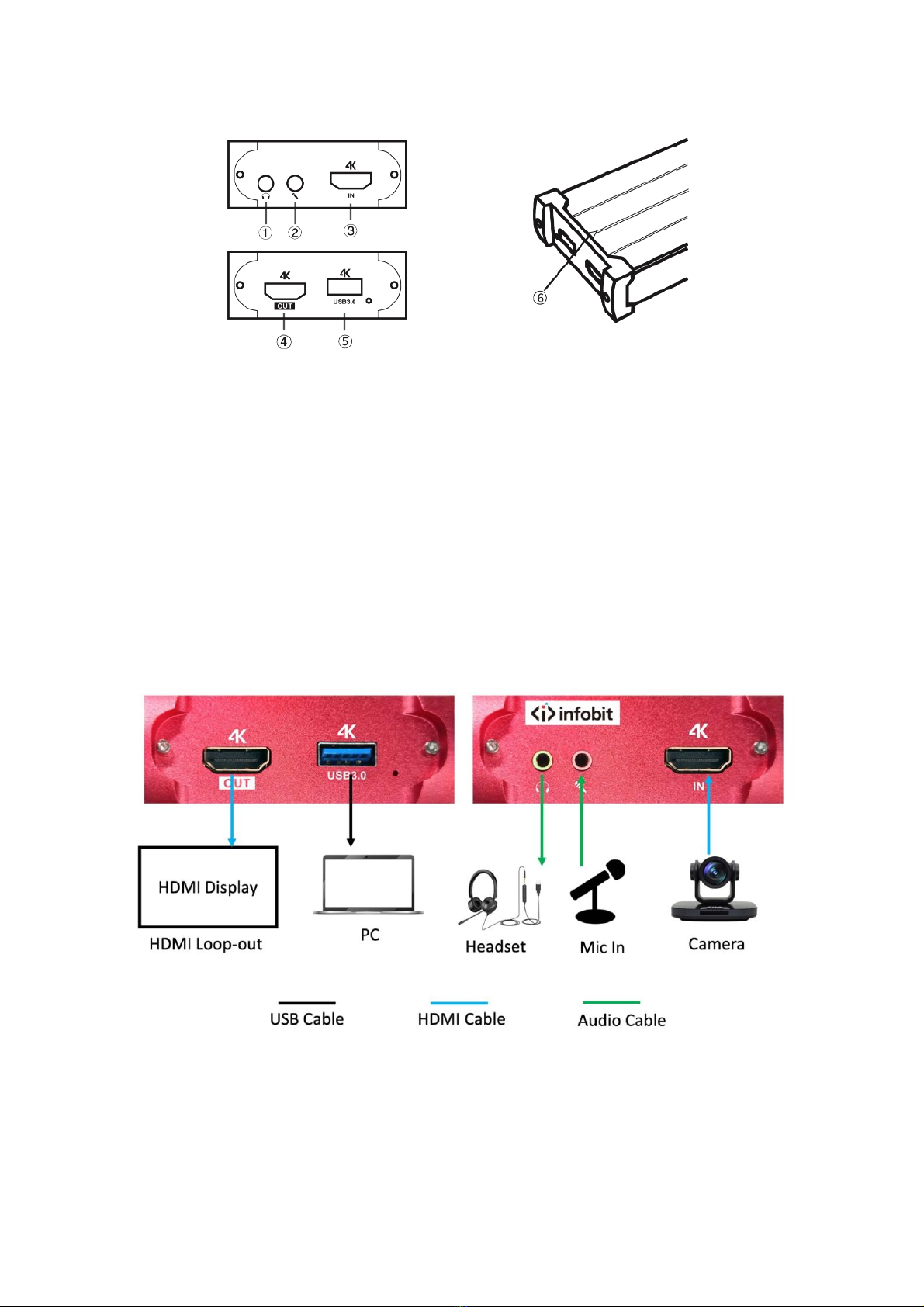

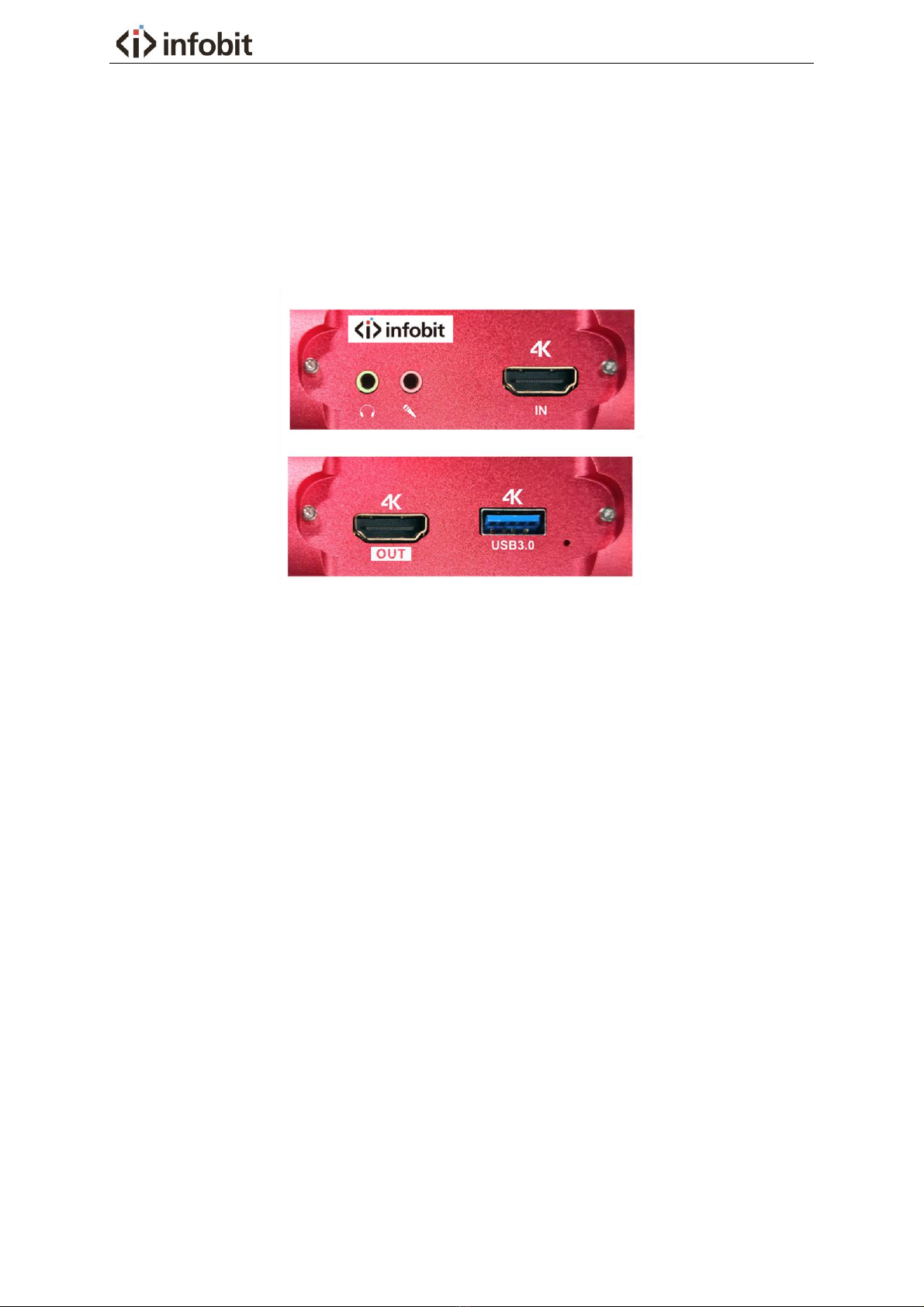

Interface Introductions
INFOBIT AV www.infobitav.com info@infobitav.com
(1) 3.5mm headset output port.
(2) 3.5mm microphone input port.
(3) HDMI Input, connect to HDMI signal such as Computer, Game console,
DVD.
(4) HDMI Output, connect to HDMI display such as TV, Monitor, Projector,
etc.
(5) USB3.0 TYPE-A port, connect to computer.
(6) Action indicator: Illuminates when capturing.
Connection Diagram
1. Connect HDMI IN to computer, game console, DVD.
2. Connect Output port of capture card to display devices, such as TV, Monitor,
Projector, etc.
3. Connect the USB3.0 to computer.
INFOBIT AV www.infobitav.com info@infobitav.com
4. Connect 3.5mm to headphones, microphones, and headsets.
How to setup capture in PotPlayer (Windows)
1. Install "PotPlayer" software on the computer.

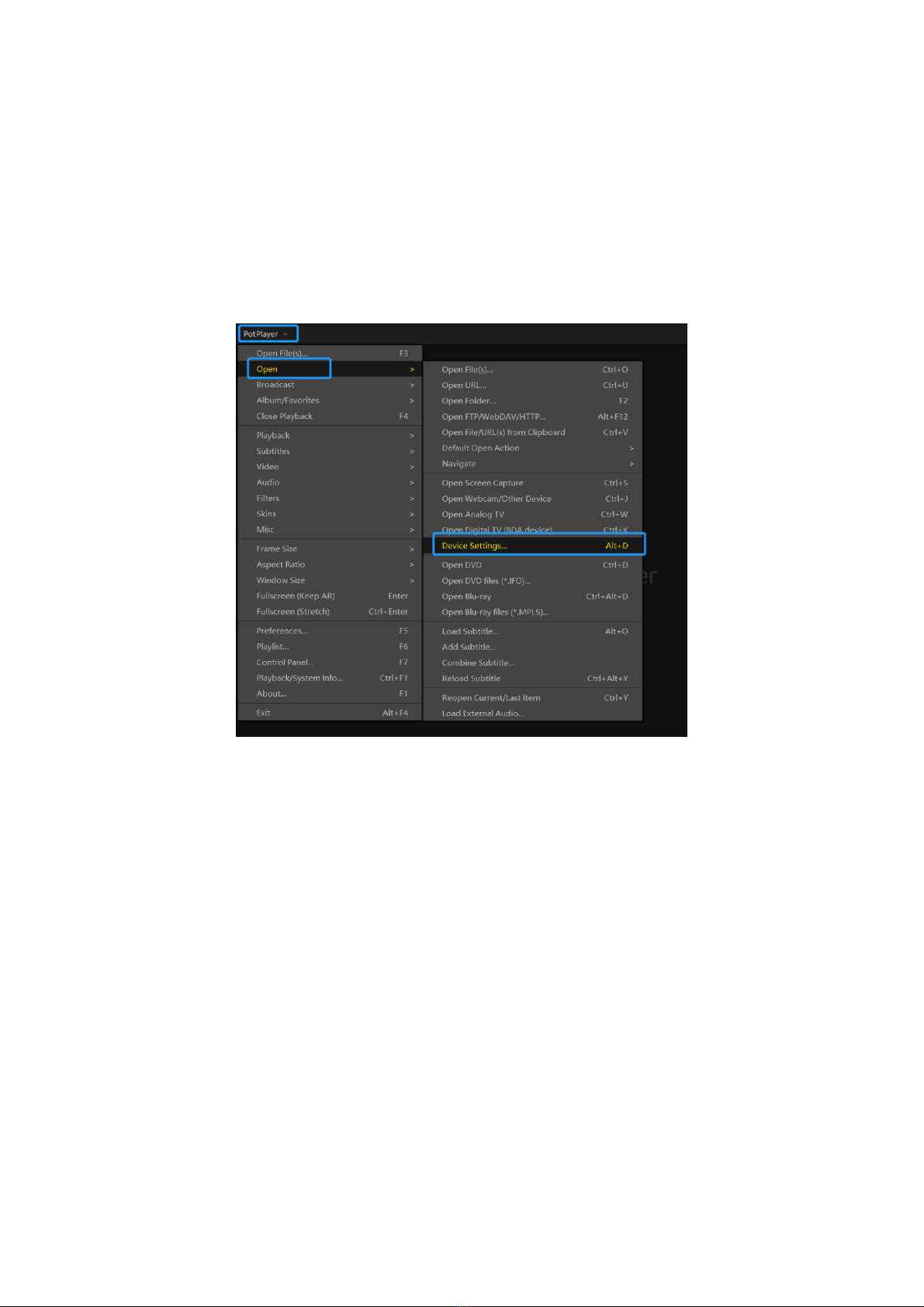

2. Click upper left corner "PotPlayer" icon→ "Open"→ "Device Settings"→
“Analog TV”

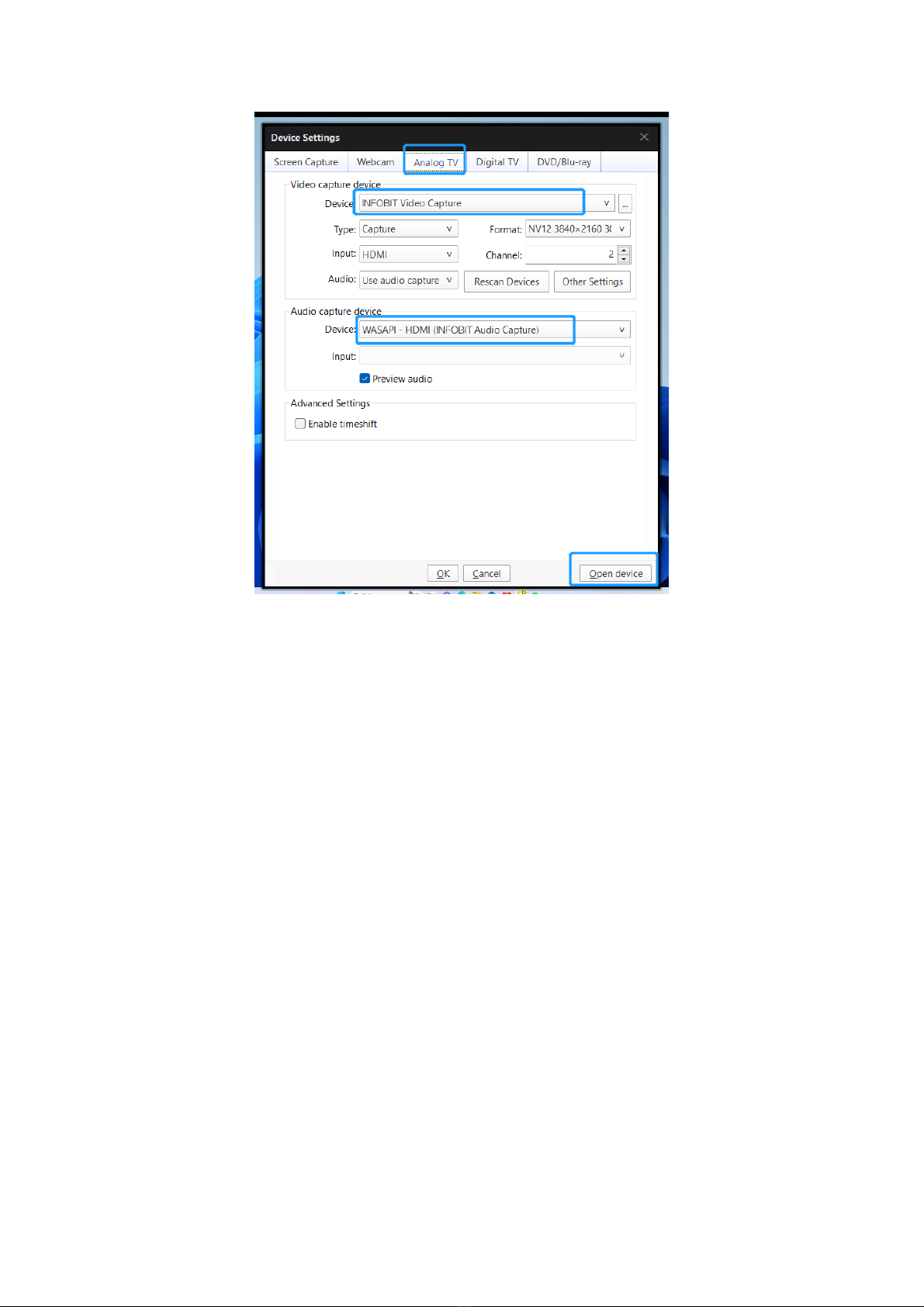

Select "INFOBIT Video Capture" in the Device option.
Select "Capture" in the Type option.
Select "HDMI" in the Input option.
Select suitable capture resolution in the Format option.
Select "WASAPI-HDMI (INFOBIT Audio Capture)" in the Audio Capture Device
option.
Click "Open device" to open the capture interface.
INFOBIT AV www.infobitav.com info@infobitav.com

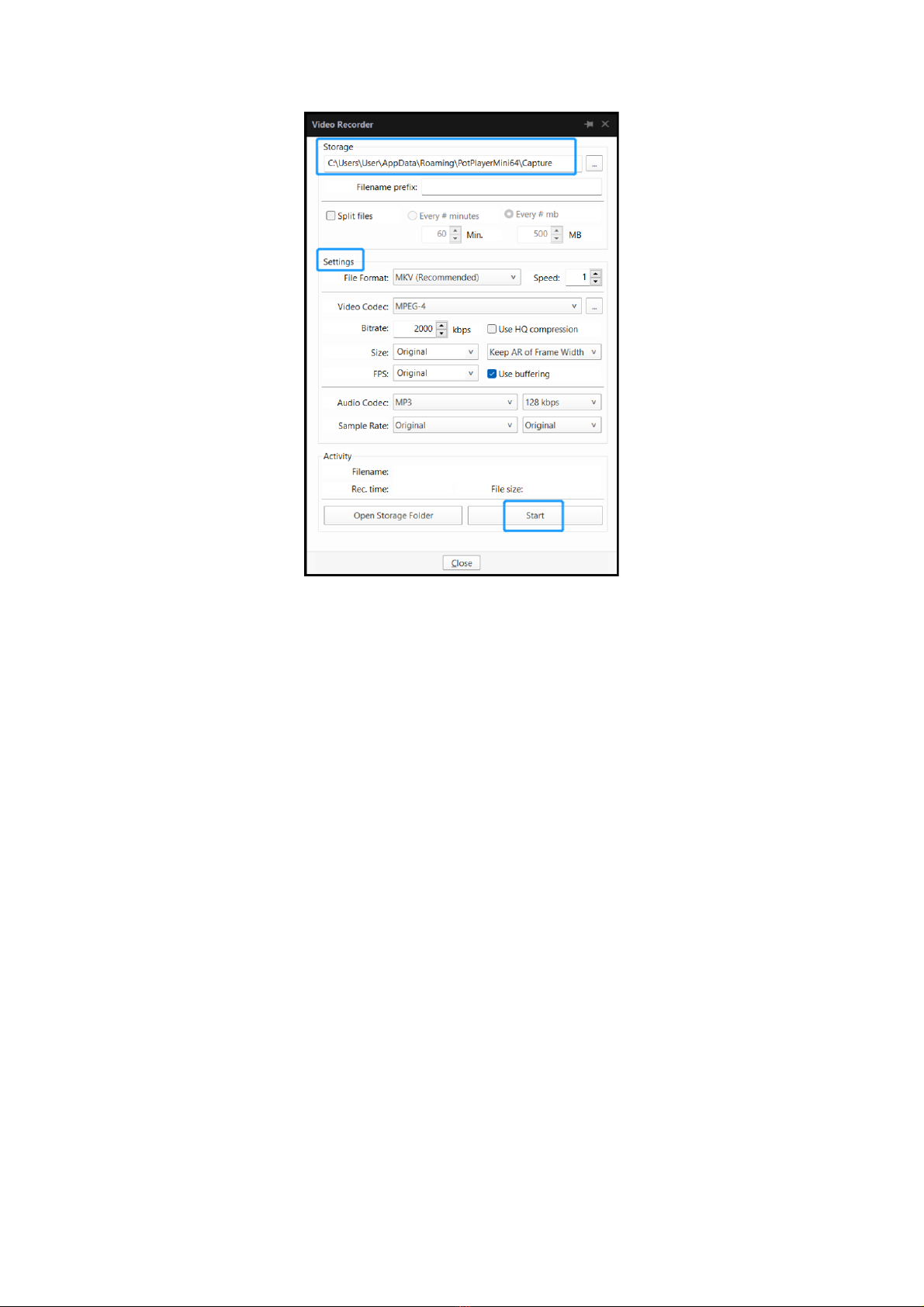

3. Click "PotPlayer"→ "Video"→ “Video Recording”→ “Record Video” or use the
key "Alt+C" to open the Video recorder page.
Select storage path.
Set video and audio capture settings.
Start to capture video and audio.
INFOBIT AV www.infobitav.com info@infobitav.com
How to setup capture in OBS (Windows)

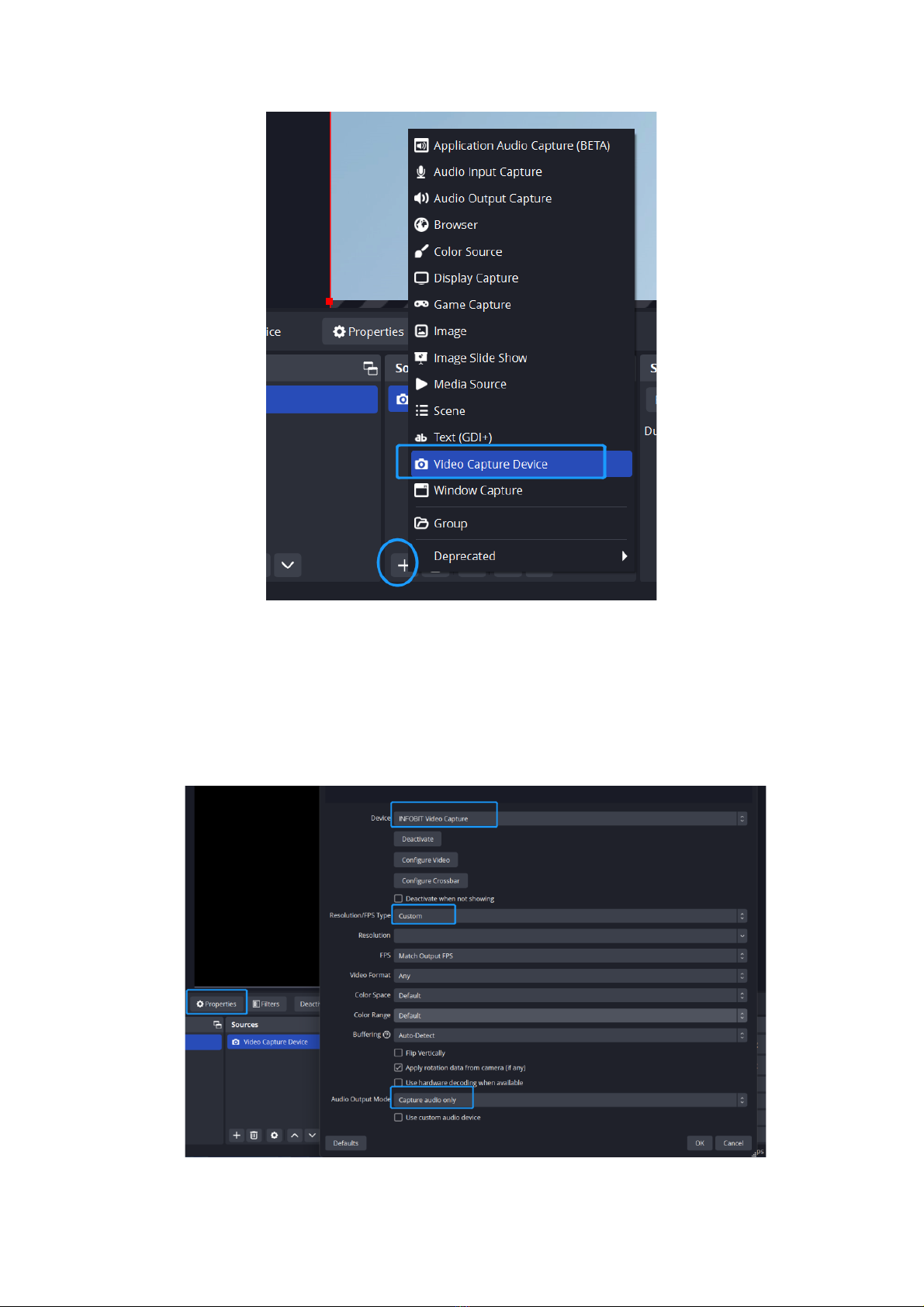

1. Open OBS→ Click “+” to choose “Video Capture Device”
INFOBIT AV www.infobitav.com info@infobitav.com
2. Click “Properties” for Video Capture Device→ Device (INFOBIT Video
Capture)→ Resolution/FPS Type (Custom)→ Resolution (1920*1080)→
FPS (30pfs)→Video Format (YUY2)→ Audio Output Mode (Capture audio
only)→ Check “Use custom audio device”→ Audio Device (INOFIBT Audio
Capture)→ OK
INFOBIT AV www.infobitav.com info@infobitav.com

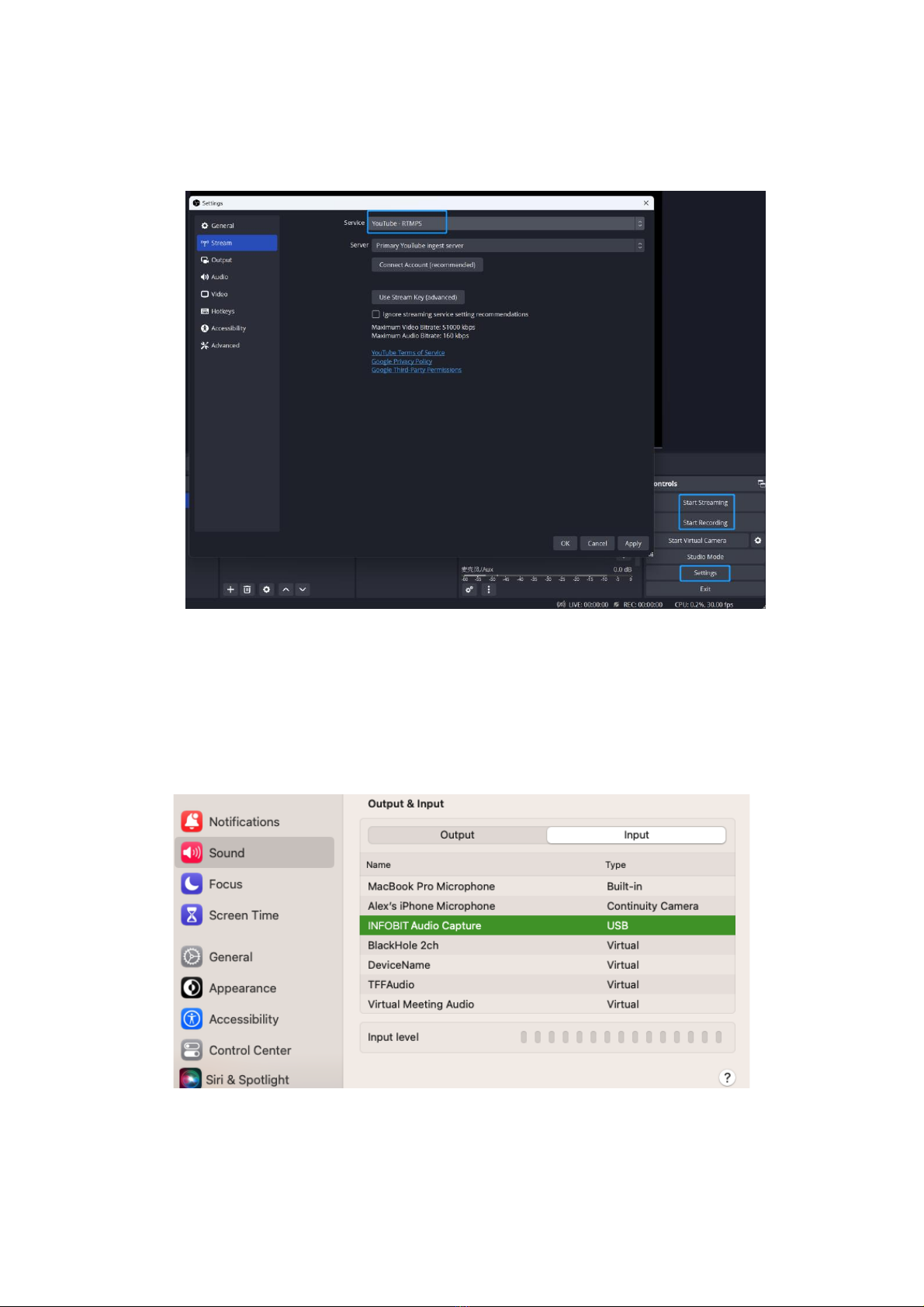

3. Settings→ Stream→ Select your Live service (YouTube/ Twitch…), input
your channel stream key→ OK
How to setup capture in OBS (macOS)
1. Open your macOS system preferences, select “Sound”→ “INFOBIT Audio
Capture”.

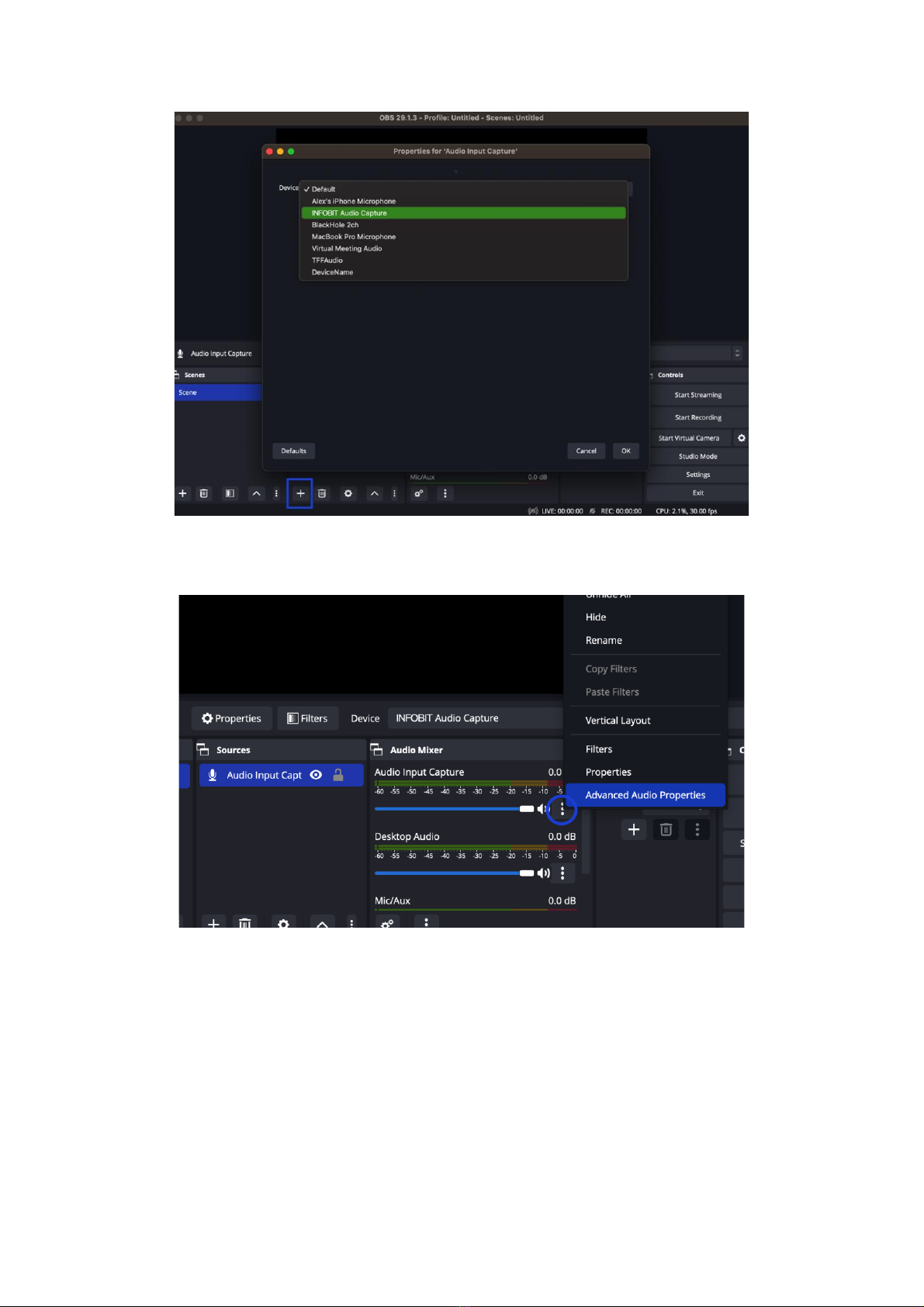

2. Open OBS→ Click “+” to choose “Video Capture Device”
INFOBIT AV www.infobitav.com info@infobitav.com
3. Click settings under the “Audio Mixer” option→ “Advanced Audio
Properties”→ “Monitor and Output”.
