Inforesight Solaira Alpha H2 Manuale utente

INFORESIGHT CONSUMER PRODUCTS INC.

125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3

Tel 905-568-7655 - Fax 905-568-7521

Email info@solairaheaters.com - Website www.solairaheaters.com

I M P OR TA N T - S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E

247748

C = COLOR CODE

Reference Manual

Solaira

Alpha H2

(Double Emitter - Candel Range)

CANADA & USA MODELS:

SALPHAH2-20240LL-C (208V - 1500 / 240V - 2000W)

SALPHAH2- 0240LL-C (208V - 2250 / 240V - 000W)

SALPHAH2-40240LL-C (208V - 000 / 240V - 4000W)

WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND

INDUSTRIAL USE IN NON-HAZARDOUS AREAS

INDOOR USE - RESIDENTIAL (OUTDOOR USE ONLY), COMMERCIAL AND

1. Read all instructions before using this heater.

2. Use this heater only as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock, or

injury to persons.

3. This heater is hot when in use. To avoid burns, do not let bare skin

touch hot surfaces. If provided, use handles when moving this heater.

Keep combustible materials, such as furniture, pillows, bedding,

papers, clothes, and curtains at least 6 feet (1.8m) from the front

of the heater and keep them away from the sides and rear.

4. Extreme caution is necessary when any heater is used by or near

children or invalids and whenever the heater is left operating and

unattended.

5. Do not operate any heater with a damaged cord or after the heater

malfunctions, has been dropped or damaged in any manner. Return

heater to authorized service facility for examination, electrical or

mechanical adjustment, or repair.

6. This heater is not intended for use in bathrooms, laundry areas and

similar locations. Never locate heater where it may fall into a bathtub

or other water container.

7. To disconnect heater, turn controls to off.

WARNING -

Each power supply circuit shall be provided with

disconnecting means and the disconnecting means shall be grouped

together.

I M P O R TA N T I N S T R U C T I O N S

When using electrical INFRARED HEATERS, basic precautions

should always be followed to reduce the risk of fire, electric shock,

and injury to persons, including the following

8. Do not insert or allow foreign objects to enter any opening as this may

cause an electric shock or fire, or damage the heater.

9. To prevent a possible fire, do not block openings in any manner.

10. A heater has hot parts inside. Do not use it in areas where gasoline,

paint, or flammable liquids are used or stored.

11. Do not cover or otherwise obstruct the heater.

I M P O R TA N T I N S T R U C T I O N S

S AV E T H E S E I N S T RU C T I O N S

G R O U N D I N G I N S T R U C T IO N S

For 240 (or 208) volt heaters. The cords from each terminal box must be

hard wired.

Kee combustible material such as furniture, a ers,

clothes and curtains at least 6 feet (1.8m) from the front

of the heater and away from the sides and rear.

W A R N I N G : R I S K O F F I R E

I N T R O D U C T I O N

The Alpha H2 heater produces radiant heat like the sun, warming people and objects rather

than the air in between. It is mounted on an adjustable bracket that allows the heat to be

directed exactly where it is required. The Alpha H2 can also be used in a modular system in

that more than one heater can be connected together - see ‘Configurations’ later in the

manual. The Alpha H2 weatherproof heater is designed for indoor and outdoor use.

Please read the following instructions carefully before use. The safety of this heater is

guaranteed only by its correct usage in accordance with these instructions, therefore

they should be retained for future reference.

Before using this appliance

1. Check that the voltage indicated on the units rating label corresponds to the mains

supply voltage.

2. Do not install the heaters less than the minimum height from the floor as specified below

in the specification - Table. 1.

3. Ensure that the heater has been securely fastened in its final mounting position.

4. WARNING - This appliance must be grounded and hard wired!

5. WARNING - Keep the mains cable away from the body of the heater which will get hot

during use.

6. Do not cover or obstruct the heater while it is in use.

7. Do not insert any object through any slot or opening in the heater.

8. Do not use if guard is not present.

9. When replacing the emitter or cleaning the unit, ensure that the hard wired circuit(s) is

disconnected from the mains supply. Note: always ensure that the emitter is cool before

handling.

10. Do not handle the halogen emitter with bare hands. If it is inadvertently

touched, remove finger marks with a soft cloth and methylated spirit or

rubbing alcohol. Otherwise, the marks will burn into the quartz emitter during

use causing premature heater failure.

11. The heater is not intended for use by young children and must be supervised

by a responsible person at all times.

C AU T I O N

WARNING - RISK OF FIRE: Heaters rated at 208 / 240 Volt, 2 Kilowatt and above are not intended for use as indoor residential or

as a household heater but maybe used for commercial/industrial use.

No. of Units ×

Model Type

1 ×

SALPHAH2-

20240/LL-C

1 ×

SALPHAH2-

30240/LL-C

1 ×

SALPHAH2-

40240/LL-C

2 ×

SALPHAH2-

20240/LL-C

2 ×

SALPHAH2-

30240/LL-C

2 ×

SALPHAH2-

40240/LL-C

3 ×

SALPHAH2-

20240/LL-C

3 ×

SALPHAH2-

30240/LL-C

3 ×

SALPHAH2-

40240/LL-C

Voltage (Volts) 208 / 240

No. of Emitters ×

Power (Watts)

2 ×

750 / 1000

2 ×

1125 / 1500

2 ×

1500 / 2000

4 ×

750 / 1000

4 ×

1125 / 1500

4 ×

1500 / 2000

6 ×

750 / 1000

6 ×

1125 / 1500

6 ×

1500 / 2000

Total Power of

Unit (Watts) 1500 / 2000 2250 / 3000 3000 / 4000 3000 / 4000 4500 / 6000 6000 / 8000 4500 / 6000 6750 / 9000 9000 / 12000

Current (Amps)

per Emitter 3.6 / 4.2 5.4 / 6.3 7.2 / 8.3 3.6 / 4.2 5.4 / 6.3 7.2 / 8.3 3.6 / 4.2 5.4 / 6.3 7.2 / 8.3

Total Current

(Amps) of Unit 7.2 / 8.3 10.8 / 12.5 14.4 / 16.7 14.4 / 16.7 21.6 / 25.0 28.8 / 33.3 21.6 / 25.0 32.5 / 37.5 43.3 / 50.0

Min. Mounting

Height From

Floor

79 in / 98¼ in

(201 cm /

250 cm)

98¼ in

(250 cm)

108 in / 120 in

(274 cm /

305 cm)

120 in / 144 in

(305 cm /

366 cm)

108 in / 120 in

(274 cm /

305 cm)

132 in / 158 in

(335 cm /

401 cm)

158 in / 177 in

(401 cm /

450 cm)

Min. Distance

From Ceiling

19½ in

(50 cm)

Min. Distance

From Side Wall

39½ in

(100 cm)

59 in

(150 cm)

Dimensions -

W × H × D (inc.

bracket & bars

max pos.)

32¼ in × 9 in × 12¾ in

(82 cm × 23 cm × 32 cm)

32¼ in × 18¼ in × 5¾ in

(82 cm × 47 cm × 15 cm)

32¼ in × 27¼ in × 5¾ in

(82 cm × 69 cm × 15 cm)

Weight 12.3 lb

(5.6 g)

24.7 lb

( 11.2 g)

37.0 lb

(16.8 g)

S P E C I FI C AT I O N

T a b l e 1 . C a n a d a a n d U S A H e a t e r s

• The Alpha H2 heater should only be wall mounted in a

horizontal manner or hung from a ceiling from chains

(not supplied).

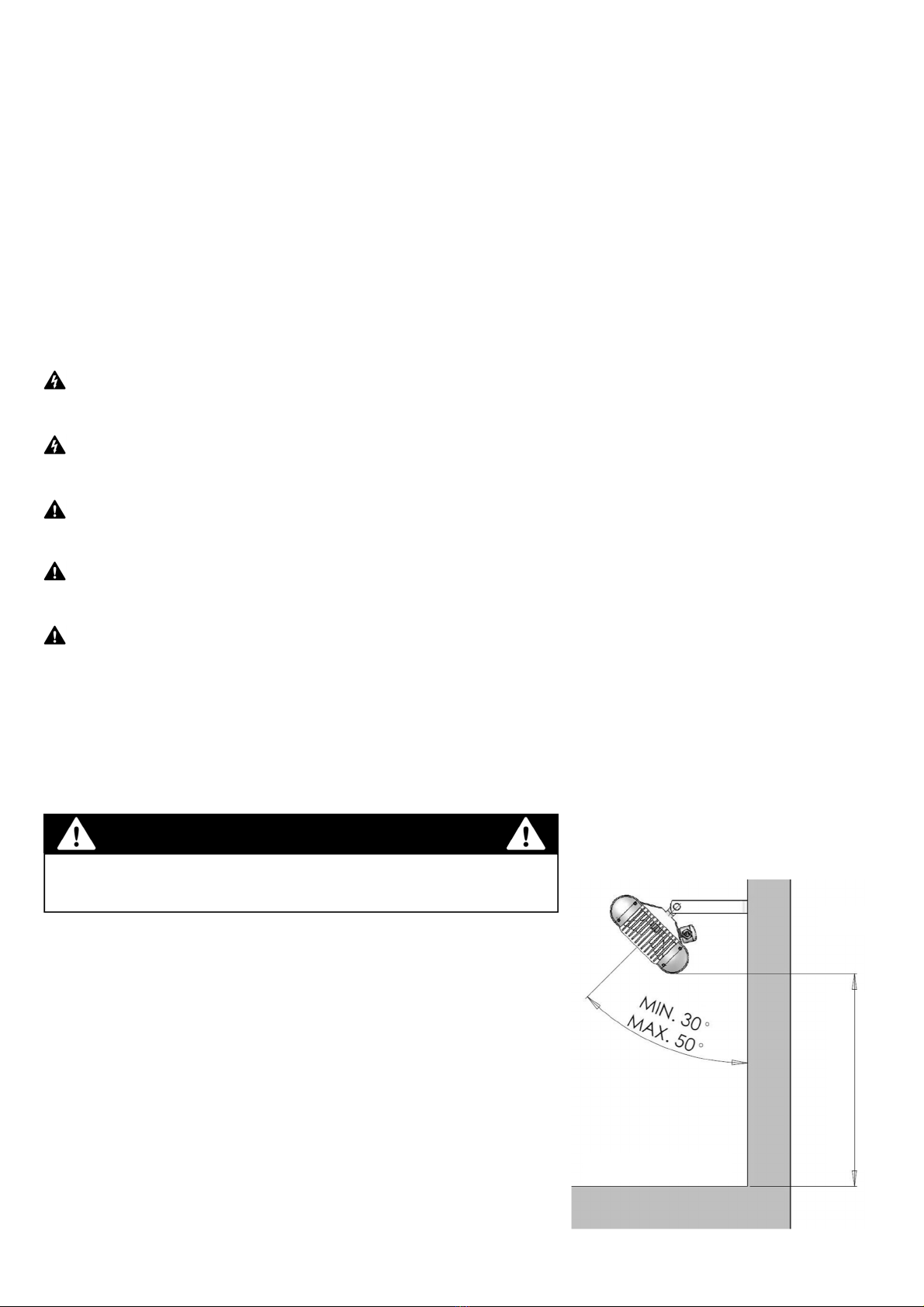

• When wall mounting the Alpha H2 heater in a

horizontal manner, do not position the heater at an

angle more than 50° and less than 30° as shown in

Fig. A.

• When ceiling hanging the Alpha H2 heater, ensure the

minimum distance from the ceiling is adhered to as

shown in Fig. B.

Continued on next page...

I N S TAL L AT I O N

The 208 / 240V version of the heater is fitted with 2 × supply cords measuring 79 inches

(200 cm) for hard wiring.

WARNING:

Wiring procedures and connections should be in accordance with the

National Electric Code (NEC) and local codes.

WARNING: If the supply cord(s) becomes damaged, it must be immediately replaced by a

qualified person in order to avoid a hazard.

CAUTION: Disconnect electric power supply before working on circuit wiring to prevent

electric shock.

CAUTION:

Please observe the minimum safe distance between the heater body and any

inflammable surfaces.

CAUTION: When the electrical connection is outside weatherproof sockets must be used

having ground fault protection (GFCI or GFI).

NOTE: CONSULT A QUALIFIED ELECTRICIAN, IF IN DOUBT.

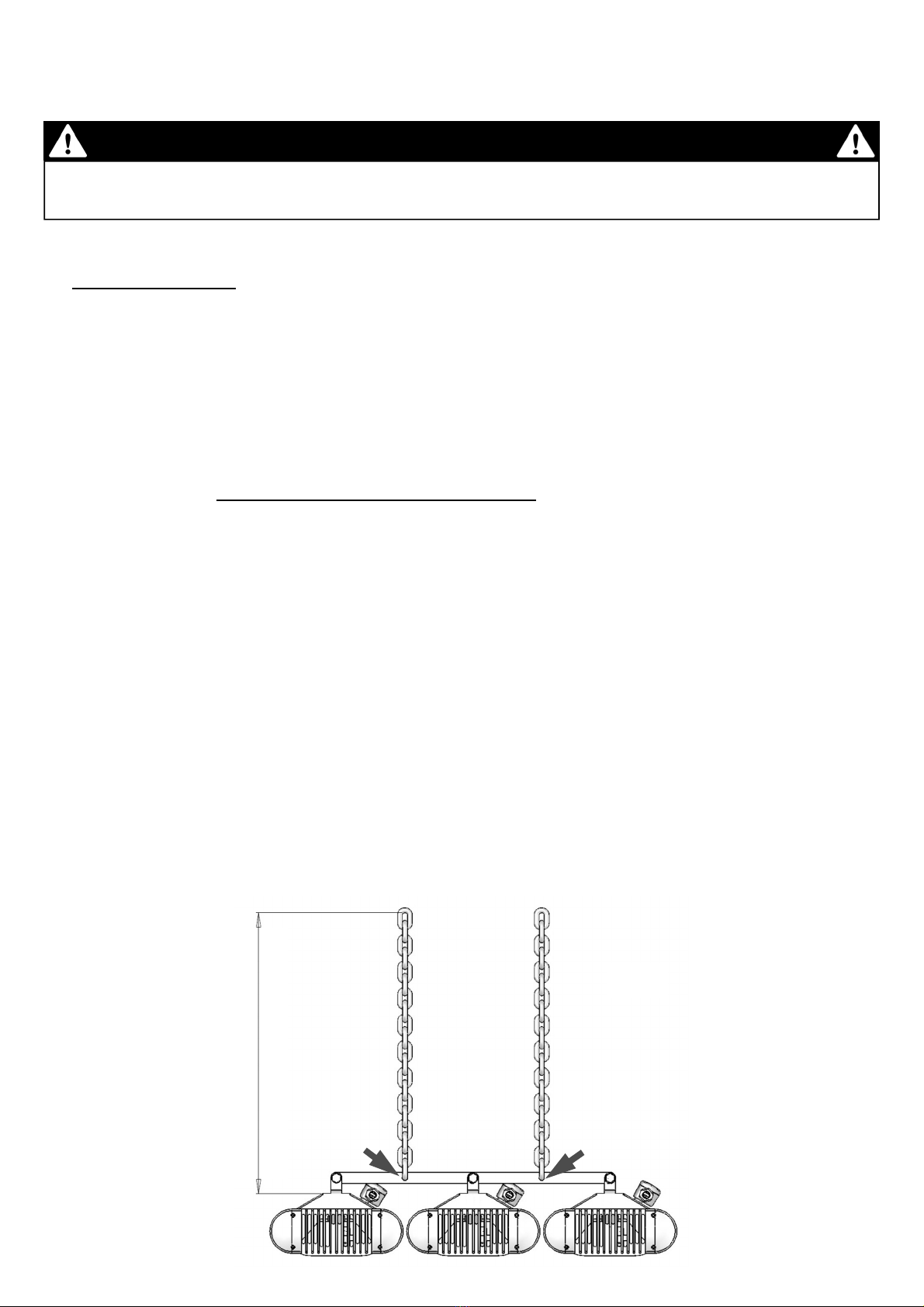

C O N F I G U R AT I O N S

The Alpha H2 heater is a double emitter - it contains two emitters. It can be installed as a

single unit or joined to one or two more single units. Joining bars are available that connect

the heaters together to increase the size and output of the installation. The maximum

number of units that can be joined together is three. Please read the section ‘joining heaters

together’ for information on how this should be done.

M O U N T I N G - 1 × D O U B L E ( T W O E M I T T E R S ) U N I T

C AU T I O N

Switch off/un lug the heater from the mains su ly

when mounting or adjusting the heater osition.

Fig. A

SEE TABLE 1 FOR

MINIMUM HEIGHT

GROUND LEVEL

1. When wall mounting, securely fasten the L-shaped wall

brackets to the mounting surface using both of the fixing

holes in the short part of the bracket (see Fig. D for

mounting hole centres). Please refer to Table 1 for

recommended positioning of the heater. Please note. wall

fixings are not supplied. They should be selected to

substantially support the weight of the installation. If in

doubt contact a professional for advice! When hanging

from a ceiling two equal length and gauge chains are

required and should be selected with fixings that are

adequate to hold the weight of the heater. Again, if in

doubt contact a professional for advice!

2. The heater should be mounted with the terminal box at the

bottom of the heater when being wall mounted.

3. When wall mounting, fix in the required angular position by

tightening the fixing bolts on the brackets at the rear of the

heater as shown in Fig. C. The heater should face directly

down when hanging.

4. Secure the supply cable so it is not resting on the body or

obstructing the air-vents.

Always isolate the heater from the mains su ly when

adjusting the osition.

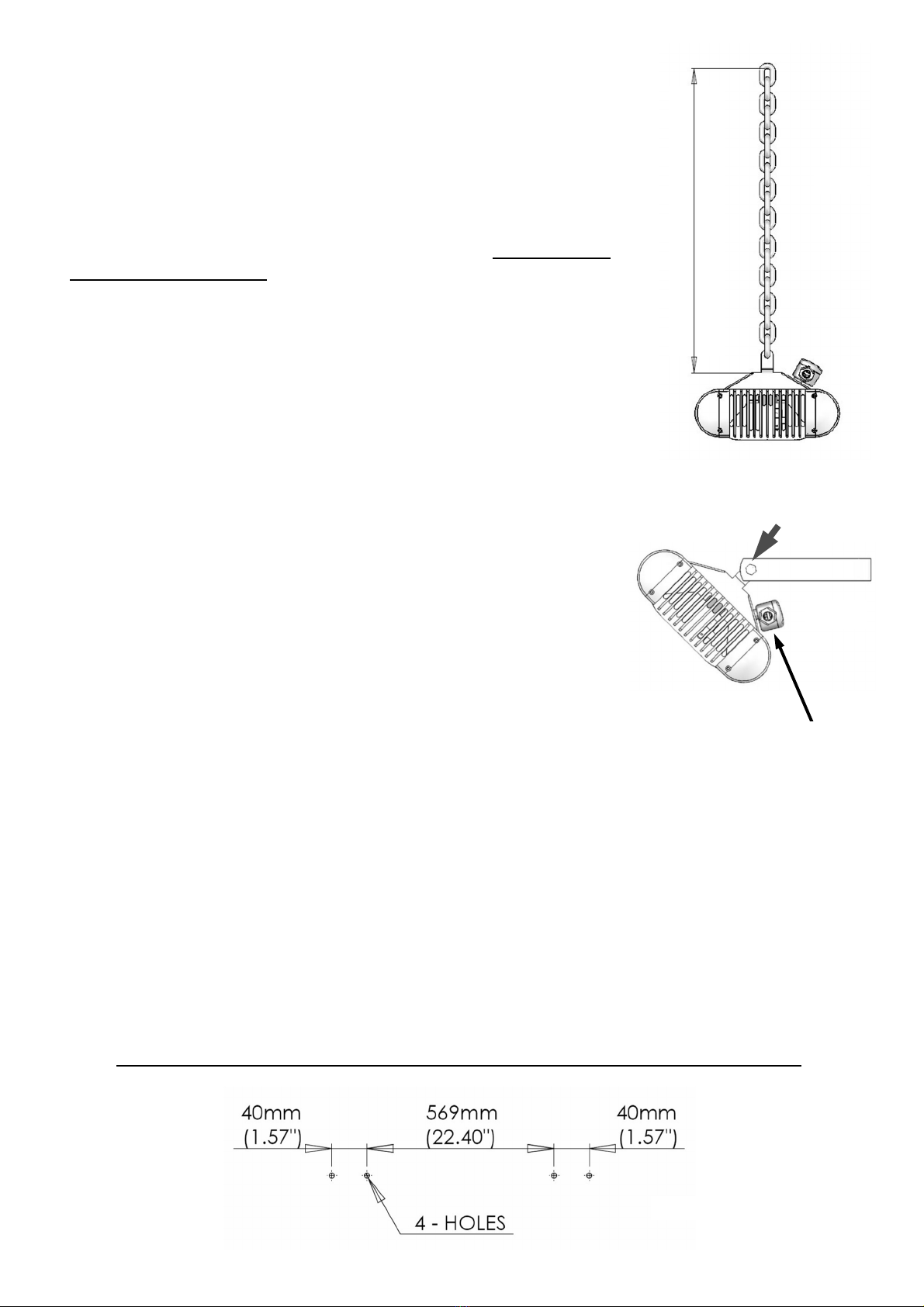

DRILLING HOLE TEMPLATE DIMENSIONS FOR WALL MOUNTED BRACKETS

Fig. B

• Always allow the heater to cool before attempting to

reposition/move. Never attempt to move the heater while it

is switched on!

• Observe the minimum safe distance between the heater

body and inflammable surfaces and objects when mounting.

• Please refer to Table 1 for the recommended positioning of

the heater with regards to minimum distances. Do not install

the heater in a corner!

• Keep out of the reach of children.

Fig. C

TERMINAL

BOX

Fig. D

SEE TABLE 1 FOR MINIMUM

DIMENSIONS

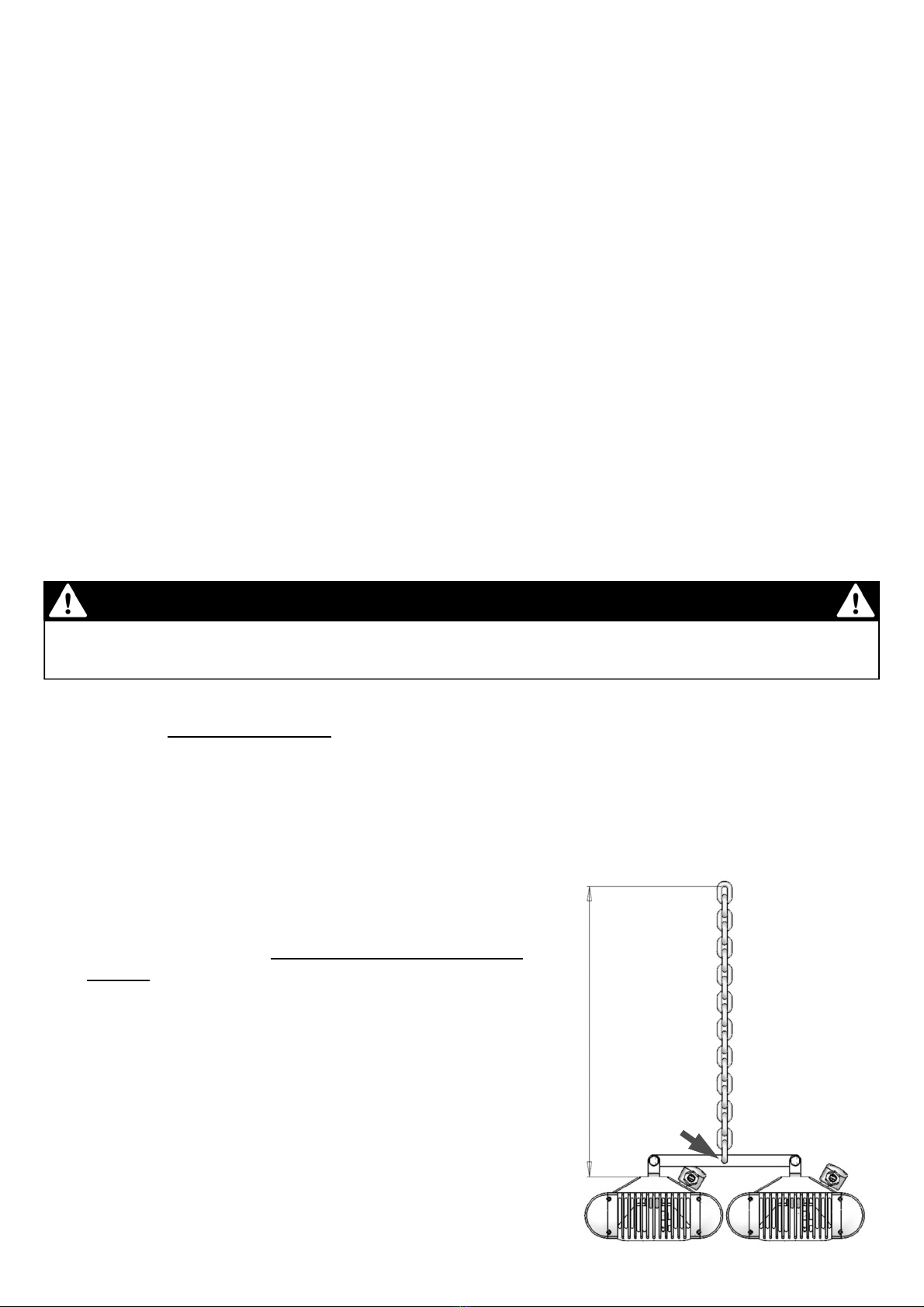

AS S E M B L I N G -

2 × D O U B L E ( T W O E M I T T E R S ) H E AT E R S J O I N E D

1. Take the first heater and place it face down on a flat surface.

2. Take the second heater and place it face down and positioned parallel to the first heater.

3. Push the bolts used to hold the wall brackets through the hole in the brackets on the rear

heaters and slide a shake-proof washer on all the threads from the protruding side.

4. Slide the joining bars on each bolt and fit a washer and nut – do not fully tighten at this

point.

5. Ensure the second heater is still parallel to the first and sitting flat.

Slide the joining bars on each protruding bolt of the other heater to connect them

together and fit the washers and nuts.

7. Again, ensuring the heaters remain flat, fully tighten all four nuts to secure the joining

bars in place.

 When two Alpha H2 heaters are joined they should only be hung from a ceiling on

chains - do not wall mount!

 Always allow the heater to cool before attempting to reposition/move. Never attempt to

move the heater while it is switched on!



Observe the minimum safe distance between the heater body and inflammable

surfaces and objects when mounting.

 Please refer to Table 1 for the recommended

positioning of the heater with regards to

minimum distances. Do not install the heater in a

corner!

 Keep out of the reach of children.

1. Please refer to Table 1 for recommended

positioning of the heater. When hanging from a

ceiling two chains of equal length and gauge are

required and should be selected with fixings that are

adequate to hold the weight of the heater. If in doubt

contact a professional for advice!

Continued on next page...

C AU T I O N

Switch off/un lug the heater from the mains su ly when mounting or adjusting the

heater osition.

C H AI N H AN G IN G -

2 × D O U B L E ( T W O E M I T T E R S ) H E AT E R S J O I N E D

Fig. E

SEE TABLE 1 FOR MINIMUM

DIMENSIONS

AS S E M B L I N G - 3 × D O U B L E ( T W O E M I T T E R S ) HE AT E R S

J O I N E D

1. Take the first heater and lie it face down on a flat surface.

2. Take the second and third heaters and position them face down and parallel to the first.

3. Push the bolts used to hold the wall brackets through the hole in the brackets on the

rear heaters and slide a shake-proof washer on all the threads from the protruding side.

4. Slide the joining bars on each bolt and fit a washer and nut – do not fully tighten at this

point.

5. Position the second heater so it’s parallel to the first and sitting flat.

6. Take the third heater and a joining bar. Push a bolt and washer through the end hole

and place a serrated washer on the other side. Push the bolt through the bracket hole

on heater. Repeat on opposite side and secure with a washer and nut – do not fully

tighten at this point.

7. Position the third heater so it’s parallel to the second.

8. Line-up the bars of the first heater with the brackets of the second heater – they should

go on the inside faces like heater one.

9. Line-up the bars of the third heater with the brackets of the second heater – these

should go on the outside faces like heater three.

10. Push a bolt from the back of the joining bars through the holes putting a serrated

washer on each side of the heater bracket.

11. Fit a washer and nut to both sides and providing the assembly is sitting flat, fully tighten

both sides and also the nuts of the first and third heaters to the joining bars.

12. The heater is now ready for hanging.

2. Fix the heater assembly to the chains via the hole in the centre of the joining bar as

shown in Fig. E and ensure the heaters face directly down when hanging.

3. Secure the supply cable so it is not resting on the body or obstructing the air-vents.

Always isolate the heater from the mains su ly when adjusting the osition.

 When three Alpha H2 heaters are joined they should only be hung from a ceiling on chains

- do not wall mount!

 Always allow the heater to cool before attempting to reposition/move. Never attempt to

move the heater while it is switched on!

 Observe the minimum safe distance between the heater body and inflammable surfaces

and objects when mounting.

 Please refer to Table 1 for the recommended positioning of the heater with regards to min-

imum distances. Do not install the heater in a corner!

 Keep out of the reach of children.

C H AI N H AN G IN G -

3 × D O U B L E ( T W O E M I T T E R S ) H E AT E R S J O I N E D

C AU T I O N

Switch off/un lug the heater from the mains su ly when mounting or adjusting the

heater osition.

Fig. F

1. Please refer to Table 1 for recommended positioning of the heater. When hanging from

a ceiling four chains of equal length and gauge are required and should be selected

with fixings that are adequate to hold the weight of the heater. If in doubt contact a

professional for advice!

2. Fix the heater assembly to the chains via the hole in the centre of the joining bars as

shown in Fig. F. and ensure the heaters face directly down when hanging.

3. Secure the supply cable so it is not resting on the body or obstructing the air-vents.

Always isolate the heater from the mains su ly when adjusting the osition.

SEE TABLE 1 FOR MINIMUM

DIMENSIONS

Altri manuali per Solaira Alpha H2

Questo manuale è adatto per i seguenti modelli

Altri manuali Inforesight Stufa

Inforesight

Inforesight Solaira ICR H1 Series Manuale utente

Inforesight

Inforesight OCF Series Manuale utente

Inforesight

Inforesight Solaira Cosy XL Double Series Manuale utente

Inforesight

Inforesight Solaira Alpha H1 Series Manuale utente

Inforesight

Inforesight Solaira Alpha H2 Manuale utente

Inforesight

Inforesight SCOSYXL230120 Manuale utente

Inforesight

Inforesight Solaira Cosy SCOSY15120 Manuale utente

Inforesight

Inforesight Solaira Cosy XL 277V Double Manuale utente

Inforesight

Inforesight Ziro Series Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
